Tusker / Spicer 1550 Propeller Shaft Parts

UJ Crosses 1

Part	Marked	Vehicles	Page

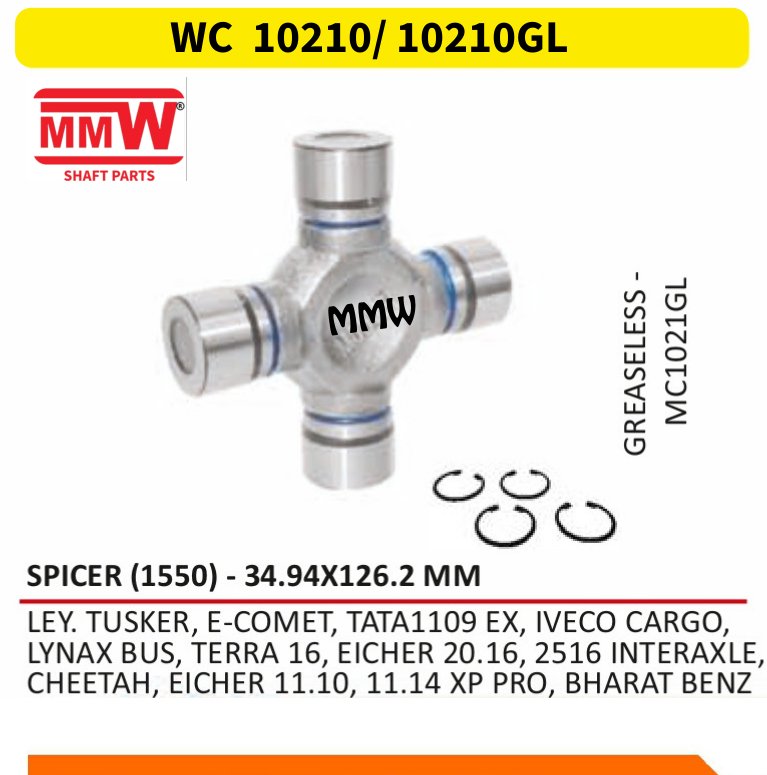

WC 10210/ 10210GL	GREASELESS	LEY.TUSKER, E - COMET, TATA 1109 EX, IVECO CARGO, LYNAXBUS, TERRA 16, EICHER 20.16, 2516 ...	5

Cross Holders / Flange Yokes 5

Part	Length	Holes	Bolt No.	Marked	Vehicles	Page

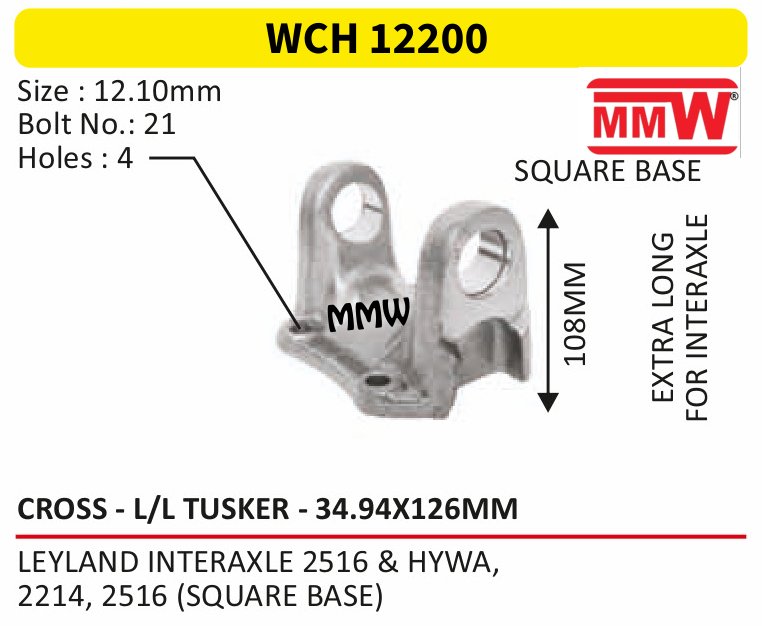

WCH 12200	108 MM	4	21	EXTRA LONG, SQUARE BASE	LEYLAND INTERAXLE 2516 & HYWA, 2214, 2516(SQUARE BASE), Size:10.20mm, Bolt No.: 17	14

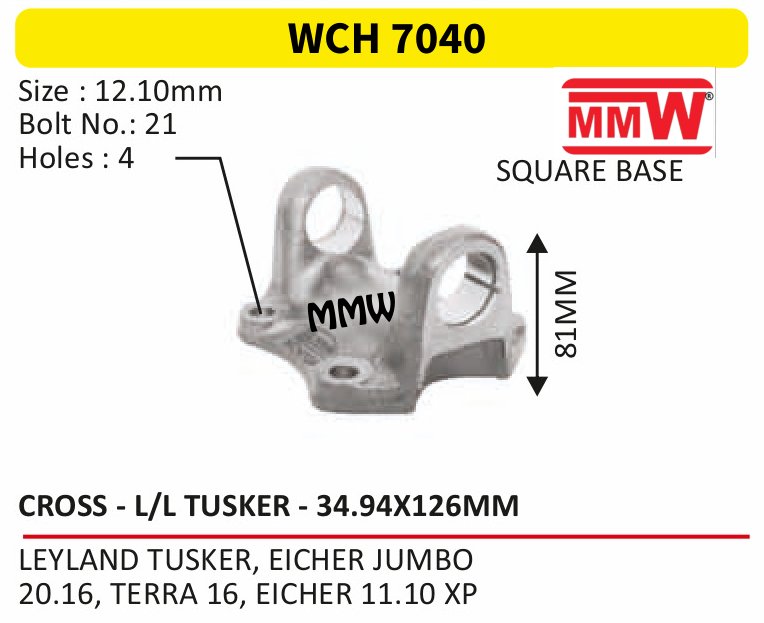

WCH 7040	81 MM	4	21	SQUARE BASE	LEYLAND TUSKER, EICHER JUMBO, 20.16, TERRA 16, EICHER 11.10 XP, Size:10.20mm, Bolt No.: 17	14

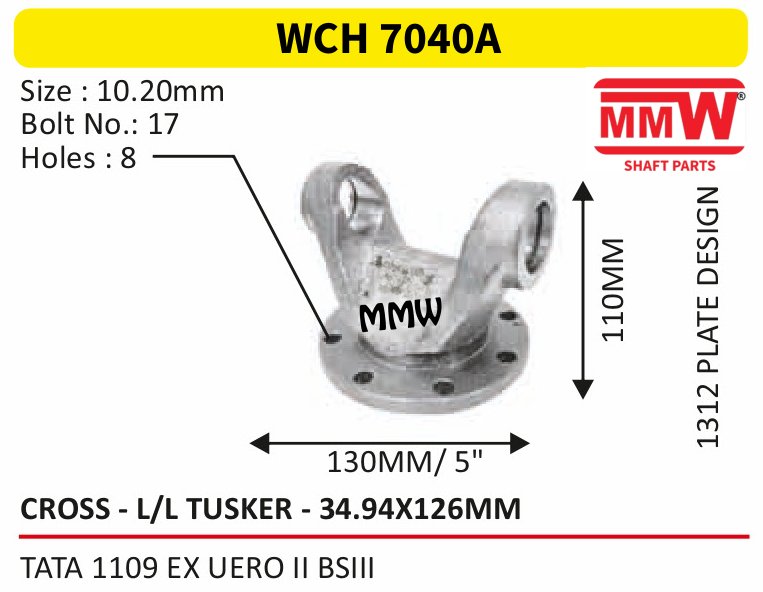

WCH 7040A	110 MM	8	17		TATA 1109 EXUEROIIBSIII, Size :12.10mm, Bolt No.: 19	14

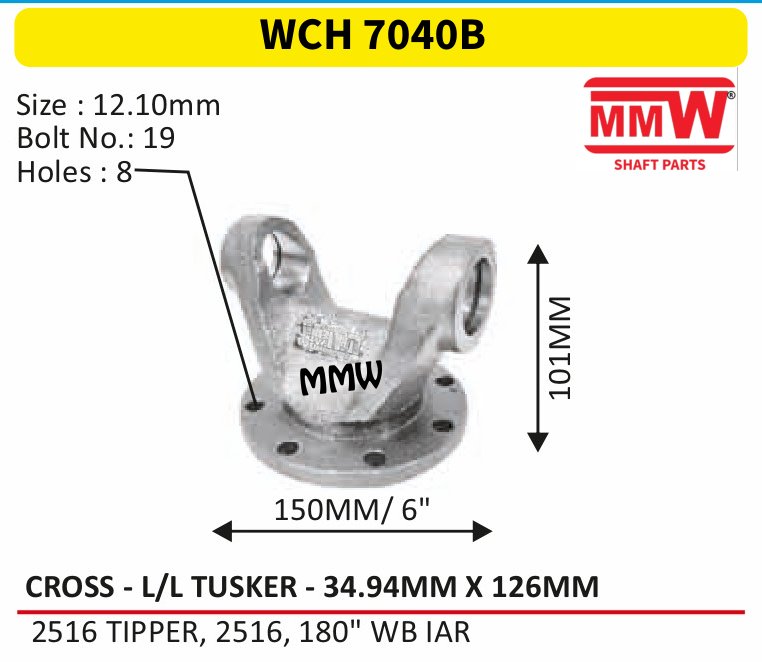

WCH 7040B		8	19		2516 TIPPER, 2516, 180" WBIAR	14

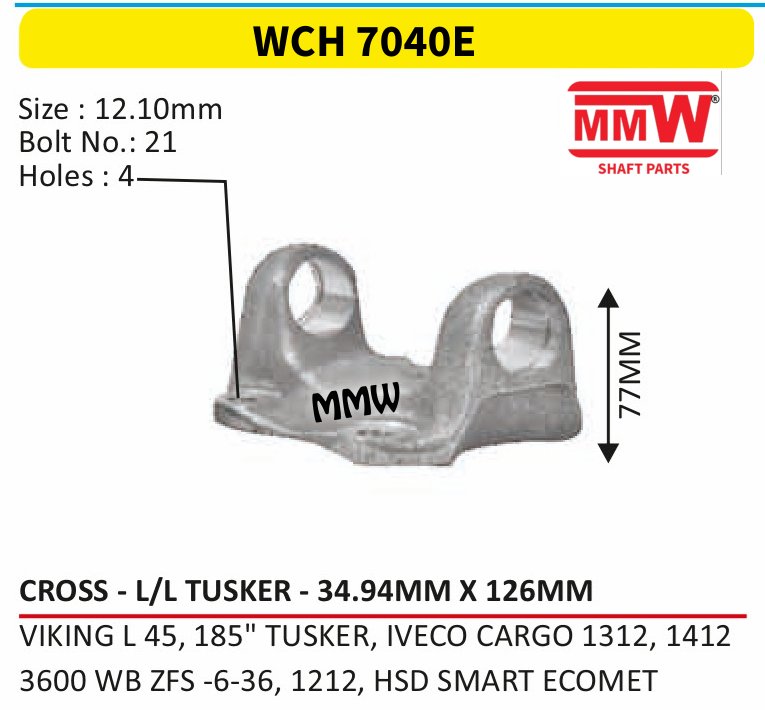

WCH 7040E		4	21		VIKINGL 45, 185" TUSKER, IVECO CARGO 1312, 1412, 3600 WBZFS-6-36, 1212, HSDSMARTECOMET	14

Printed Without a Part Number

These cross holders for the Tusker cross (34.94X126 MM) are on page 14 of our catalogue, but the card has no part number. Ask us on WhatsApp with your vehicle and we will tell you the number, the price and the stock.

Part	Holes	Bolt No.	Plate	Height	Vehicles	Ask

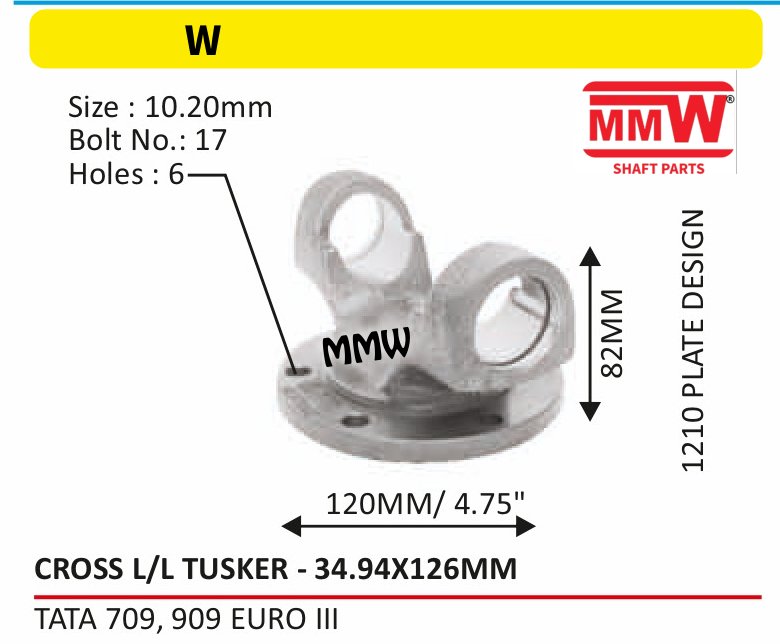

No number printed	6	17	120MM/ 4.75"	82MM 1210 PLATE DESIGN	TATA 709, 909 EURO III	Ask

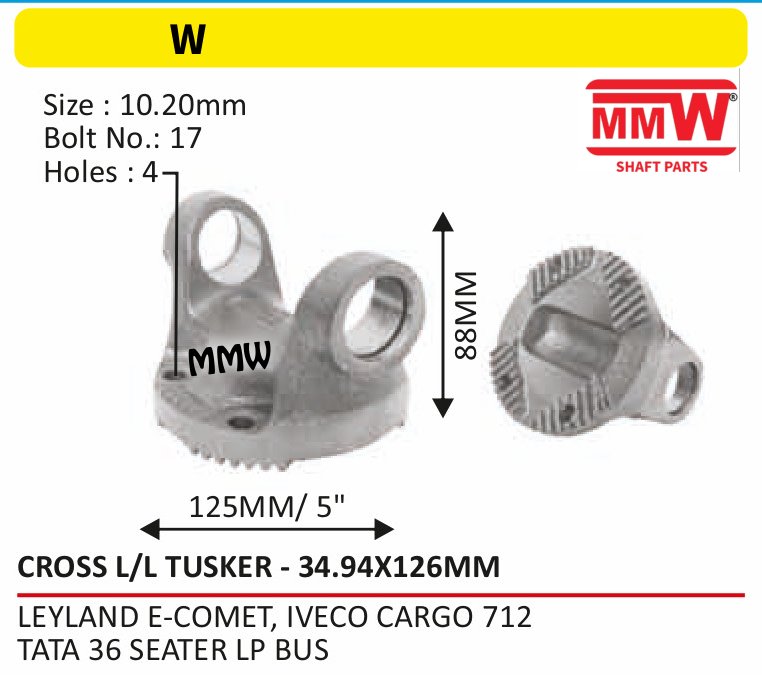

No number printed	4	17	125MM/ 5"	88MM	LEYLAND E-COMET, IVECO CARGO 712, TATA 36 SEATER LP BUS	Ask

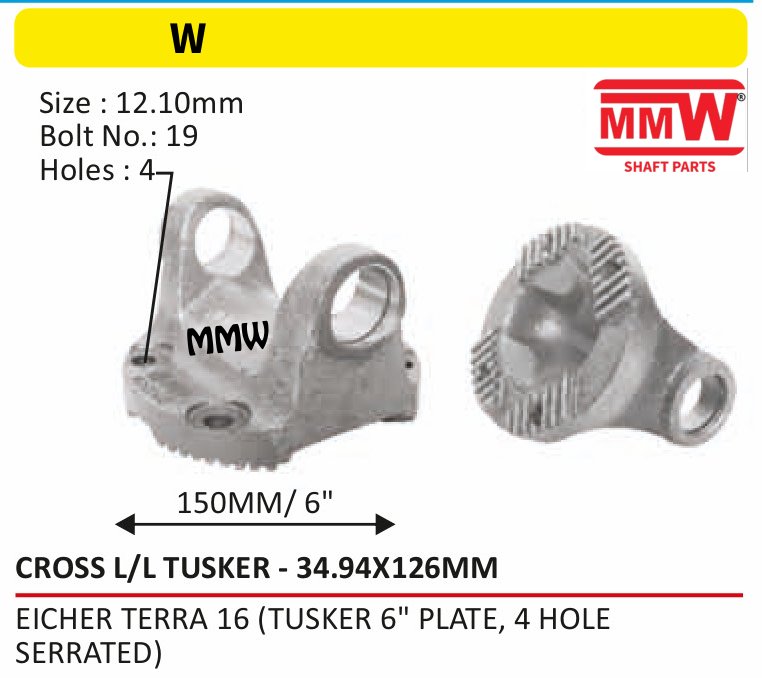

No number printed	4	19	150MM/ 6"		EICHER TERRA 16 (TUSKER 6" PLATE, 4 HOLE SERRATED)	Ask

Half Yokes / Tube Yokes 3

Part	Length	Pipe	Marked	Vehicles	Page

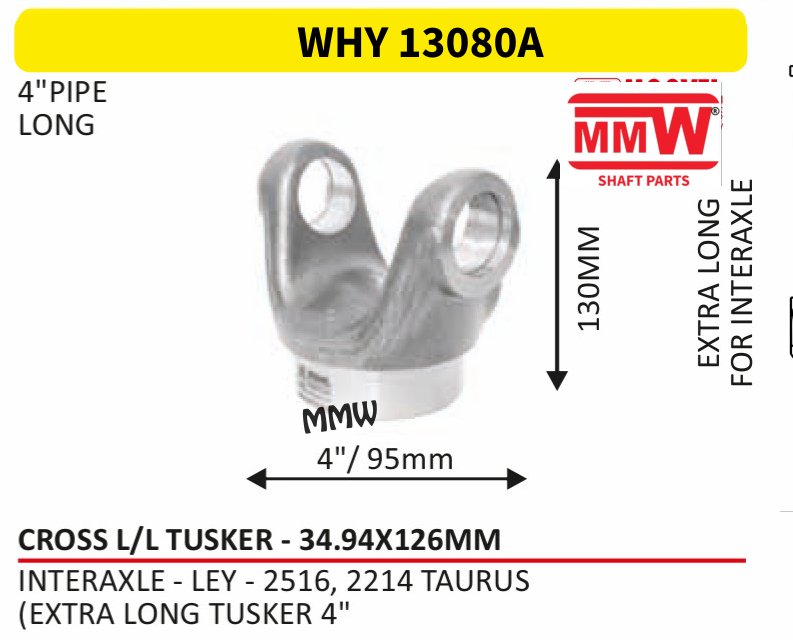

WHY 13080A	130 MM	4"	EXTRA LONG	INTERAXLE - LEY - 2516, 2214 TAURUS, (EXTRA LONG TUSKER 4"	22

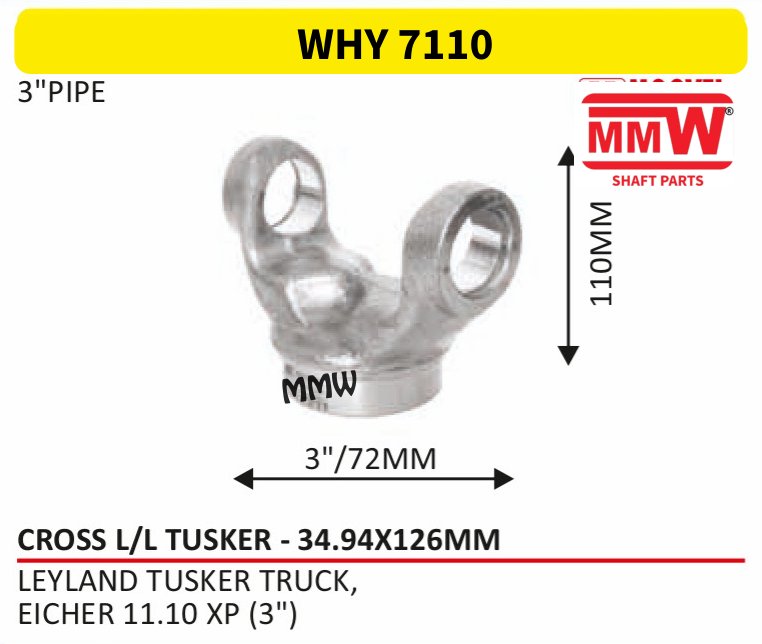

WHY 7110	110 MM	3"		LEYLAND TUSKER TRUCK, EICHER 11.10 XP (3"), LEY.TAURUSUJC - MC 1015 UT - 47.64x135mm	22

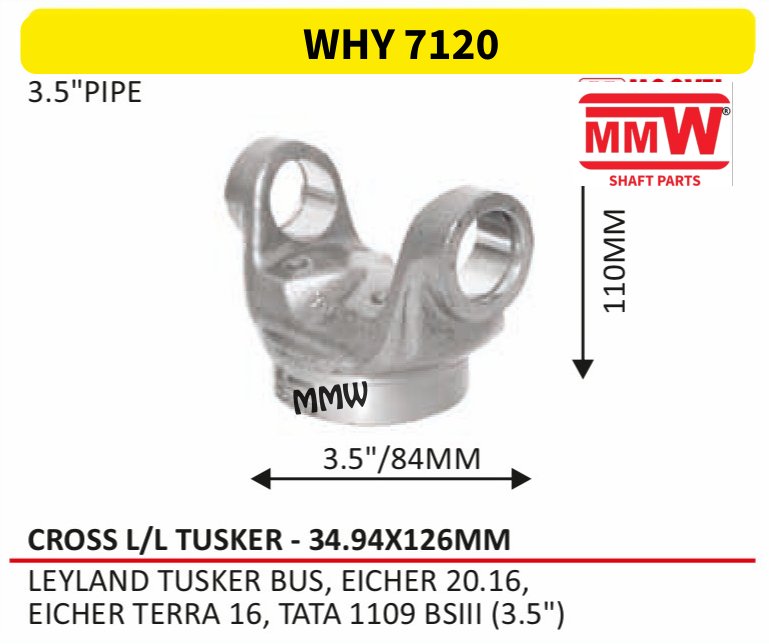

WHY 7120	110 MM	3.5"		LEYLAND TUSKER BUS, EICHER 20.16, EICHER TERRA 16, TATA 1109 BSIII (3.5")	22

Sleeve Yokes 11

Part	Splines	Length	Spline ID	Marked	Vehicles	Page
MFV 7060B	16	200MM/8"			TATA 1109 BSIV, TATA 412, 407 TIPPER, 709, 909 BSIIL, MARCOPOLO	56
MFY 7060	16	8.10"/205mm	44.50MM		LEYLAND TUSKER (BUS), EICHER 11.14 PRO	58
WFM 7060A	16	10"/245mm			EICHER JUMBO 20.16, ECOMET, LEY. 1613 TIPPER, CARGO(SPICER 1550)	57
WFM 7060AA	16	11.25"/282mm			EICHER VIKING, CHEETAH, STAG, LYNX, CT 1613, CARGO 912 HINOBUS(SPICER 1550)	57
WFY 12360	16	13.75"/345 MM		EXTRA LONG	LEY.2516, 2214(INTERAXLE TUSKER CROSS)	34
WFY 17050 B	26	10"/245MM			11.10 XPHWB, T40 LPBuSBSVI	124
WFY 23060	27	9.75"/248mm			TATA 1109 EX EUROLL BSIII, TATA 909 EURO III(SPICER 1550 - 27 SPL.)	56
WFY 23060 B		9.75"/247MM			TATA 1109 EXEUROLLBSIII	124
WFY 7060	16	8.10"/205mm	44.50MM		LEYLAND TUSKER (TRUCK), EICHER 11.10 XP	59
WFY 7060 B		8"/200mm			TATA 1109 BSIV, TATA 412, 407 TIPPER	123
WFY1213	28	11.75"/296mm			EICHER TERRA 16 TIPPER/2016 JUMBO, (SPICER 1550 - 28 SPL.)	58

Rear Teeth 7

Part	Splines	Length	Pipe	Bearing	Marked	Vehicles	Page
WRT 12320MC (GLIDE COAT)	16	11.75"/295 MM	4"			LEY.2516, 2214(INTERAXLE TUSKER CROSS)	34
WRT 12320MCP (GLIDE COAT)	16	11.75"/295 MM	4"			TATA & LEY. 3116, 2516, AMW, EICHER 30.25, 31.25, (INTERAXLE)	34
WRT 13050 Mc		11"/295MM	3.5"			TATA 2515EX, 2516, 2518, LEY.2214, 2516, EICHER, GALAXY BSVI(YOKE 12", PIPE 4")	124
WRT 17060 BC	26	9"/220MM				11.10 XPHWB, T40 LPBusBSVI	124
WRT 23007C (GLIDE COAT)	27	11"/270MM	3.5"	45MM	GLIDE COAT	TATA 1109 EXEUROLLBSIII	56
WRT 23070 BC		270MM/11"		45MM		TATA 1109 EXEUROLLBSIII	124
WRT 23070AC (GLIDE COAT)	27						56

Sleeve Yoke & Rear Teeth Sets 17

Part	Splines	Length	Pipe	Bearing	Marked	Vehicles	Page
WYT 12350C (GLIDE COAT)	16	4"/95 MM	4"			LEY.2516, 2214, MRT 1232 MC, (INTERAXLE TUSKER CROSS)	34
WYT 12350PC (GLIDE COAT)	16	11.75"/295 MM	4"		EXTRA LONG	TATA & LEY.3116, 2516, AMW, EICHER 30.25, 31.25 (INTERAXLE)	34
WYT 14050BBC (GLIDE COAT)	16	245MM/9.5"			GLIDE COAT	TATA 1109 BSIV, TATA 412, 407 TIPPER	56
WYT 14050BC (GLIDE COAT)	16	230MM/9"		40MM		TATA 1109 BSIV, TATA 412, 407 TIPPER	56
WYT 17050 (PLAIN)/ 17050C	16	10"/245MM			PLAIN, FULL TEETH	EICHER JUMBO 20.16, ECOMET, LEY., 1613 TIPPER, CARGO(SPICER 1550)	57
WYT 17050 BC	26	10"/245MM				11.10 XPHWB, T40 LPBusBSVI, MSL, SERIES-(U JCROSS	124
WYT 17050A (PLAIN)/ 17050AC (COATED)	16	11.25"/282MM			PLAIN, FULL TEETH	EICHER VIKING, CHEETAH, STAG, LYNX, CT1613	57
WYT 17050AAC	28	10.75"/270mm				EICHER TERRA 16 TIPPER/2016 JUMBO, (SPICER 1550 - 28 SPL.)	58
WYT 17050AH (PLAIN)/ 17050AHC (COATED)	16	11.25"/282MM			PLAIN, HALF TEETH	EICHER VIKING, CHEETAH, STAG, LYNX, CT1613	57
WYT 17050H (PLAIN)/ 17050HC (COATED)	16	10/245MM			PLAIN, HALF TEETH, FULL TEETH	EICHER JUMBO 20.16, ECOMET, LEY., 1613 TIPPER, CARGO(SPICER 1550)	57
WYT 23050 BC		270MM/11"		45MM		TATA 1109 EXEUROLLBSIII	124
WYT 23050AC (GLIDE COAT)	27	9.75"/248MM			GLIDE COAT		56
WYT 23050C (GLIDE COAT)	27	11"/270MM	3.5"	45MM		TATA 1109EX EUROLL BSIII	56
WYT 7050 (PLAIN)/ 7050C (COATED)	16	8.10"/205MM	3"		PLAIN, FULL TEETH	LEYLAND TUSKER, (TRUCK, EICHER 11.10XP(PIPE-3")	58
WYT 7050A (PLAIN)/ 7050AC (COATED)	16	8.10"/205MM	3.5"		PLAIN, FULL TEETH	LEYLAND TUSKER (BUS), EICHER 11.14 PRO(PIPE-3.5")	58
WYT 7050AH (PLAIN)/ 7050AHC (COATED)	16		3.5"		PLAIN, HALF TEETH	LEYLAND TUSKER(BUS), EICHER 11.14 PRO(PIPE-3.5")	59
WYT 7050H (PLAIN)/ 7050HC (COATED)	16	8.10"/205MM	3"		PLAIN, COATED, HALF TEETH	(TRUCK, EICHER 11.10XP(PIPE-3")	58

Front Teeth 2

Part	Splines	Length	Pipe	Vehicles	Page

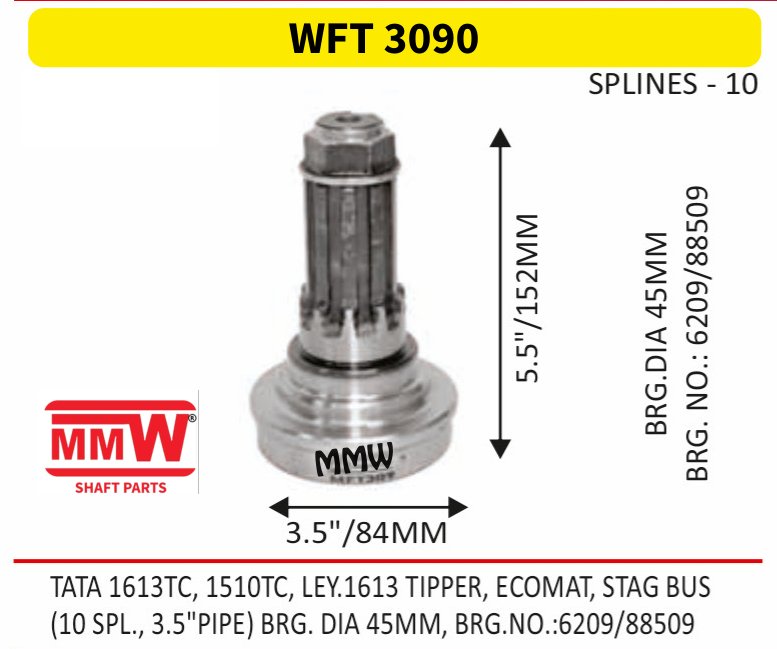

WFT 3090	10	5.5"/152 MM	3.5"	TATA 1613TC, 1510TC, LEY.1613 TIPPER, ECOMAT, STAG BUS	80

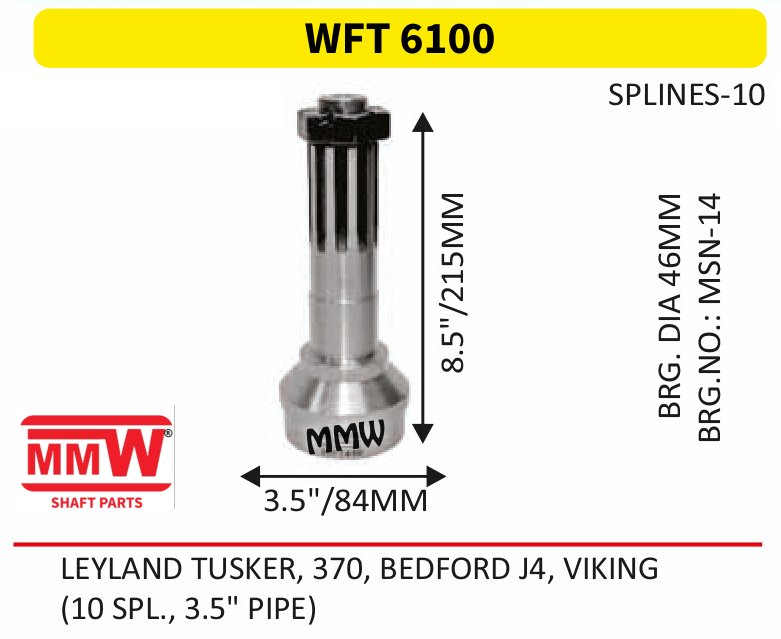

WFT 6100	10	8.5"/215 MM	3.5"	LEYLAND TUSKER, 370, BEDFORDJ 4, VIKING	85

Centre Coupling Flanges 5

Part	Splines	Length	Holes	Bolt No.	Outer Dia	Marked	Vehicles	Page

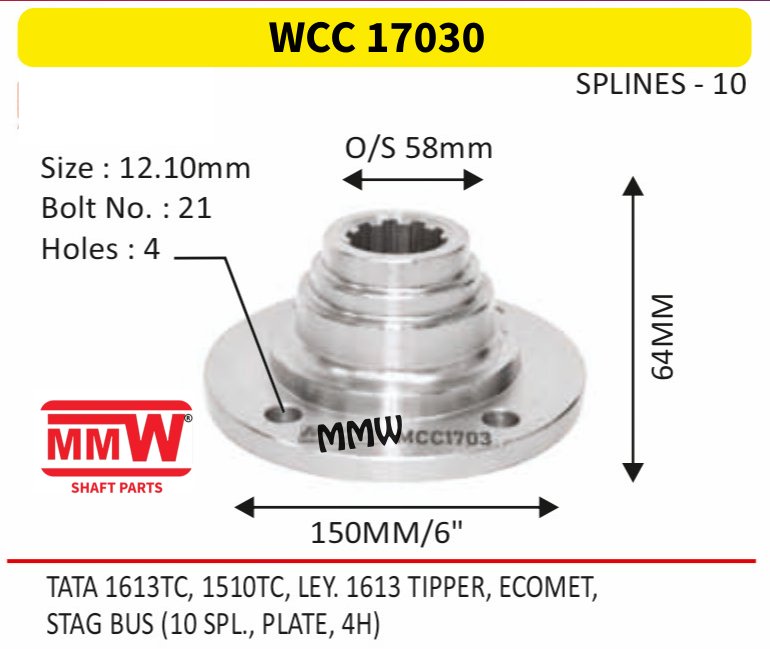

WCC 17030	10	64 MM	4	21	58MM		TATA 1613TC, 1510TC, LEY. 1613 TIPPER, ECOMET	80

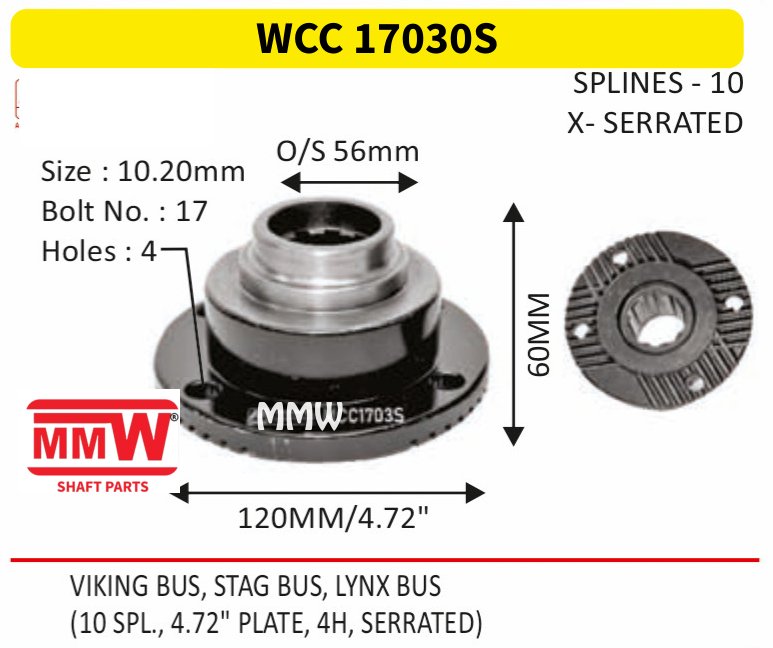

WCC 17030S	10	60 MM	4	17	56MM	SERRATED	VIKING BUS, STAG BUS, LYNXBUS, (10 SPL., 4.72" PLATE, 4H, SERRATED)	80

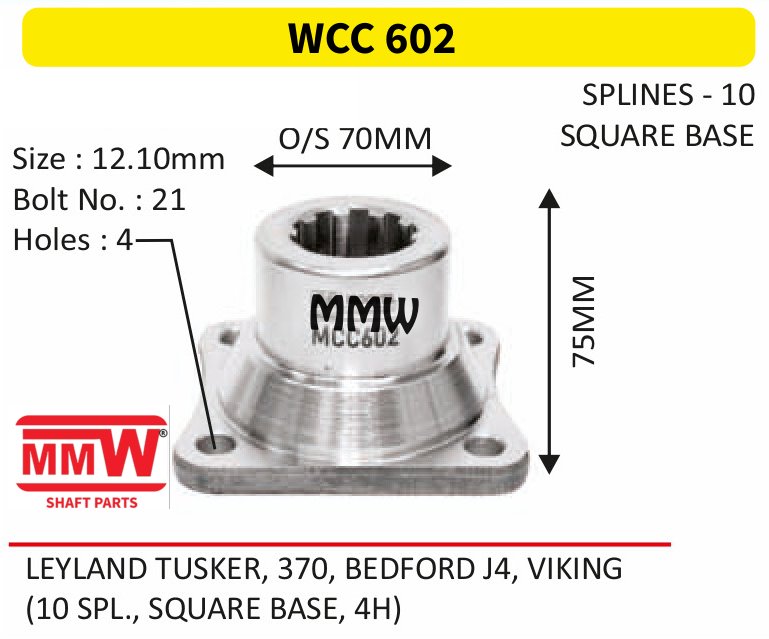

WCC 602	10	75 MM	4	21	70MM	SQUARE BASE	LEYLAND TUSKER, 37O, BEDFORDJ 4, VIKING	85

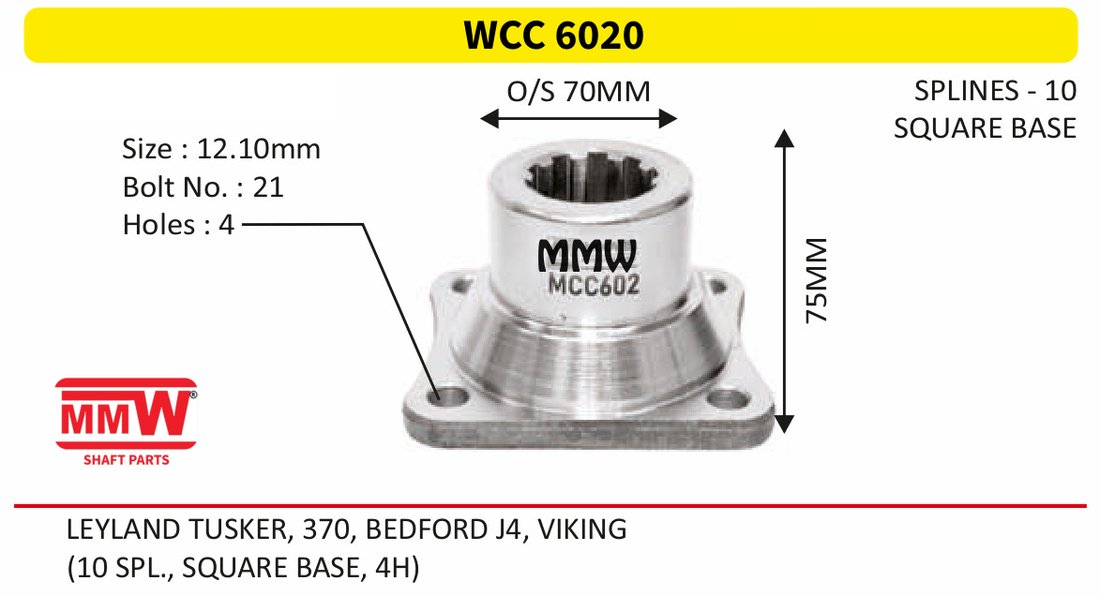

WCC 6020	10	75 MM	4	21	70MM	SQUARE BASE	LEYLAND TUSKER, 370, BEDFORD J4, VIKING	85

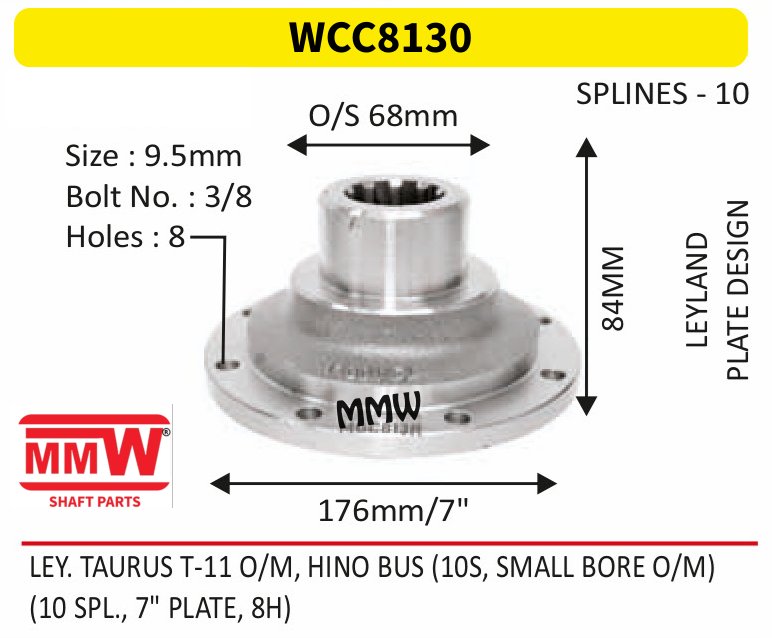

WCC8130	10	84 MM	8	3	68MM		LEYLAND	85

Pinion / Diff Coupling Flanges 2

Part	Splines	Length	Holes	Bolt No.	Outer Dia	Vehicles	Page

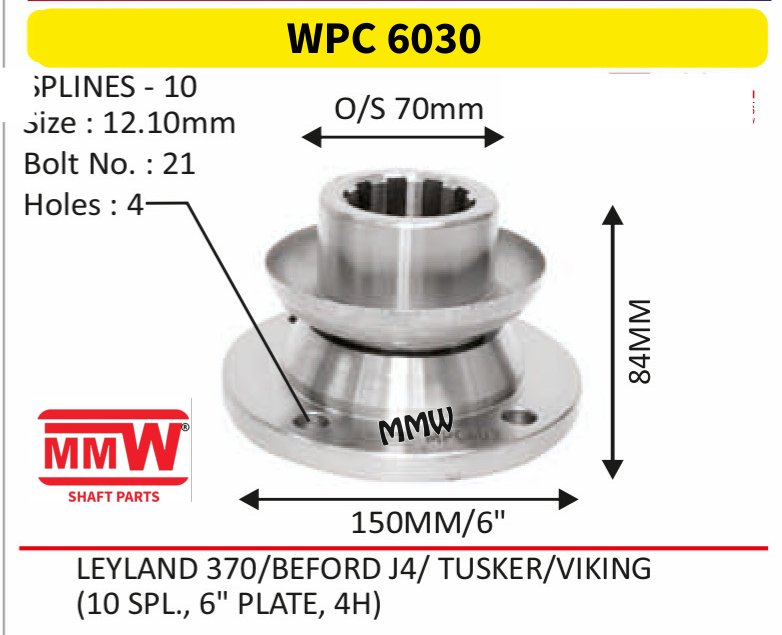

WPC 6030	10		4	21	70MM	LEYLAND 370/BEFORDJ 4/TUSKER/VIKING	90

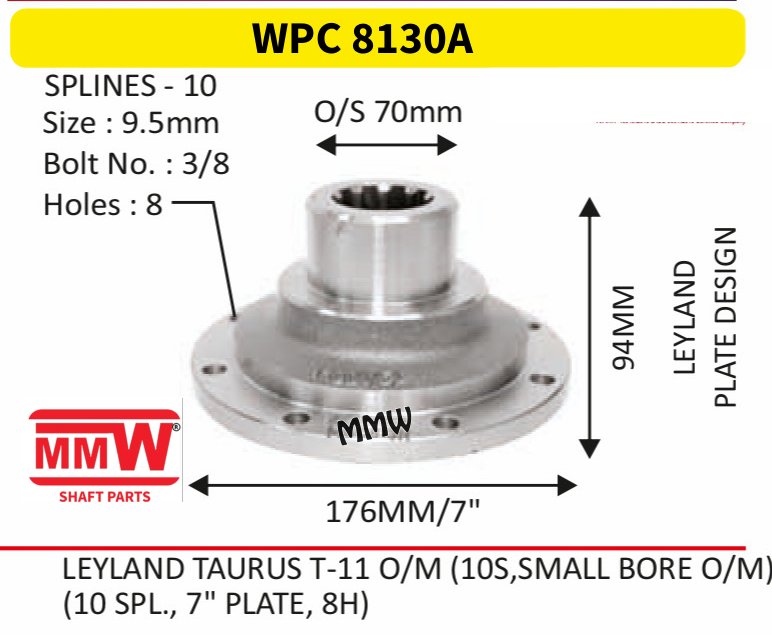

WPC 8130A	10	94 MM	8	3	70MM	LEYLAND, LEYLANDTAURUST-11O/M(10S, SMALLBOREO/M)	90

JCB / Earthmoving Shafts 1

Part	Length	Holes	Marked	Vehicles	Page

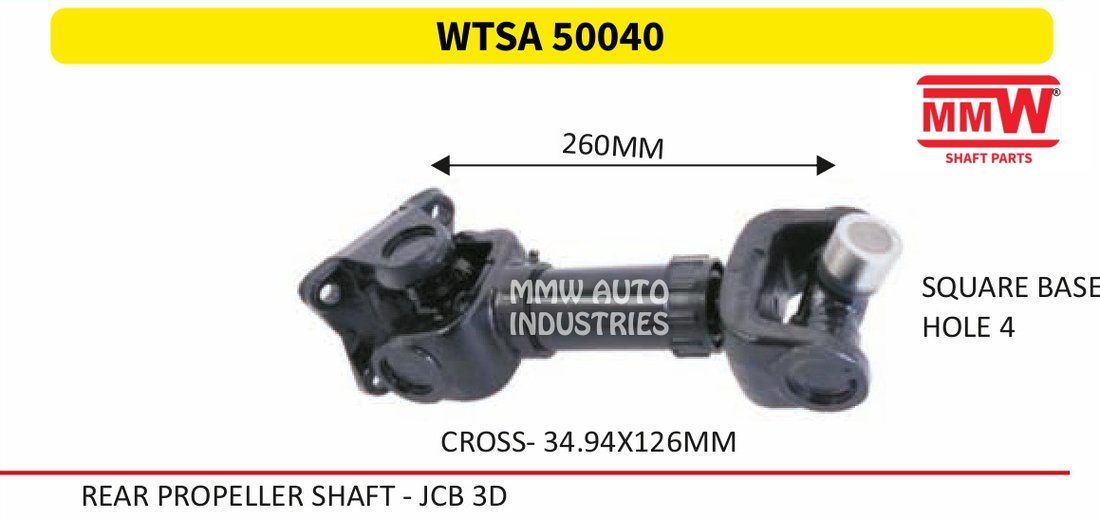

WTSA 50040	260 MM	4	SQUARE BASE	REAR PROPELLER SHAFT - JCB 3D	110

Other Parts 1

Part	Length	Bearing	Vehicles	Page

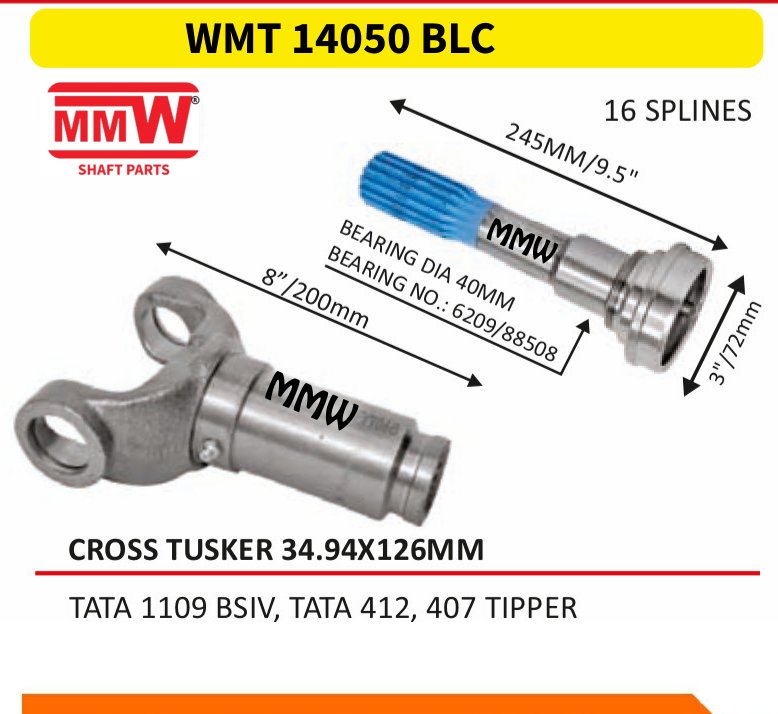

WMT 14050 BLC	8"/200mm	40MM	TATA 1109 BSIV, TATA 412, 407 TIPPER	123

Same Cross Size

Questions About the Tusker / Spicer 1550 Shaft

Which UJ cross fits the Tusker / Spicer 1550 propeller shaft?

The Tusker / Spicer 1550 shaft takes the MC 1021, 34.94X126 MM UJ cross: MMW part WC 10210/ 10210GL.

Which parts of the Tusker / Spicer 1550 shaft does MMW make?

1 uj cross, 5 cross holders / flange yokes, 3 half yokes / tube yokes, 11 sleeve yokes, 7 rear teeth, 17 sleeve yoke & rear teeth sets, 2 front teeth, 5 centre coupling flanges, 2 pinion / diff coupling flanges, 1 jcb / earthmoving shaft, 1 other part. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
