Tata 1312 Propeller Shaft Parts

UJ Crosses 1

Part	Marked	Vehicles	Page

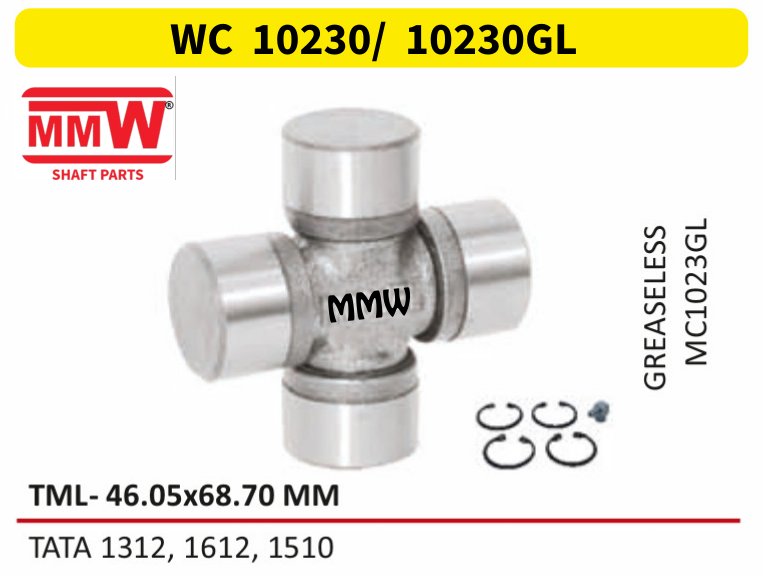

WC 10230/ 10230GL	GREASELESS	TATA 1312, 1612, 1510	5

Cross Holders / Flange Yokes 4

Part	Holes	Bolt No.	Vehicles	Page

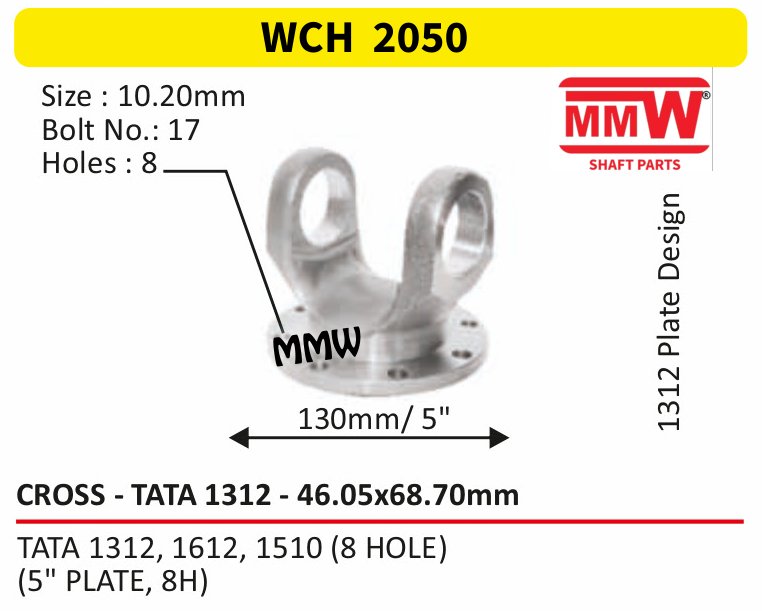

WCH 2050	8	17	TATA 1312, 1612, 1510 (8 HOLE), (5" PLATE, 8H)	8
WCH 2050A	6	17	TATA 1312, 1612, 1510 TIPPER (6 HOLE), (4.72" PLATE, 6H)	8

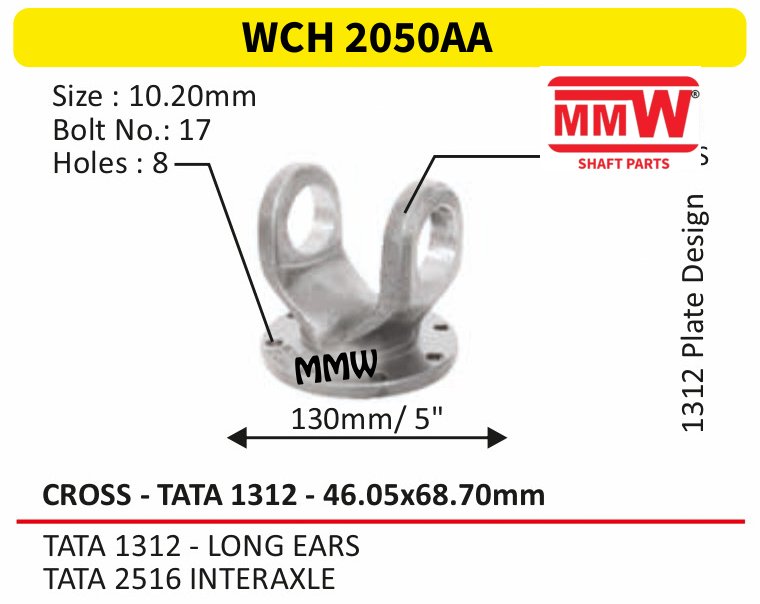

WCH 2050AA	8	17	TATA 1312 - LONG EARS, TATA 2516 INTERAXLE	8

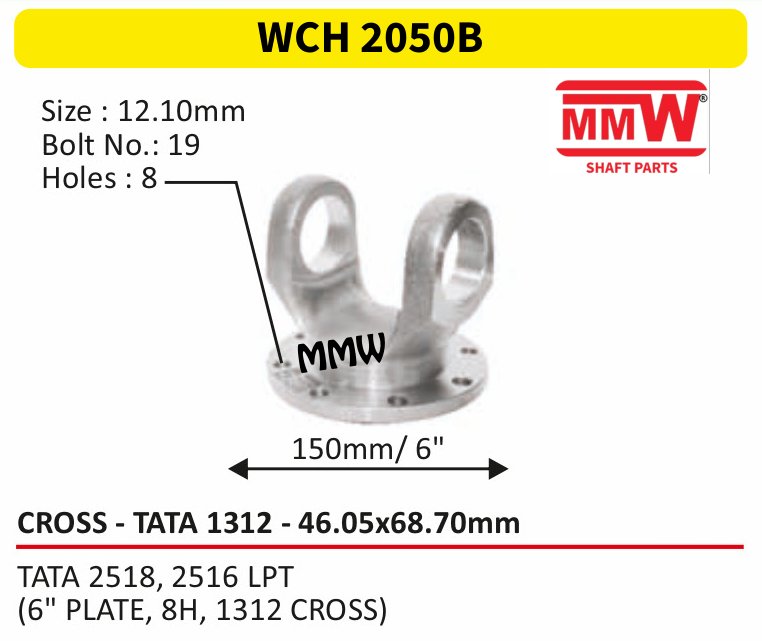

WCH 2050B	8	19	TATA 2518, 2516 LPT, (6" PLATE, 8H, 1312 CROSS)	8

Half Yokes / Tube Yokes 2

Part	Length	Pipe	Vehicles	Page

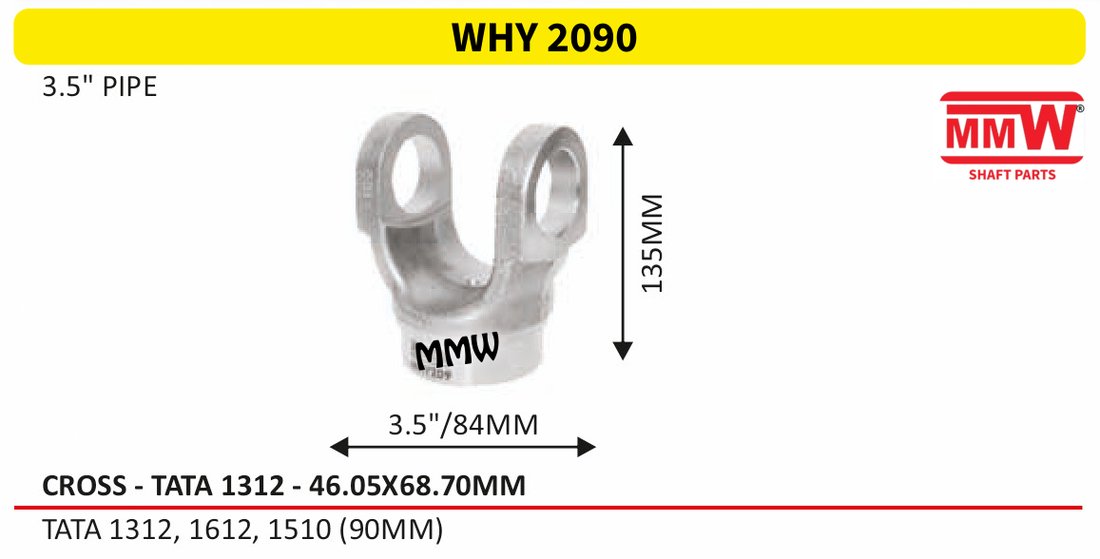

WHY 2090	135 MM	3.5"	TATA 1312, 1612, 1510 (90 MM)	18

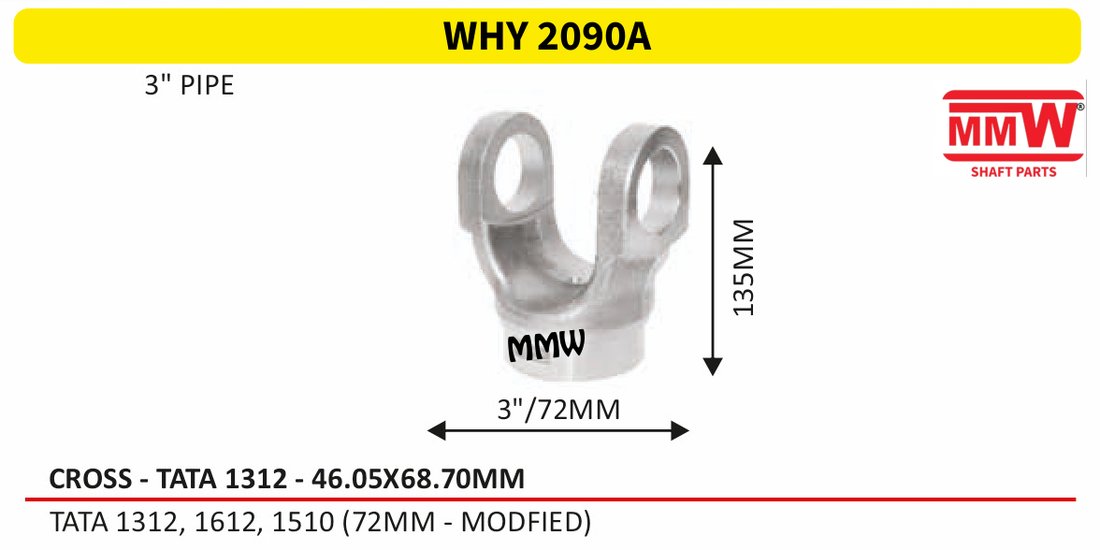

WHY 2090A	135 MM	3"	TATA 1312, 1612, 1510 (72 MM - MODFIED)	18

Sleeve Yokes 3

Part	Splines	Length	Spline ID	Marked	Vehicles	Page
WFY 12070	16	12.5/315MM	50.80MM	EXTRA LONG	TATA 1312, 1612(EXTRA LONG FOR INTERAXLE - 2516	25
WFY 2070	16	10.5/265 MM	50.80MM		TATA 1312, 1512, 1516, 1612, 1613	24
WFY 2070A	24	10.5"/265 MM	50.80MM		TATA 1613 TURBO (24 SPLINE)	24

Rear Teeth 6

Part	Splines	Length	Pipe	Teeth OD	Marked	Vehicles	Page
WRT 12080	16	13.5"/340 MM	3.5"	50.80MM	EXTRA LONG	TATA 1312, 1612(EXTRA LONG FOR INTERAXLE-2516	25
WRT 12080C [GLIDE COAT]	16	13.5"/340 MM	3.5"	50.80MM	GLIDE COAT, EXTRA LONG	TATA 1312, 1612(EXTRA LONG FOR INTERAXLE-2516	25
WRT 2080	16	11.5"/290 MM	3.5"	50.80MM		TATA 1312, 1512, 1516, 1612, 1613	24
WRT 2080A	24	11.5"/290 MM	3.5"	50.80MM		TATA 1613 TURBO (24 SPLINE)	24
WRT 2080AC [GLIDE COAT]	24	11.5"/290 MM	3.5"	50.80MM		TATA 1613 TURBO(24 SPLINE)	24
WRT 2080C [GLIDE COAT]	16	11.5"/290 MM	3.5"	50.80MM	GLIDE COAT	TATA 1312, 1512, 1516, 1612, 1613	24

Sleeve Yoke & Rear Teeth Sets 6

Part	Splines	Length	Pipe	Marked	Vehicles	Page
WYT 12250	16	13.5"/340 MM	3.5"	EXTRA LONG	TATA 1312, 1612(EXTRA LONG FOR INTERAXLE - 2516	25
WYT 12250C [GLIDE COAT]	16	12.5/315 MM	3.5"	EXTRA LONG	TATA 1312, 1612(EXTRA LONG FOR INTERAXLE - 2516	25
WYT 2060	16	11.5"/290 MM	3.5"		TATA 1312, 1512, 1612, 1613	24
WYT 2060A	24	10.5"/265 MM	3.5"		TATA 1613 TURBO ( 24 SPLINE)	24
WYT 2060AC [GLIDE COAT]	24	10.5"/265 MM	3.5"		TATA 1613 TURBO ( 24 SPLINE)	24
WYT 2060C [ GLIDE COAT]	16	11.5"/290 MM	3.5"		TATA 1312, 1512 1516, 1612, 1613	24

Long Forks 1

Part	Splines	Length	Vehicles	Page
WRY 2060	24	12.5"/315 MM	TATA 1312, LPK 1212, LPT 9.6T	25

Rear Housings / Sleeve Bottles 1

Part	Splines	Length	Vehicles	Page
WST 2060	24	6.5"/165 MM	TATA 1312, LPK 1212, LPT 9.6T	25

Long Fork & Sleeve Bottle Sets 1

Part	Splines	Length	Vehicles	Page
WRYST 2060	24	6.5"/165 MM	TATA 1312, LPK 1212, LPT 9.6T	25

Front Teeth 1

Part	Splines	Length	Pipe	Vehicles	Page

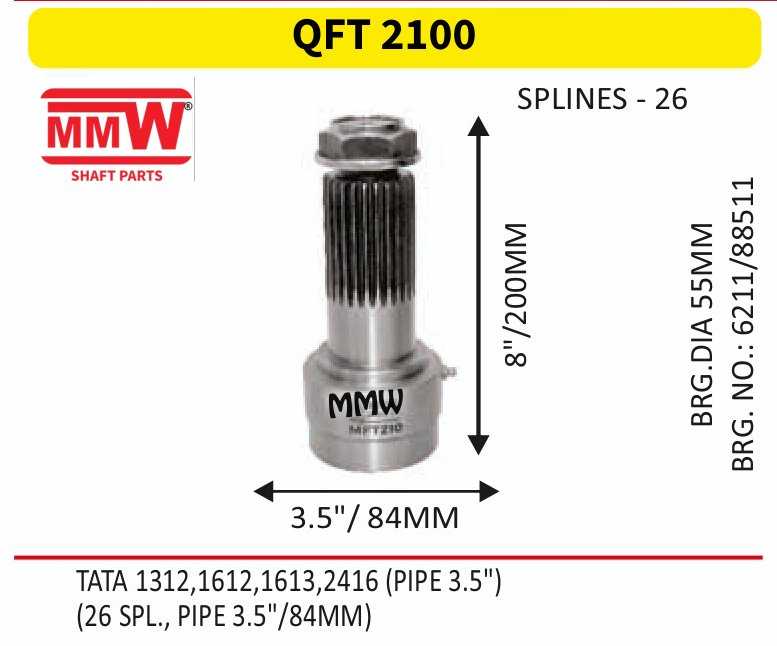

QFT 2100	26	8"/200 MM	3.5"	TATA 1312, 1612, 1613, 2416 (PIPE 3.5")	75

Same Cross Size

Questions About the Tata 1312 Shaft

Which UJ cross fits the Tata 1312 propeller shaft?

The Tata 1312 shaft takes the MC 1023, 46.05X68.70 MM UJ cross: MMW part WC 10230/ 10230GL.

Which parts of the Tata 1312 shaft does MMW make?

1 uj cross, 4 cross holders / flange yokes, 2 half yokes / tube yokes, 3 sleeve yokes, 6 rear teeth, 6 sleeve yoke & rear teeth sets, 1 long fork, 1 rear housing / sleeve bottle, 1 long fork & sleeve bottle set, 1 front teeth. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
