RSB 490 Propeller Shaft Parts

UJ Crosses 2

Part	Marked	Vehicles	Page
MC 1031		TATA&LEY.3118, 3516, 4018, 2518	116

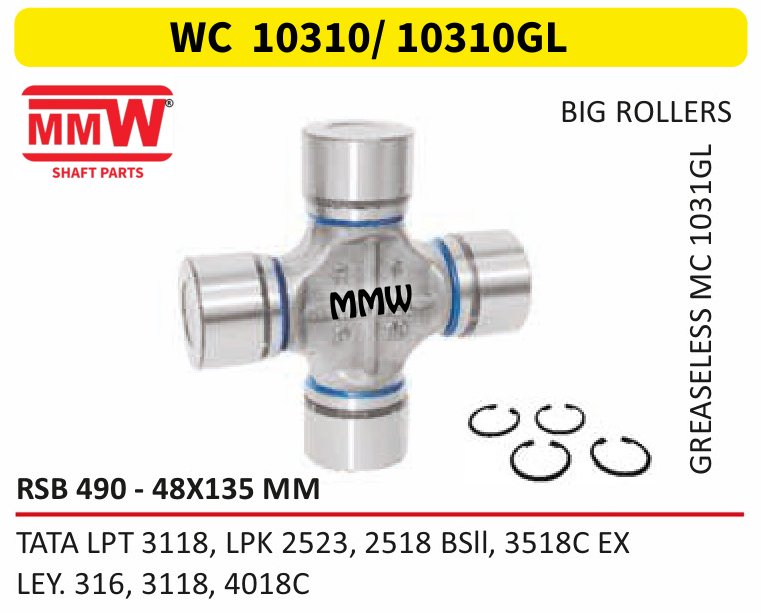

WC 10310/ 10310GL	BIG ROLLERS	TATA LPT 3118, LPK 2523, 2518 BSII, 3518 CEX, LEY.316, 3118, 4018C	6

Cross Holders / Flange Yokes 6

Part	Length	Holes	Bolt No.	Marked	Vehicles	Page

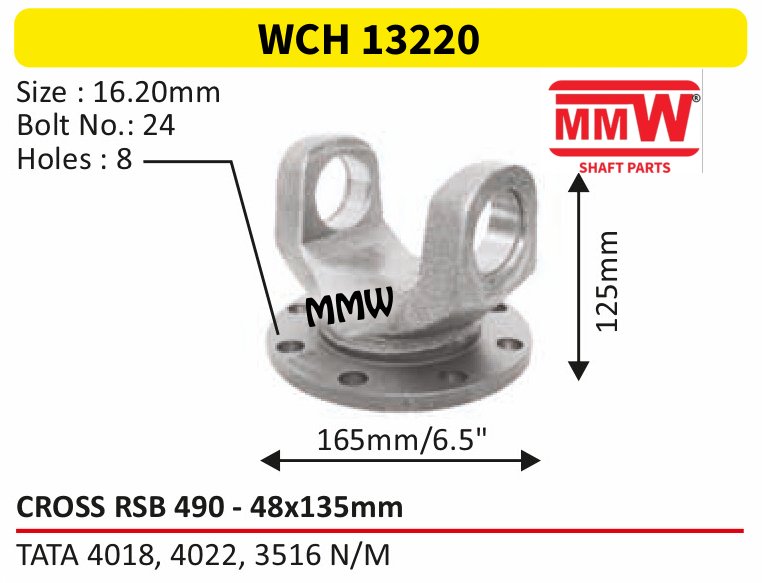

WCH 13220	125mm	8	24		TATA 4018, 4022, 3516N/M	10

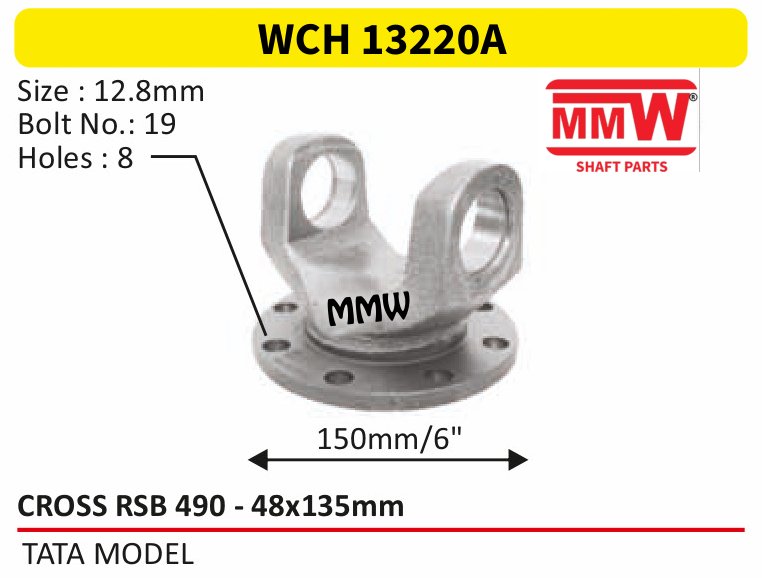

WCH 13220A		8	19		TATA MODEL	10

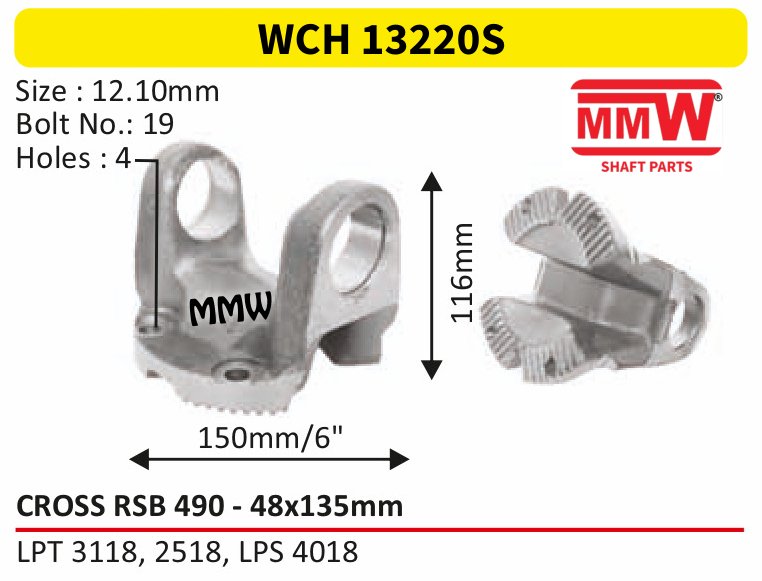

WCH 13220S	116mm	4	19		LPT 3118, 2518, LPS 4018	10

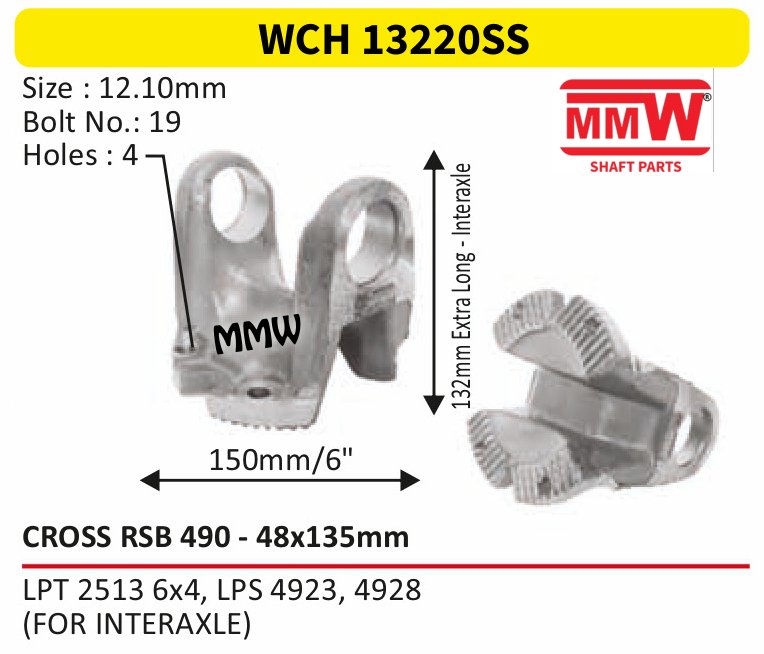

WCH 13220SS		4	19	EXTRA LONG	LPT 25136x4, LPS 4923, 4928, (FOR INTERAXLE)	10

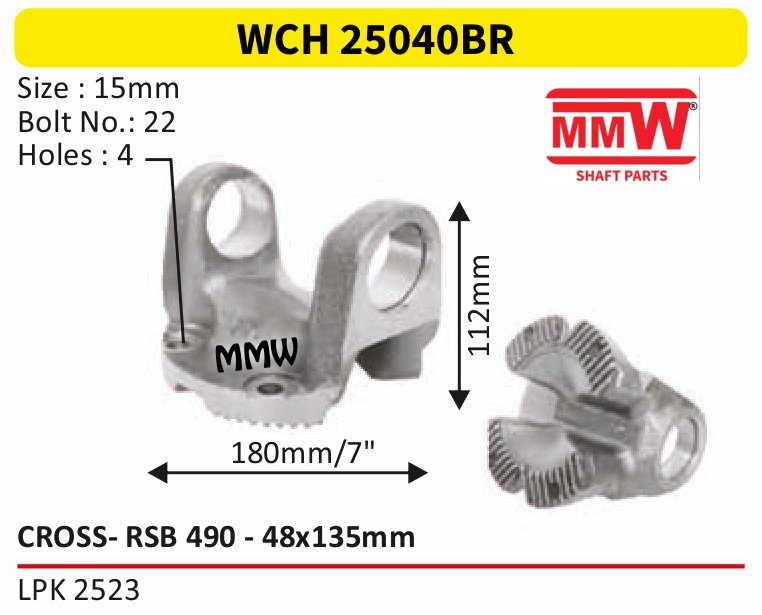

WCH 25040BR	112mm	4	22		LPK 2523	10

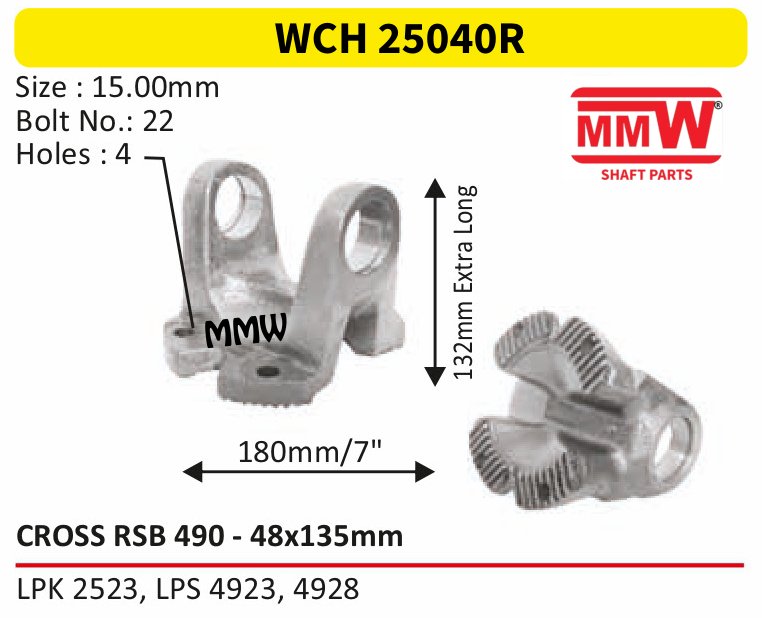

WCH 25040R		4	22	EXTRA LONG	LPK 2523, LPS 4923, 4928	10

Half Yokes / Tube Yokes 4

Part	Length	Pipe	Marked	Vehicles	Page

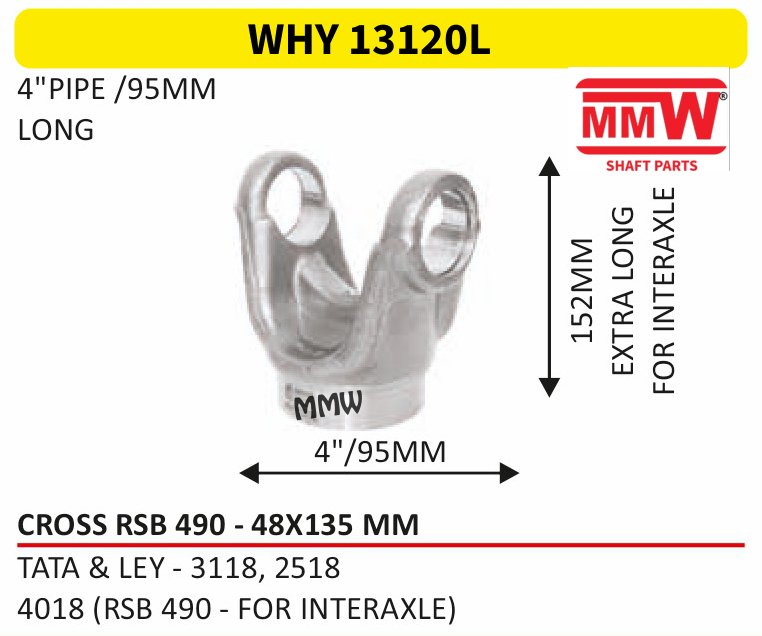

WHY 13120L	152 MM	4"	EXTRA LONG	TATA & LEY - 3118, 2518, 4018 (RSB 490 - FOR INTERAXLE)	20

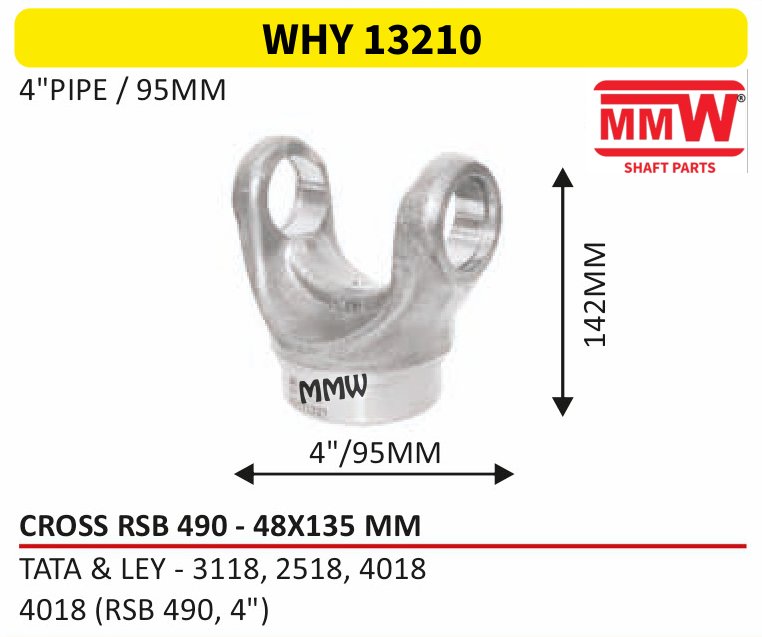

WHY 13210	142 MM	4"		TATA & LEY - 3118, 2518, 4018, 4018 (RSB 490, 4")	20

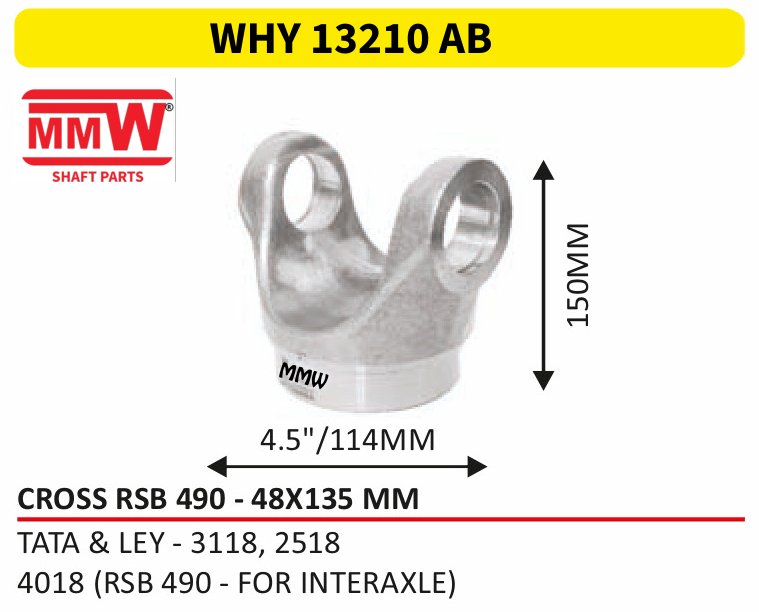

WHY 13210 AB	150 MM			TATA & LEY - 3118, 2518, TATA & LEY.3118, 3516, 4018, 2518, 4018 (RSB 490 - FOR INTERAXLE)	116

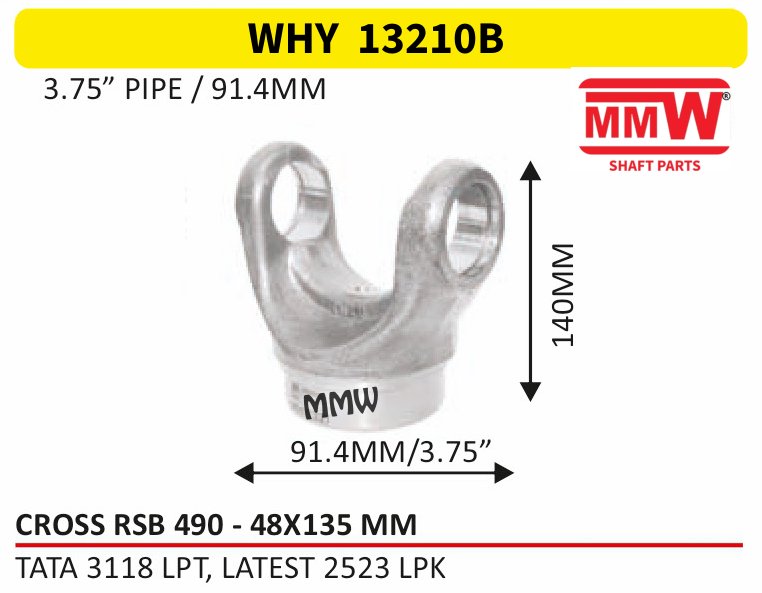

WHY 13210B	140 MM	3.75"		TATA 3118 LPT, LATEST 2523 LPK	20

Long Forks 7

Part	Splines	Length	Pipe	Marked	Vehicles	Page
WRY 13200 AATP	30	16"/400mm	4"	EXTRA LONG, WITH D. COVER	TATA LPT 2523, BHARAT BENZ, LPT 3723(E.LONG, PIPE DIA 4")	47
WRY 13200 AT	30	13"/330mm	4"		TATA 4018, 2518, 3518 CEX(PIPE DIA 4")	45
WRY 13200 ATP	30	13"/330mm	4"		TATA 4018, 2518, 3518 CEX(PIPE DIA 4")	45
WRY 13200 MPC	30	14.5"/365mm			LPT 1615, LPT 2518, LPT 3118, LPK 1615, LPT 3120	46
WRY 13200 RTP		14.5"/365mm			RUFF-TUFF(THICK TEETH)SPL.FOR MINING	117
WRY 13200TP	30	14.5"/365mm	4"	WITH D. COVER	TATA & LEY.3118, 3516, 4018, 2518 LPK (LONG, PIPE DIA 4")	46

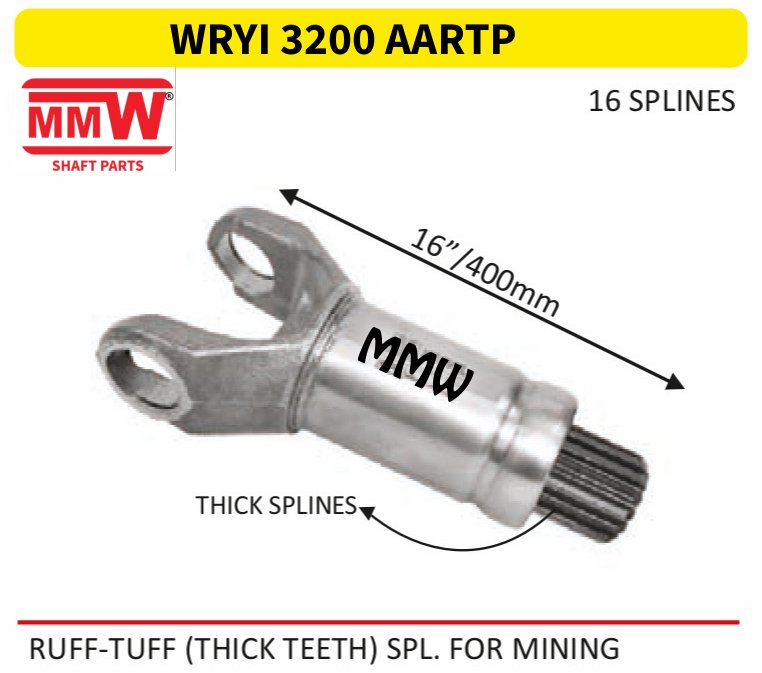

WRYI 3200 AARTP		16"/400mm			RUFF-TUFF(THICK TEETH)SPL.FOR MINING	117

Rear Housings / Sleeve Bottles 13

Part	Splines	Length	Pipe	Marked	Vehicles	Page
MST 1327A	30	8"/200MM	4"		TATA 4018, 2518, 3518 CEX(PIPE DIA 4")	45
WST 13270 (PLAIN)	30	9"/235MM	4"	PLAIN	TATA&LEY.3118, 3516, 4018, 2518 LPK, (LONG, PIPE DIA 4")	46
WST 13270 A (PLAIN)	30	8"/200mm	4"	PLAIN	TATA 4018, 2518, 3518 CEX(PIPE DIA 4")	45
WST 13270 AAC (COATED)	30	10.25"/265mm	4"	EXTRA LONG	TATA LPT 2523, BHARAT BENZ	47
WST 13270 AC	30	8"/200mm	4"		TATA 4018, 2518, 3518 CEX(PIPE DIA 4")	45
WST 13270 AC (COATED)	30	8"/200MM	4"			45
WST 13270 AWC	30	200MM/8"			TATA 4923, 2518 (INTERAXLE)	47
WST 13270 BAC		8"/200mm	4.5"		TATA & LEY.3118, 3516, 4018, 2518, LPK (LONG, PIPE DIA 4.5")	116
WST 13270 BC		9"/235mm	4.5"		TATA & LEY.3118, 3516, 4018, 2518, LPK (LONG, PIPE DIA 4.5")	116
WST 13270 C (COATED)		9"/235MM	4"		TATA&LEY.3118, 3516, 4018, 2518 LPK, (LONG, PIPE DIA 4")	46
WST 13270 MAC	30	200MM/8"			TATA LPT 2518-CARGO, COWL(31T)	46
WST 13270MC	30	228MM/9"			TATA LPT 1615, LPT 2518, LPT 3118, LPK 1615	46
WST13270 MAAC	30				TATA LPT 3118 COWL, LPT 2523, LPK 2818, LPT 2518	46

Long Fork & Sleeve Bottle Sets 14

Part	Splines	Length	Pipe	Marked	Vehicles	Page
WRYST 13200 A (PLAIN)/ C (COATED)	30	8"/200mm	4"	PLAIN	TATA 4018, 2518, 3518 CEX, (PIPE DIA 4")	45
WRYST 13200 AAP (PLAIN)/ AAPC (COATED)	30	16"/400MM	4"	PLAIN, EXTRA LONG	TATA LPT 2523, BHARAT BENZ, LPT 3723(E.LONG, PIPE DIA 4")	47
WRYST 13200 AC (COATED)	30	8"/200mm	4"		TATA 4018, 2518, 3518 CEX, (PIPE DIA 4")	45
WRYST 13200 AP	30	330MM/13"			INTERAXLE 4923, 2518	45
WRYST 13200 APC (COATED)	30	13"/330MM			TATA 4018, 2518, 3518 CEX, (PIPE DIA 4")	45
WRYST 13200 AWPC	30	95mm			TATA 4923, 2518 (INTERAXLE)	47
WRYST 13200 BAPC		8"/200mm	4.5"		TATA & LEY.3118, 3516, 4018, 2518, LPK (LONG, PIPE DIA 4.5")	116
WRYST 13200 BPC		9"/235mm	4.5"		TATA & LEY.3118, 3516, 4018, 2518, LPK (LONG, PIPE DIA 4.5")	116
WRYST 13200 MAAPC	30	272MM/10.75"		EXTRA LONG	LPT 3118, LPT 2523, LPK 2518	46
WRYST 13200 MAPC	30	13"/330mm			TATA LPT 2518 MTBL - CARGO, &, COWL 6100 WB (31T)	46
WRYST 13200 P (PLAIN)	30	9"/235mm	4"	PLAIN	TATA & LEY.3118, 3516, 4018, 2518, LPK(LONG, PIPE DIA 4")	46
WRYST 13200 RPC		9"/255mm			RUFF-TUFF(THICK TEETH)SPL.FOR MINING	117
WRYST 13200P (PLAIN)/ PC (COATED)	30	14.5"/365MM	4"	PLAIN, GLIDE COAT, WITH D. COVER	TATA&LEY.3118, 3516, 4018, 2518, LPK(LONG, PIPE DIA 4")	46

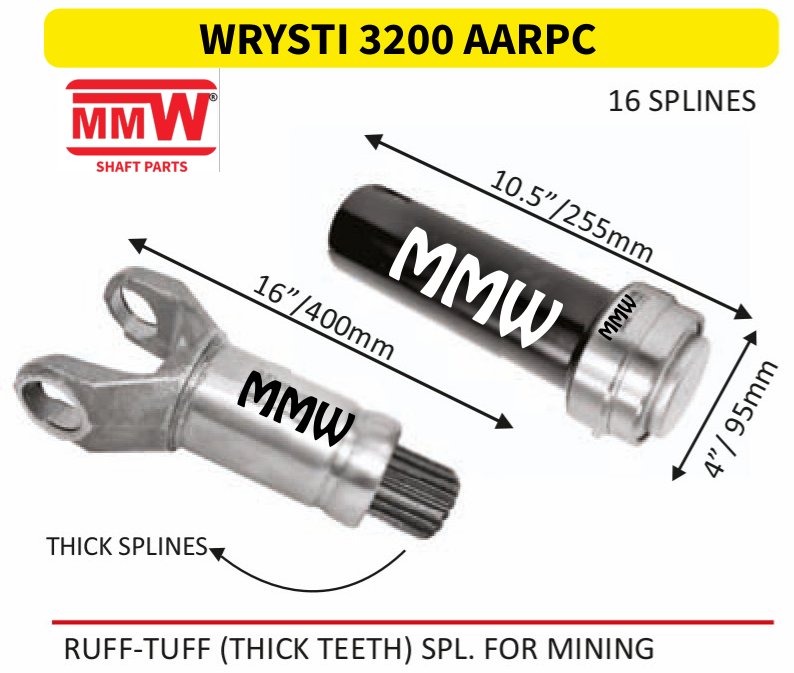

WRYSTI 3200 AARPC		10.5"/255mm			RUFF-TUFF(THICK TEETH)SPL.FOR MINING	117

Weld Plug Assemblies 2

Part	Splines	Vehicles	Page

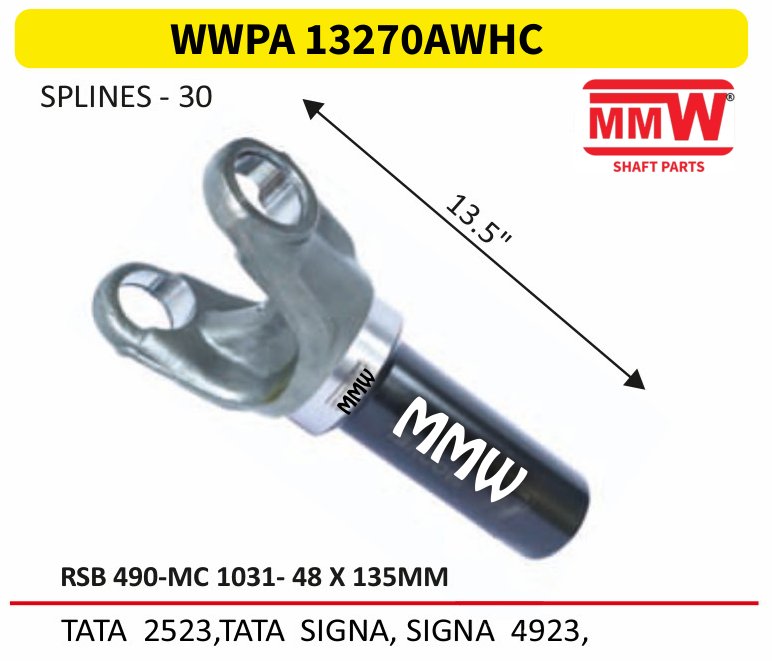

WWPA 13270AWHC	30	TATA 2523, TATA SIGNA, SIGNA 4923	115

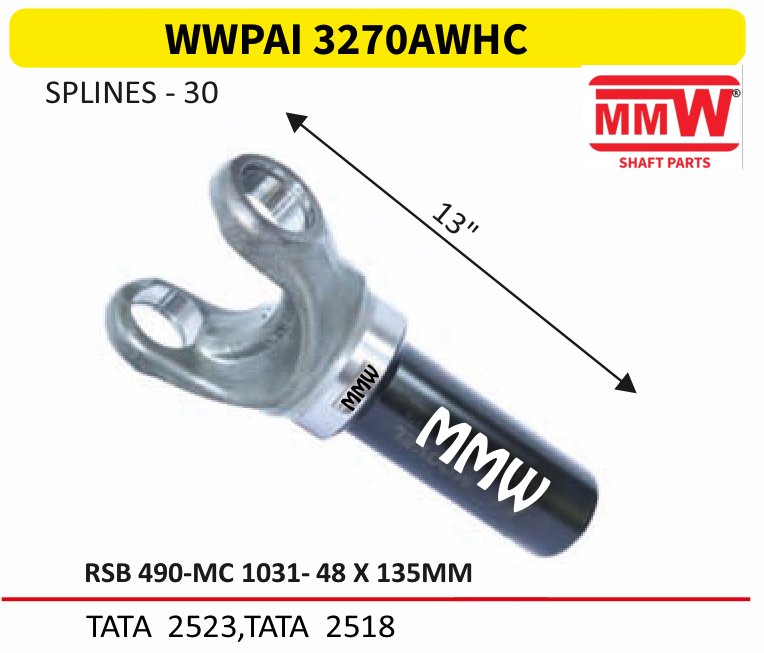

WWPAI 3270AWHC	30	TATA 2523, TATA 2518	115

Interaxle Shafts 3

Part	Length	Bolt No.	Marked	Vehicles	Page

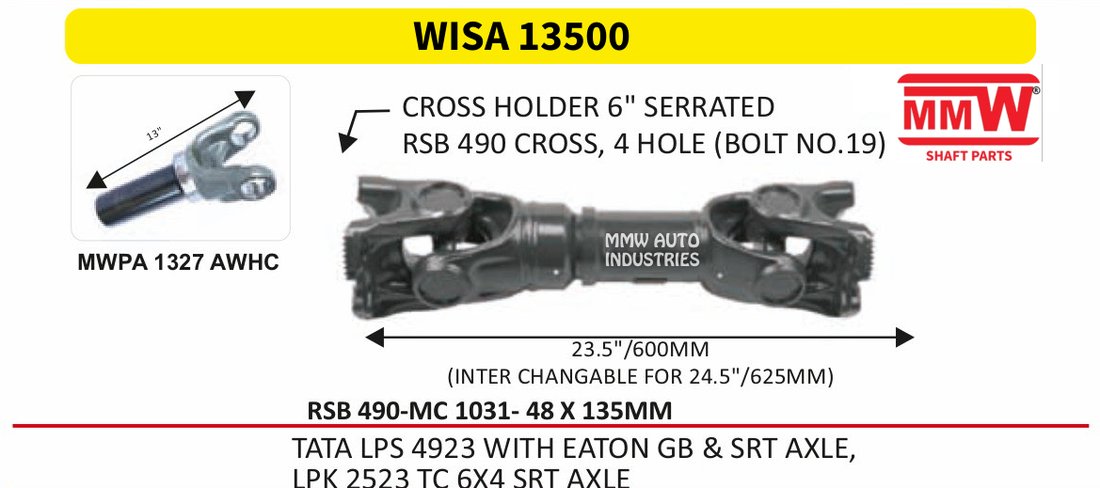

WISA 13500	23.5"/600 MM	19	SERRATED	TATA LPS 4923 WITHEATONGB & SRT AXLE, LPK 2523 TC 6X 4 SRT AXLE	108

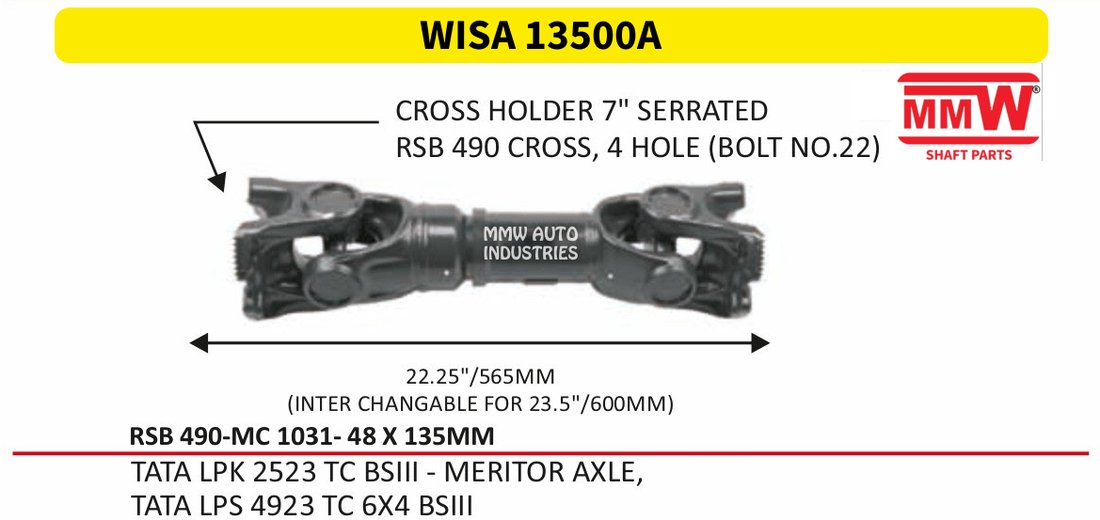

WISA 13500A	22.25"/565 MM	22	SERRATED	TATA LPK 2523 TC BSIII - MERITOR AXLE, TATA LPS 4923 TC 6X 4 BSIII	108

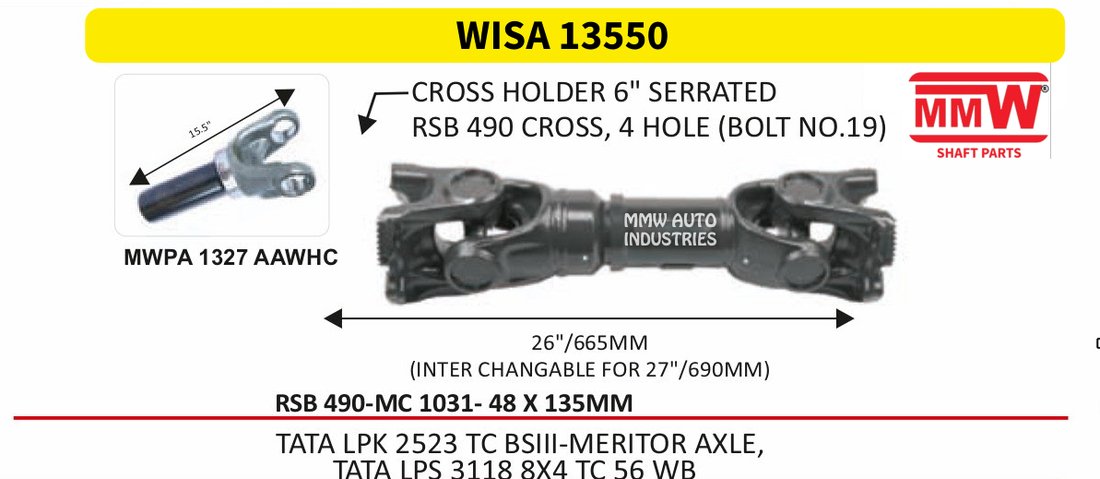

WISA 13550	26"/665 MM	19	SERRATED	TATA LPK 2523 TC BSIII - MERITOR AXLE, TATA LPS 31188X 4 TC 56 WB	108

Same Cross Size

Questions About the RSB 490 Shaft

Which UJ cross fits the RSB 490 propeller shaft?

The RSB 490 shaft takes the MC 1031, 48X135 MM UJ cross: MMW part WC 10310/ 10310GL.

Which parts of the RSB 490 shaft does MMW make?

2 uj crosses, 6 cross holders / flange yokes, 4 half yokes / tube yokes, 7 long forks, 13 rear housings / sleeve bottles, 14 long fork & sleeve bottle sets, 2 weld plug assemblies, 3 interaxle shafts. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
