RSB 325 Propeller Shaft Parts

UJ Crosses 1

Part	Vehicles	Page

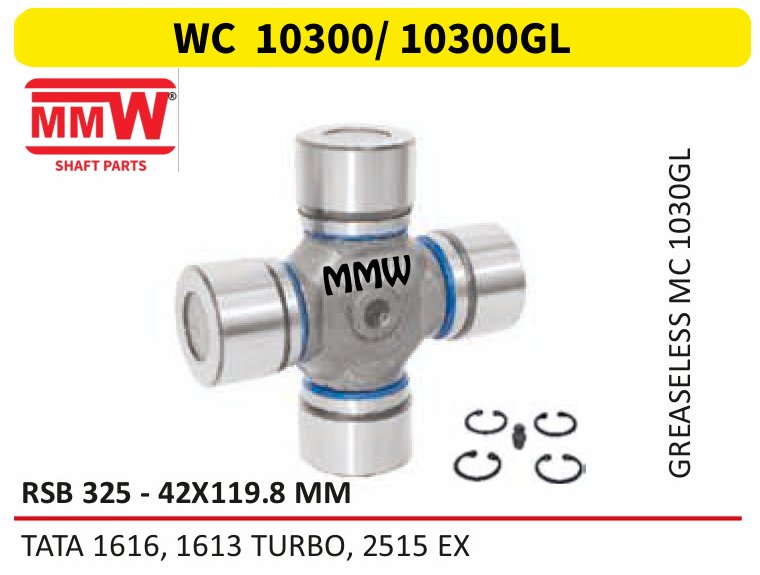

WC 10300/ 10300GL	TATA 1616, 1613 TURBO, 2515 EX	6

Cross Holders / Flange Yokes 5

Part	Length	Holes	Bolt No.	Vehicles	Page

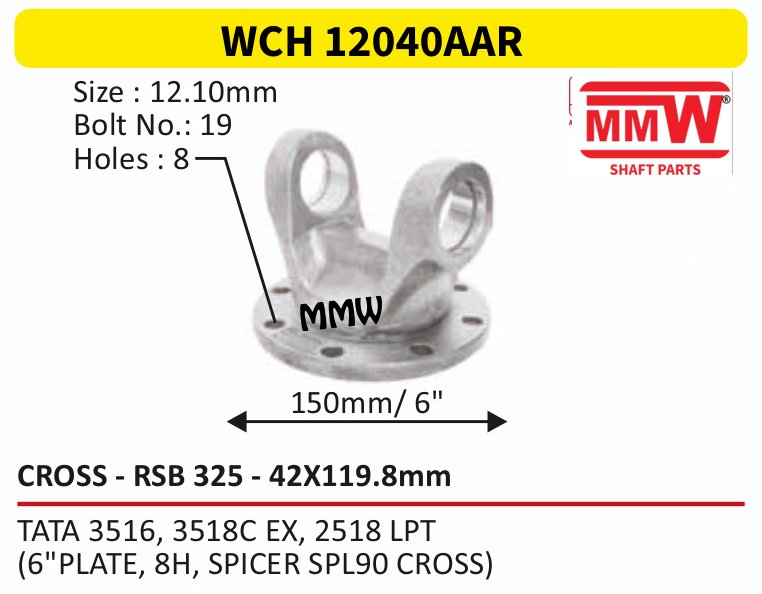

WCH 12040AAR		8	19	TATA 3516, 3518 CEX, 2518 LPT, (6" PLATE, 8H, SPICER SPL 90 CROSS)	8

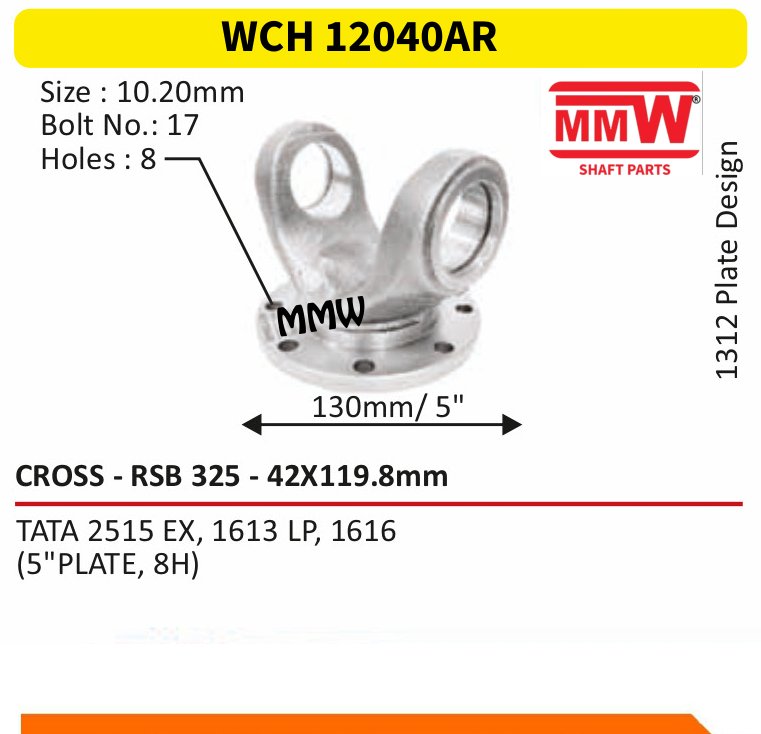

WCH 12040AR		8	17	TATA 2515 EX, 1613 LP, 1616, (5" PLATE, 8H)	8

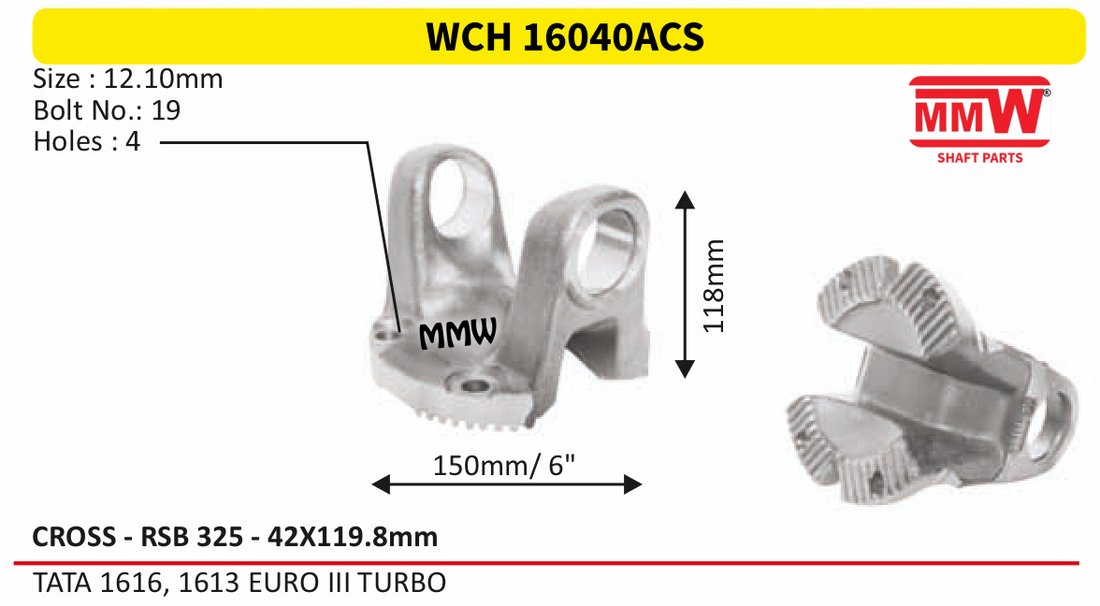

WCH 16040ACS	118mm	4	19	TATA 1616, 1613 EURO III TURBO	9

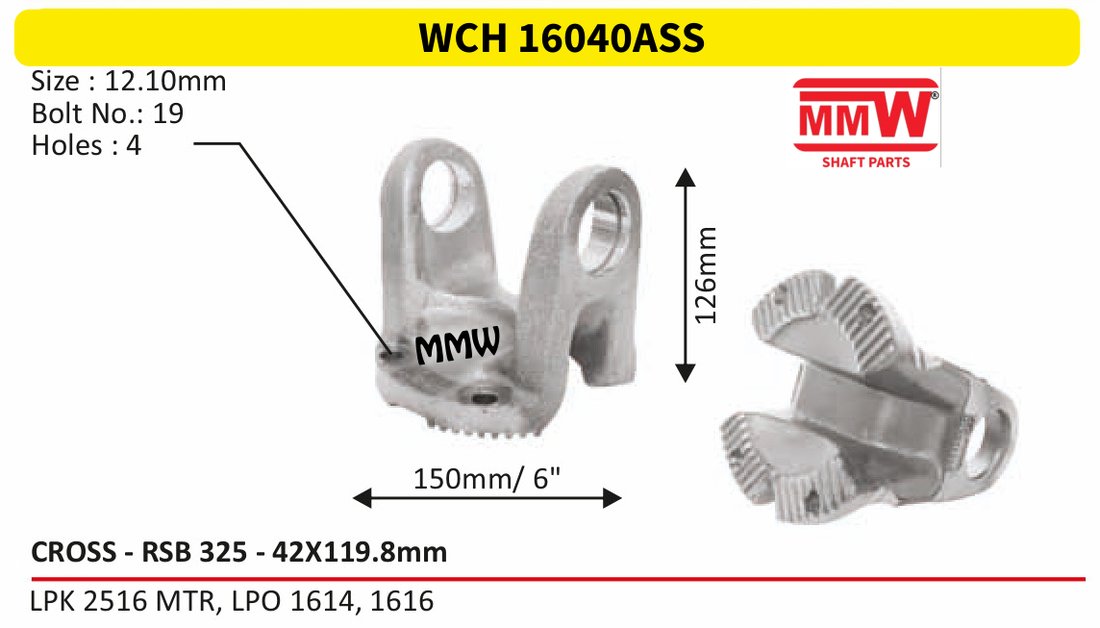

WCH 16040ASS	126mm	4	19	LPK 2516 MTR, LPO 1614, 1616	9

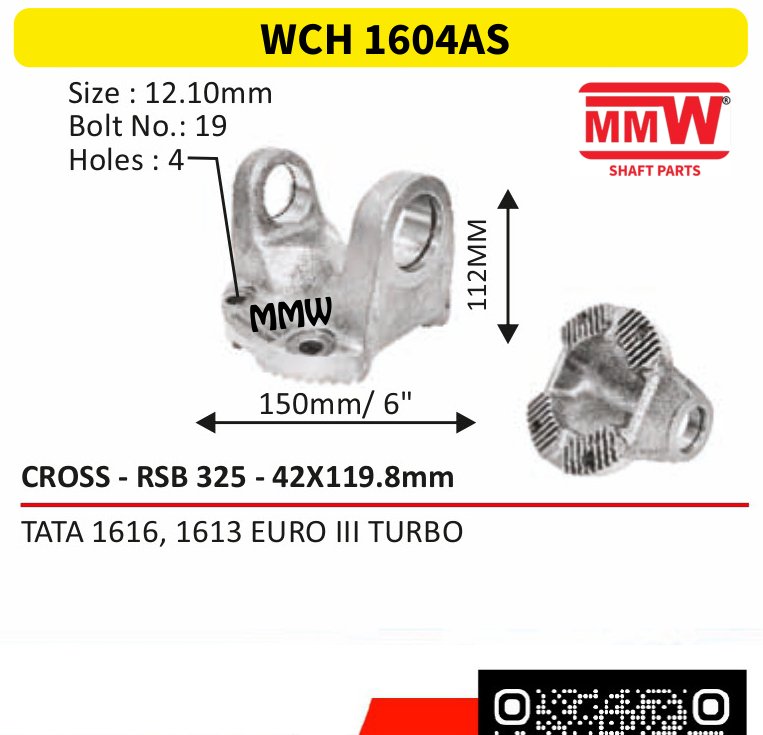

WCH 1604AS	112 MM	4	19	TATA 1616, 1613 EURO III TURBO	8

Half Yokes / Tube Yokes 2

Part	Length	Pipe	Vehicles	Page

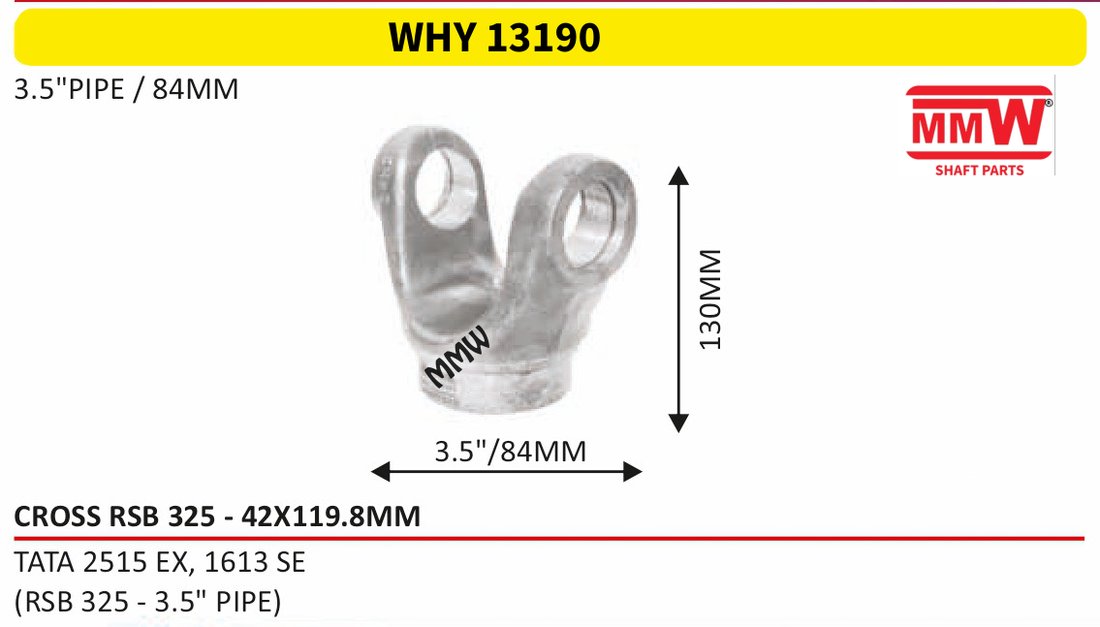

WHY 13190	130 MM	3.5"	TATA 2515 EX, 1613 SE, (RSB 325 - 3.5" PIPE)	19

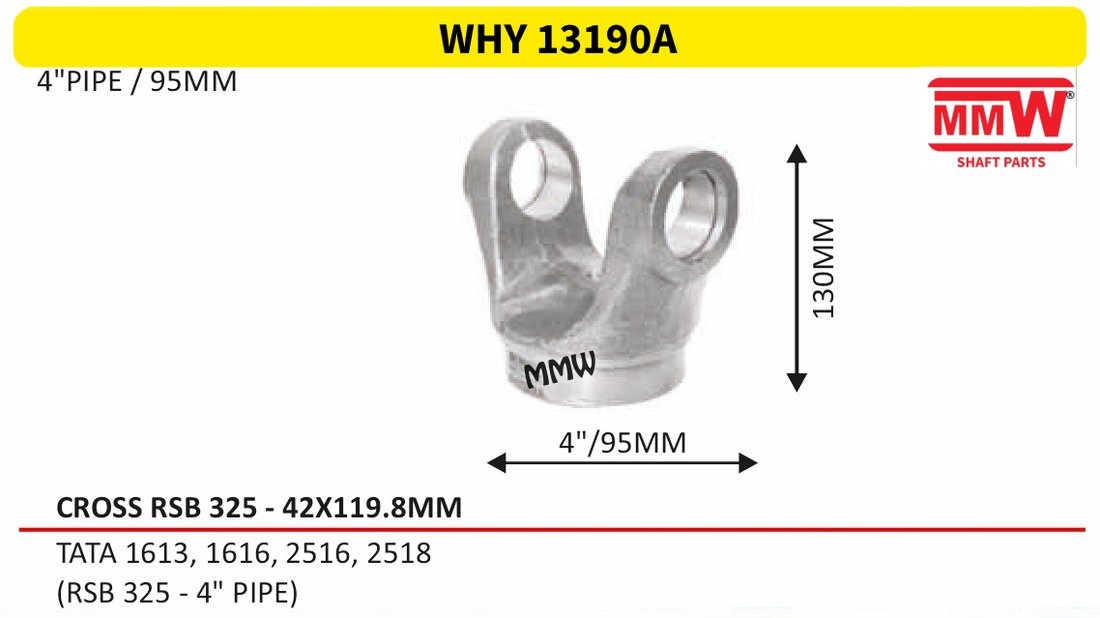

WHY 13190A	130 MM	4"	TATA 1613, 1616, 2516, 2518, (RSB 325 - 4" PIPE)	19

Long Forks 3

Part	Cross Size	Splines	Length	Marked	Vehicles	Page
WRY 13160 ADTP	42X119.8 MM	24	12"/300mm		TATA LPO 1613, LPO 1512, LP 1613, LP, 1512, LP 1112, LP 1618, LPO 1515, LPO 1615, AL - ...	38
WRY 13160 T	42.05X119.80 MM	20	12.5"/320mm		TATA 2515 EX, 1613 TURBO	38
WRY 13160 TP	42.05X119.80 MM	20	12.5"/320mm	WITH D. COVER	TATA 2515 EX, 1613 TURBO	38

Rear Housings / Sleeve Bottles 1

Part	Splines	Length	Vehicles	Page
WST 13260 ADC	24	7.75"/195mm	TATA LPO 1613, LPO 1512, LP 1613, LP, 1512, LP 1112, LP 1618, LPO 1515, LPO 1615, AL - ...	38

Long Fork & Sleeve Bottle Sets 5

Part	Cross Size	Splines	Length	Pipe	Marked	Vehicles	Page
MRYST 131 GA (PLAIN)/ 131 (COATED)	42.05X119.80 MM		12.5"/320MM		PLAIN, GLIDE COAT	TATA 1616, 1613 TURBO BSIII, 1616 BSIII, (PIPE DIA 4")	38
MRYST 1316 (PLAIN) / C (COATED)	42.05X119.80 MM	20	12.5"/320mm	4"	PLAIN, GLIDE COAT	TATA 1616, 1613 TURBO BSII, 1616 BSII	38
MRYST 13160 (PLAIN)/ APC (COATED)	42.05X119.80 MM	20	12.5"/320MM	4"	PLAIN, GLIDE COAT	TATA 2515 EX, 1613 TURBO (PIPE DIA 3.5")	38
WRYST 13160 ADPC	42X119.8 MM	24	7.75"/195mm			TATA LPO 1613, LPO 1512, LP 1613, LP, 1512, LP 1112, LP 1618, LPO 1515, LPO 1615, AL - ...	38
WRYST 13160P (PLAIN)/ 13160PC (COATED)	42.05X119.80 MM	20	12.5"/320MM	3.5"	PLAIN, GLIDE COAT	TATA 2515EX, 1613 TURBO(PIPE DIA 3.5")	38

Front Teeth 4

Part	Splines	Length	Pipe	Vehicles	Page

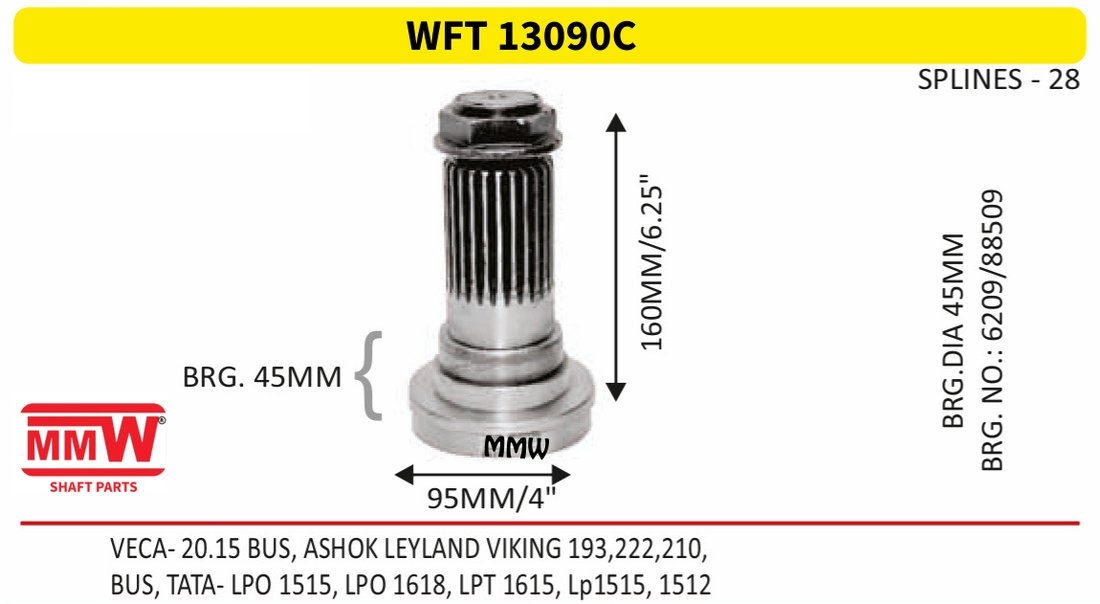

WFT 13090C	28			VECA-20.15 BUS, ASHOK LEYLAND VIKING 193, 222, 210, BUS, TATA- LPO 1515, LPO 1618, LPT ...	76

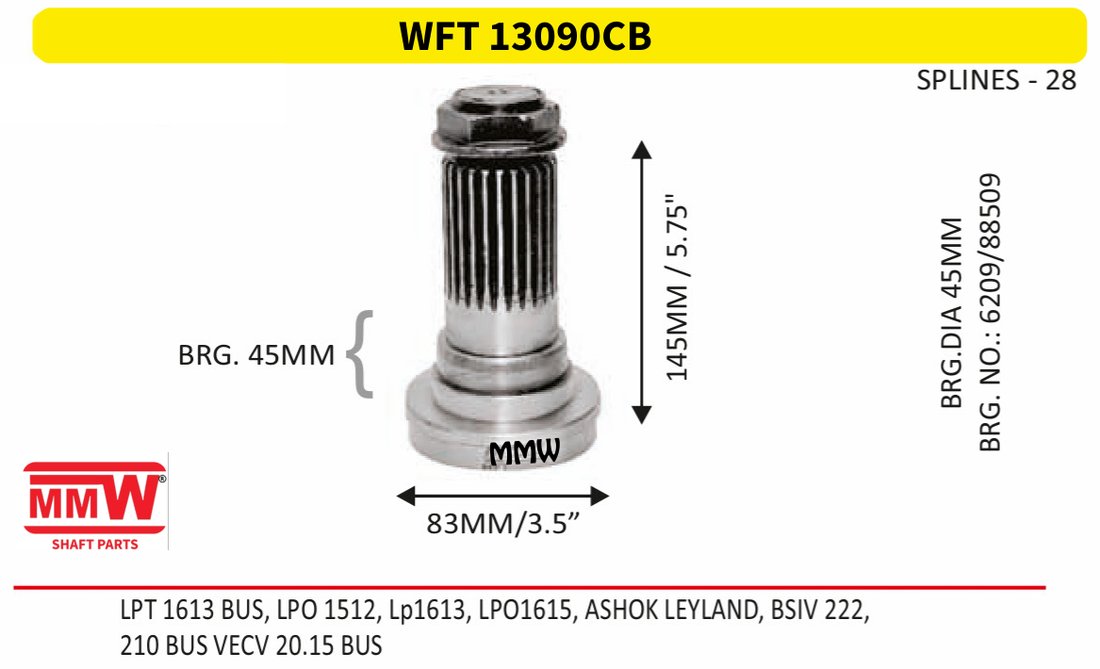

WFT 13090CB	28			LPT 1613 BUS, LPO 1512, Lp1613, LPO 1615, ASHOK LEYLAND, BSIV 222	76

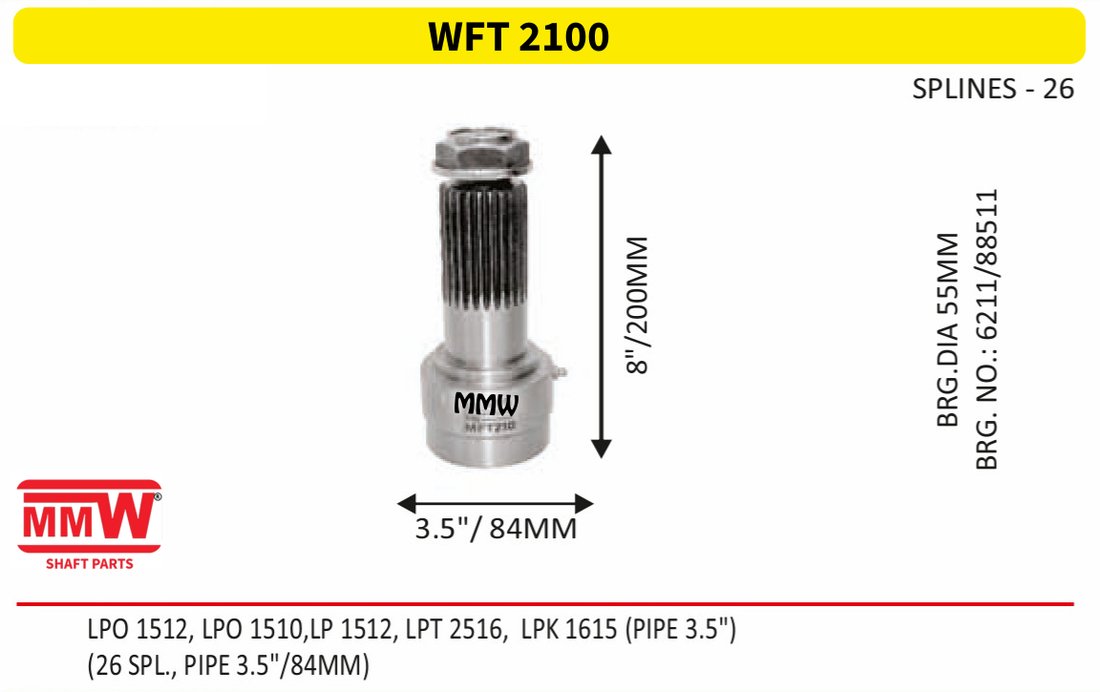

WFT 2100	26	8"/200 MM	3.5"	LPO 1512, LPO 1510, LP1512, LPT 2516, LPK 1615(PIPE 3.5"), (26 SPL., PIPE 3.5"/84MM)	76

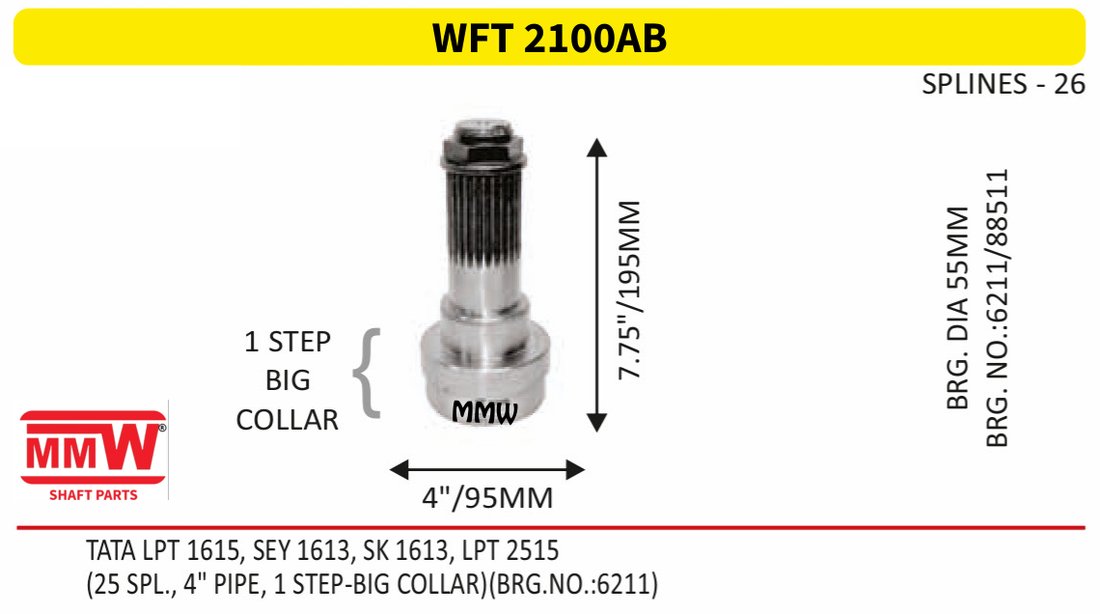

WFT 2100AB	26	7.75"/195 MM	4"	TATA LPT 1615, SEY 1613, SK 1613, LPT 2515	76

Same Cross Size

Questions About the RSB 325 Shaft

Which UJ cross fits the RSB 325 propeller shaft?

The RSB 325 shaft takes the MC 1030, 42X119.8 MM UJ cross: MMW part WC 10300/ 10300GL.

Which parts of the RSB 325 shaft does MMW make?

1 uj cross, 5 cross holders / flange yokes, 2 half yokes / tube yokes, 3 long forks, 1 rear housing / sleeve bottle, 5 long fork & sleeve bottle sets, 4 front teeth. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
