Tata Ace / Spicer 1000 Propeller Shaft Parts

UJ Crosses 2

Part	Cross Size	Marked	Vehicles	Page

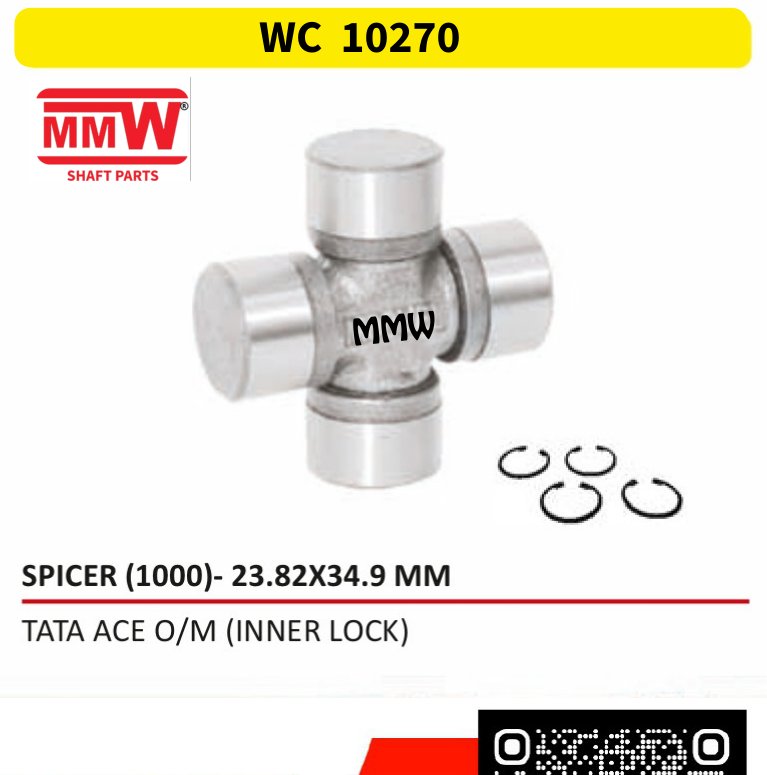

WC 10270	23.82X34.9 MM	INNER LOCK	TATA ACE O/M (INNER LOCK)	5

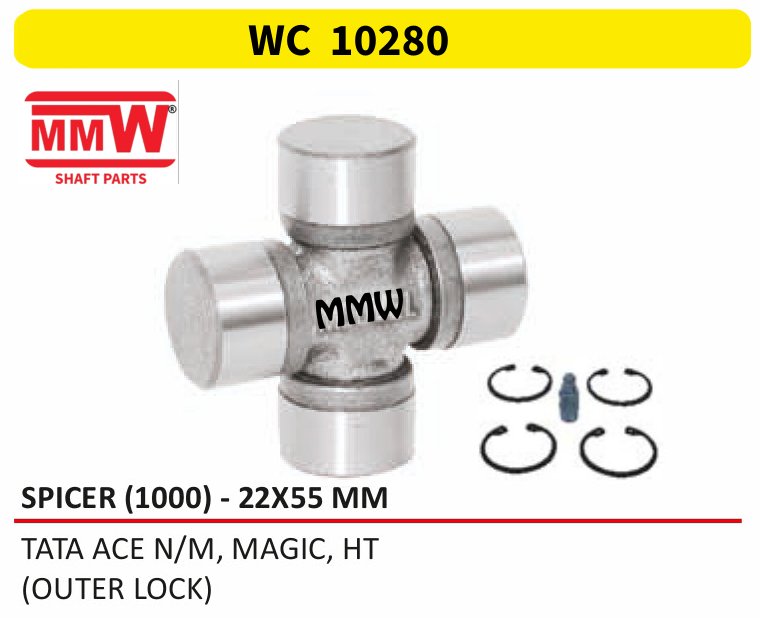

WC 10280	22X55 MM	OUTER LOCK	TATA ACE N/M, MAGIC, HT, (OUTER LOCK)	6

Cross Holders / Flange Yokes 2

Part	Cross Size	Length	Holes	Bolt No.	Marked	Vehicles	Page

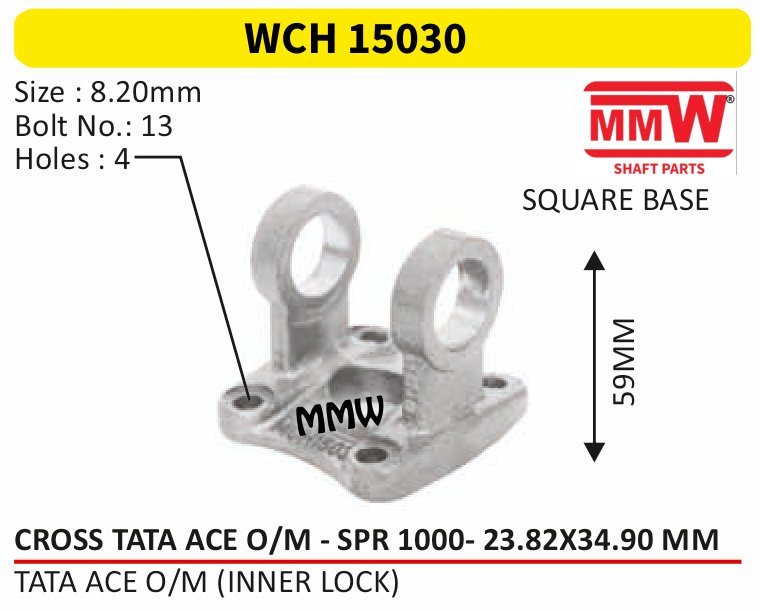

WCH 15030	23.82X34.90 MM	59 MM	4	13	INNER LOCK	TATA ACE O/M(INNER LOCK)	17

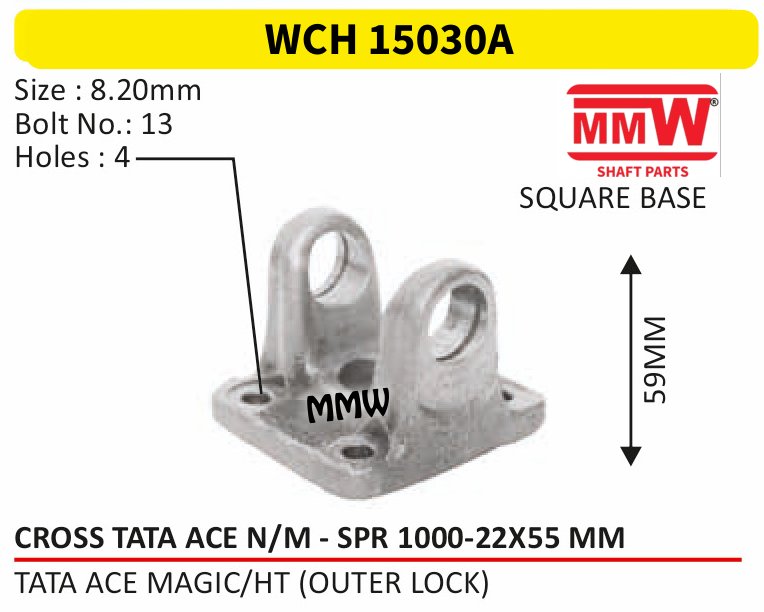

WCH 15030A	22X55 MM	59 MM	4	13	OUTER LOCK	TATA ACE MAGIC/HT(OUTER LOCK)	17

Half Yokes / Tube Yokes 3

Part	Cross Size	Length	Pipe	Marked	Vehicles	Page

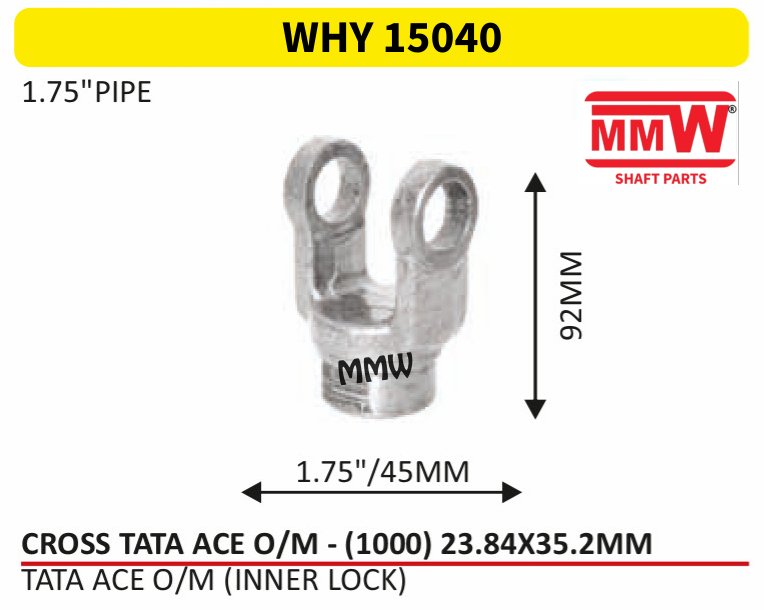

WHY 15040	23.84X35.2 MM	92 MM	1.75"	INNER LOCK	TATA ACEO/M (INNER LOCK)	21

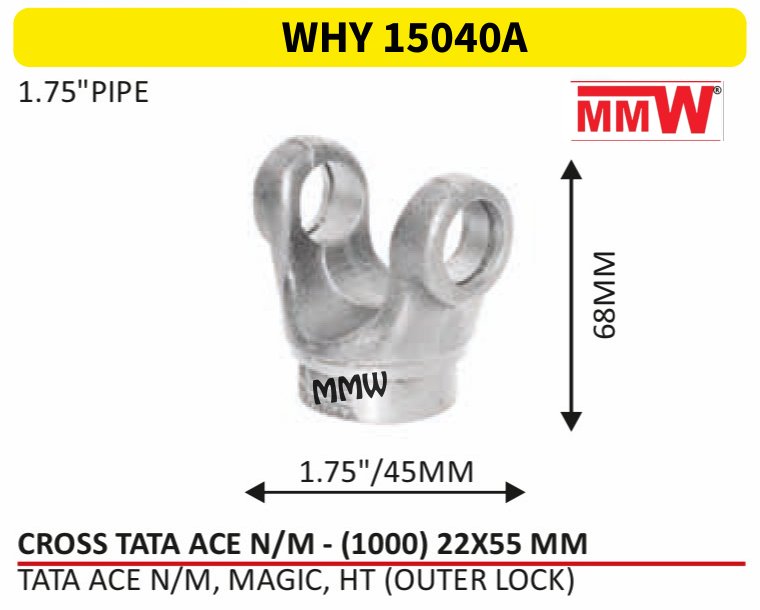

WHY 15040A	22X55 MM	68 MM	1.75"	OUTER LOCK	TATA ACE N/M, MAGIC, HT(OUTER LOCK)	21

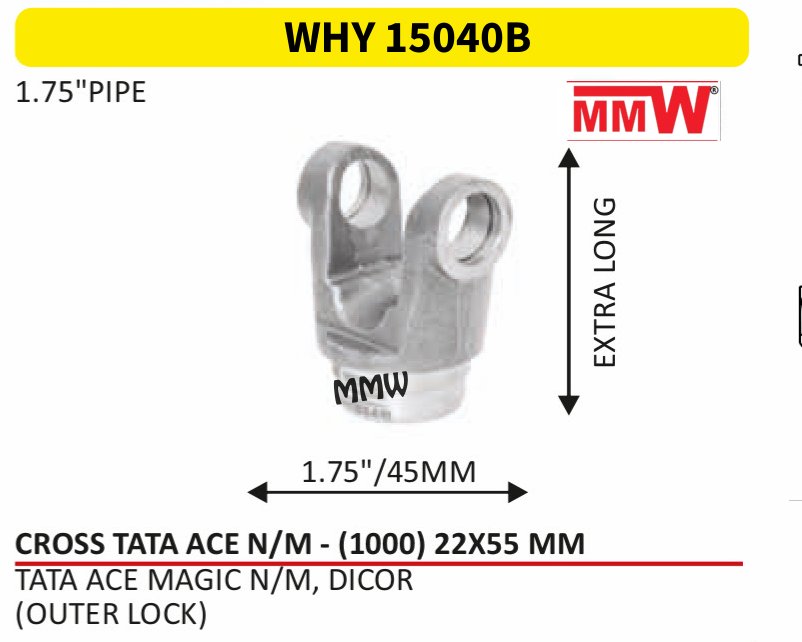

WHY 15040B	22X55 MM	1.75"/45 MM	1.75"	OUTER LOCK	TATA ACE MAGIC N/M, DICOR, (OUTER LOCK)	21

Sleeve Yokes 3

Part	Cross Size	Splines	Length	Marked	Vehicles	Page
WFM 15060A	22.03X55 MM	22	5.75"/144mm	OUTER LOCK	TATA MAGIC, HT, DICOR N/M (OUTER LOCK)	61
WFY 15060	23.84X35.20 MM	22	6.5"/162mm	INNER LOCK	TATA ACE O/M (INNER LOCK TYPE)	61
WFY 15060B	22X65 MM	22	155MM/6"		TATA ACE MEGA, MANTRA, DICOR E, MINT, INTRA BSIV, VU, ACE EDGE VENTURE	61

Propeller Shafts (LCV) 2

Part	Cross Size	Vehicles	Page

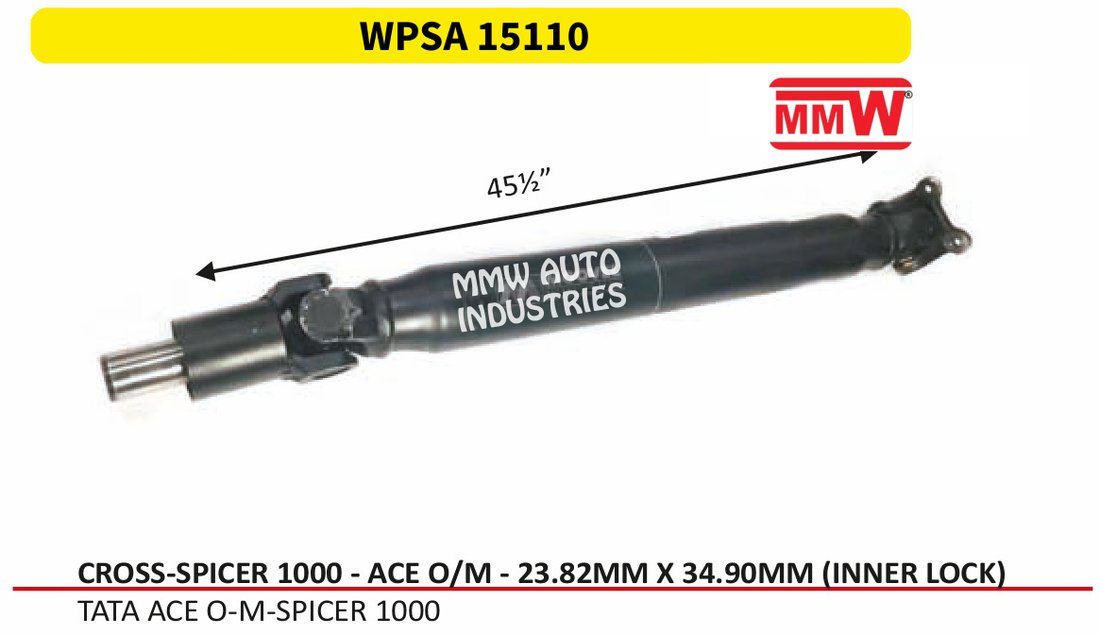

WPSA 15110	23.82X34.90 MM	TATA ACE O - M - SPICER 1000	113

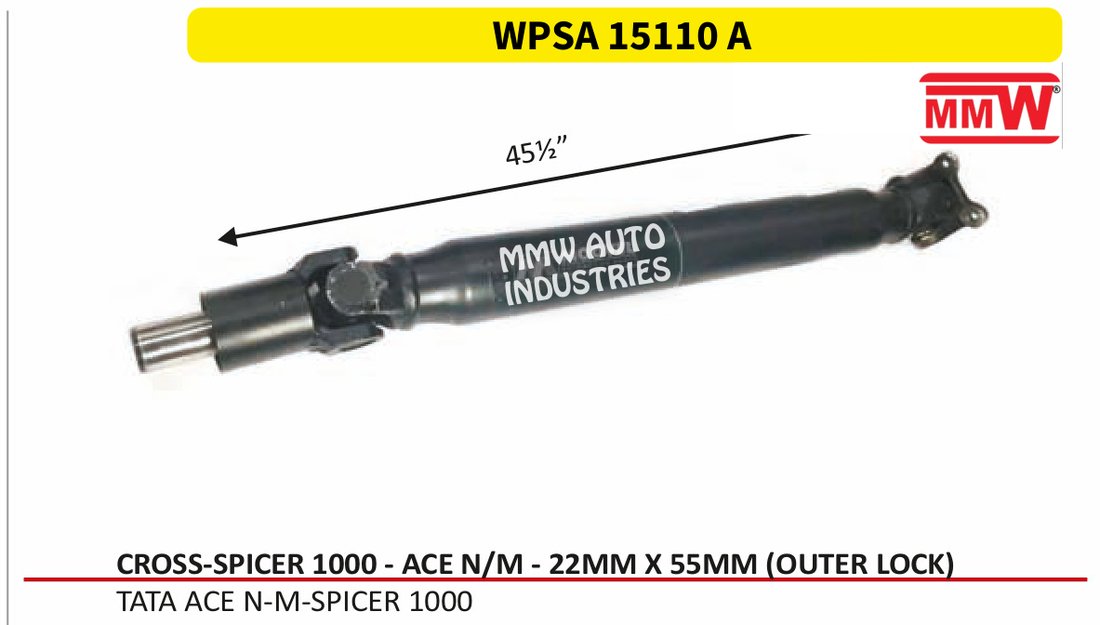

WPSA 15110 A	22X55 MM	TATA ACE N - M - SPICER 1000	113

Same Cross Size

Questions About the Tata Ace / Spicer 1000 Shaft

Which UJ cross fits the Tata Ace / Spicer 1000 propeller shaft?

The Tata Ace / Spicer 1000 shaft takes the MC 1027, 22X55 MM UJ cross: MMW part WC 10270, WC 10280.

Which parts of the Tata Ace / Spicer 1000 shaft does MMW make?

2 uj crosses, 2 cross holders / flange yokes, 3 half yokes / tube yokes, 3 sleeve yokes, 2 propeller shafts (lcv). Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
