Tata 1210 Propeller Shaft Parts

UJ Crosses 1

Part	Marked	Vehicles	Page

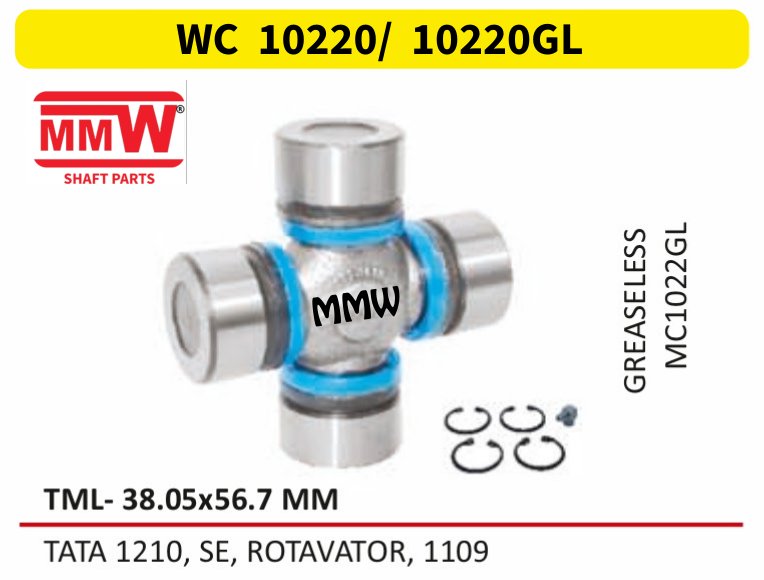

WC 10220/ 10220GL	GREASELESS	TATA 1210, SE, ROTAVATOR, 1109, SPICER SERIES	5

Cross Holders / Flange Yokes 3

Part	Holes	Bolt No.	Vehicles	Page
WCH 1040	6	17	TATA 1210, SE, (4.72" PLATE, 6H)	8

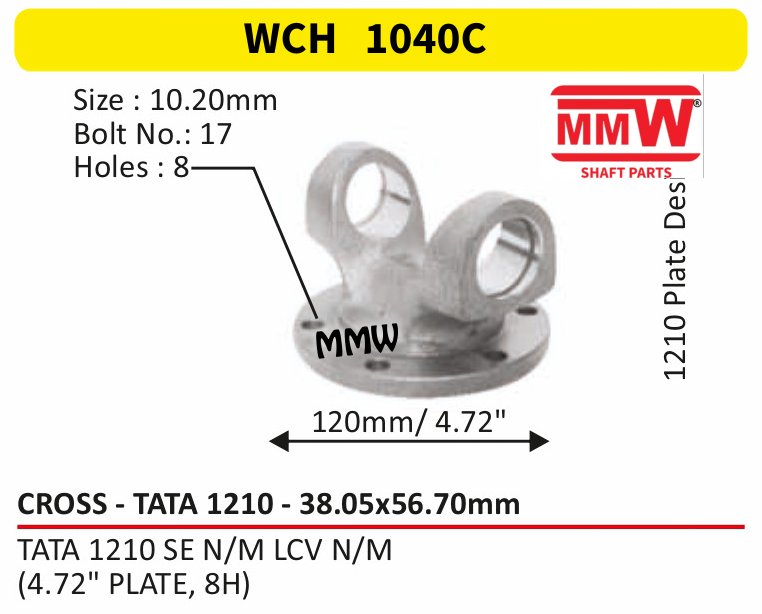

WCH 1040C	8	17	TATA 1210 SE N/M LCV N/M, (4.72" PLATE, 8H)	8

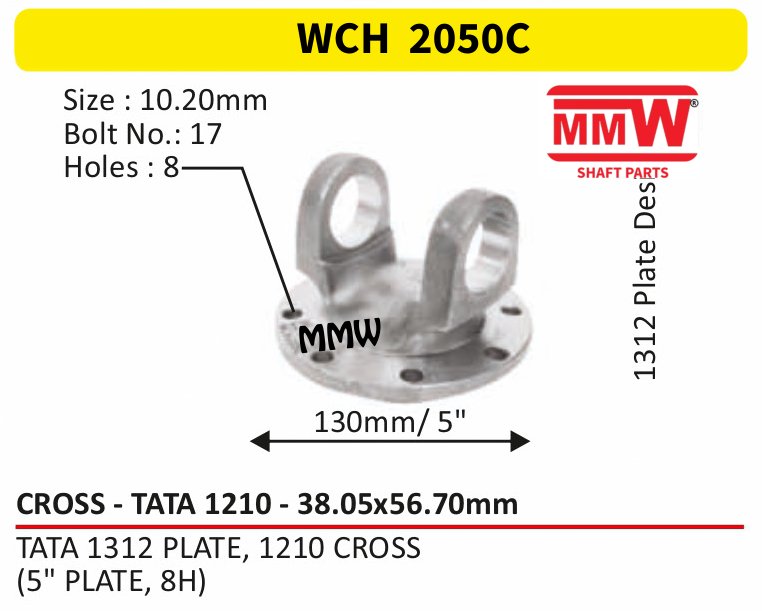

WCH 2050C	8	17	TATA 1312 PLATE, 1210 CROSS, (5" PLATE, 8H)	8

Cross Holder Assemblies 1

Part	Holes	Plate	Vehicles	Page

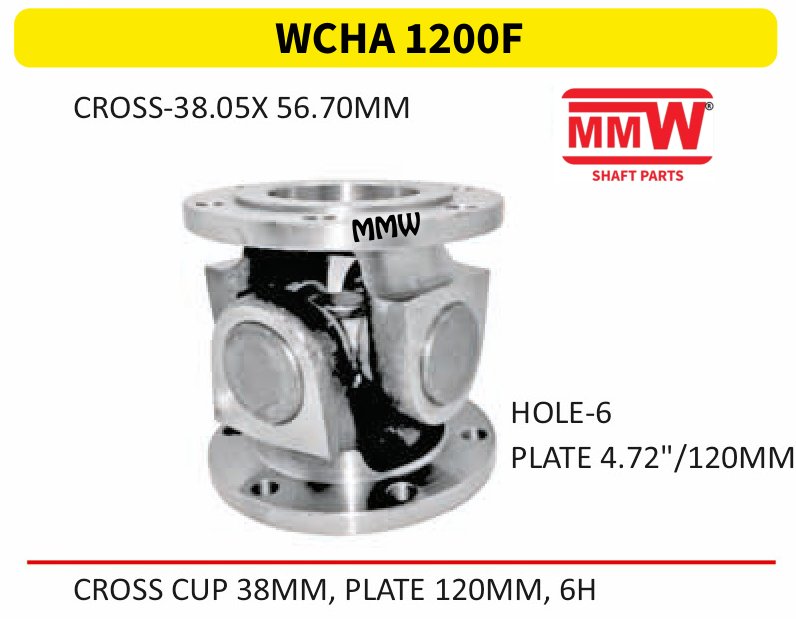

WCHA 1200F	6	4.72"/120 MM	HOLE - 6	100

Half Yokes / Tube Yokes 3

Part	Length	Pipe	Vehicles	Page

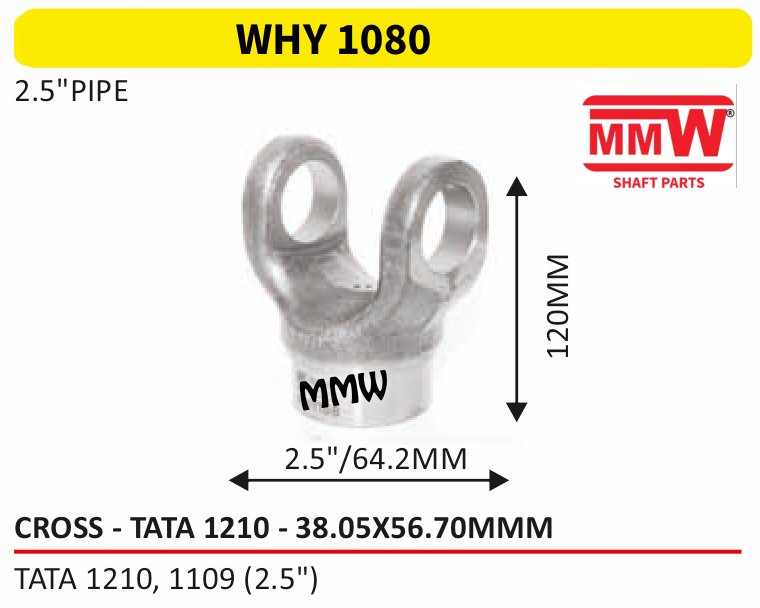

WHY 1080	120 MM	2.5"	TATA 1210, 1109 (2.5")	18

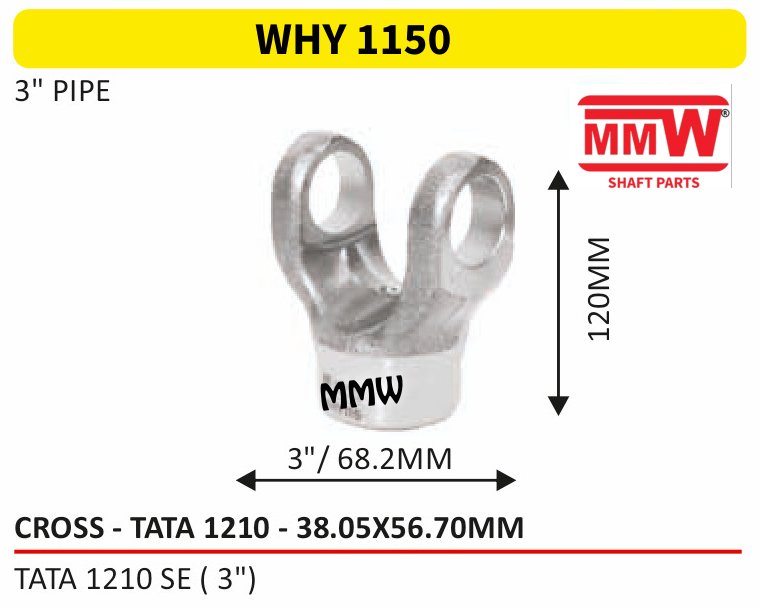

WHY 1150	120 MM	3"	TATA 1210 SE ( 3")	18

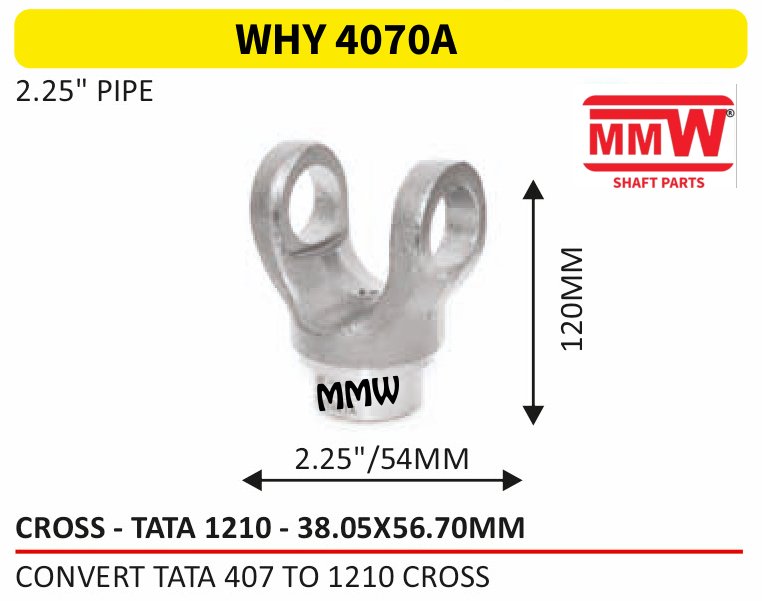

WHY 4070A	120 MM	2.25"	CONVERT TATA 407 TO 1210 CROSS	18

Sleeve Yokes 3

Part	Splines	Length	Spline ID	Vehicles	Page
WFM 1060A	22	8"/205 MM		TATA 1109 BSIII, 909, MARCOPOLO BUS	51
WFY 1060 [1210]	10	8"/205 MM	44.70MM	TATA 1210, 1109	23
WFY 1060A	22	8"/207 MM	47.10MM	TATA 1109 BSIII - 909 - MARCOPOLO BUS	23

Rear Teeth 5

Part	Splines	Length	Pipe	Teeth OD	Bearing	Marked	Vehicles	Page
WRT 1070	10	8.75"/220 MM	2.5"	44.70MM			TATA 1210, 1109 (2.5")	23
WRT 1070AC	22	10"/255 MM	2.5"	47.10MM			TATA 1109 BSIII, 909, MARCOPOLO BUS	23
WRT 1070AC (GLIDE COAT)	22	10/255 MM	2.5"	47.10MM	50MM	GLIDE COAT	TATA 1109 BSIII, 909, MARCOPOLO BUS	51
WRT 1140	10	8.75"/220 MM	3"	44.70MM			TATA 1210, SE (3")	23
WRT 406 A	10	8.75"/220 MM	2.25"	44.70MM			TATA 407 CONVERT TO 1210(1210 YOKE-2.25" PIPE)	23

Sleeve Yoke & Rear Teeth Sets 5

Part	Splines	Length	Pipe	Bearing	Marked	Vehicles	Page
WYT 1050	10	8.75"/220 MM	2.5"			TATA 1210, 1109 (2.5")	23
WYT 1050AC	22	2.5"/64 MM	2.5"			TATA 1109 BSIII, 909, MARCOPOLO BUS	23
WYT 1050AC (GLIDE COAT)	22	2.5"/64 MM	2.5"	50MM	GLIDE COAT	TATA 1109 BSIII, 909, MARCOPOLO BUS	51
WYT 1120	10	8.75"/220 MM	3"			TATA 1210, SE (3")	23
WYT 4040A	10	8.75"/220 MM	2.25"			TATA 407 CONVERT TO 1210, (1210 YOKE - 2.25" PIPE)	23

Front Teeth 2

Part	Splines	Length	Pipe	Vehicles	Page
WFT 1090	14	7.25"/185mm	2.5"	TATA 1210 (PIPE 2.5")	75
WFT 1160	14	7.25"/185mm	3"	TATA 1210 SE (PIPE 3")	75

Centre Coupling Flanges 1

Part	Splines	Length	Holes	Bolt No.	Outer Dia	Vehicles	Page

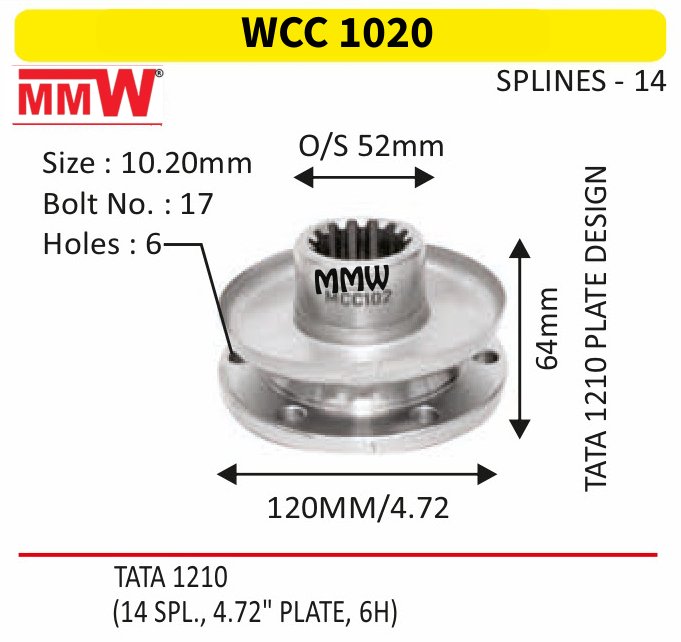

WCC 1020	14	64mm	6	17	52MM	TATA 1210 PLATE DESIGN, TATA 1210	75

Same Cross Size

Questions About the Tata 1210 Shaft

Which UJ cross fits the Tata 1210 propeller shaft?

The Tata 1210 shaft takes the MC 1022, 38.05X56.70 MM UJ cross: MMW part WC 10220/ 10220GL.

Which parts of the Tata 1210 shaft does MMW make?

1 uj cross, 3 cross holders / flange yokes, 1 cross holder assembly, 3 half yokes / tube yokes, 3 sleeve yokes, 5 rear teeth, 5 sleeve yoke & rear teeth sets, 2 front teeth, 1 centre coupling flange. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
