RSB 620 / Spicer 2055 Propeller Shaft Parts

UJ Crosses 2

Part	Marked	Vehicles	Page

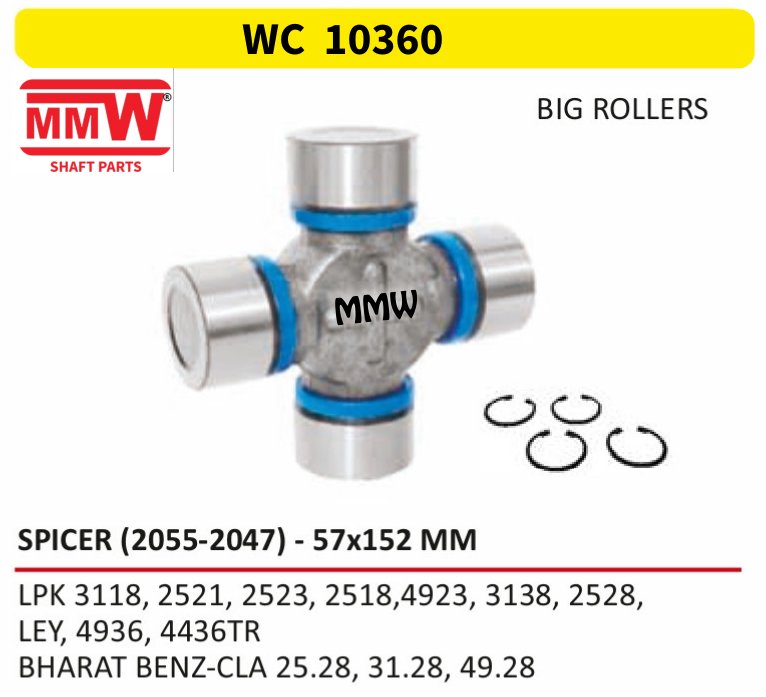

WC 10360	BIG ROLLERS	LPK 3118, 2521, 2523, 2518, 4923, 3138, 2528, LEY, 4936, 4436 TR, BHARAT BENZ - CLA ...	5

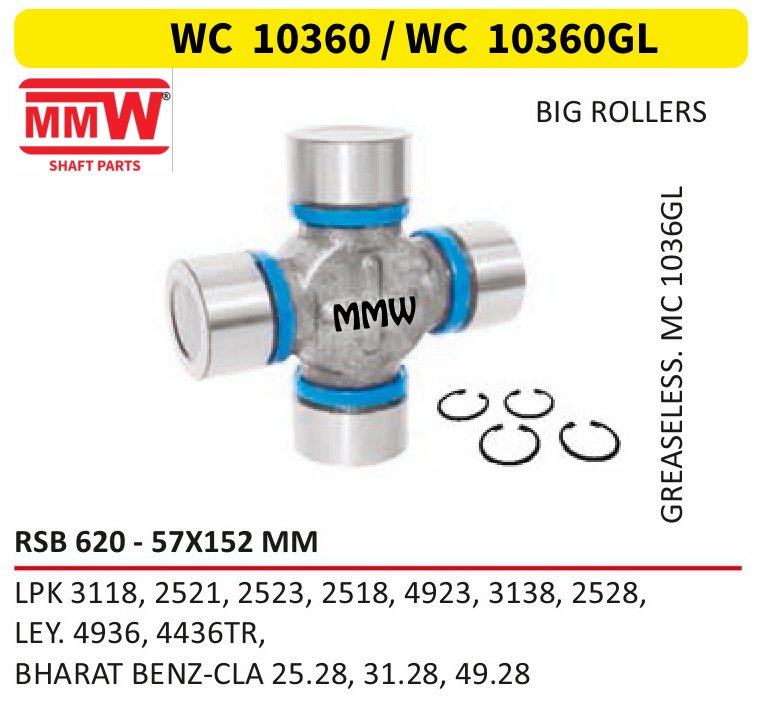

WC 10360 / WC 10360GL	BIG ROLLERS	LPK 3118, 2521, 2523, 2518, 4923, 3138, 2528, LEY.4936, 4436 TR, BHARAT BENZ - CLA 25.28 ...	6

Cross Holders / Flange Yokes 1

Part	Length	Holes	Bolt No.	Vehicles	Page

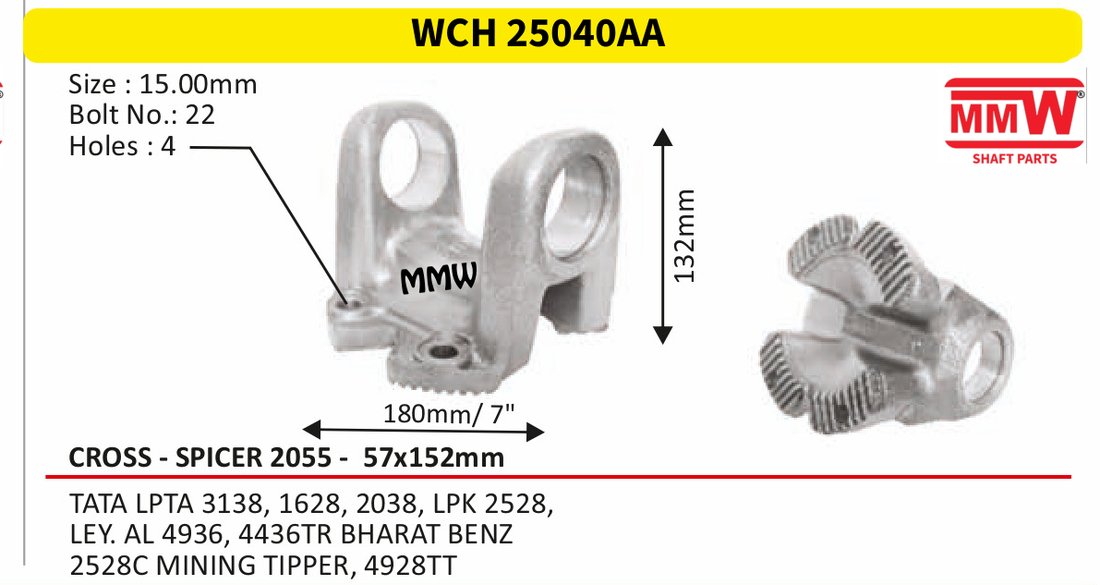

WCH 25040AA	132mm	4	22	TATALPTA 3138, 1628, 2038, LPK 2528, LEY.AL 4936, 4436 TR BHARAT BENZ, 2528 ...	13

Half Yokes / Tube Yokes 3

Part	Length	Pipe	Vehicles	Page

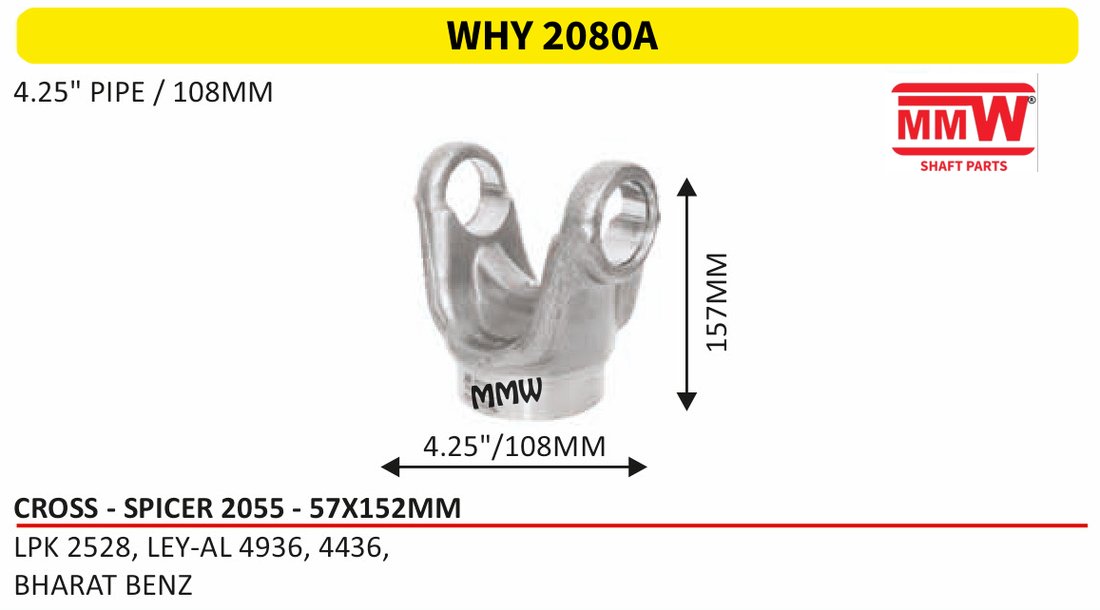

WHY 2080A	157 MM	4.25"	LPK 2528, LEY - AL 4936, 4436, BHARAT BENZ	19

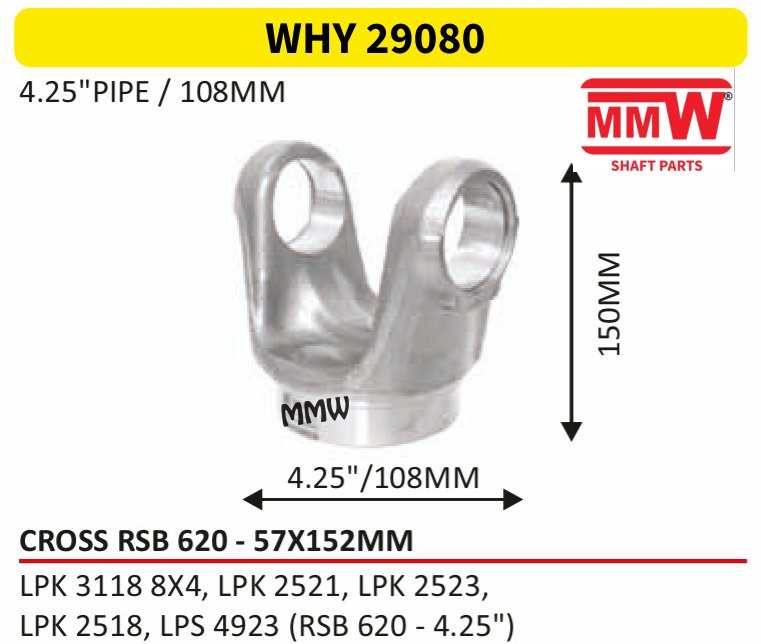

WHY 29080	150 MM	4.25"	LPK 31188X 4, LPK 2521, LPK 2523, LPK 2518, LPS 4923 (RSB 620 - 4.25")	21

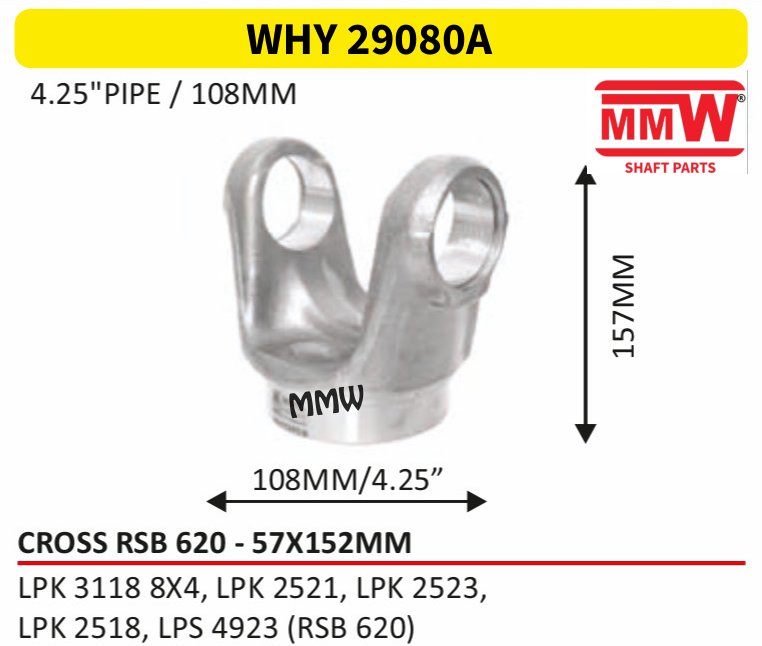

WHY 29080A	157 MM	4.25"	LPK 3118 8X 4, LPK 2521, LPK 2523, LPK 2518, LPS 4923 (RSB 620), DCM CROSS UJC - MC 1029 ...	21

Long Forks 4

Part	Splines	Length	Pipe	Marked	Vehicles	Page
WRY 29200 AATP	38	405MM/16"			SPICER 2055 SERIES LONG	42
WRY 29200 TP	38	13.25"/325mm			LPK 2528, LEY - 4936, BHARAT BENZ 4436	42
WRY 33200 AATP	36	440MM/17"		WITH D. COVER	BENZ 4228R, 5028 TT, 5428 TT, 5225T, 5528 TT	50
WRY 33200 TP	36	14.5"/370mm	4.5"	WITH D. COVER	TATA LPK 2523, LPK 2518, (PIPE DIA 4.5")	50

Rear Housings / Sleeve Bottles 5

Part	Splines	Length	Pipe	Vehicles	Page
WST 29270 C	38	8.5"/212mm	4.5"	BHARAT BENZ 4436	42
WST 29270AAC	38	285MM/11.25"			42
WST 33270 AC	36	275MM/11"	4.5"	BENZ 4228R, 5028 TT, 5428 TT, 5225T, 5528 TT	50
WST 33270 AC [GLIDE COAT]	36	8"/205MM	4.5"	TATA LPK 2523, LPK 2518, (PIPE DIA 4.5")	50
WST 33270C (GLIDE COAT)	36	9"/225MM	4.5"	TATA LPK 2523, LPK 2518, (PIPE DIA 4.5")	50

Long Fork & Sleeve Bottle Sets 5

Part	Splines	Length	Pipe	Marked	Vehicles	Page
WRYST 29200 AAPC	38	405MM/16"			SPICER 2055 SERIES LONG	42
WRYST 29200 PC	38	8.5"/212MM	4.5"		LPK 2528, LEY.4936, BHARAT BENZ 4436	42
WRYST 33200 AAPC	36	440MM/17"	4.5"		BENZ 4228R, 5028 TT, 5428 TT, 5225T, 5528 TT	50
WRYST 33200 APC (GLIDE COAT)	36	14.5"/370MM		WITH D. COVER	TATA LPK 2523, LPK 2518, (PIPE DIA 4.5")	50
WRYST 33200 PC (GLIDE COAT)	36	14.5"/370MM	4"		TATA LPK 2523, LPK 2518, (PIPE DIA 4.5")	50

Front Teeth 2

Part	Splines	Length	Vehicles	Page

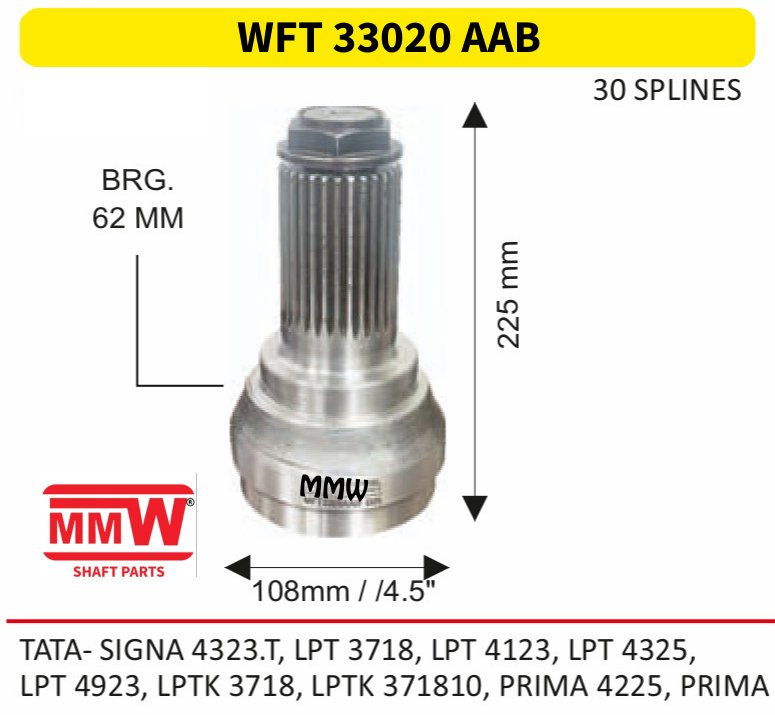

WFT 33020 AAB		62 MM	TATA-SIGNA 4323.T, LPT 3718, LPT 4123, LPT 4325	117

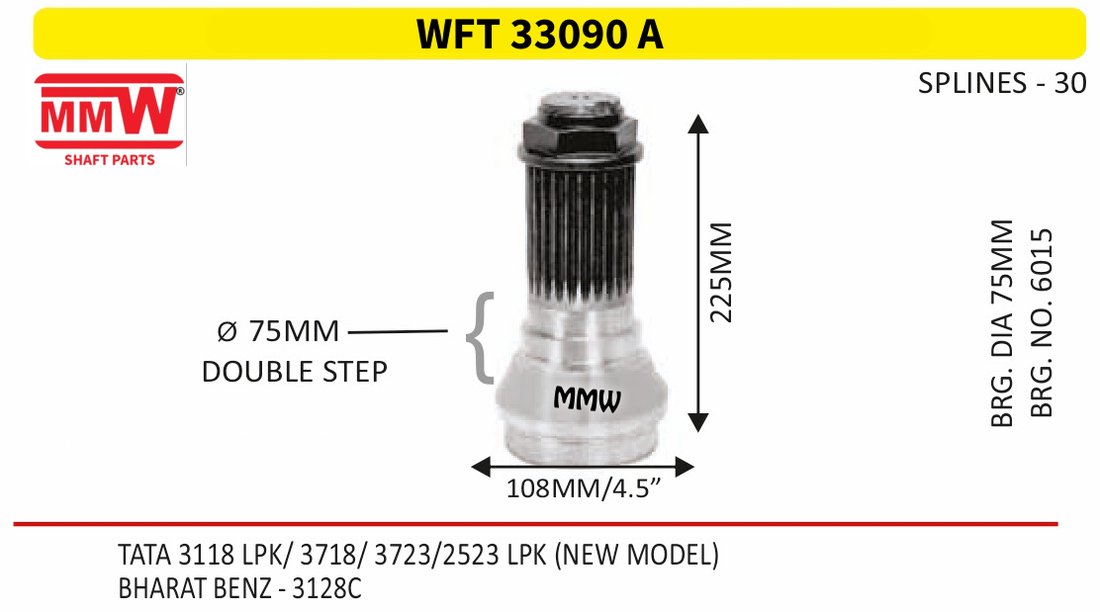

WFT 33090 A	30	225 MM	TATA 3118 LPK/3718/3723/2523 LPK(NEW MODEL), BHARAT BENZ-3128C	79

Centre Coupling Flanges 1

Part	Splines	Length	Holes	Bolt No.	Outer Dia	Marked	Vehicles	Page

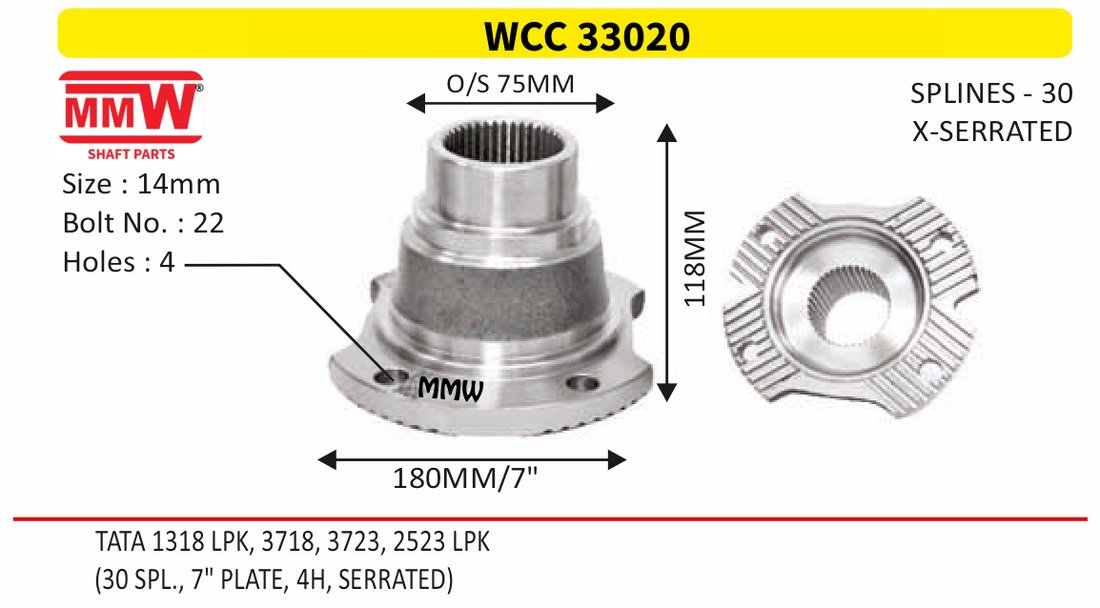

WCC 33020	30	118 MM	4	22	75MM	SERRATED	TATA 1318 LPK, 3718, 3723, 2523 LPK	79

Same Cross Size

Questions About the RSB 620 / Spicer 2055 Shaft

Which UJ cross fits the RSB 620 / Spicer 2055 propeller shaft?

The RSB 620 / Spicer 2055 shaft takes the MC 1036, 57X152 MM UJ cross: MMW part WC 10360, WC 10360 / WC 10360GL.

Which parts of the RSB 620 / Spicer 2055 shaft does MMW make?

2 uj crosses, 1 cross holder / flange yoke, 3 half yokes / tube yokes, 4 long forks, 5 rear housings / sleeve bottles, 5 long fork & sleeve bottle sets, 2 front teeth, 1 centre coupling flange. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
