JCB 3DX / MSL 1480 Propeller Shaft Parts

UJ Crosses 1

Part	Vehicles	Page

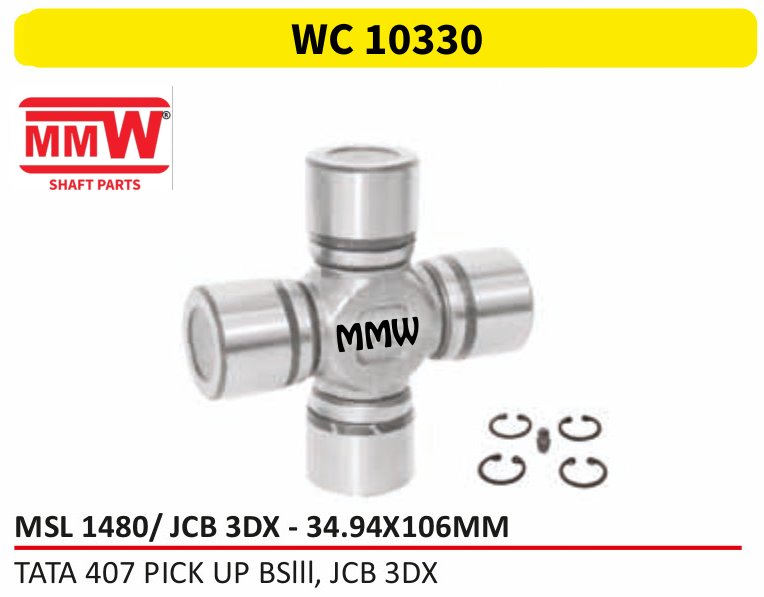

WC 10330	TATA 407 PICKUP BSIII, JCB 3 DX	7

Cross Holders / Flange Yokes 5

Part	Length	Holes	Bolt No.	Vehicles	Page

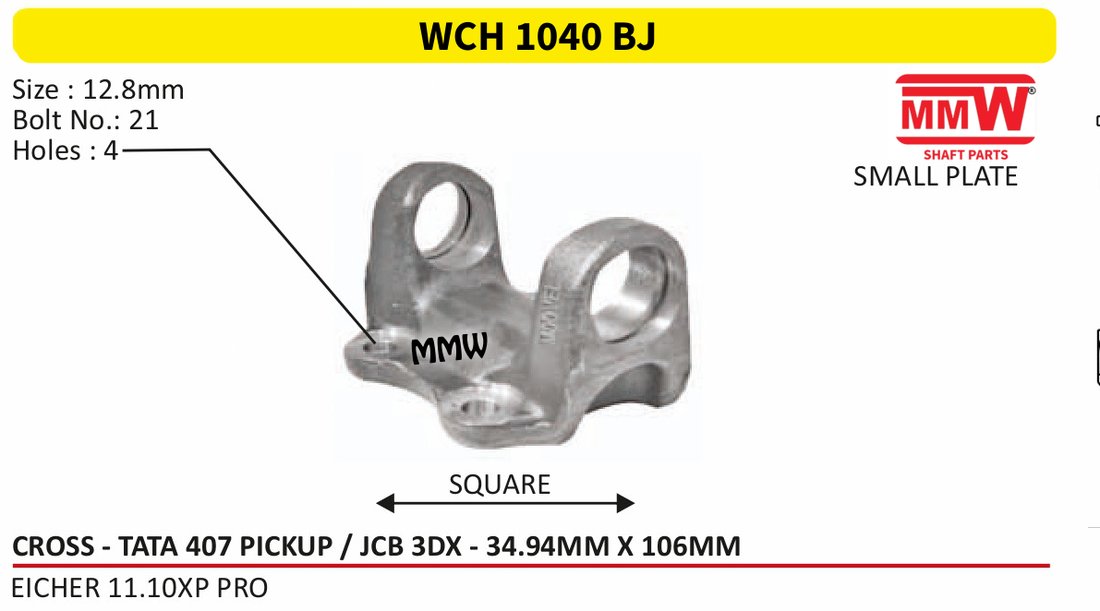

WCH 1040 BJ		4	21	EICHER 11.10 XPPRO	16

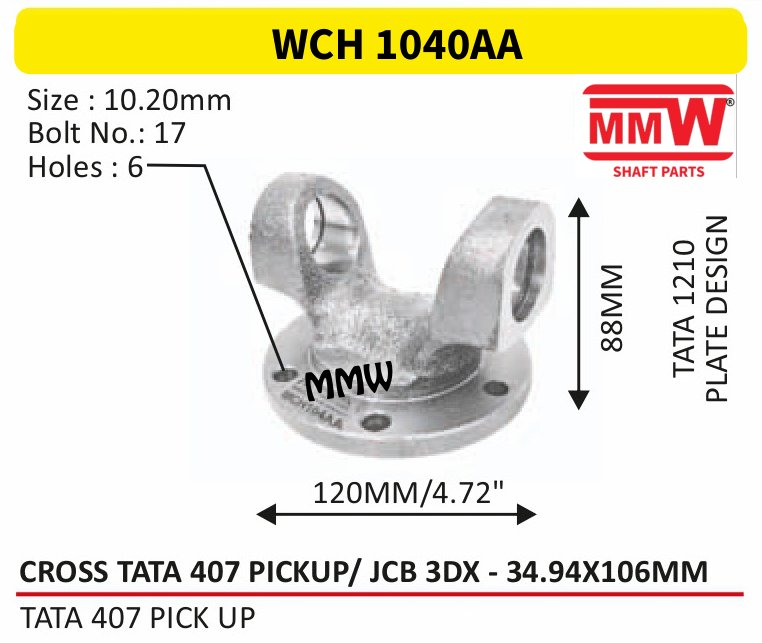

WCH 1040AA	88 MM	6	17	TATA 407 PICKUP	16

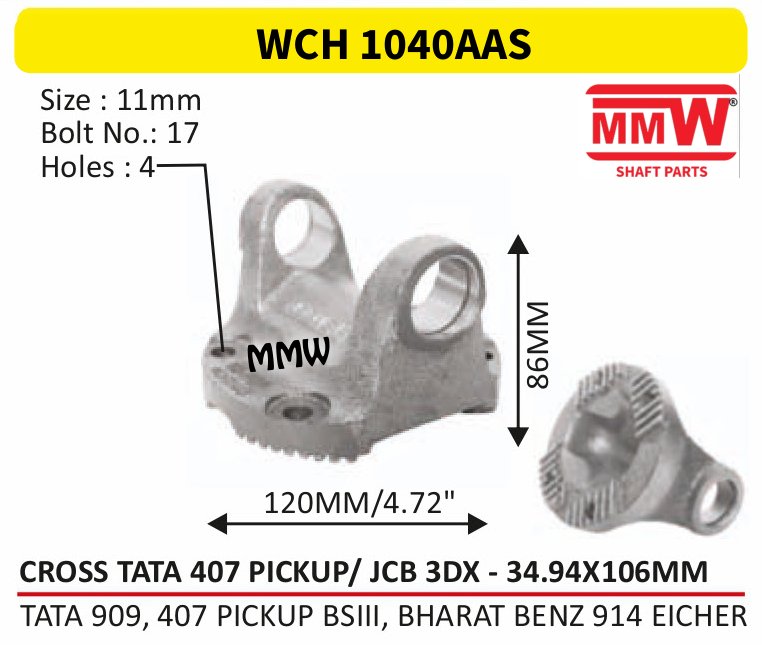

WCH 1040AAS	86 MM	4	17	TATA 909, 407 PICKUP BSIII, BHARAT BENZ 914 EICHER	16

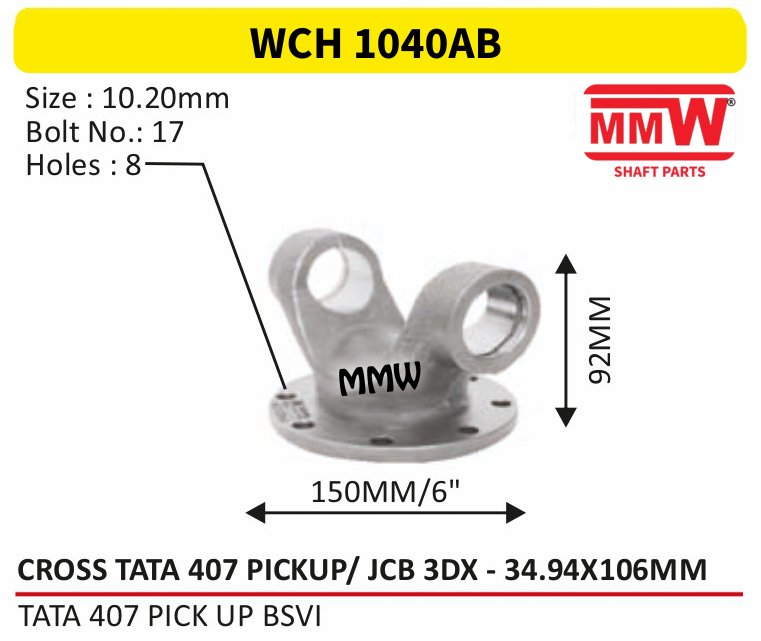

WCH 1040AB	92 MM	8	17	TATA 407 PICKUP BSVI	16

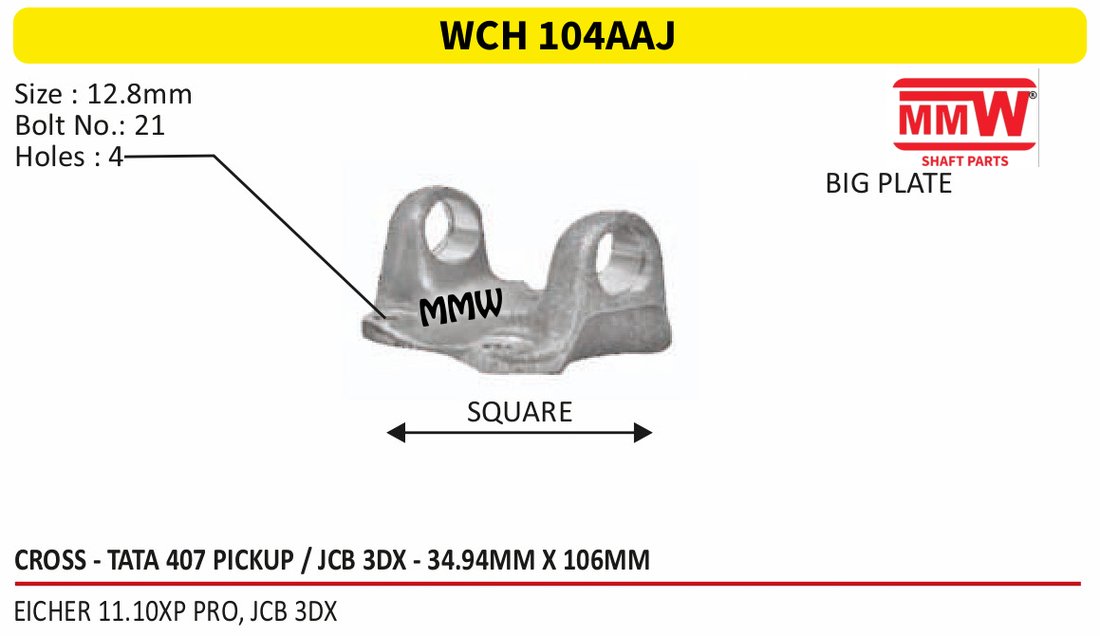

WCH 104AAJ		4	21	EICHER 11.10 XP PRO, JCB 3 DX	16

Half Yokes / Tube Yokes 1

Part	Length	Pipe	Vehicles	Page

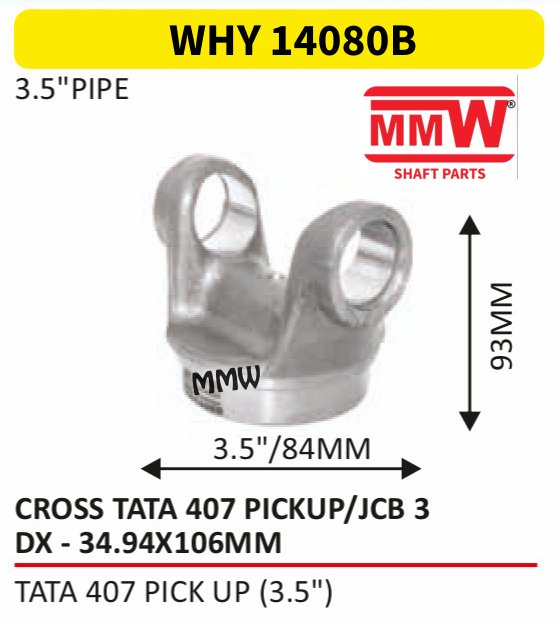

WHY 14080B	93 MM	3.5"	TATA 407 PICK UP (3.5")	22

Sleeve Yokes 6

Part	Splines	Length	Pipe	Vehicles	Page
WFM 14060B	16	8"/202mm		TATA 407 PICK - UP BSIII(MSL TYPE)	54
WFY 14060B	16	8"/200mm		TATA 909 EX, 1109 BSIV	55
WFY 7060 AAJ	16	9.75"/245mm	3.5"	TATA 407 N/M, (16 SPL., 3.5" PIPE)	123
WFY 7060 AJ	16	9"/228mm	3.5"	TATA 407 N/M, (16 SPL., 3.5" PIPE)	123
WFY 7060AD	16	9.5"/240mm	3.5"	TATA 909 LATEST (PIPE 3.5")	55
WFY7060D	24	9"/228mm	3.5"	LEY.2516, 1616, VIKING 222, EICHER 33.25, (22 SPL., 3.5" PIPE)	55

Rear Teeth 6

Part	Splines	Length	Pipe	Bearing	Vehicles	Page
WRT 14070 LAC	16	8.75"/215mm			TATA 407 N/M, (16 SPL., 3.5" PIPE)	123
WRT 1407AC	16	9"/230mm		40mm	TATA 909 EX, 1109 BSIV	55
WRT 23070 ABC	16	8.75"/225mm	3.5"		TATA 407 N/M, (16 SPL., 3.5" PIPE)	123
WRT 6080ADC/ WRT 6080AEDC	24	10.5"/268MM	3.5"	40MM	LEY.2516, 1616, VIKING 222, EICHER 33.25, (22 SPL., 3.5" PIPE)	55
WRT 6080BDC	16	8.75"/225mm	3.5"		TATA 909 LATEST (PIPE 3.5")	55
WRT 6080DC/ MRT 6080EDC	24	8.5"/218MM	3.5"		LEY.2516, 1616, VIKING 222, EICHER 33.25, (22 SPL., 3.5" PIPE)	55

Sleeve Yoke & Rear Teeth Sets 8

Part	Splines	Length	Pipe	Bearing	Vehicles	Page
WYT 14050 DLC	16	8"/202mm		40MM	TATA 407 PICK - UP(MSL TYPE)	123
WYT 14050ABC (GLIDE COAT)	16	8"/202MM	3"		TATA 407 PICK-UPBSIII, BSIV, (MSLTY.-3" PIPE)	54
WYT 14050DC	16	9"/230mm		40mm	TATA 909 EX, 1109 BSIV	55
WYT 7050 JBC	16	10.75"/275mm	3.5"		TATA 407 N/M, (16 SPL., 3.5" PIPE)	123
WYT 7050ABC	16	8.75"/225mm	3.5"		TATA 909 LATEST (PIPE 3.5")	55
WYT 7050ADC/ WYT 7050AEDC	24	10.5"/268MM	3.5"		TATA 407 PICKUP(ULTRA), LPT 709, 909, BHARAT BENZ, EICHER 11.14 PRO, 10.80 ...	55
WYT 7050DC/ WYT 7050EDC	24	9"/228MM	3.5"		TATA 709, LPT 909, BHARAT BENZ, LEY.2516, 1616, VIKING 222, EICHER 33.25	55
WYT14050AABC	16	8"/202MM	3.5"		TATA 407 PICK-UPBSIII, JCB 4DX, (MSLTY.-3.5" PIPE)	54

JCB Couplings 1

Part	Splines	Length	Outer Dia	Vehicles	Page
WPC 60030	35	94.5 MM	55MM	JCB COUPLING JCB 3 DX	111

JCB / Earthmoving Shafts 2

Part	Length	Holes	Marked	Vehicles	Page

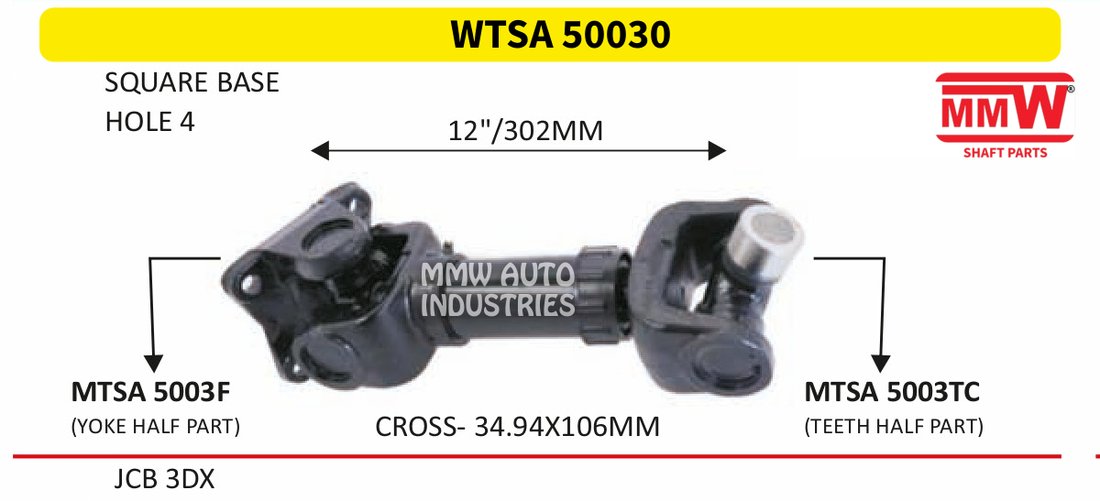

WTSA 50030	12"/302 MM	4	SQUARE BASE	JCB 3 DX	110

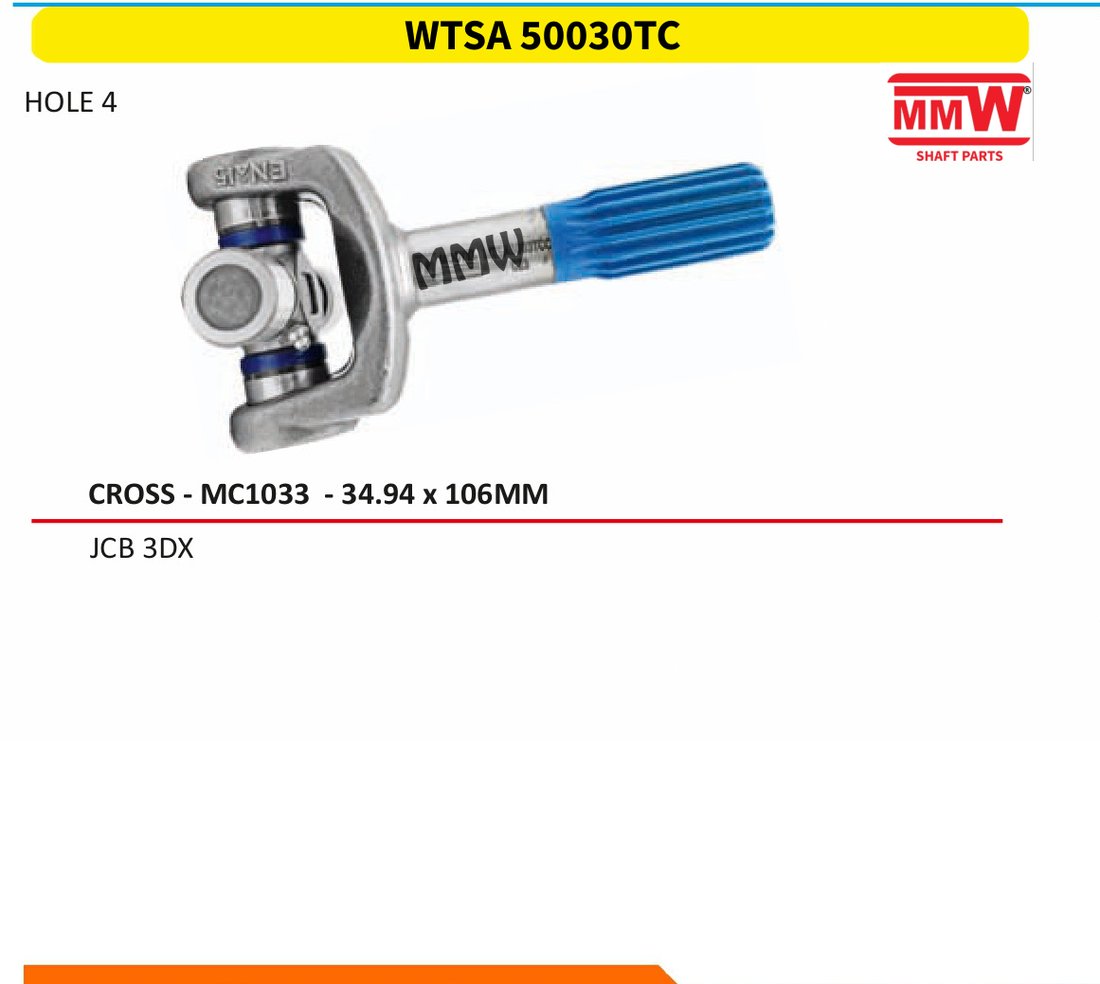

WTSA 50030TC		4		JCB 3 DX	111

Same Cross Size

Questions About the JCB 3DX / MSL 1480 Shaft

Which UJ cross fits the JCB 3DX / MSL 1480 propeller shaft?

The JCB 3DX / MSL 1480 shaft takes the MC 1033, 34.94X106 MM UJ cross: MMW part WC 10330.

Which parts of the JCB 3DX / MSL 1480 shaft does MMW make?

1 uj cross, 5 cross holders / flange yokes, 1 half yoke / tube yoke, 6 sleeve yokes, 6 rear teeth, 8 sleeve yoke & rear teeth sets, 1 jcb coupling, 2 jcb / earthmoving shafts. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
