Spicer 2060 Propeller Shaft Parts

UJ Crosses 2

Part	Marked	Vehicles	Page

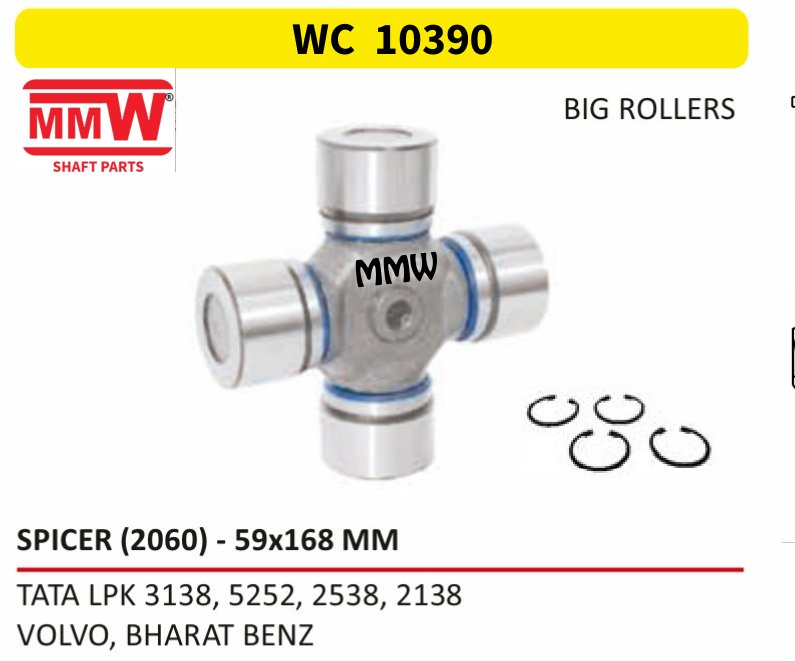

WC 10390	BIG ROLLERS	TATA LPK 3138, 5252, 2538, 2138, VOLVO, BHARAT BENZ	5

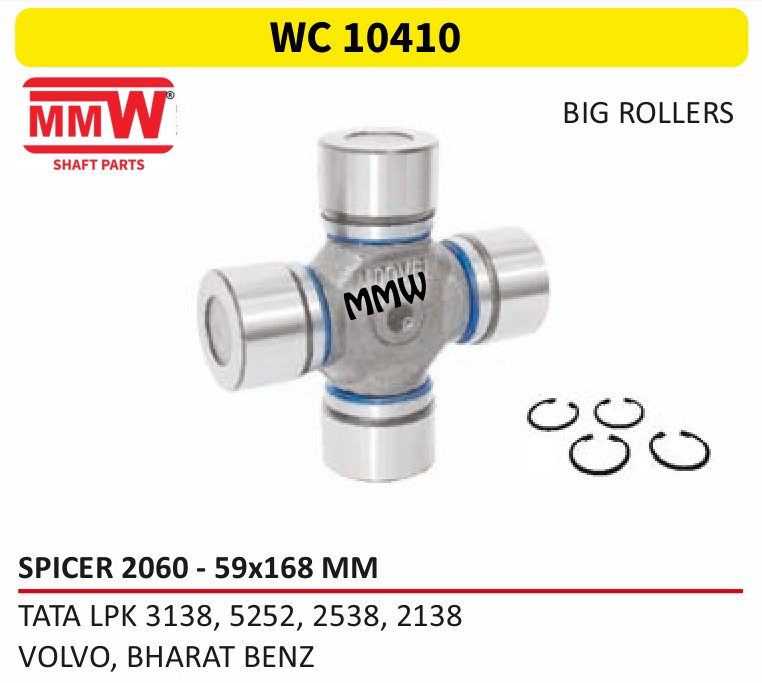

WC 10410	BIG ROLLERS	TATA LPK 3138, 5252, 2538, 2138, VOLVO, BHARAT BENZ	120

Cross Holders / Flange Yokes 2

Part	Cross Size	Length	Holes	Bolt No.	Vehicles	Page

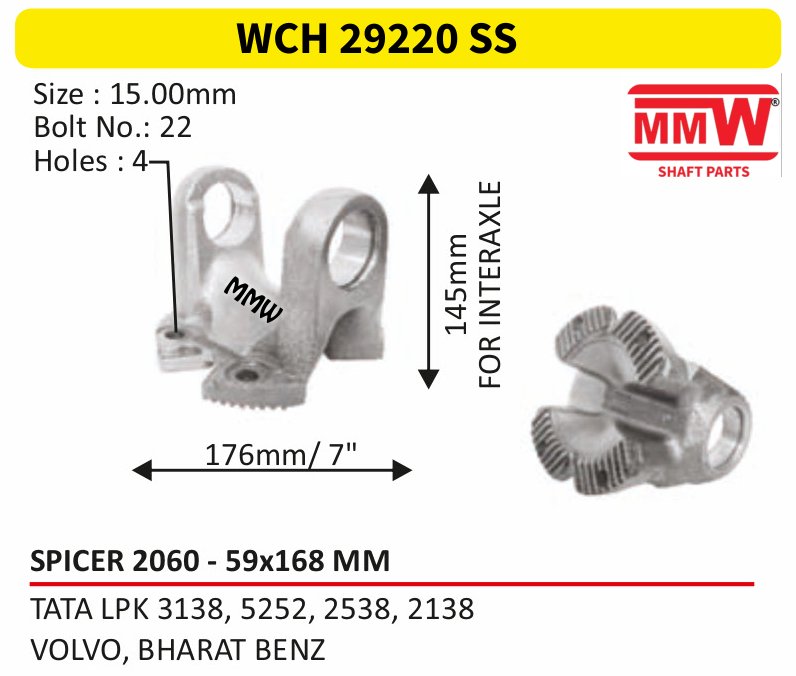

WCH 29220 SS	59X168 MM	145mm	4	22	TATA LPK 3138, 5252, 2538, 2138, VOLVO, BHARAT BENZ	120

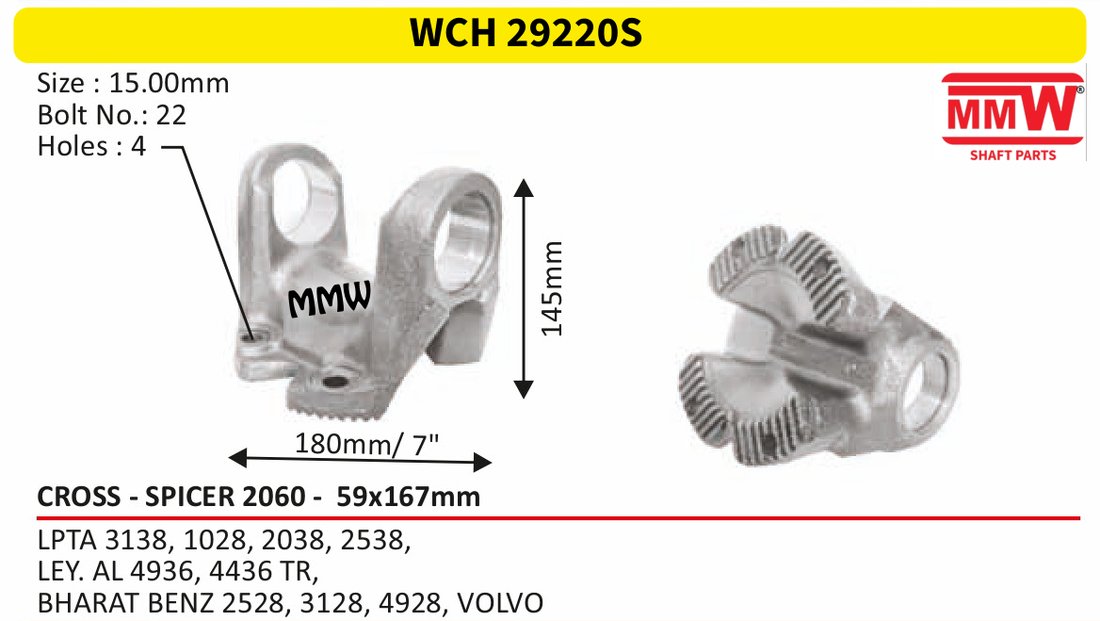

WCH 29220S	59X167 MM	145mm	4	22	LPTA 3138, 1028, 2038, 2538, LEY.AL 4936, 4436 TR, BHARAT BENZ 2528, 3128, 4928, VOLVO	13

Half Yokes / Tube Yokes 1

Part	Length	Pipe	Vehicles	Page

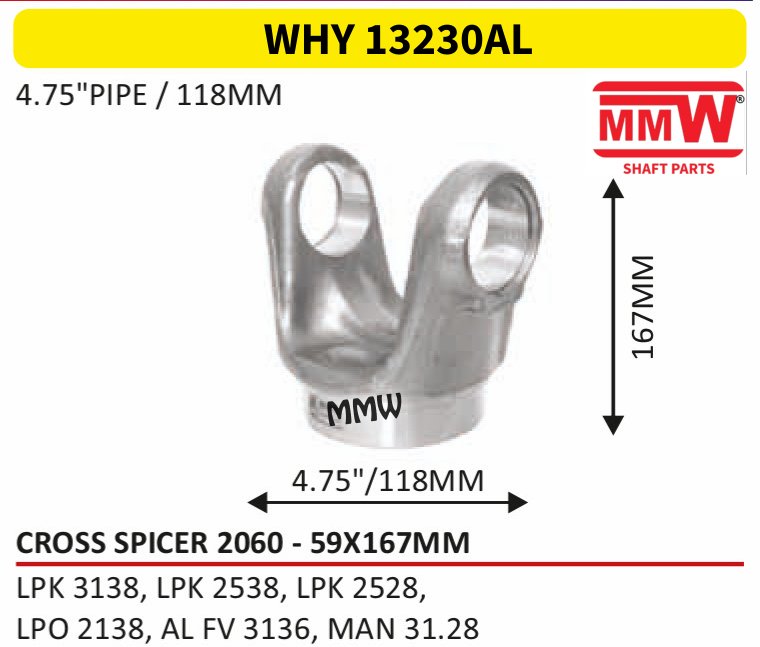

WHY 13230AL	167 MM	4.75"	LPK 3138, LPK 2538, LPK 2528, LPO 2138, ALFV 3136, MAN 31.28	21

Long Forks 2

Part	Cross Size	Splines	Length	Marked	Vehicles	Page
WRY 29200 ATP	59X168 MM	40	13.75"/345mm	WITH D. COVER	TATA LPK 3138, 5252, 2538, 2138, VOLVO, BHARAT BENZ	120
WRY 30200 TP	59X167.60 MM	40	345MM/13.5"		TATA LPT 5252, 3138, 2138, VOLVO	40

Rear Housings / Sleeve Bottles 2

Part	Cross Size	Splines	Length	Pipe	Vehicles	Page

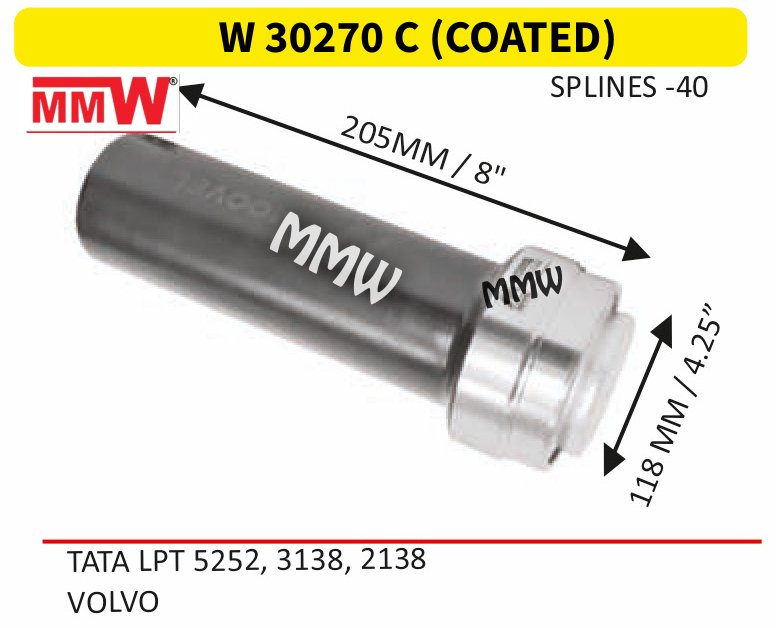

W 30270 C (COATED)	59X167.60 MM	40	205MM/8"		TATA LPT 5252, 3138, 2138, VOLVO	40
WST 29270 AC	59X168 MM	40	8"/200mm	4.5"	TATA LPK 3138, 5252, 2538, 2138, VOLVO, BHARAT BENZ	120

Long Fork & Sleeve Bottle Sets 2

Part	Cross Size	Splines	Length	Vehicles	Page
WRYST 29200 APC	59X168 MM	40	8"/200mm	TATA LPK 3138, 5252, 2538, 2138, VOLVO, BHARAT BENZ	120
WRYST 30200 PC	59X167.60 MM	40	345MM/13.5"	TATA LPT 5252, 3138, 2138, VOLVO	40

Same Cross Size

Questions About the Spicer 2060 Shaft

Which UJ cross fits the Spicer 2060 propeller shaft?

The Spicer 2060 shaft takes the MC 1039, 59X168 MM UJ cross: MMW part WC 10390, WC 10410.

Which parts of the Spicer 2060 shaft does MMW make?

2 uj crosses, 2 cross holders / flange yokes, 1 half yoke / tube yoke, 2 long forks, 2 rear housings / sleeve bottles, 2 long fork & sleeve bottle sets. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
