Spicer 2040 Propeller Shaft Parts

UJ Crosses 2

Part	Cross Size	Marked	Vehicles	Page

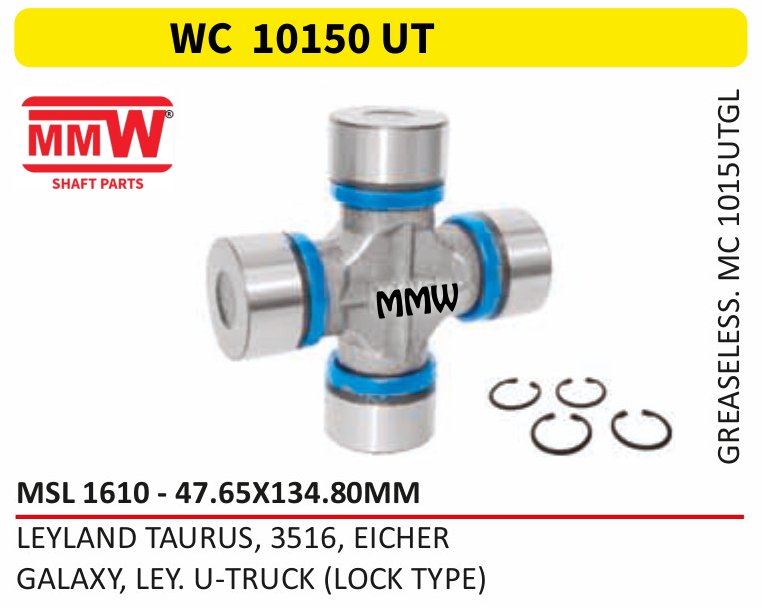

WC 10150 UT	47.65X134.80 MM		LEYLAND TAURUS, 3516, EICHER, GALAXY, LEY.U - TRUCK (LOCK TYPE)	7

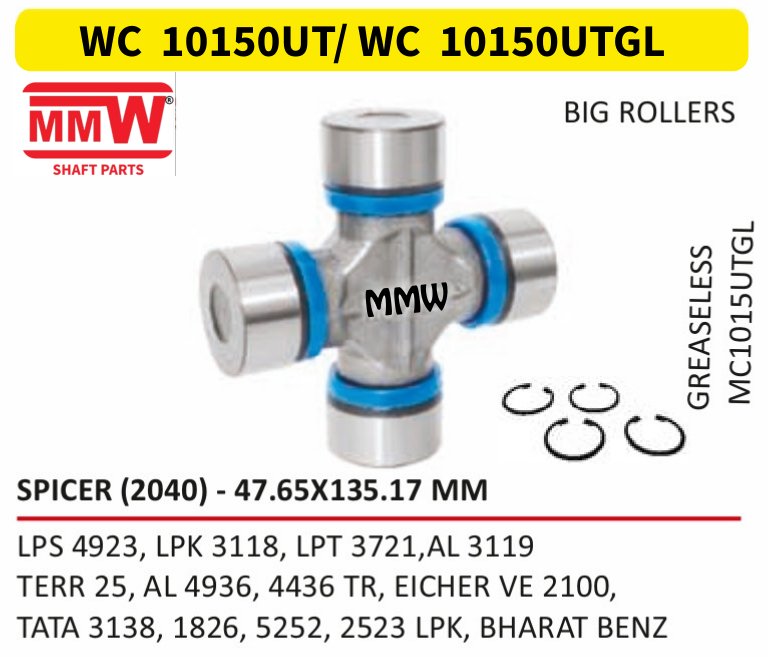

WC 10150UT/ WC 10150UTGL	47.65X135.17 MM	BIG ROLLERS, GREASELESS	LPS 4923, LPK 3118, LPT 3721, AL 3119, TERR 25, AL 4936, 4436 TR, EICHER VE 2100, TATA ...	5

Cross Holders / Flange Yokes 4

Part	Cross Size	Length	Holes	Bolt No.	Vehicles	Page

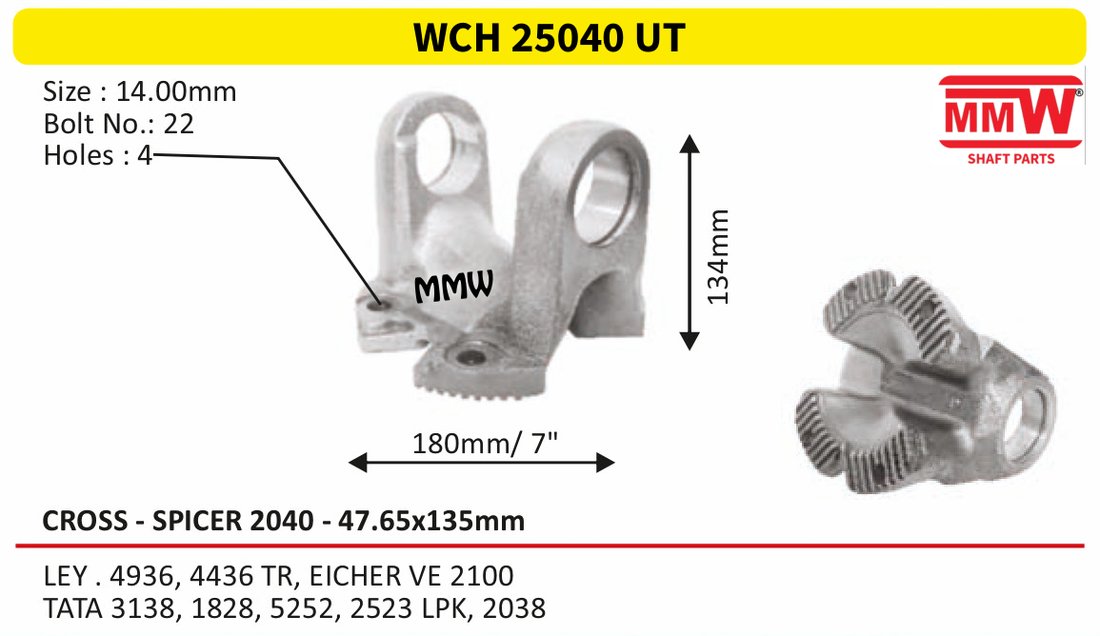

WCH 25040 UT	47.65X135 MM	134mm	4	22	LEY.4936, 4436 TR, EICHER VE 2100, TATA 3138, 1828, 5252, 2523 LPK, 2038	12

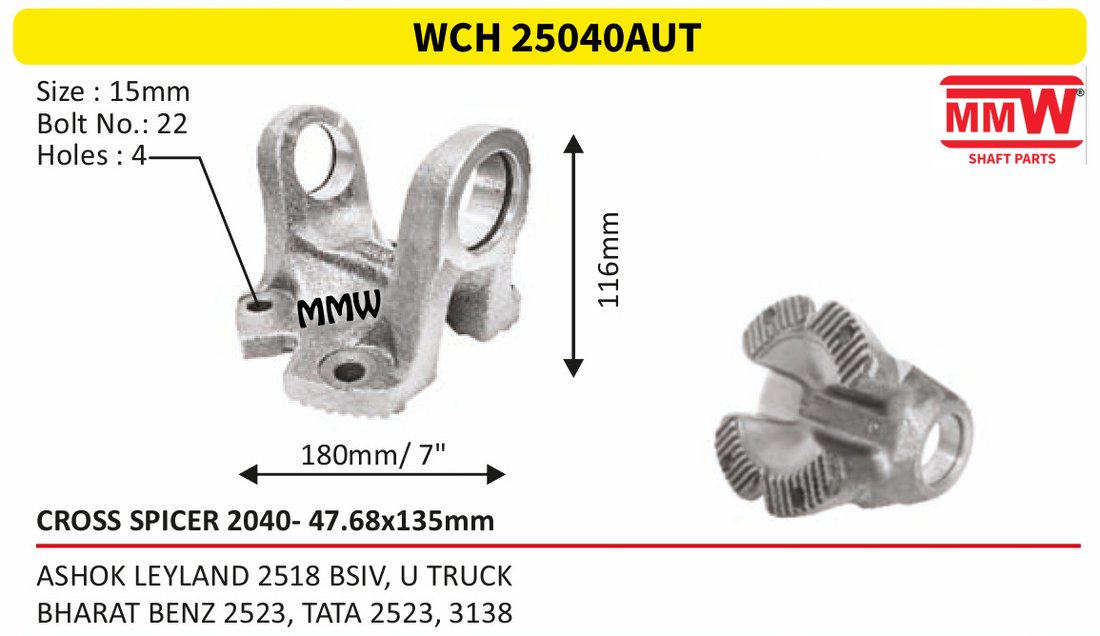

WCH 25040AUT	47.68X135 MM	116mm	4	22	ASHOK LEYLAND 2518 BSIV, U TRUCK, BHARAT BENZ 2523, TATA 2523, 3138	12

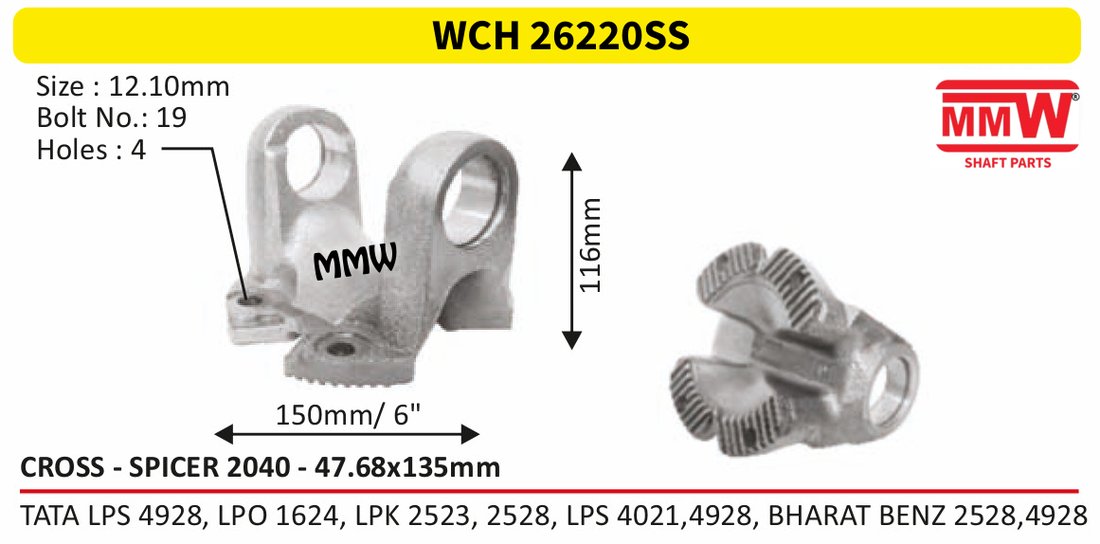

WCH 26220SS	47.65X135 MM	135mm	4	19	LPS 4923, LPK 3118, LPT 3721, AL 3119 MINING, TERRA 25, CLA 31.28	12

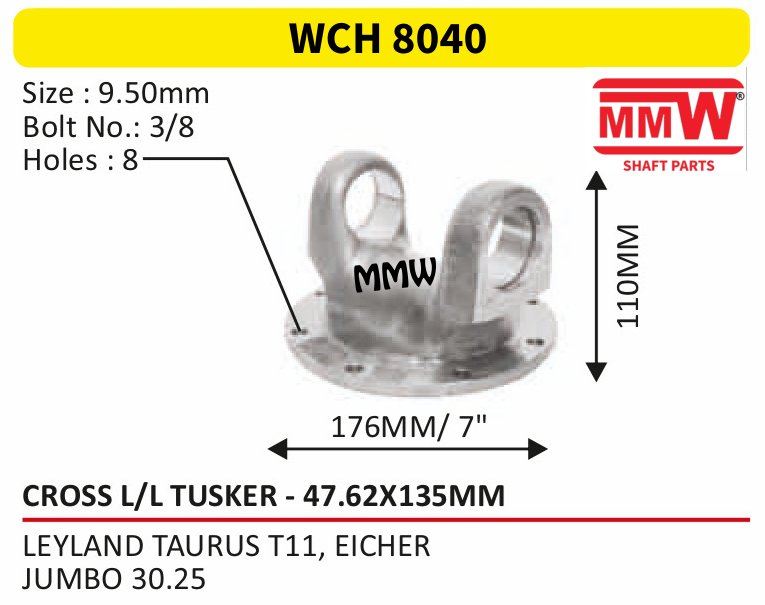

WCH 8040	47.62X135 MM	110 MM	8	3	LEYLAND TAURUS T 11, EICHER, JUMBO 30.25	14

Cross Holder Assemblies 1

Part	Holes	Plate	Vehicles	Page

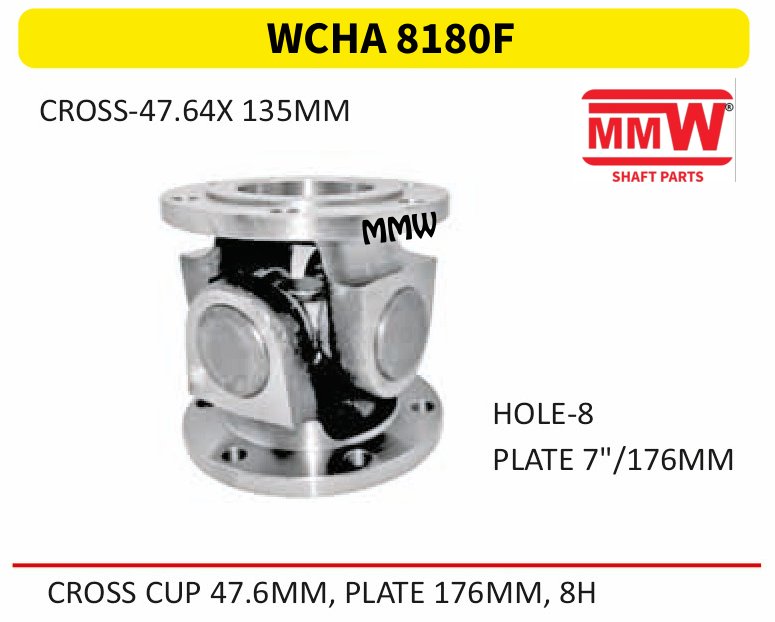

WCHA 8180F	8	7"/176 MM	HOLE - 8	100

Half Yokes / Tube Yokes 4

Part	Cross Size	Length	Pipe	Vehicles	Page

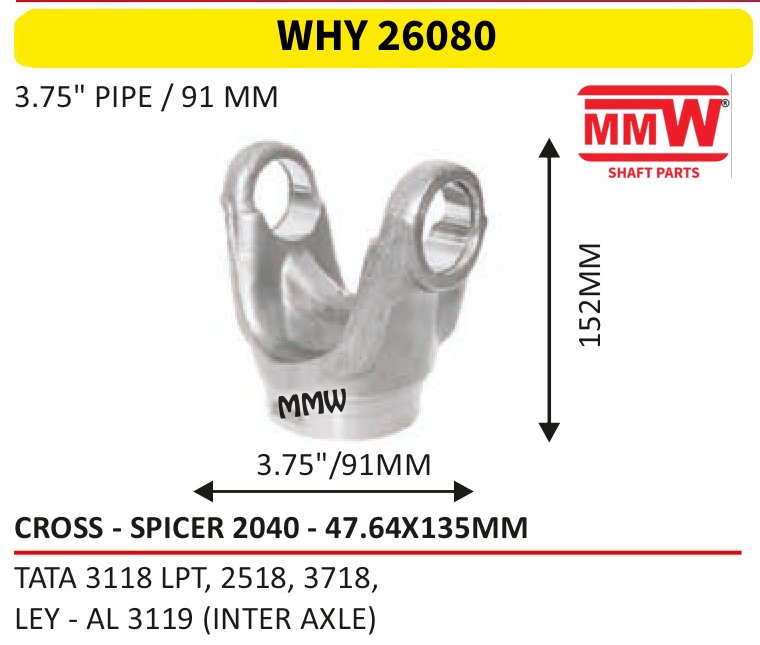

WHY 26080	47.64X135 MM	152 MM	3.75"	TATA 3118 LPT, 2518, 3718, LEY - AL 3119 (INTER AXLE)	19

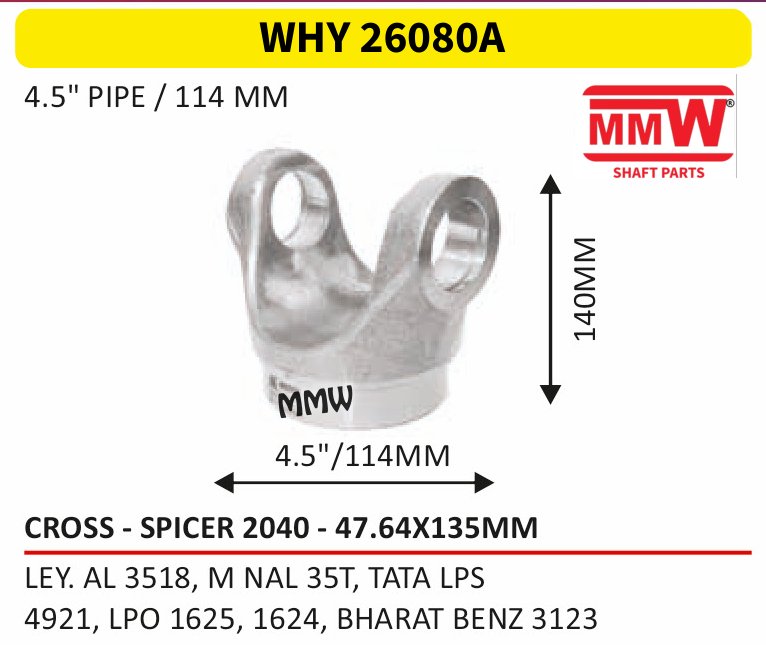

WHY 26080A	47.64X135 MM	140 MM	4.5"	LEY.AL 3518, M NAL 35T, TATA LPS, 4921, LPO 1625, 1624, BHARAT BENZ 3123	19

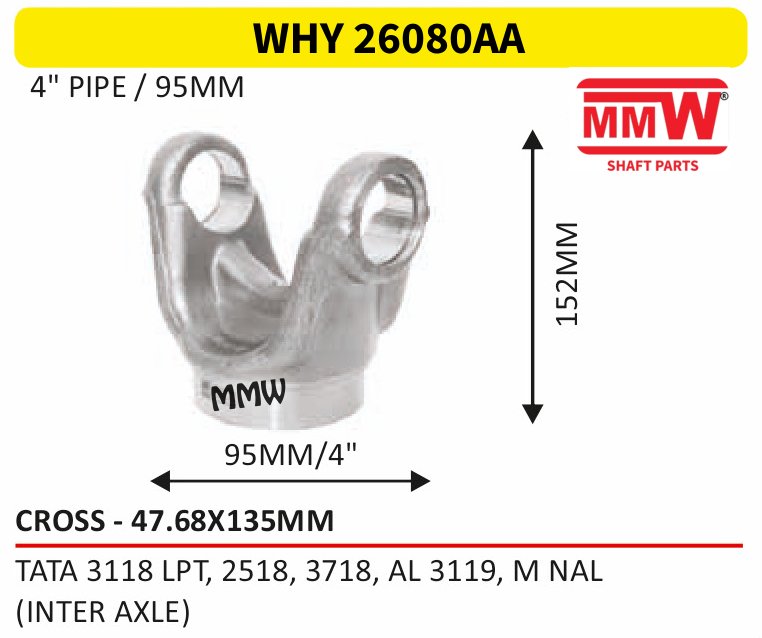

WHY 26080AA	47.68X135 MM	152 MM	4"	TATA 3118 LPT, 2518, 3718, AL 3119, MNAL, (INTER AXLE)	19

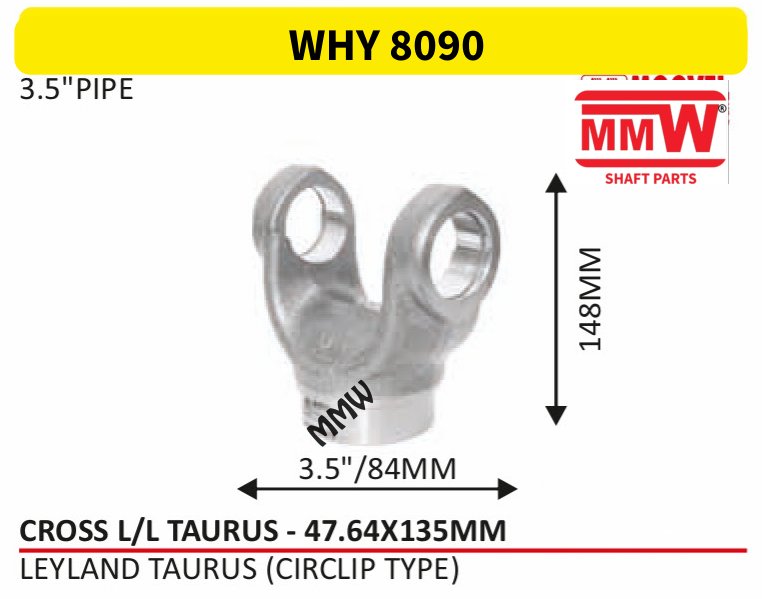

WHY 8090	47.64X135 MM	148 MM	3.5"	LEYLAND TAURUS(CIRCLIP TYPE)	22

Sleeve Yokes 2

Part	Splines	Length	Spline ID	Vehicles	Page
WFY 8050	16	9.5"/240mm	50.80MM	LEYLAND TAURUS T - 11 O/M	60
WFY 8160	16	12"/304mm	50.80MM	LEYLAND TAURUS T - 11 O/M (LONG YOKE)	60

Sleeve Yoke & Rear Teeth Sets 3

Part	Splines	Length	Pipe	Marked	Vehicles	Page
MYT 815 (PLAIN)	16	12"/304MM		PLAIN	LEYLANDTAURUST-11O/M(LONG YOKE&TEETH)	60
WYT 8070 (PLAIN)/ 8070C (COATED)	16	9.5"/240MM	3.5"	PLAIN, FULL TEETH	LEYLANDTAURUST-11O/M(PIPE-3.5")	60
WYT 8070H (PLAIN)/ 8070HC (COATED)	16	9.5"/240MM	3.5"	PLAIN, HALF TEETH	LEYLANDTAURUST-11O/M(PIPE-3.5")	60

Long Forks 6

Part	Cross Size	Splines	Length	Vehicles	Page
WRY 26200 AATP	47.65X135 MM	34	15"/370 MM	BHARAT BENZ, ASHOKLEYLANDU - TRUCK, TATA (INTERAXLE)	37
WRY 26200 ATP	47.68X135 MM	34	335MM/13"	BHARAT BENZ, LEYLAND, TATA (INTERAXLE)	36
WRY 26200 TP	47.68X135 MM	34	355MM/14"	TATA 2523, LEYLAND, 2523 U - TRUCK(INTERAXLE)	36
WRY 26200BT	47.68X135 MM	34	290MM/11.75"	TATA LPS 4928, 3138, LPK 2528, AL 3119, BHARAT BENZ - 2523, 2528, 3128, 4928	121
WRY 26200BTP	47.68X135 MM	34	290MM/11.75"	TATA LPS 4928, 3138, LPK 2528, AL 3119, BHARAT BENZ - 2523, 2528, 3128, 4928	35
WRY 34200 TP	47.65X135 MM	16	380MM/14.75"	ASHOK LEYLAND, 3718 BS 4, 2518 BS 4, (MSL DESIGN)	40

Rear Housings / Sleeve Bottles 16

Part	Cross Size	Splines	Length	Pipe	Vehicles	Page
MST 26270ABC	47.68X135 MM	34	175MM/7"		TATA LPS 4928, 3138, LPK 2528, AL3119, BHARAT BENZ-2523, 2528, 3128, 4928	35
MST 26270BC	47.68X135 MM	34	195MM/7.5"		TATA LPS 4021, 5252, 1625, 1623, AL3518, MAHINDRA NAVISTAR 4026, 49TR	35
WST 26270 AAC	47.64X135 MM	34	10.5"/270 MM	4"	TATA LPK 2523, 3128	39
WST 26270 BWC	47.64X135 MM	34	10.25/260 MM	4"	TATA LPK 2523, 3128	39
WST 26270ABWC	47.68X135 MM	34	175MM/7"		TATA LPS 4928, 3138, LPK 2528, BHARAT BENZ - 4523, 2528, 3128, 4928, A/L - 2518 BSIV	35
WST 26270AC	47.68X135 MM	34	210MM/8.25"		TATA, ASHOK LEYLAND	36
WST 26270AWC	47.68X135 MM	34	220MM/8.75"		TATA 2523, LEYLAND, 2523U - TRUCK(INTERAXLE)	36
WST 26270BBC	47.68X135 MM	34	195MM/7.5"		TATA LPS 4021, 5252, 1625, 1623, AL 3518, MAHINDRA NAVISTAR 4026, 49 TR	121
WST 26270C	47.64X135 MM	34	230MM/9"		BHARAT BENZ, ASHOK LEYLAND, TATA(INTERAXLE)	37
WST 26270CBC	47.68X135 MM	34	195MM/7.5"		TATA LPS 4021, 5252, 1625, 1623, AL 3518, MAHINDRA NAVISTAR 4026, 49 TR	121
WST 26270DC	47.68X135 MM	34	230MM/9"		A/L - 2518 BSIV, BHARAT BENZ - 4523, 2528, 3128, 4928	35
WST 26270EWC	47.68X135 MM	34	200MM/8.25"		BHARAT BENZ, LEYLAND, TATA(INTERAXLE)	36
WST 26270MC	47.64X135 MM	34	225MM/9"		INTERAXLE-TATA 2523, ASHOK LEYLAND, 2523 U TRUCK(FOR INTERAXLE-620MM)	37
WST 26270WC	47.64X135 MM	34	240MM/9.5"		TATA, ASHOK LEYLAND	37
WST 26270WC (COATED)	47.64X135 MM	34	9.5"/240 MM	4"	BHARAT BENZ, ASHOK LEYLAND U-TRUCK, TATA (INTERAXLE)	37
WST 34270 C	47.65X135 MM	16	255MM/10"		ASHOK LEYLAND, 3718 BS 4, 2518 BS 4, (MSL DESIGN)	40

Long Fork & Sleeve Bottle Sets 16

Part	Cross Size	Splines	Length	Pipe	Marked	Vehicles	Page
WRYST 20600MPC	47.68X135 MM	34	355MM/14"			TATA 2523, LEYLAND 2523 U TRUCK, (INTERAXLE)	37
WRYST 26200 AAPC	47.65X135 MM	34	10.5"/270 MM	4"	EXTRA LONG	TATA LPK 2523, 3128, LEY. U - TRUCK 2523 (INTERAXLE)	39
WRYST 26200 AAWPBC	47.65X135 MM	34	10.5"/270 MM	4"	EXTRA LONG	TATA LPK 2523, 3128, LEY. U - TRUCK 2523 (INTERAXLE)	39
WRYST 26200 AAWPC	47.65X135 MM	34	9.5"/240 MM	4"		BHARAT BENZ, ASHOK LEYLAND U - TRUCK, TATA (INTERAXLE)	37
WRYST 26200 AWPC	47.68X135 MM	34	335MM/13"			TATA 2523-INTERAXLE, LEYLAND 2523 U TRUCK, (FOR INTERAXLE)	36
WRYST 26200 DWPC	47.68X135 MM	34	355MM/14"			TATA 2523, LEYLAND, 2523U - TRUCK(INTERAXLE)	36
WRYST 26200ABPC	47.68X135 MM	34	290MM/11.75"			TATA LPS 4928, 3138, LPK 2528, AL3119, BHARAT BENZ-2523, 2528, 3128, 4928	35
WRYST 26200ABWPC	47.68X135 MM	34	290MM/11.75"			TATA LPS 4928, 3138, LPK 2528, BHARAT BENZ - 4523, 2528, 3128, 4928, A/L - 2518 BSIV	35
WRYST 26200APC	47.64X135 MM	34	335MM/13"			TATA, ASHOK LEYLAND	36
WRYST 26200BDPC	47.68X135 MM	34	290MM/11.75"			A/L - 2518 BSIV, BHARAT BENZ - 4523, 2528, 3128, 4928	35
WRYST 26200BPC	47.68X135 MM	34	290MM/11.75"			TATA LPS 4021, 5252, 1625, 1623, AL3518, MAHINDRA NAVISTAR 4026, 49TR	35
WRYST 26200CBC	47.68X135 MM	34	290MM/11.75"			TATA LPS 4021, 5252, 1625, 1623, AL 3518, MAHINDRA NAVISTAR 4026, 49 TR	121
WRYST 26200EWPC	47.68X135 MM	34	335MM/13"			BHARAT BENZ, LEYLAND, TATA(INTERAXLE)	36
WRYST 26200PC	47.68X135 MM	34	355MM/14"			BHARAT BENZ, ASHOK LEYLAND, TATA(INTERAXLE)	37
WRYST 26200WPC	47.68X135 MM	34	355MM/14"			TATA, ASHOK LEYLAND-INTERAXLE	37
WRYST 34200 PC	47.65X135 MM	16	380MM/14.75"			ASHOK LEYLAND, 3718 BS 4, 2518 BS 4, (MSL DESIGN)	40

Weld Plug Assemblies 5

Part	Splines	Vehicles	Page

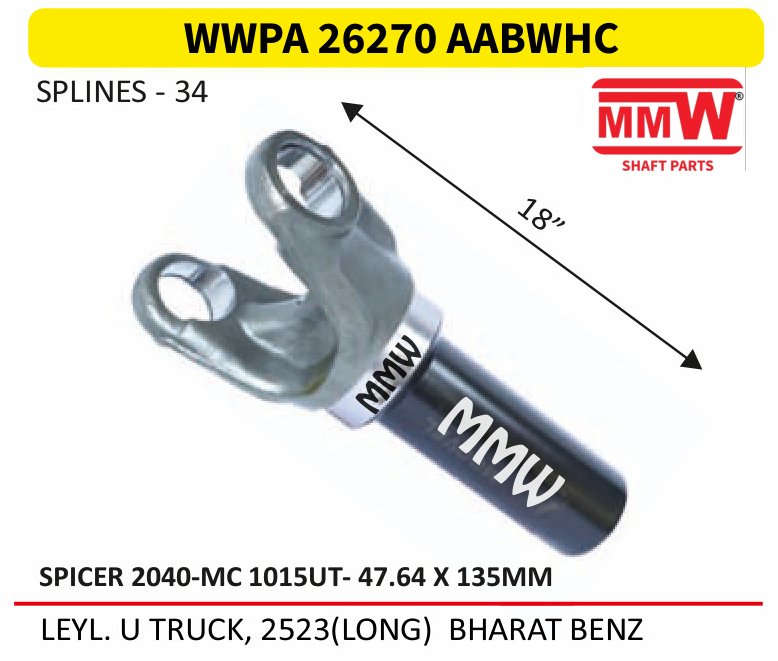

WWPA 26270 AABWHC	34	LEYL.U TRUCK, 2523(LONG)BHARAT BENZ	39

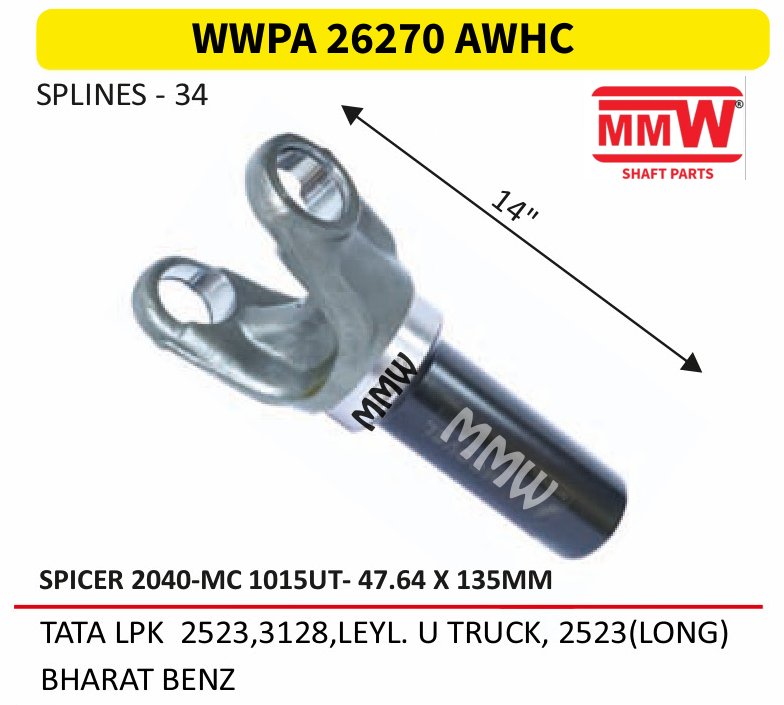

WWPA 26270 AWHC	34	TATA LPK 2523, 3128, LEYL.U TRUCK, 2523(LONG), BHARAT BENZ	39

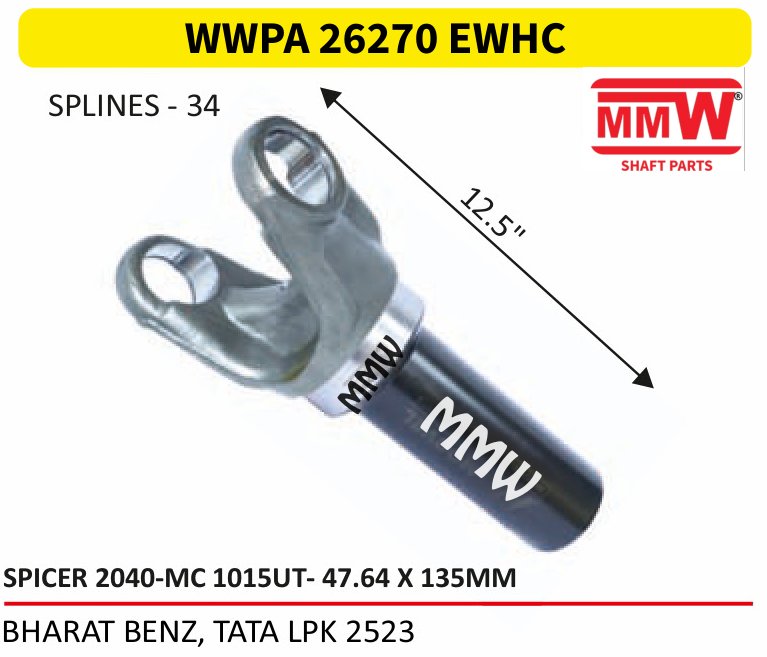

WWPA 26270 EWHC	34	BHARAT BENZ, TATA LPK 2523	39

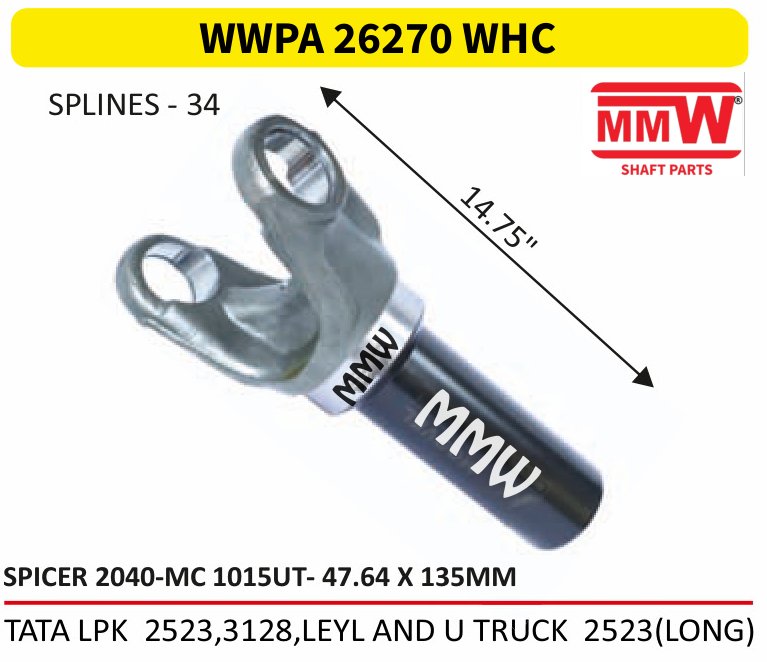

WWPA 26270 WHC	34	TATA LPK 2523, 3128, LEYLAND U TRUCK 2523(LONG)	39

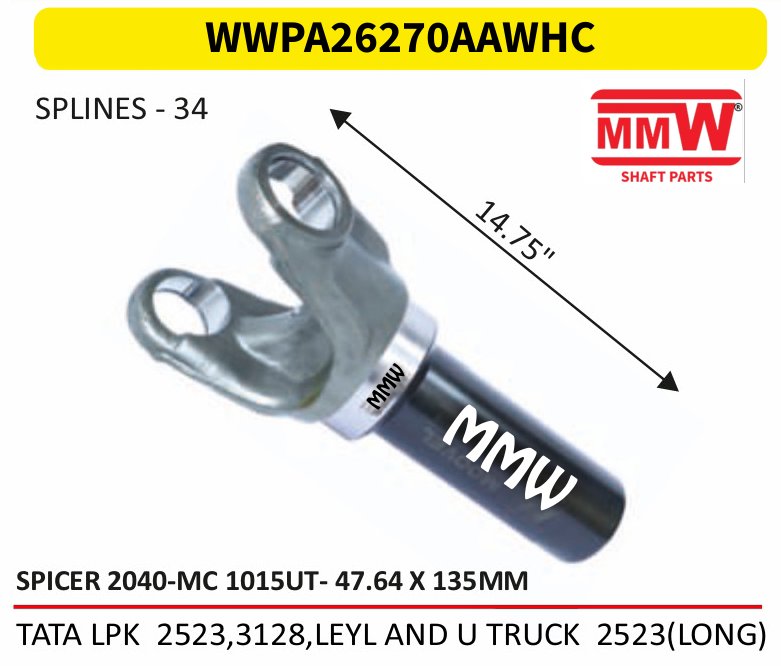

WWPA26270AAWHC	34	TATA LPK 2523, 3128, LEYLAND U TRUCK 2523(LONG)	115

Centre Coupling Flanges 3

Part	Splines	Length	Pipe	Holes	Bolt No.	Outer Dia	Marked	Vehicles	Page
WCC 2607	20	75 MM		4	19	63MM	SERRATED	AL3515, MNAL 35T, TATA LPS 4921, LPO 1625, 1624, BHARAT BENZ 3123	82
WCC 26070A	20	78mm		4	22	63MM	SERRATED	BHARAT BENZ 3123 (20 SPL., 7" PLATE 4" H SERRATED)	82
WCC 26070B	20	71 MM	4"	4	19	76MM		AL3518, MNAL 35T, TATA LPS 4921, LPO 1625, 1624, BENZ 3123	82

Centre Bearings 1

Part	Length	Vehicles	Page
WCB 26270	75 MM	TATA LPS 4021, 5252, 1625, 1623, AL 3518, MAHINDRA NAVISTAR 4026, 49 TR	121

Interaxle Shafts 3

Part	Length	Bolt No.	Marked	Vehicles	Page
WISA 28470	25.5"/640 MM	22	SERRATED	LPK 2518	109

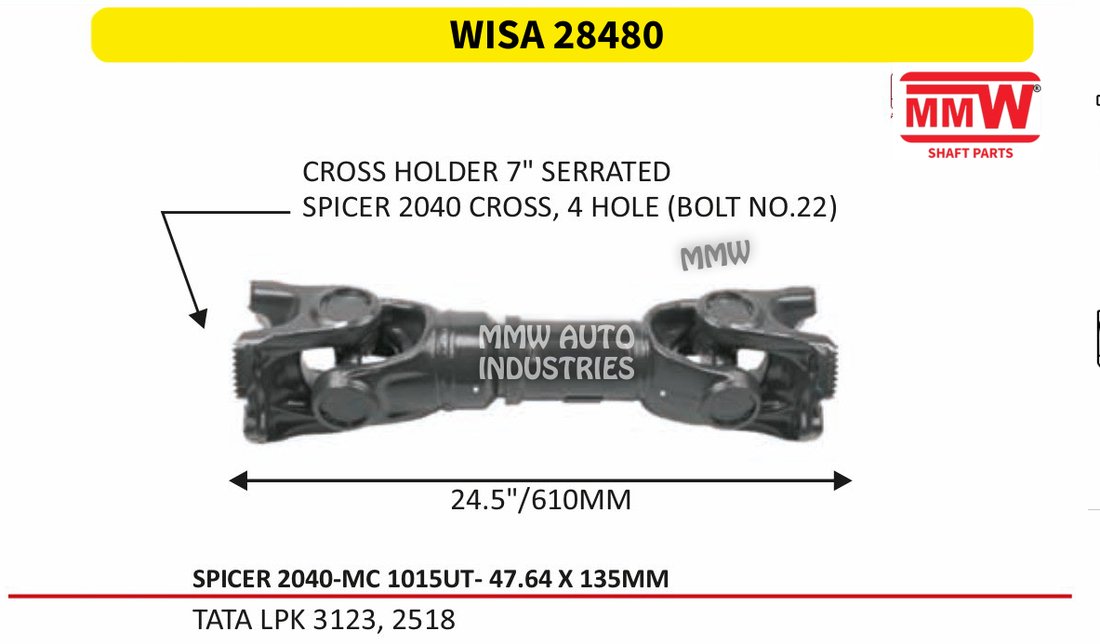

WISA 28480	24.5"/610 MM	22	SERRATED	TATA LPK 3123, 2518	109

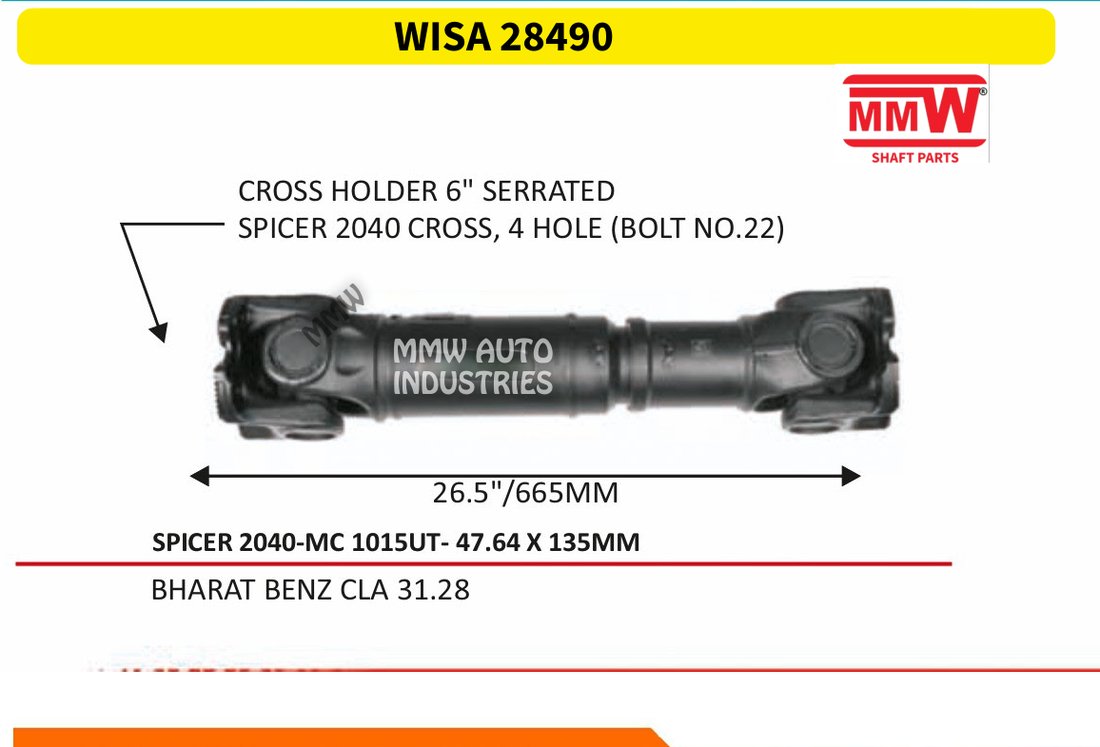

WISA 28490	26.5"/665 MM	22	SERRATED	BHARAT BENZ CLA 31.28	109

Same Cross Size

Questions About the Spicer 2040 Shaft

Which UJ cross fits the Spicer 2040 propeller shaft?

The Spicer 2040 shaft takes the MC 1015 UT, 47.64X135 MM UJ cross: MMW part WC 10150UT/ WC 10150UTGL, WC 10150 UT.

Which parts of the Spicer 2040 shaft does MMW make?

2 uj crosses, 4 cross holders / flange yokes, 1 cross holder assembly, 4 half yokes / tube yokes, 2 sleeve yokes, 3 sleeve yoke & rear teeth sets, 6 long forks, 16 rear housings / sleeve bottles, 16 long fork & sleeve bottle sets, 5 weld plug assemblies, 3 centre coupling flanges, 1 centre bearing, 3 interaxle shafts. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
