Tata 407 / MSL 1350 Propeller Shaft Parts
UJ cross MC 1029, 30.18X92.1 MM
All 6 parts in our catalogue for the propeller shaft with the Tata 407 / MSL 1350 UJ cross (MC 1029, 30.18X92.1 MM): 1 UJ cross, 2 cross holders / flange yokes, 1 sleeve yoke, 1 rear teeth, 1 sleeve yoke & rear teeth set. The cross size is printed as 30.18X92.1 MM, 30.18X92 MM. Vehicles printed for these parts: Tata 407. Parts of the same kind are side by side, with the sizes that tell them apart. Check your old part, or send us a photo on WhatsApp and we will tell you which one it is.
UJ Crosses 1
| Part | Vehicles | Page |
|---|

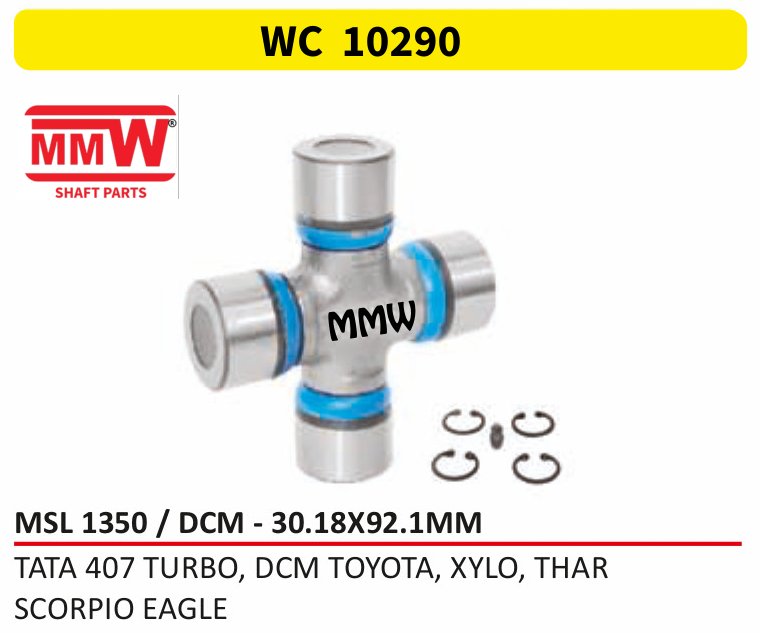

 WC 10290 | TATA 407 TURBO, DCM TOYOTA, XYLO, THAR, SCORPIO EAGLE | 7 |
Cross Holders / Flange Yokes 2
| Part | Length | Holes | Bolt No. | Vehicles | Page |
|---|

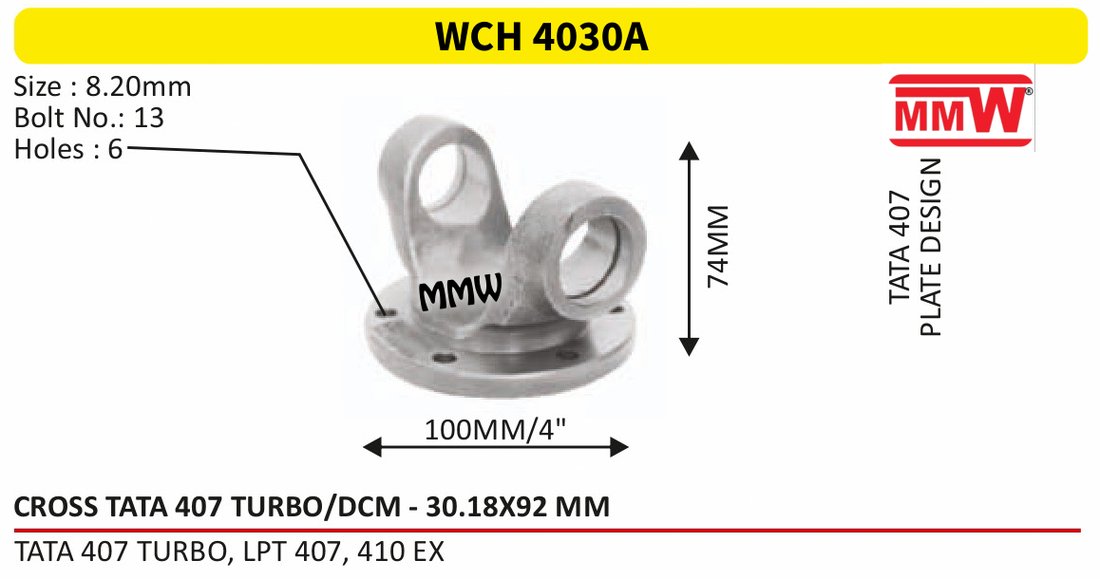

 WCH 4030A | 74 MM | 6 | 13 | TATA 407 TURBO, LPT 407, 410 EX | 16 |

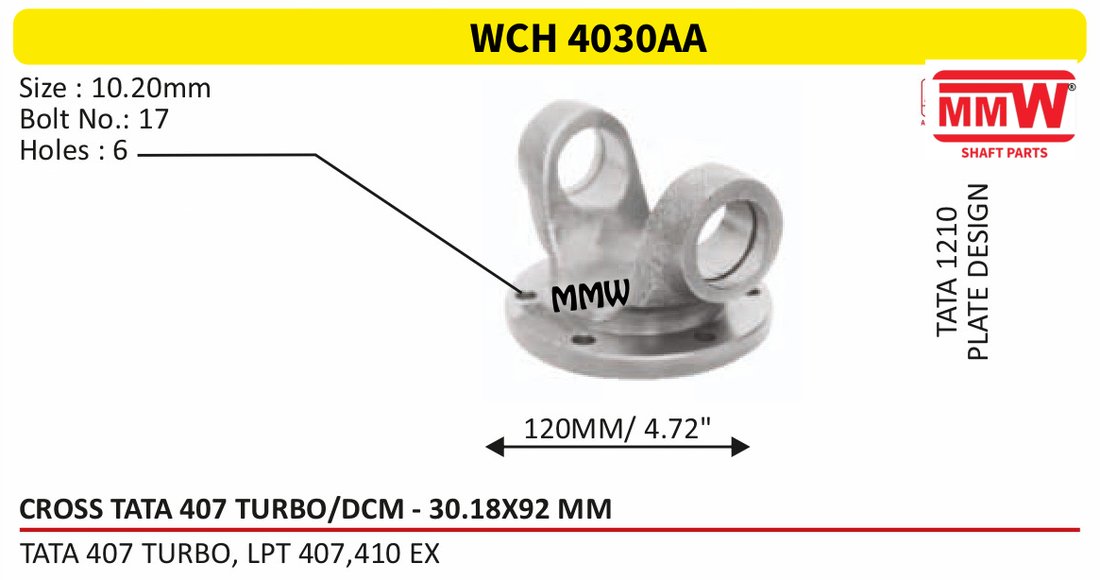

 WCH 4030AA | | 6 | 17 | TATA 407 TURBO, LPT 407, 410 EX | 16 |
Sleeve Yokes 1
| Part | Splines | Length | Vehicles | Page |
|---|
 WFY 4050A | 16 | 7"/175mm | TATA 407 TURBO, 410 EX, 412(MSL TYPE) | 51 |
Rear Teeth 1
| Part | Splines | Length | Pipe | Teeth OD | Bearing | Vehicles | Page |
|---|
 WRT 4060MC | 16 | 8"/200mm | 3" | 34.90MM | 35mm | TATA 407 TURBO, 410EX, 412 (MSL TYPE) | 51 |
Sleeve Yoke & Rear Teeth Sets 1
| Part | Splines | Length | Pipe | Bearing | Marked | Vehicles | Page |
|---|
 WYT 4040MC (GLIDE COAT) | 16 | 7"/175mm | 3" | 35mm | GLIDE COAT | TATA 407 TURBO, 410 EX, 412 (MSL TYPE) | 51 |
Same Cross Size
Questions About the Tata 407 / MSL 1350 Shaft
- Which UJ cross fits the Tata 407 / MSL 1350 propeller shaft?
- The Tata 407 / MSL 1350 shaft takes the MC 1029, 30.18X92.1 MM UJ cross: MMW part WC 10290.
- Which parts of the Tata 407 / MSL 1350 shaft does MMW make?
- 1 uj cross, 2 cross holders / flange yokes, 1 sleeve yoke, 1 rear teeth, 1 sleeve yoke & rear teeth set. Every part is on this page with its photo and sizes.
- How do I pick the right variant?
- Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
Other Shafts
Can't find your part?
Send us the part number, a photo of your old part, or the vehicle model on WhatsApp. We will find the right part and send the price.
