Eicher Canter / MSL 1410 Propeller Shaft Parts

UJ Crosses 1

Part	Vehicles	Page

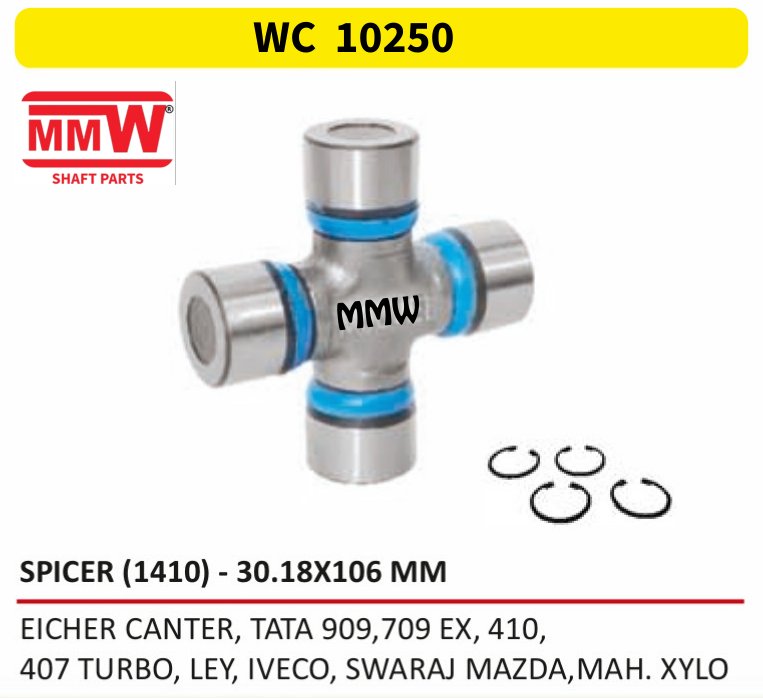

WC 10250	EICHER CANTER, TATA 909, 709 EX, 410, 407 TURBO, LEY, IVECO, SWARAJ MAZDA, MAH.XYLO	5

Cross Holders / Flange Yokes 6

Part	Length	Holes	Bolt No.	Marked	Vehicles	Page

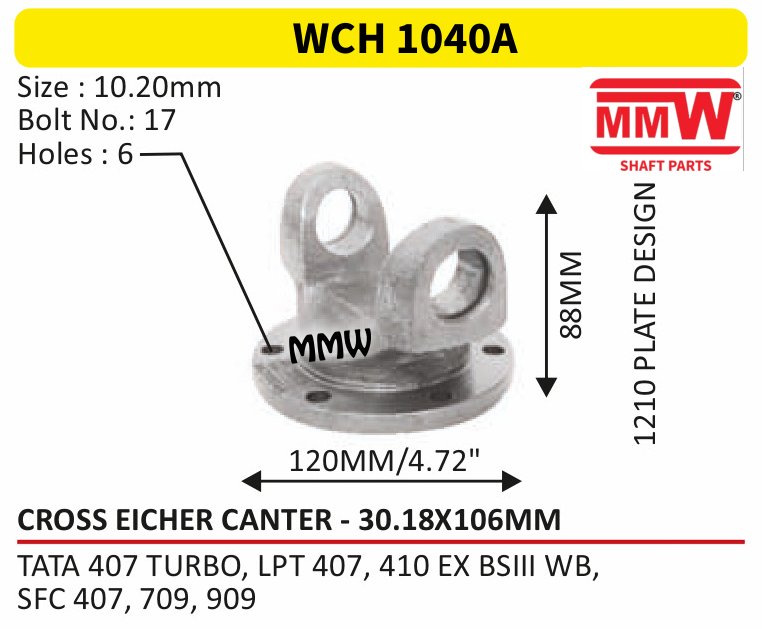

WCH 1040A	88 MM	6	17		TATA 407 TURBO, LPT 407, 410 EX BSIII WB, SFC 407, 709, 909	15

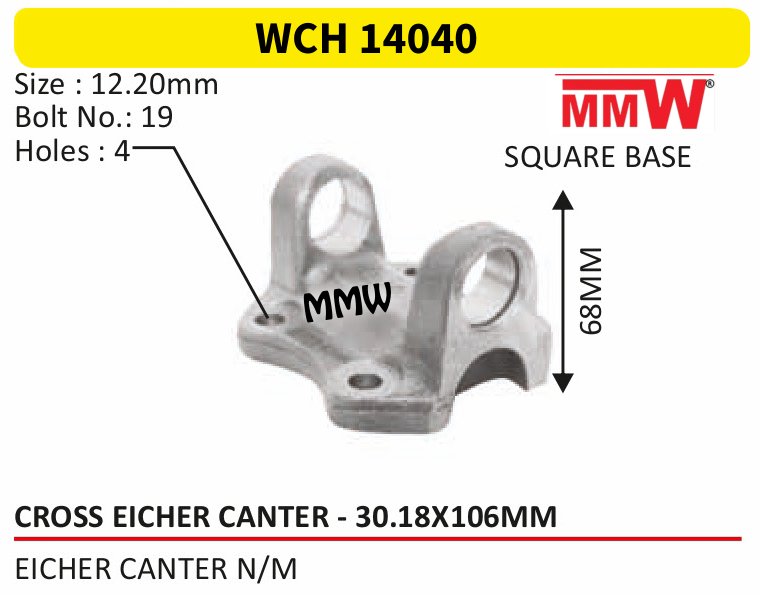

WCH 14040	68 MM	4	19	SQUARE BASE	EICHER CANTER N/M	15

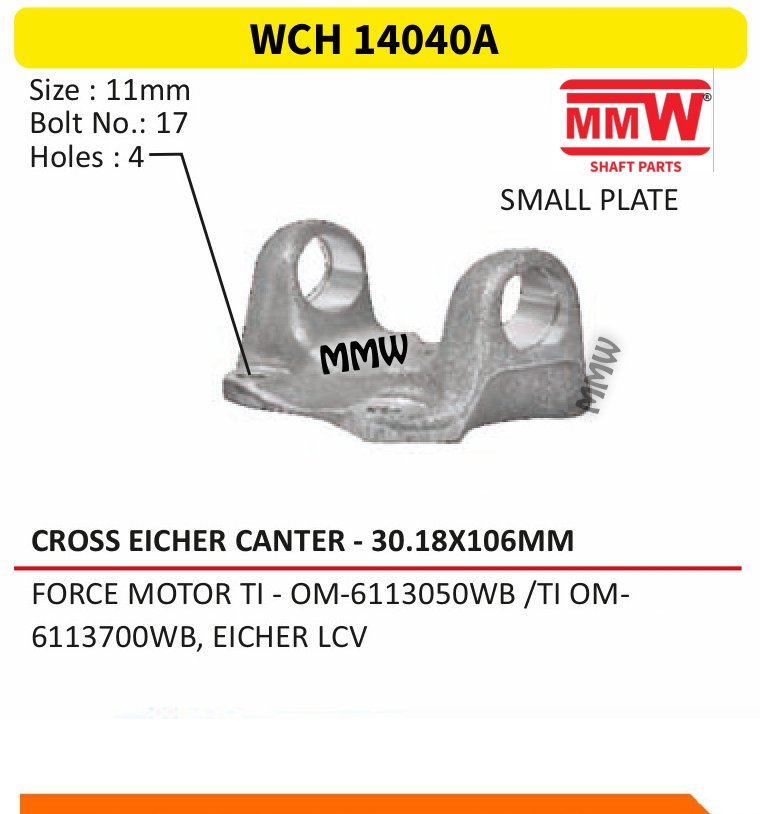

WCH 14040A		4	17		FORCEMOTORTI - OM - 6113050 WB/TIOM -, 6113700 WB, EICHER LCV	15

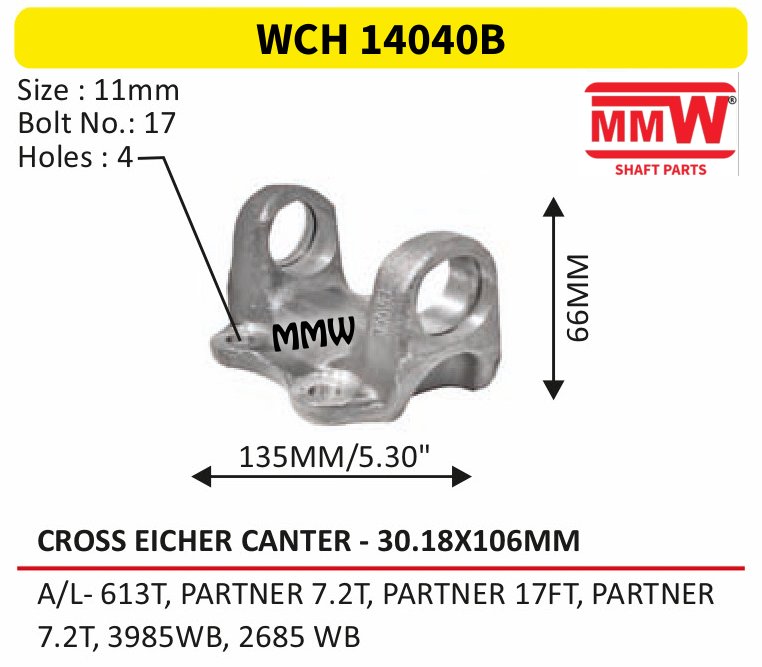

WCH 14040B	66 MM	4	17		A/L - 613T, PARTNER 7.2T, PARTNER 17 FT, PARTNER, 7.2T, 3985 WB, 2685 WB	15

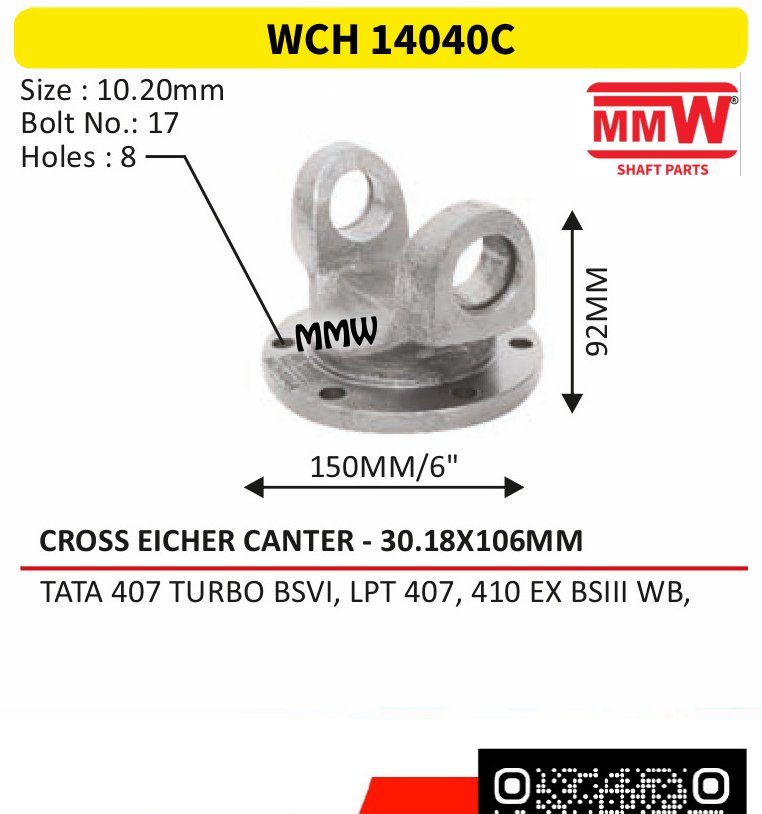

WCH 14040C	92 MM	8	17		TATA 407 TURBO BSVI, LPT 407, 410 EX BSII WB	15

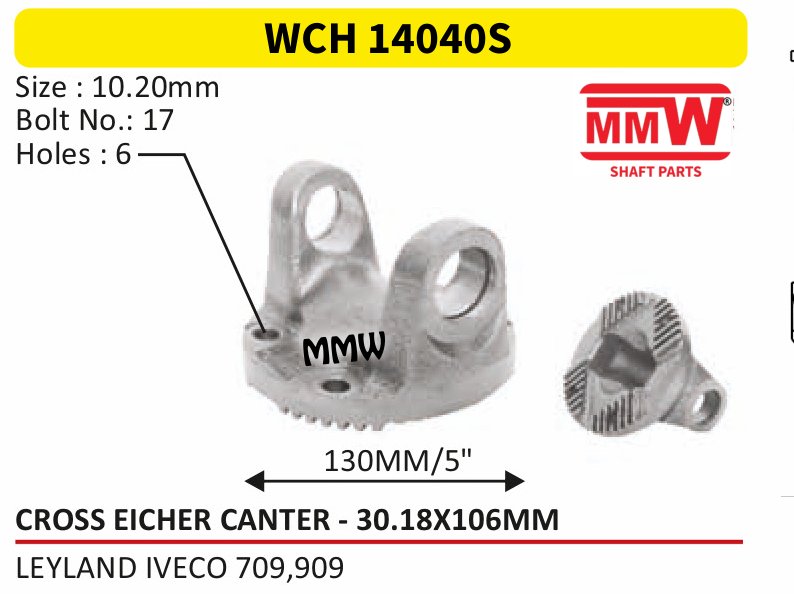

WCH 14040S		6	17		LEYLAND IVECO 709, 909	15

Half Yokes / Tube Yokes 2

Part	Cross Size	Length	Pipe	Vehicles	Page

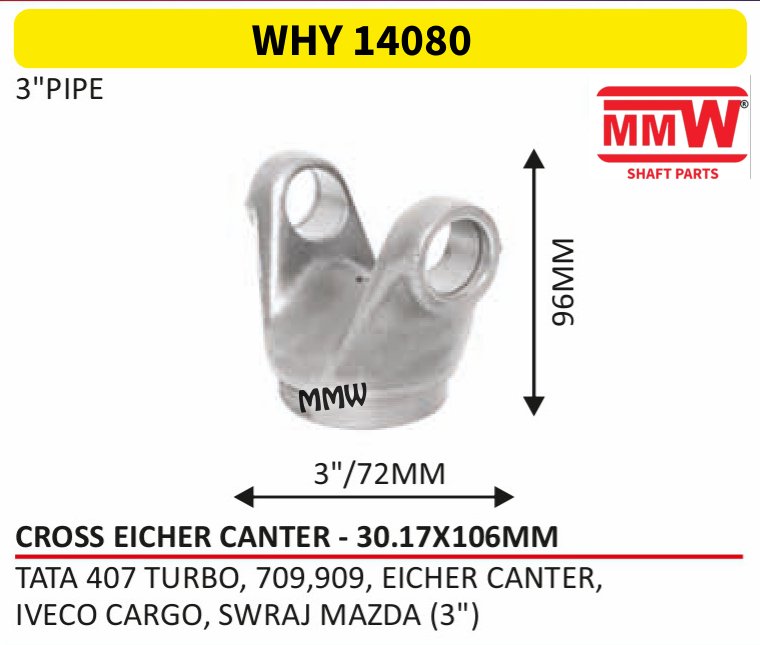

WHY 14080	30.17X106 MM	96 MM	3"	TATA 407 TURBO, 709, 909, EICHER CANTER, IVECO CARGO, SWRAJ MAZDA (3")	21

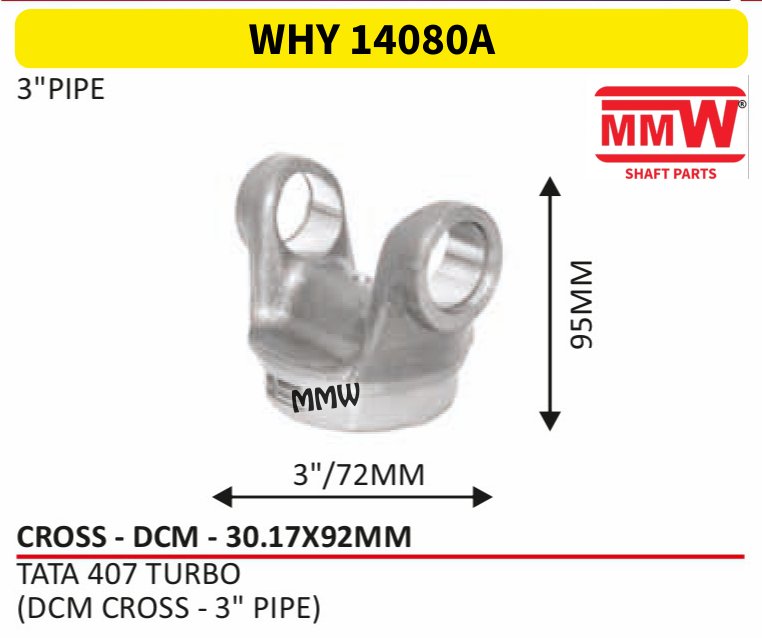

WHY 14080A	30.17X92 MM	95 MM	3"	TATA 407 TURBO, (DCM CROSS - 3" PIPE)	21

Sleeve Yokes 5

Part	Splines	Length	Spline ID	Vehicles	Page
WFY 14060	16	7.75"/190mm	38.10MM	TATA 909 EX, 709 TURBO, 407 EX, LPT, 407, 410, SEC 407	53
WFY 14060L	16	235mm		EICHER N/MLONG, SWARAJ MAZDA, (CANTER LONG)	54
WFY14006	16	7.75"/190 MM	30.80MM	TATA 407 PICKUP, 410	53
WFY14006AA	16	7.75"/195mm	38.10MM	TATA 909 EX, 709 TURBO, 407 EX, LPT 407, 410, SEC 407	53
WFY14006AE	16	190MM/7.75"		TATA 407 PICKUP, 410 EX	53

Rear Teeth 5

Part	Splines	Length	Pipe	Teeth OD	Bearing	Marked	Vehicles	Page
WRT 1400AC (GLIDE COAT)	16	9"/230mm	3"	38.10MM	40mm	GLIDE COAT	CROSS EICHER CANTER-30.18X106mm	53
WRT 14070C	16	172MM/6.75"	3"				EICHER 10.90, 10.59, 10.60, (LCV ALL MODEL), 16 SPLINES	54
WRT14007AABC	16	7.75"/190 MM	3"	38.10MM			TATA 407 PICKUP, 410	53
WRT14007ABC	16	155MM/6.25"					TATA 407 PICKUP, 410 EX	53
WRT14070AAC	16	9"/230mm	3"	38.10MM	6207/88507		TATA 909 EX, 709 TURBO, 407 EX, LPT 407, 410, SEC 407	53

Sleeve Yoke & Rear Teeth Sets 6

Part	Splines	Length	Pipe	Bearing	Marked	Vehicles	Page
WYT 14005AC	16	3"/72mm	3"	40mm		TATA 909 EX, 709 TURBO, 407 EX, LPT, 407, 410, SEC 407	53
WYT 14050L (PLAIN)	16	9"/235mm	3"		PLAIN, GLIDE COAT, COATED	EICHER N/M LONG, SWARAJ MAZDA, (CANTER LONG)	54
WYT14005PABC	16	72mm				TATA 407 PICKUP, 410 EX	53
WYT14050C	16	195MM/7.75"	3"			EICHER 10.90, 10.59, 10.60, (LCV ALL MODEL)	54
WYT14050PAABC	16	7.75"/190 MM	3"			TATA 407 PICKUP, 410	53
WYTI 4050AAC	16	9"/230mm	3"	35mm		TATA 909 EX, 410 EX, SFC	53

Front Teeth 3

Part	Splines	Length	Pipe	Vehicles	Page

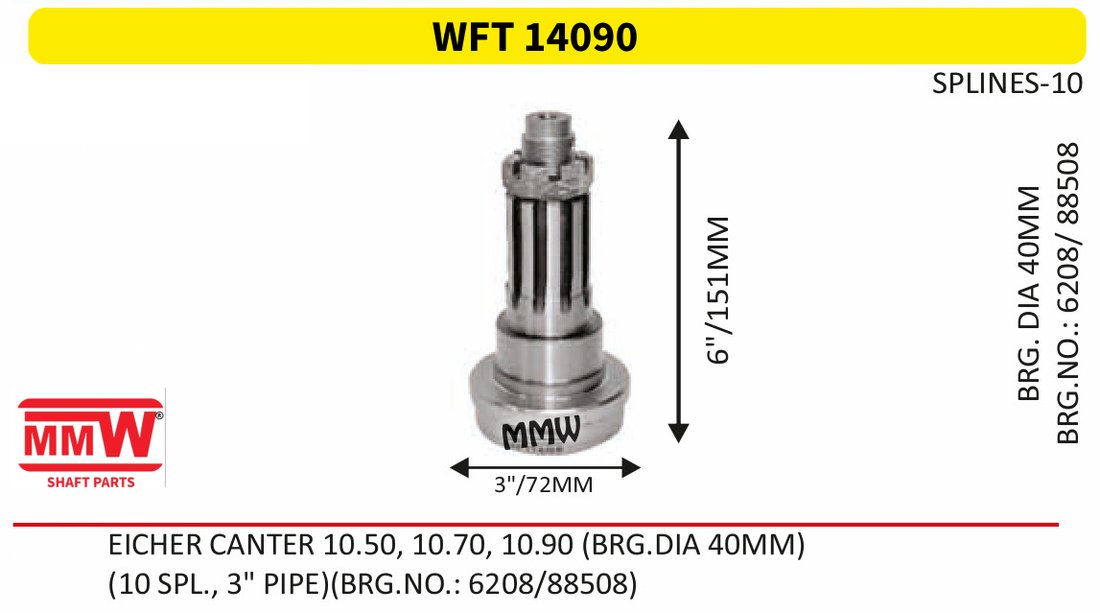

WFT 14090	10	6"/151 MM	3"	EICHER CANTER 10.50, 10.70, 10.90(BRG.DIA 40MM)	84

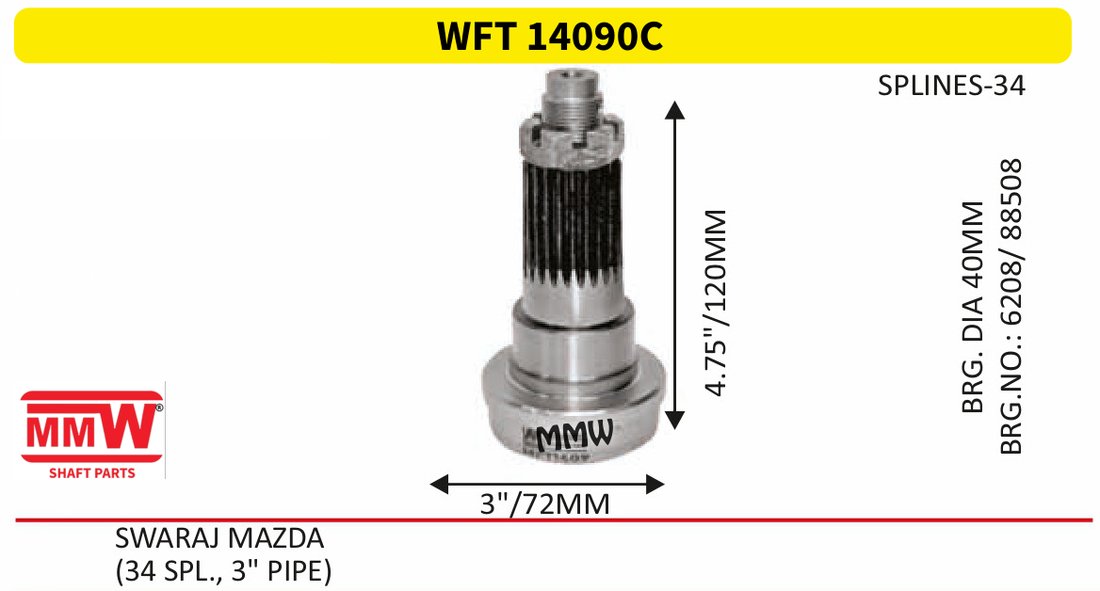

WFT 14090C	34	4.75"/120 MM	3"	SWARAJ MAZDA, (34 SPL., 3" PIPE)	84

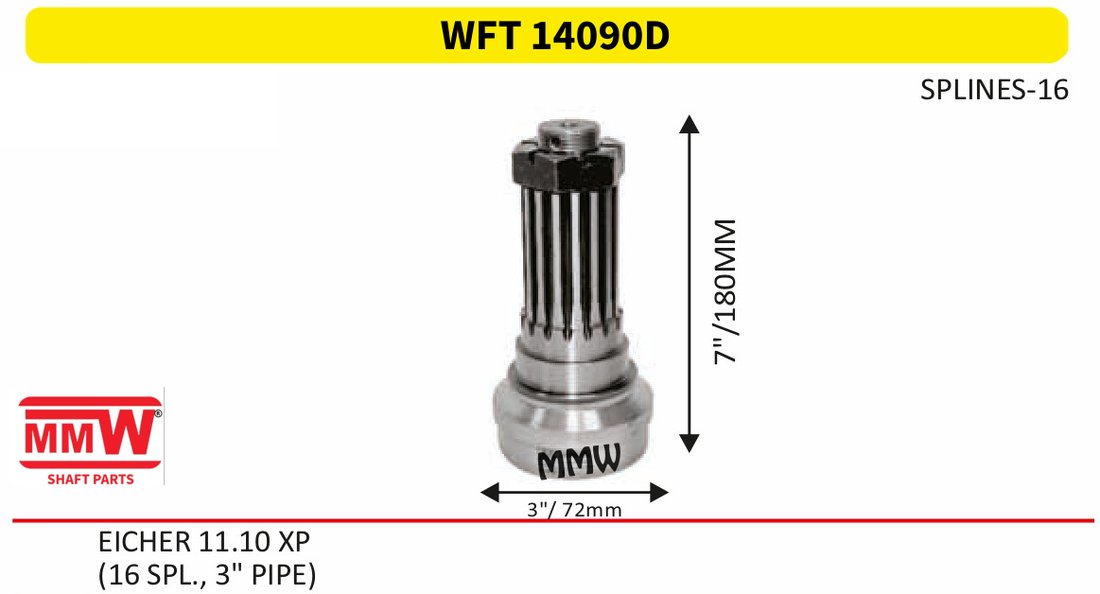

WFT 14090D	16	7"/180 MM	3"	EICHER 11.10 XP	84

JCB / Earthmoving Shafts 3

Part	Length	Holes	Plate	Vehicles	Page

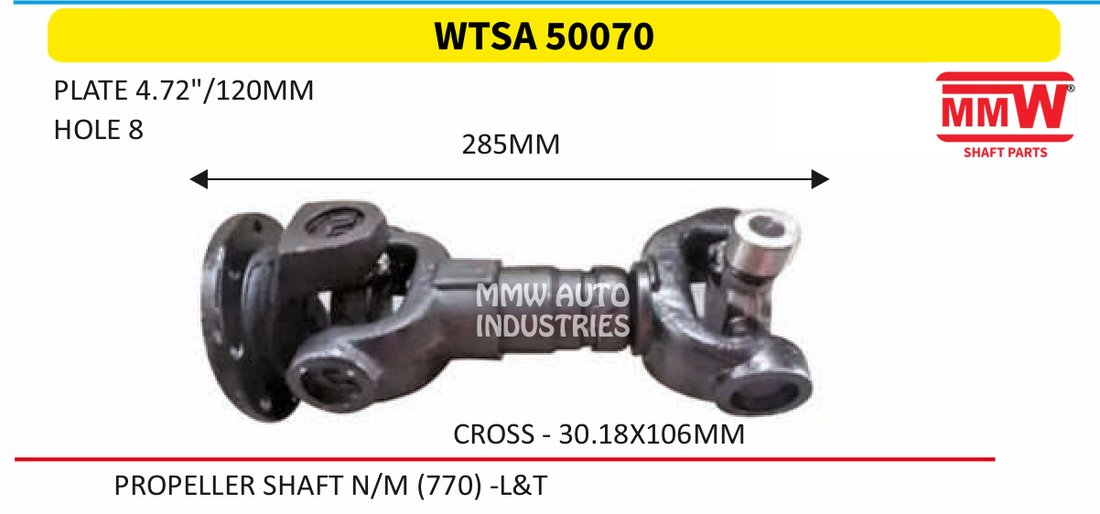

WTSA 50070	285 MM	8	4.72"/120 MM	PROPELLER SHAFT N/M(770) - L & T	110

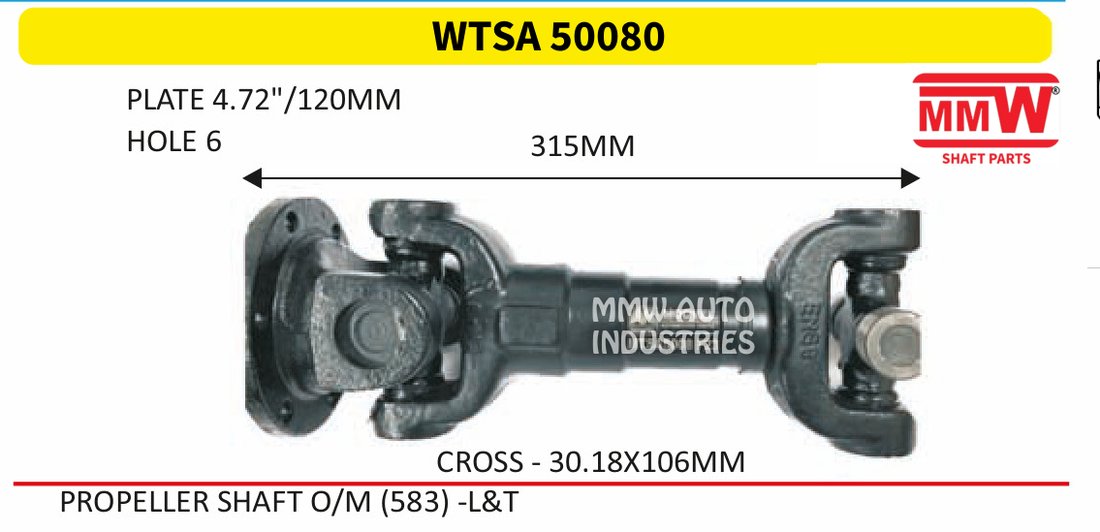

WTSA 50080	315 MM	6	4.72"/120 MM	PROPELLER SHAFT O/M(583) - L & T	110

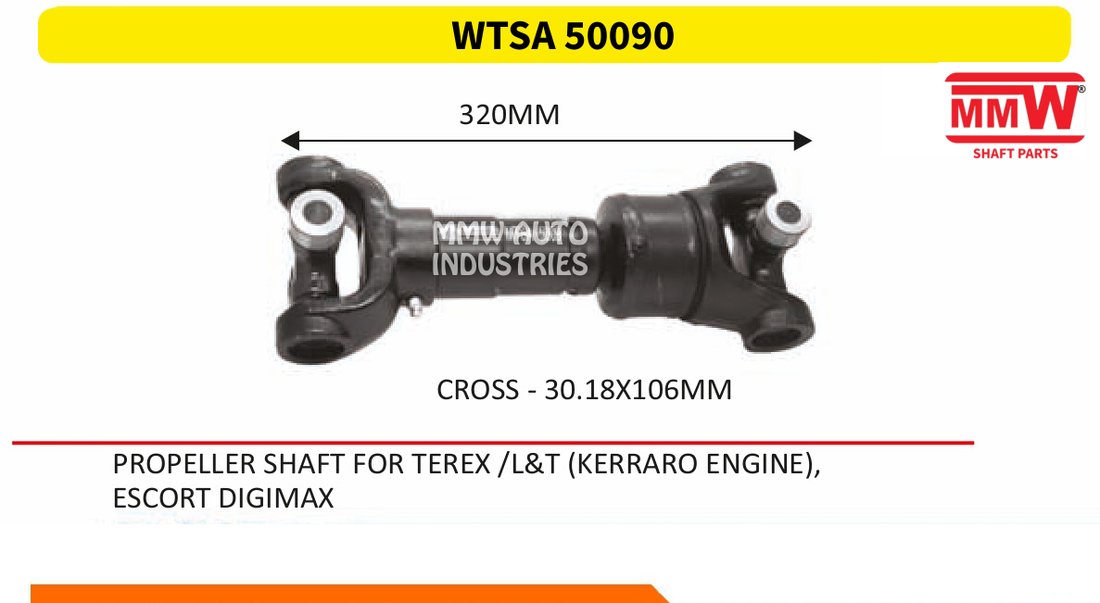

WTSA 50090	320 MM			PROPELLERSHAFTFORTEREX/L & T(KERRAROENGINE), ESCORTDIGIMAX	110

Same Cross Size

Questions About the Eicher Canter / MSL 1410 Shaft

Which UJ cross fits the Eicher Canter / MSL 1410 propeller shaft?

The Eicher Canter / MSL 1410 shaft takes the MC 1025, 30.18X106 MM UJ cross: MMW part WC 10250.

Which parts of the Eicher Canter / MSL 1410 shaft does MMW make?

1 uj cross, 6 cross holders / flange yokes, 2 half yokes / tube yokes, 5 sleeve yokes, 5 rear teeth, 6 sleeve yoke & rear teeth sets, 3 front teeth, 3 jcb / earthmoving shafts. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
