Spicer 1710 Propeller Shaft Parts

UJ Crosses 1

Part	Marked	Vehicles	Page

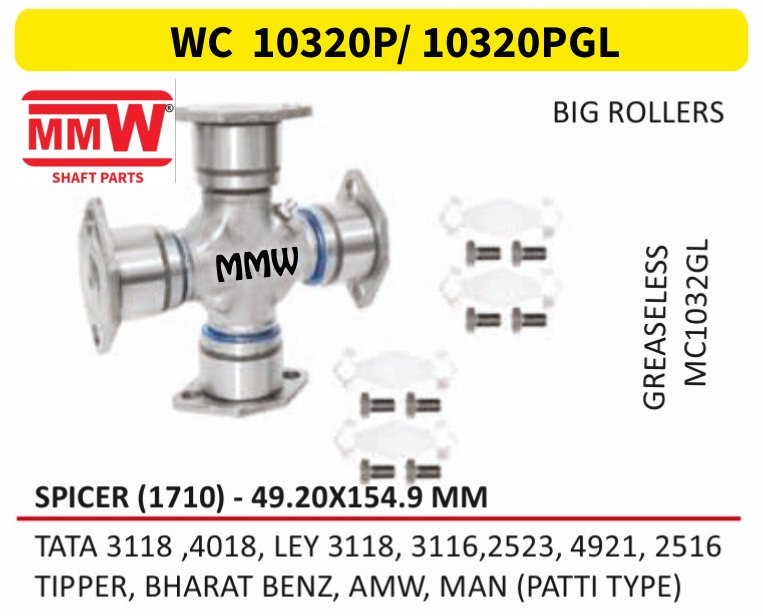

WC 10320P/ 10320PGL	BIG ROLLERS, GREASELESS	TATA 3118, 4018, LEY 3118, 3116, 2523, 4921, 2516, TIPPER, BHARAT BENZ, AMW, MAN(PATTI ...	5

Cross Holders / Flange Yokes 5

Part	Length	Holes	Bolt No.	Vehicles	Page

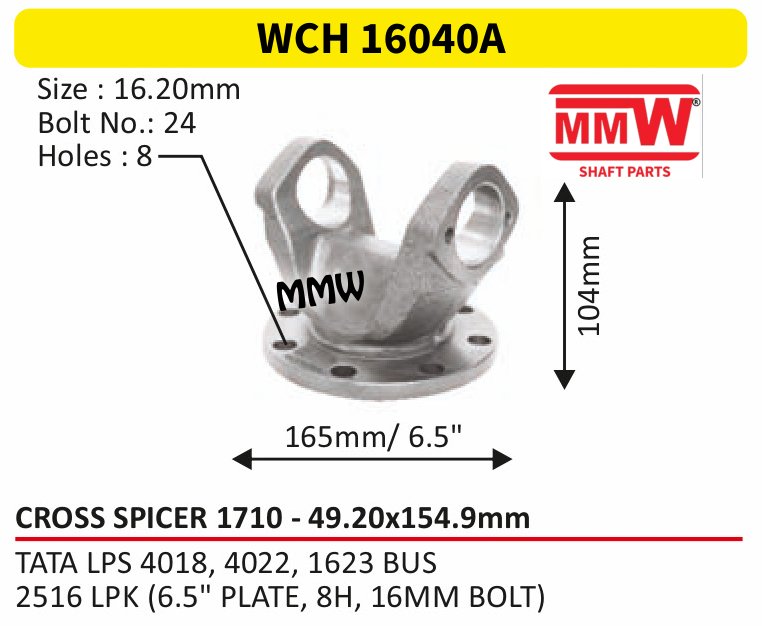

WCH 16040A	104mm	8	24	TATA LPS 4018, 4022, 1623 BUS, 2516 LPK(6.5" PLATE, 8H, 16 MM BOLT)	12

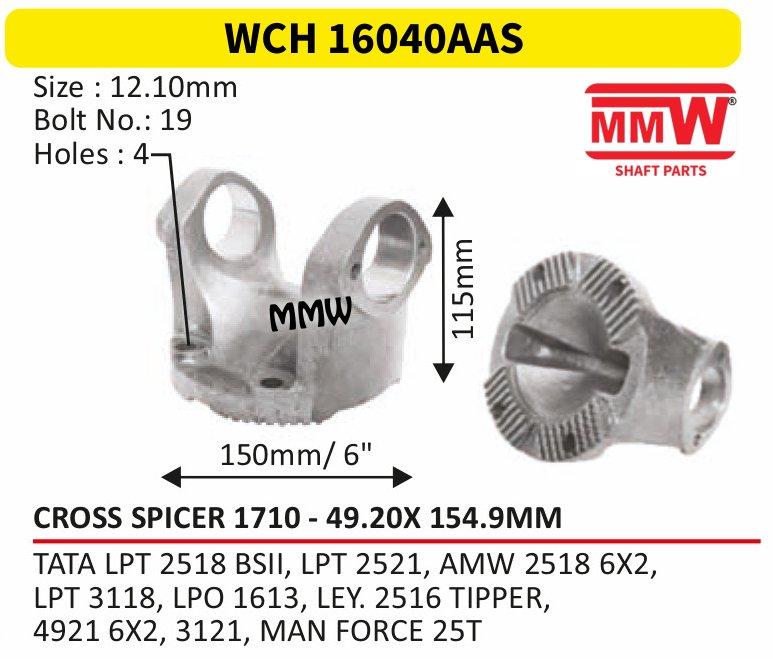

WCH 16040AAS	115mm	4	19	TATA LPT 2518 BSII, LPT 2521, AMW 25186X 2, LPT 3118, LPO 1613, LEY. 2516 TIPPER, 49216X ...	12

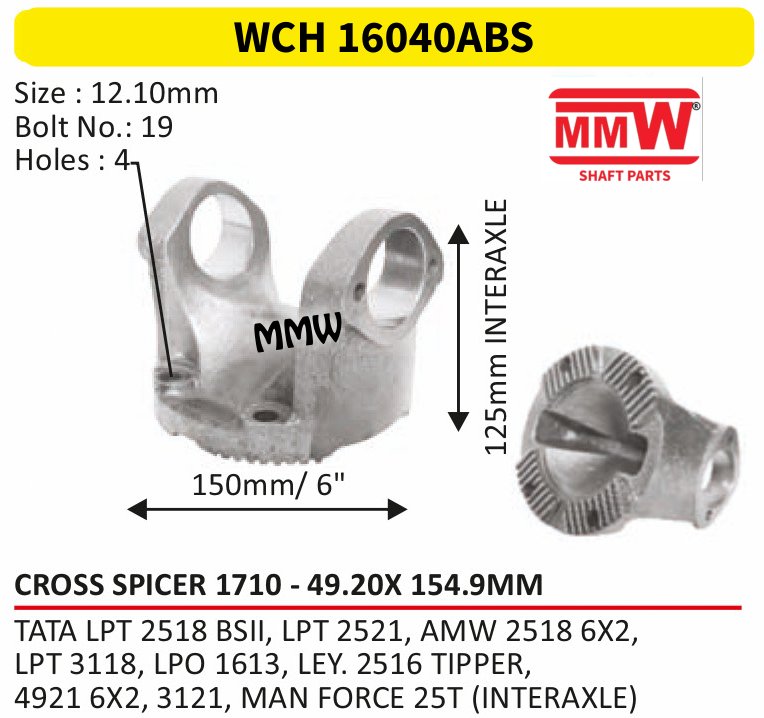

WCH 16040ABS		4	19	TATA LPT 2518 BSII, LPT 2521, AMW 25186X 2, LPT 3118, LPO 1613, LEY.2516 TIPPER, 4921 6X ...	12

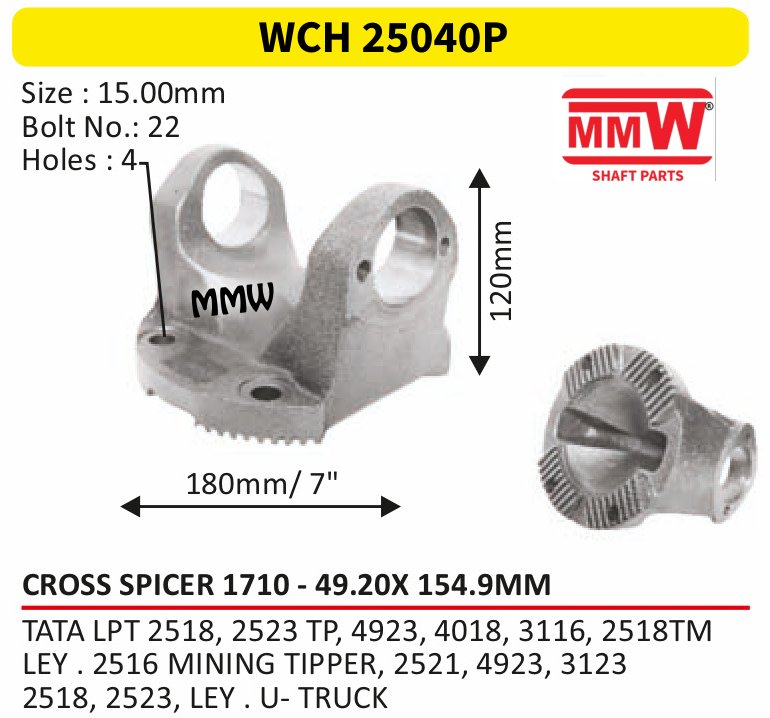

WCH 25040P	120mm	4	22	TATA LPT 2518, 2523 TP, 4923, 4018, 3116, 2518 TM, LEY.2516 MINING TIPPER, 2521, 4923 ...	12

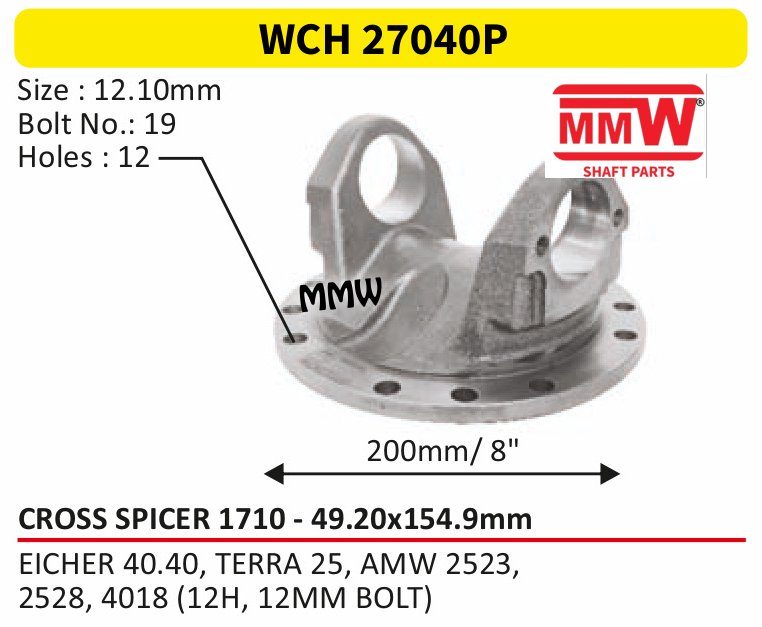

WCH 27040P		12	19	EICHER 40.40, TERRA 25, AMW 2523, 2528, 4018 (12H, 12 MM BOLT)	12

Half Yokes / Tube Yokes 1

Part	Length	Pipe	Vehicles	Page

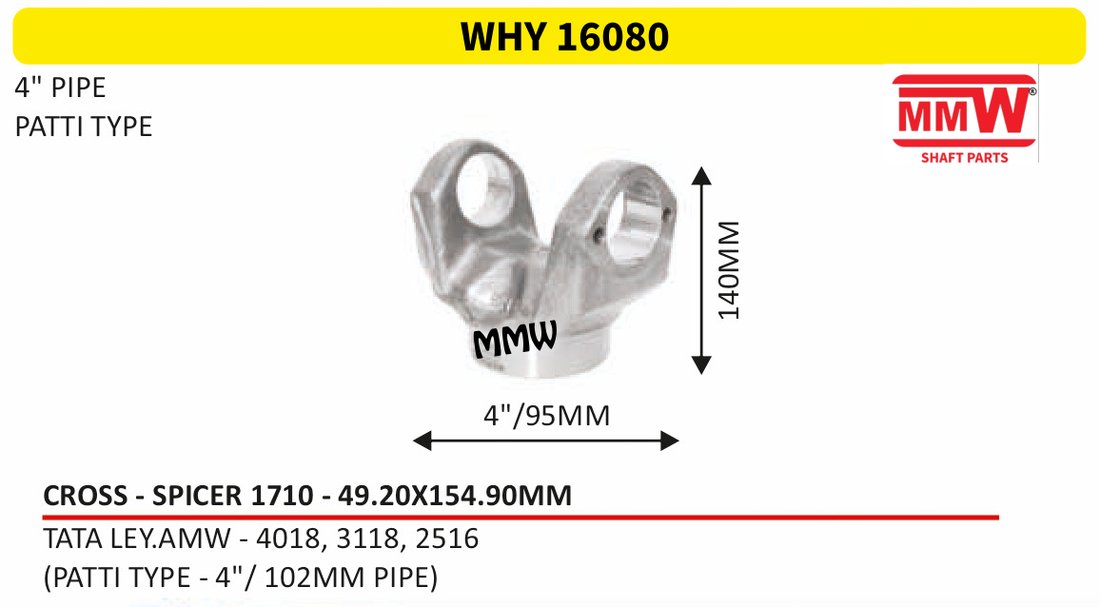

WHY 16080	140 MM	4"	TATA LEY.AMW - 4018, 3118, 2516	18

Sleeve Yokes 4

Part	Cross Size	Splines	Length	Marked	Vehicles	Page
WFY 16060	49.2X157.90 MM	16	11.5"/295 MM		TATA 4018(SHORT 4" - PATTI TYPE)	33
WFY 16060A	49.2X157.90 MM	16	315MM/12.25"		TATA 4018, BHARAT BENZ	33
WFY 19060	49.2X154.90 MM	16	13"/335 MM		LPO 3118, LPT 2518 BSII, LPO BUS 1625, 1618, 1623, LEY.2516, 4923, 3 II 16, AMW 2518, MAN ...	34
WFY 19060A	49.2X154.90 MM	16		EXTRA LONG	LPO 3118, LPT 2518 BSIII, 2521, LPO BUS, 1625, 1623, LEYLAND 2516 TIPPER, 4921, TRACTOR ...	34

Rear Teeth 1

Part	Splines	Length	Pipe	Vehicles	Page
WRT 12320C [GLIDE COAT]	16	11.75"/295MM	4"	LPO 3118, LPT 2518 BSII, LPO BUS 1625, 1618, 1623, LEY.2516, 4923, 3 IlI 6, AMW 2518, MAN ...	34

Sleeve Yoke & Rear Teeth Sets 4

Part	Cross Size	Splines	Length	Pipe	Marked	Vehicles	Page
WYT 16050AC	49.2X157.90 MM	16	10.25"/265 MM	4"		TATA 4018, BHARAT BENZ	33
WYT 16050C (GLIDE COAT)	49.2X154.90 MM	16	10.25"/265 MM	4"		TATA 4018 (SHORT 4" - PATTI TYPE)	33
WYT 19050AC	49.2X154.90 MM	16	11.75"/295 MM	4"	EXTRA LONG	LPO 3118, LPT 2518 BSI, 2521, LPO BUS, 1625, 1623, LEYLAND 2516, 492, 3116, AMW 2518 ...	34
WYT 19050C (GLIDE COAT)	49.2X154.90 MM	16	13"/335 MM	4"		LPO 3118, LPT 2518 BSII, LPO BUS 1625, 1618, 1623, LEY.2516, 4923, 3 II 16, AMW 2518, MAN ...	34

Front Teeth 2

Part	Splines	Length	Pipe	Vehicles	Page
WFT 25090	16	7.5"/190 MM	4"	TATA & LEY. 3118, 3116, 4923, AMW (BRG. DIA 60MM)	81
WFT 25090A	16	7.5"/190 MM	4.5"	TATA & LEY. (BRG. DIA 60MM)	81

Centre Coupling Flanges 1

Part	Splines	Length	Holes	Bolt No.	Outer Dia	Marked	Vehicles	Page
WCC 8200S	16	88 MM	4	19	75MM	SERRATED	TATA & LEY. 3118, 3116, 4923, AMW, MAN. NAVISTAR (16S, BIG BORE N/M)	81

Same Cross Size

Questions About the Spicer 1710 Shaft

Which UJ cross fits the Spicer 1710 propeller shaft?

The Spicer 1710 shaft takes the MC 1032P, 49.20X154.9 MM UJ cross: MMW part WC 10320P/ 10320PGL.

Which parts of the Spicer 1710 shaft does MMW make?

1 uj cross, 5 cross holders / flange yokes, 1 half yoke / tube yoke, 4 sleeve yokes, 1 rear teeth, 4 sleeve yoke & rear teeth sets, 2 front teeth, 1 centre coupling flange. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
