RSB 590 / Spicer 2045 Propeller Shaft Parts

UJ Crosses 2

Part	Marked	Vehicles	Page

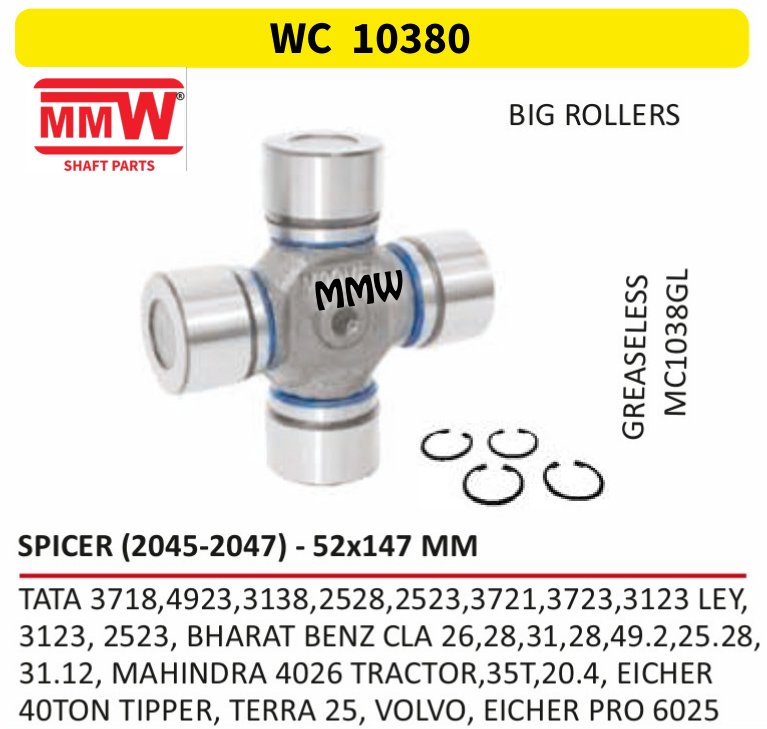

WC 10380	BIG ROLLERS, GREASELESS	TATA 3718, 4923, 3138, 2528, 2523721, 3723, 3123E, 3123, 2523, BHARAT BENZ CLA 26, 28 ...	5

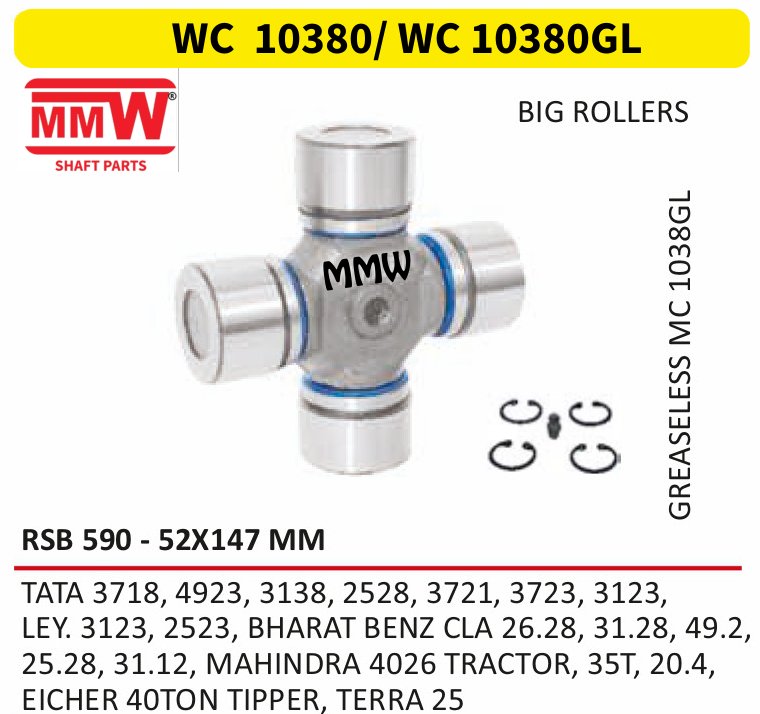

WC 10380/ WC 10380GL	BIG ROLLERS	TATA 3718, 4923, 3138, 2528, 3721, 3723, 3123, LEY.3123, 2523, BHARAT BENZ CLA 26.28 ...	6

Cross Holders / Flange Yokes 5

Part	Cross Size	Length	Holes	Bolt No.	Marked	Vehicles	Page

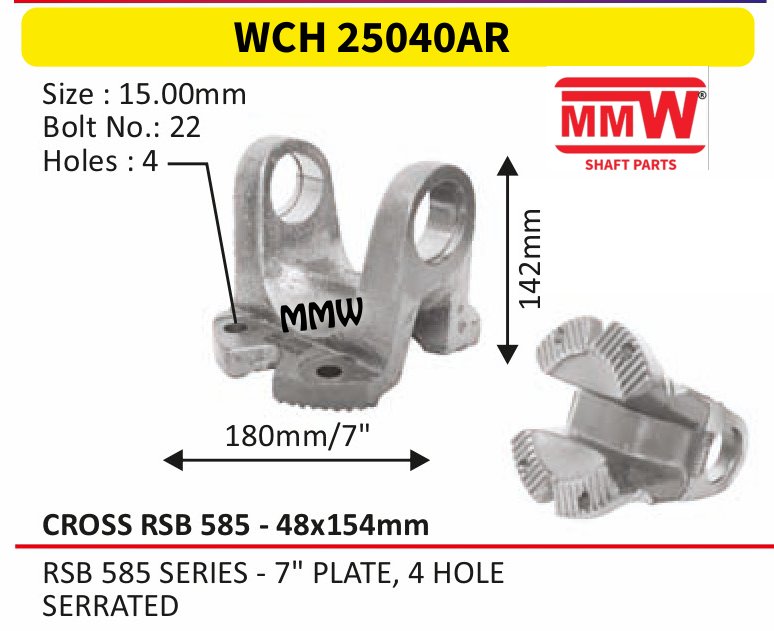

WCH 25040AR	48X154 MM		4	22	SERRATED	RSB 585 SERIES-7" PLATE, 4 HOLE, SERRATED	10

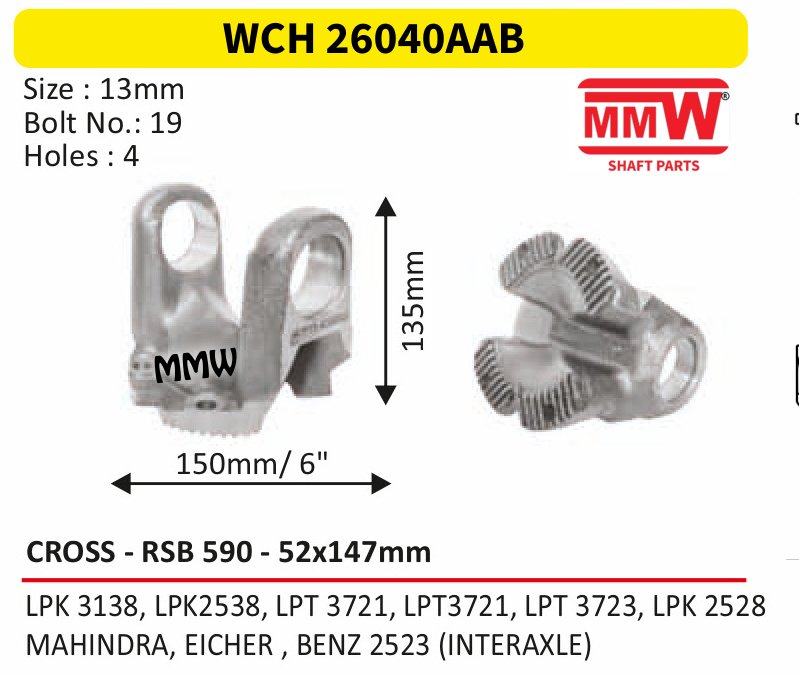

WCH 26040AAB	52X147 MM	135mm	4	19		LPK 3138, LPK 2538, LPT 3721, LPT 3721, LPT 3723, LPK 2528, MAHINDRA, EICHER, BENZ 2523 ...	10

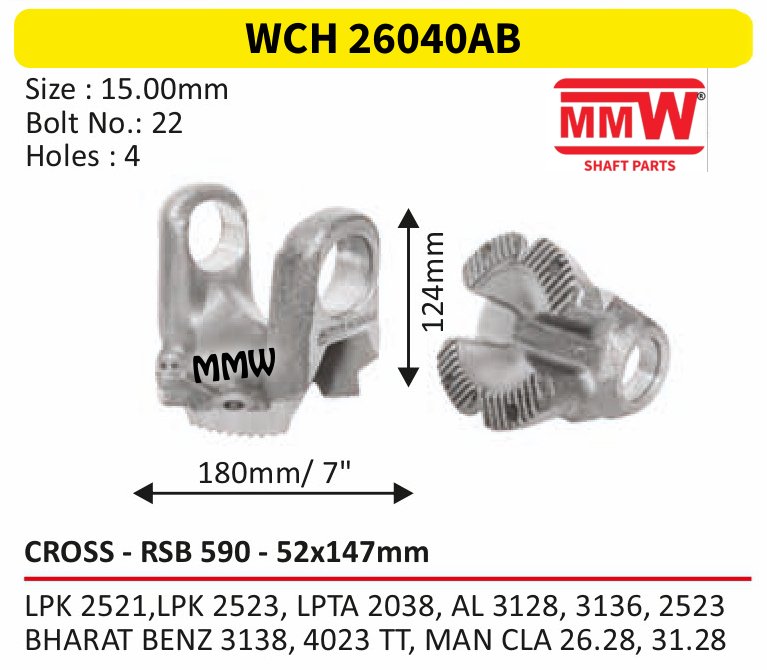

WCH 26040AB	52X147 MM	124mm	4	22		LPK 2521, LPK 2523, LPTA 2038, AL 3128, 3136, 2523, BHARAT BENZ 3138, 4023 TT, MAN CLA ...	10

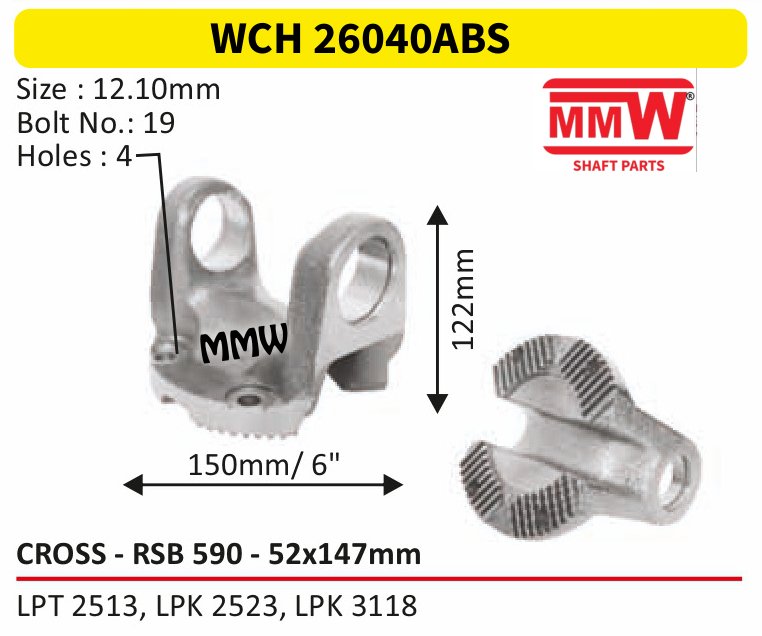

WCH 26040ABS	52X147 MM	122mm	4	19		LPT 2513, LPK 2523, LPK 3118	10

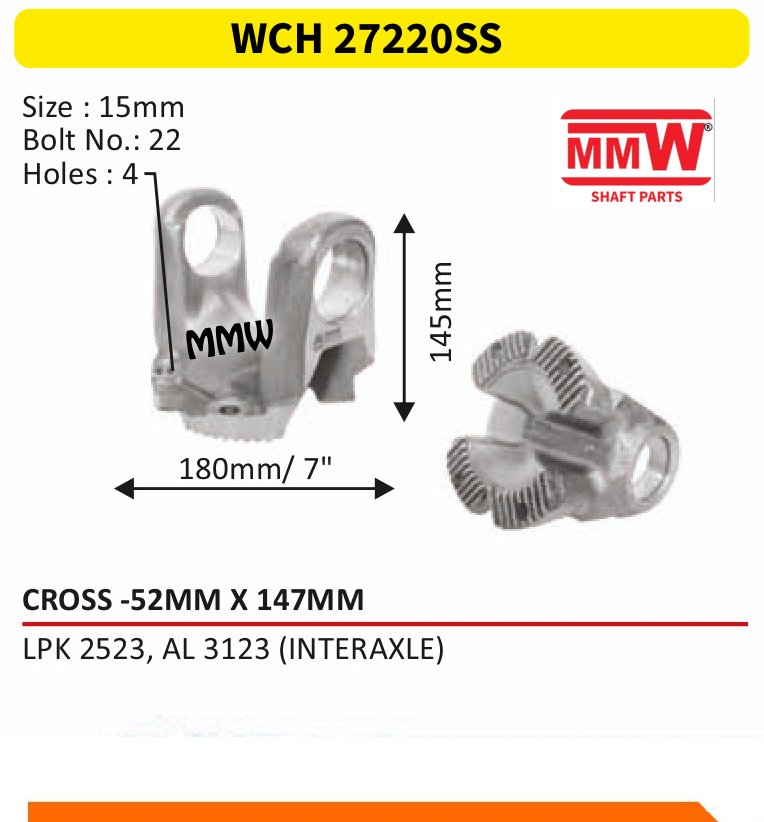

WCH 27220SS	52X147 MM		4	22		LPK 2523, AL3123(INTERAXLE)	10

Half Yokes / Tube Yokes 3

Part	Length	Pipe	Vehicles	Page

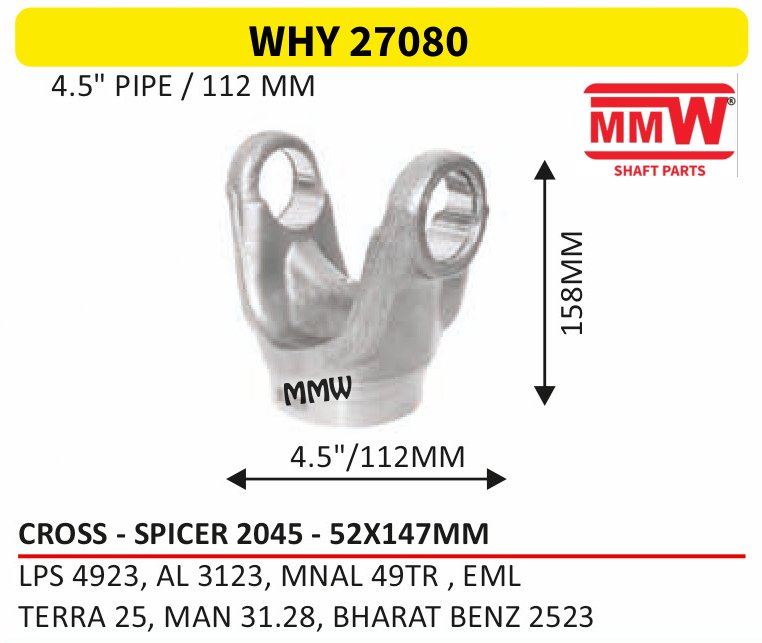

WHY 27080	158 MM	4.5"	LPS 4923, AL 3123, MNAL 49 TR, EML, TERRA 25, MAN 31.28, BHARAT BENZ 2523	19

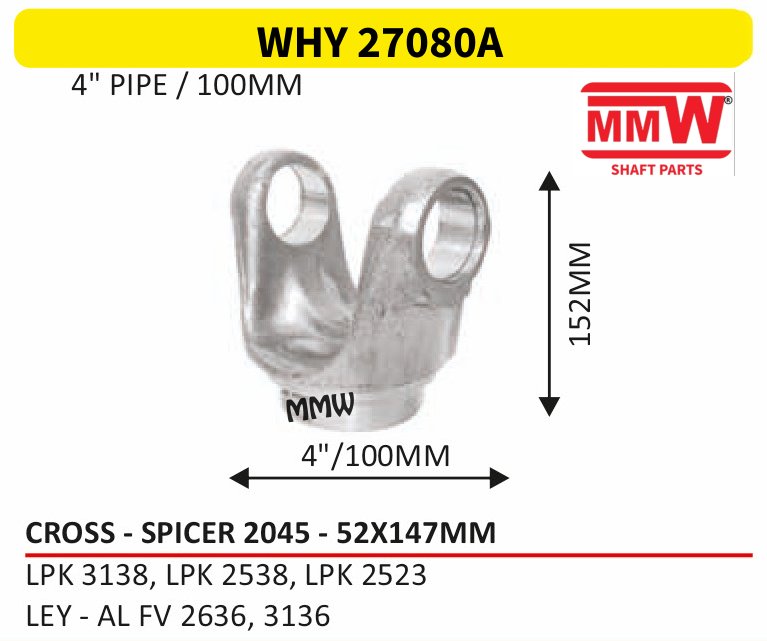

WHY 27080A	152 MM	4"	LPK 3138, LPK 2538, LPK 2523, LEY - ALFV 2636, 3136	19

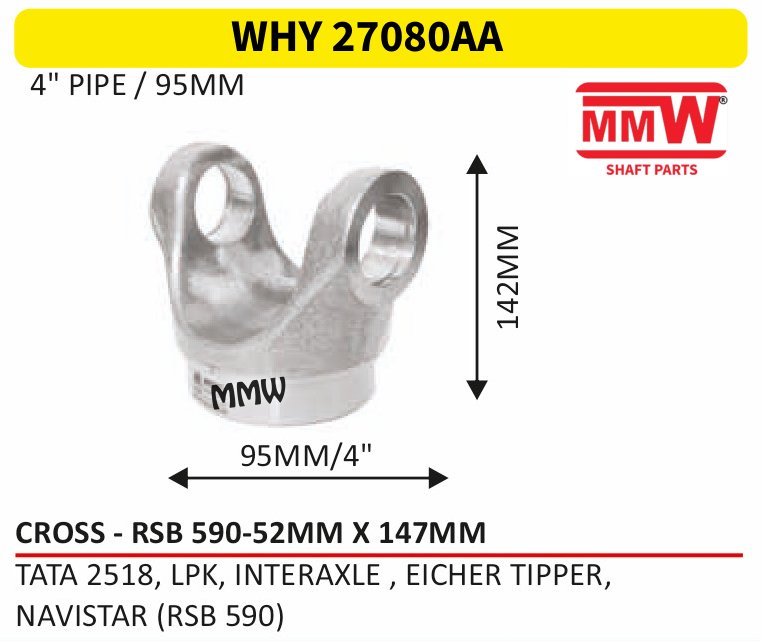

WHY 27080AA	142 MM	4"	TATA 2518, LPK, INTERAXLE, EICHER TIPPER, NAVISTAR(RSB 590)	19

Long Forks 9

Part	Splines	Length	Pipe	Marked	Vehicles	Page
WRY 13230 AATP	30	395MM/16"		WITH D. COVER	TATA LPK 3118, LPT 3718, LPK 2518, LPS, 4223, TATA SIGNA 4923, EICHER - PRO 6035	49
WRY 13230 ATP	30	330MM/13"		WITH D. COVER	TATA LPK 2523, EICHER.PRO 6025, PRIMA LX, 2523, (INTERAXLE)LPT 3718, LPT 3118, LPT 2518 ...	49
WRY 13230 TP	30	350MM/13.75"		WITH D. COVER	TATA LPK 2523, EICHER.PRO 6025, PRIMA LX, 2523, (INTERAXLE)LPT 3718, LPT 3118, LPT 2518 ...	49
WRY 27200 AATP	36	17"/430mm		WITH D. COVER	TATA LPK 2518, 2523 HD, TATA PRIMA, 4021 PRIMA 2523, LPT 2523, SIGNA	48
WRY 27200 ATP	36	14.75"/374mm	4.5"	WITH D. COVER	LPT 3723 (RSB 590 - PIPE DIA 4.5")	48
WRY 27200 TP	36	15.75"/400mm		WITH D. COVER	TATA LPK 2518, 2523 HD, TATA PRIMA, 4021 PRIMA 2523, LPT 2523, SIGNA, 4625S, TATA SIGNA ...	48
WRY 28200 AATP	38	350MM/14"			SPICER-2045, OSS SPICER 2045 - MC1038- 52x147	42
WRY 28200 ATP	38	12.25"/315 MM			TATA LPK 2521, LEY.3123, LPS 4923, CLA, 31.28, BHARAT BENZ 3128	41
WRY 28200 TP	38	15.5"/395MM			LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523	41

Rear Housings / Sleeve Bottles 10

Part	Splines	Length	Pipe	Vehicles	Page
MST 13270 AWC	30	200MM/8"		TATA LPK 2523, EICHER.PRO 6025, PRIMA LX, 2523, (INTERAXLE)LPT 3718, LPT 3118, LPT 2518 ...	49
MST 2727AC (GLIDE COAT)	36	8"/205mm	4.5"	LPT 3723(RSB 590-PIPE DIA 4.5")	48
WST 13270 WC	30	215MM/8.5"		TATA LPK 2523, EICHER.PRO 6025, PRIMA LX, 2523, (INTERAXLE)LPT 3718, LPT 3118, LPT 2518 ...	49
WST 2720 C (GLIDE COAT)	36	9.5"/240MM	4.5"	4021 PRIMA LX 2523, LPT 2523, SIGNA, 4625S, SIGNA 5523S, SIGNA 4623S, PRIMA LX 3525 ...	48
WST 27270 AAWC	36	260MM/10.25"		TATA 2523, LPT 2523, LPK 3118	48
WST 28270 AAC	38	253MM/10"	4"	TATA LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523, (INTERAXLE)	41
WST 28270 AC	38	8"/202 MM	4.5"	TATA LPK 2521, LEY.3123, LPS 4923, CLA, 31.28, BHARAT BENZ 3128	41
WST 28270 C	38	11"/280MM	4"	LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523	41
WST 28270 WC	38	10"/250MM	4"	TATA LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523, (INTERAXLE)	41
WST 28270AWC		8.75"/220mm		LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523	120

Long Fork & Sleeve Bottle Sets 15

Part	Splines	Length	Pipe	Vehicles	Page
MRYST 2820PWC	38	10"/250MM	4"	LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523(INTERAXLE)	41
WRYST 13230 AAWPC	30	395MM/16"		TATA LPK 3118, LPT 3718, LPK 2518, LPS, 4223, TATA SIGNA 4923, EICHER - PRO 6035	49
WRYST 13230 AWPC	30	330MM/13"		TATA LPK 2523, EICHER.PRO 6025, PRIMA LX, 2523, (INTERAXLE)LPT 3718, LPT 3118, LPT 2518 ...	49
WRYST 13230 WPC	30	350MM/13.75"		TATA LPK 2523, EICHER.PRO 6025, PRIMA LX, 2523, (INTERAXLE)LPT 3718, LPT 3118, LPT 2518 ...	49
WRYST 26200 BTPC	34	356MM/14"		SPICER 2045 SERIES	42
WRYST 27200 AAWPC	36	4.5"/112mm	4.5"	TATA 2523, LPT 2523, LPK 3118 SIGNA, 3118, LPK 2521, LPK 2523, LPK 3118, 3718	48
WRYST 27200 APC (GLIDE COAT)	36	8"/205mm	4.5"	LPT 3723 (RSB 590 - PIPE DIA 4.5")	48
WRYST 27200 PC (GLIDE COAT)	36	15.75"/400MM	4.5"	4021 PRIMA LX 2523, LPT 2523, SIGNA, 4625S, SIGNA 5523S, SIGNA 4623S, PRIMA LX 3525 ...	48
WRYST 27200 WPC	36	400MM/15.75"		TATA 2523, LPT 2523, LPK 3118, 3118, LPK 2521, LPK 2523, LPK 3118, 3718, LPK 2518HD, LPT ...	48
WRYST 28200 AAPC	38	10"/253 MM	4"	TATA LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523, (INTERAXLE)	41
WRYST 28200 APC (GLIDE COAT)	38	8"/202 MM	4.5"	TATA LPK 2521, LEY.3123, LPS 4923, CLA, 31.28, BHARAT BENZ 3128	41
WRYST 28200 AWPC		14"/355 MM		LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523	120
WRYST 28200 BTP	34	14"/355MM		LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523	120
WRYST 28200 BTPL	34	14"/355MM		LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523	120
WRYST 28200 PC	38	15.5"/395MM	4"	LPK 3118, LPK 2528, LPT 3721, 3723, LPK 2538, BHARAT BENZ 2523	41

Weld Plug Assemblies 4

Part	Splines	Length	Pipe	Vehicles	Page

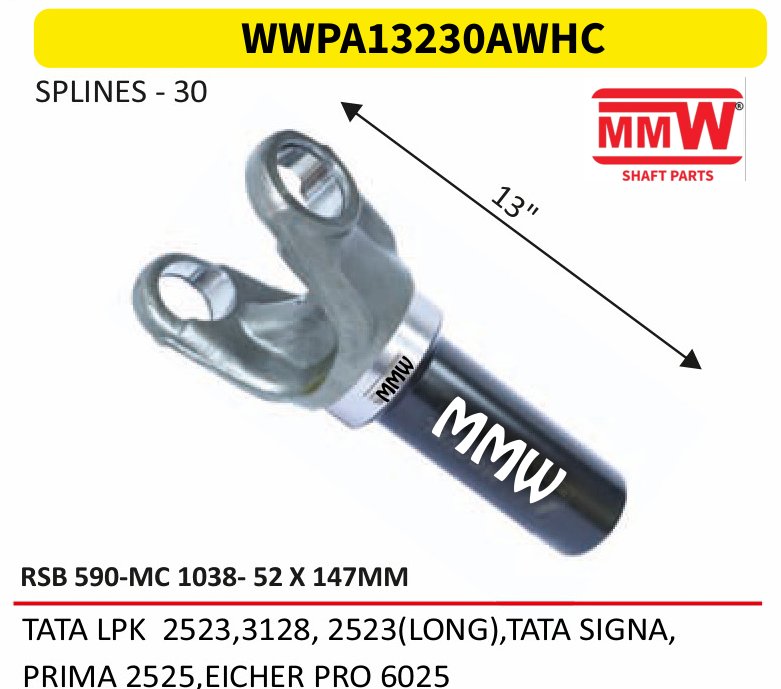

WWPA13230AWHC	30			TATA LPK 2523, 3128, 2523(LONG), TATA SIGNA, PRIMA 2525, EICHER PRO 6025	115

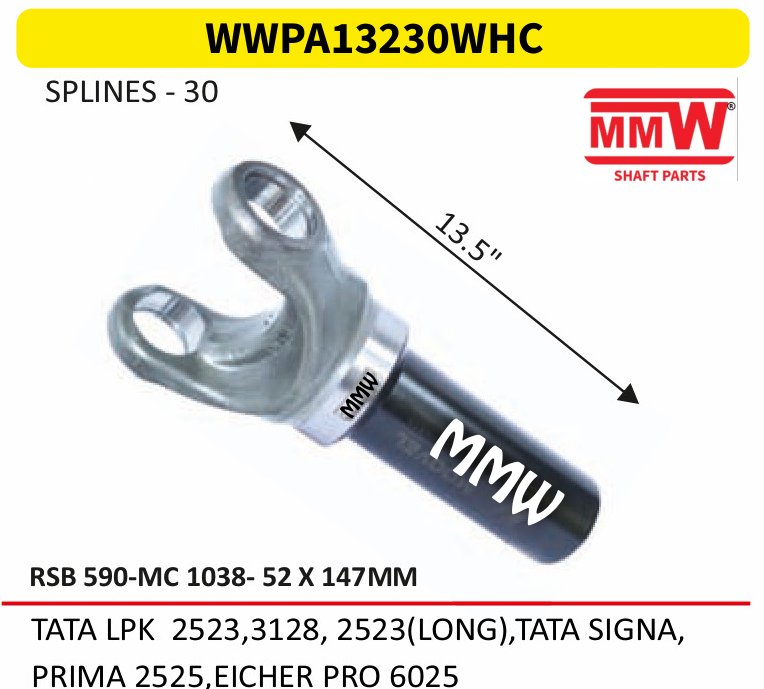

WWPA13230WHC	30			TATA LPK 2523, 3128, 2523(LONG), TATA SIGNA, PRIMA 2525, EICHER PRO 6025	115

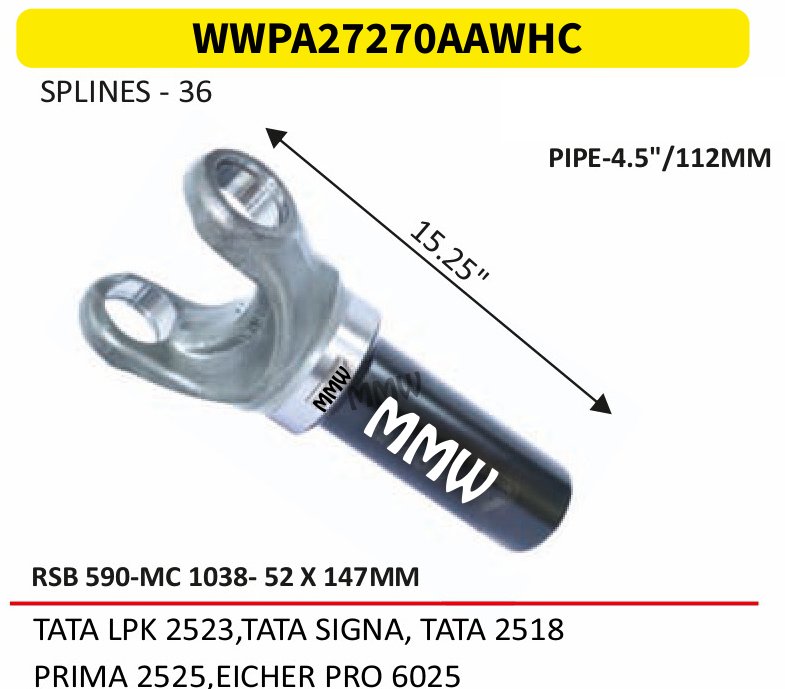

WWPA27270AAWHC	36	4.5"/112MM	4.5"	TATA LPK 2523, TATA SIGNA, TATA 2518, PRIMA 2525, EICHER PRO 6025	115

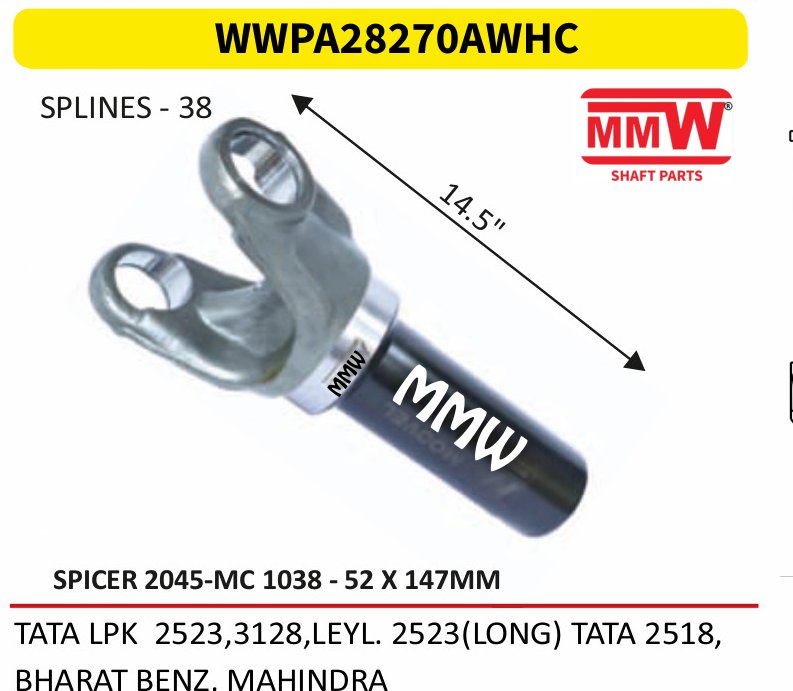

WWPA28270AWHC	38			TATA LPK 2523, 3128, LEYL.2523(LONG) TATA 2518, BHARAT BENZ, MAHINDRA	115

Front Teeth 2

Part	Splines	Length	Vehicles	Page

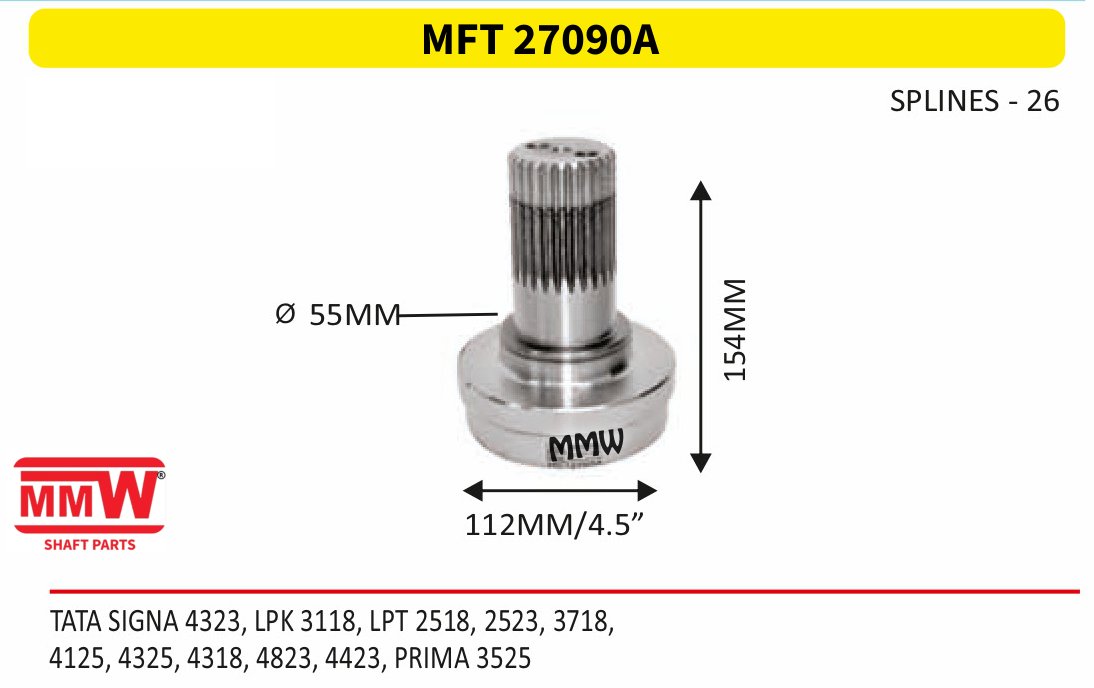

MFT 27090A	26	154 MM	TATA SIGNA 4323, LPK 3118, LPT 2518, 2523, 3718	78

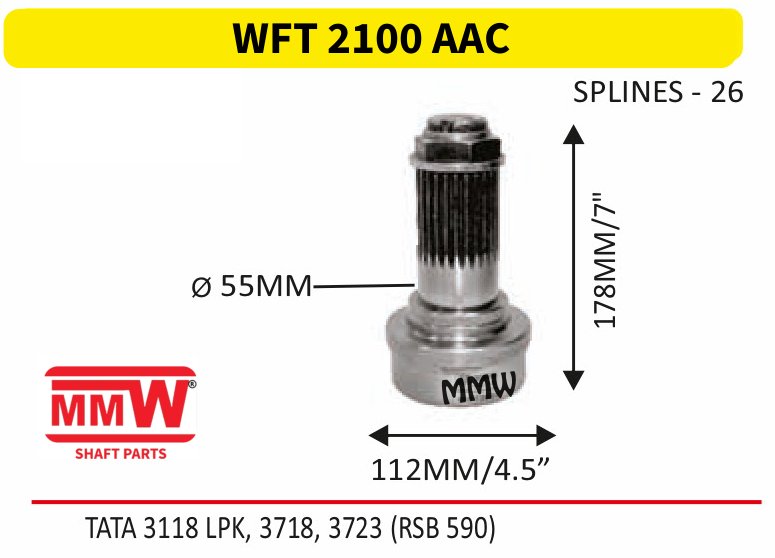

WFT 2100 AAC	26		TATA 3118 LPK, 3718, 3723 (RSB 590)	78

Centre Coupling Flanges 2

Part	Splines	Length	Holes	Bolt No.	Outer Dia	Marked	Vehicles	Page

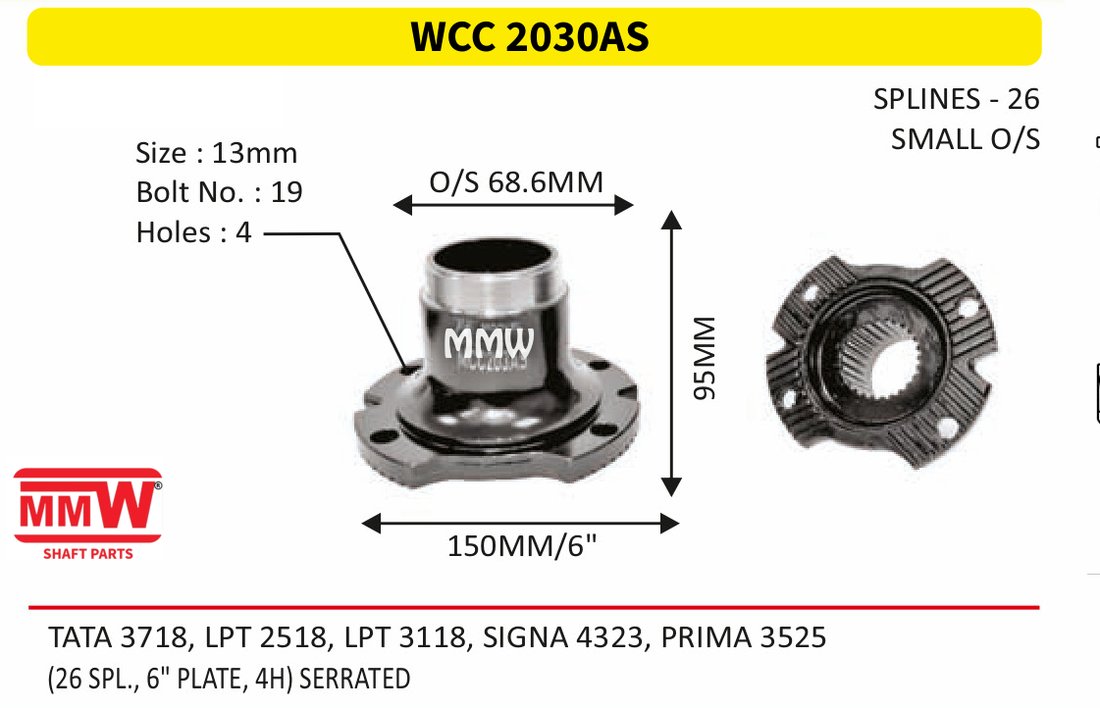

WCC 2030AS	26	95 MM	4	19	68.6MM	SERRATED	TATA 3718, LPT 2518, LPT 3118, SIGNA 4323, PRIMA 3525	78

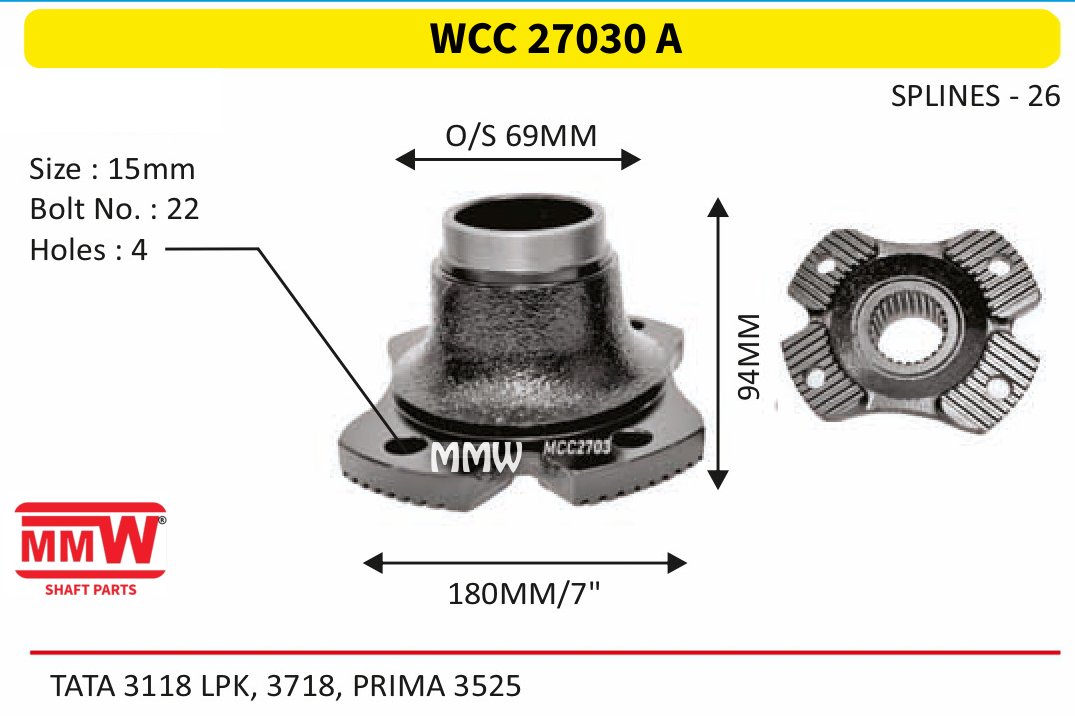

WCC 27030 A	26	94 MM	4	22	69MM		TATA 3118 LPK, 3718, PRIMA 3525	78

Interaxle Shafts 9

Part	Splines	Length	Bolt No.	Marked	Vehicles	Page

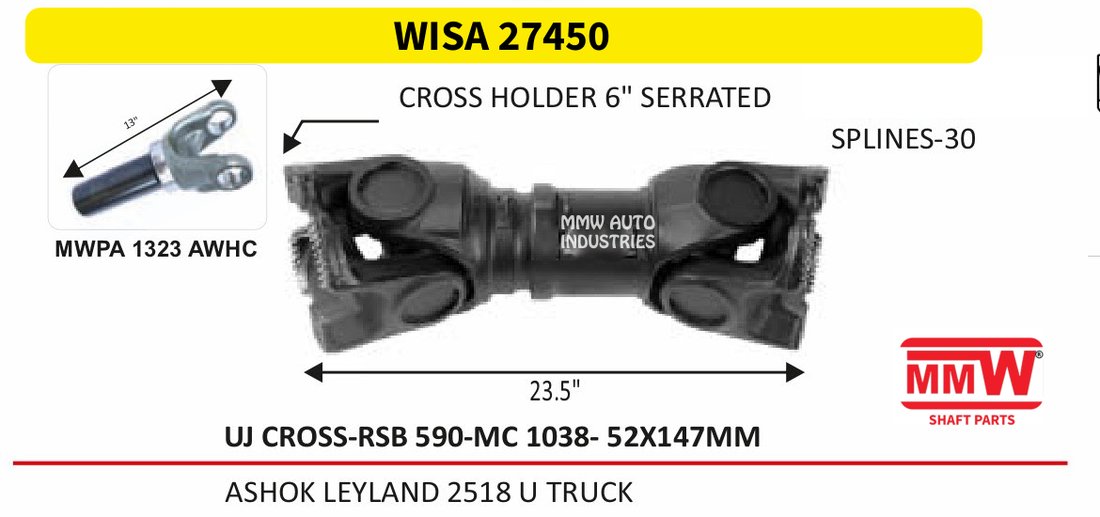

WISA 27450	30			SERRATED	ASHOK LEYLAND 2518 U TRUCK	107

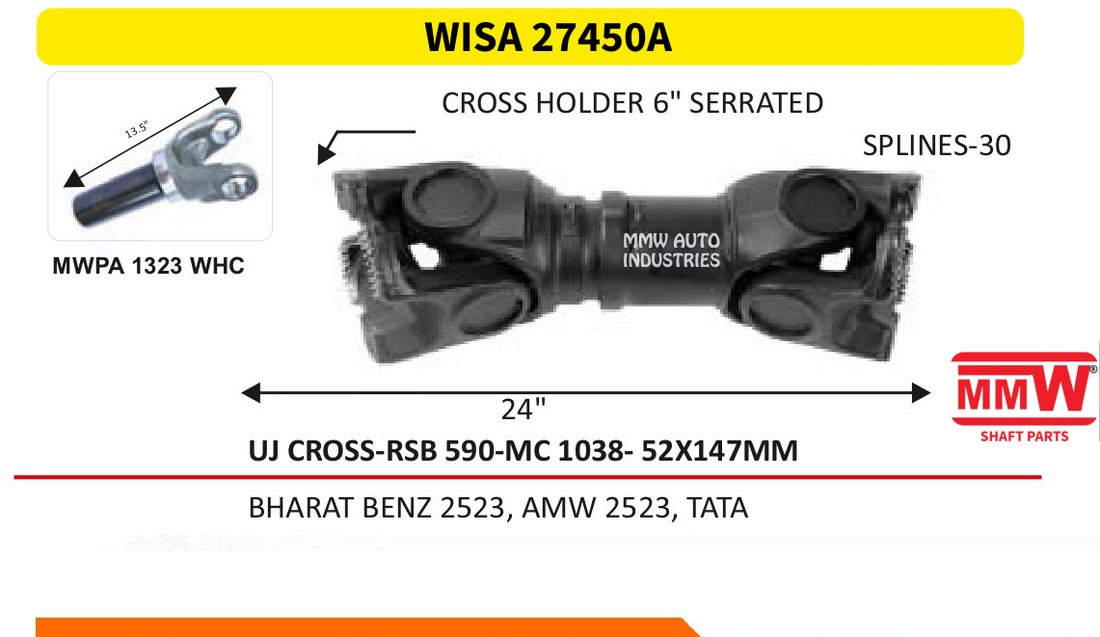

WISA 27450A	30			SERRATED	BHARAT BENZ 2523, AMW 2523, TATA	107

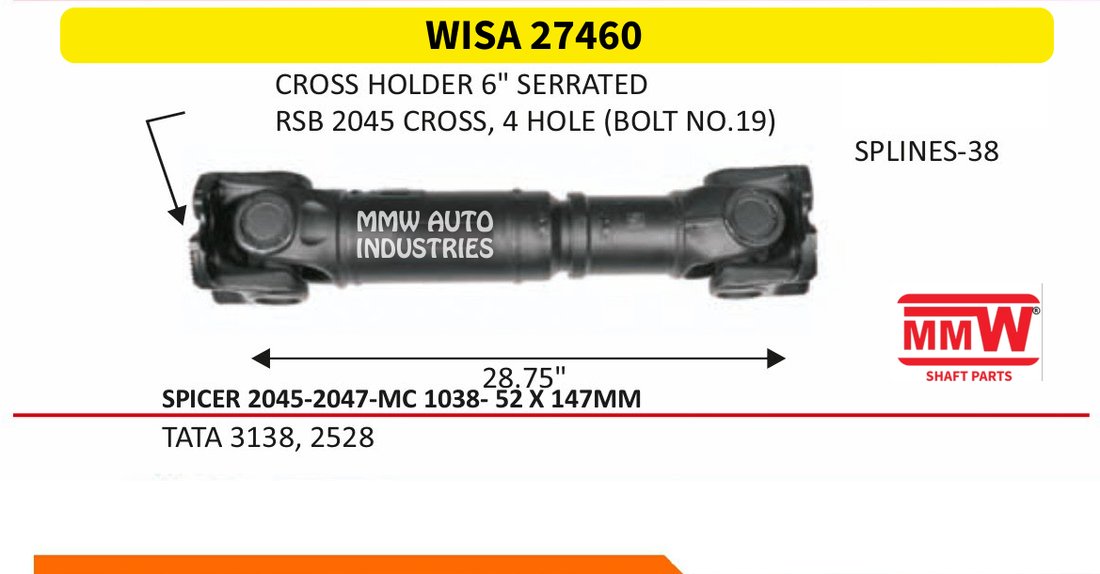

WISA 27460	38		19	SERRATED	TATA 3138, 2528	108

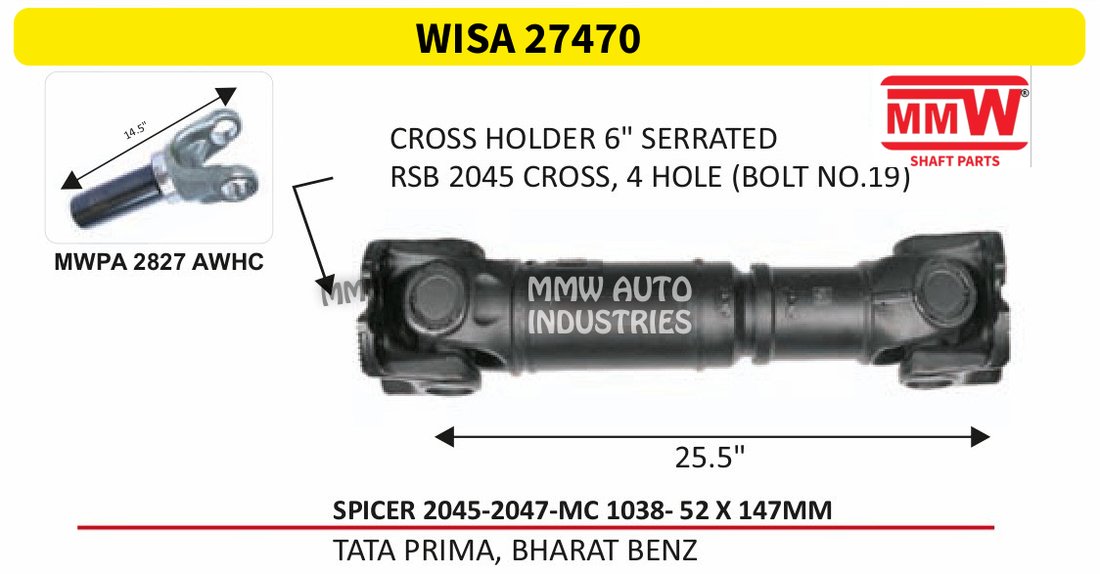

WISA 27470				SERRATED	TATA PRIMA, BHARAT BENZ	109

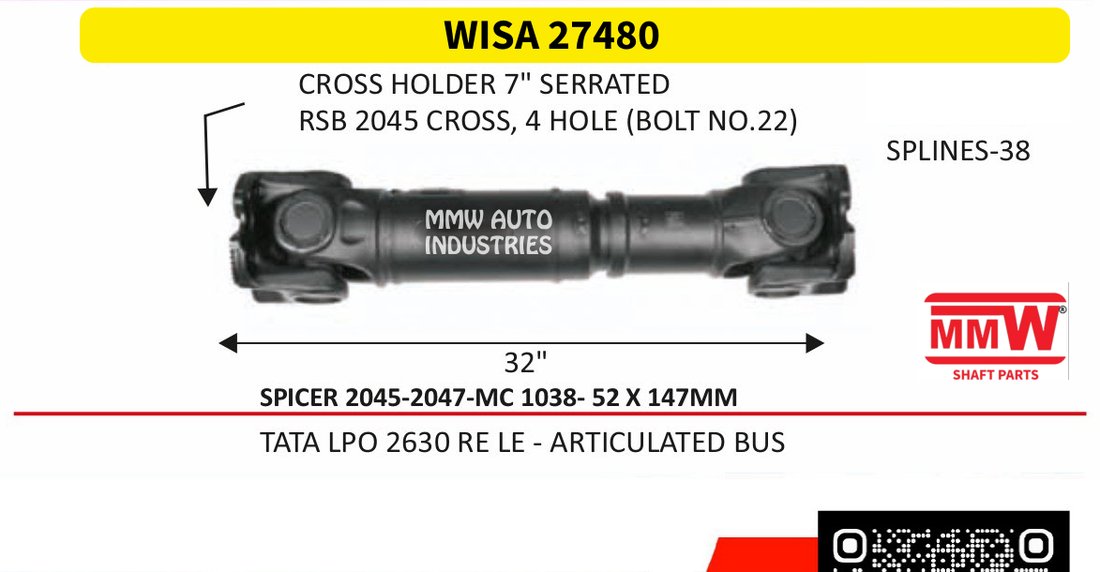

WISA 27480	38		22	SERRATED	TATA LPO 2630 RELE - ARTICULATED BUS	108

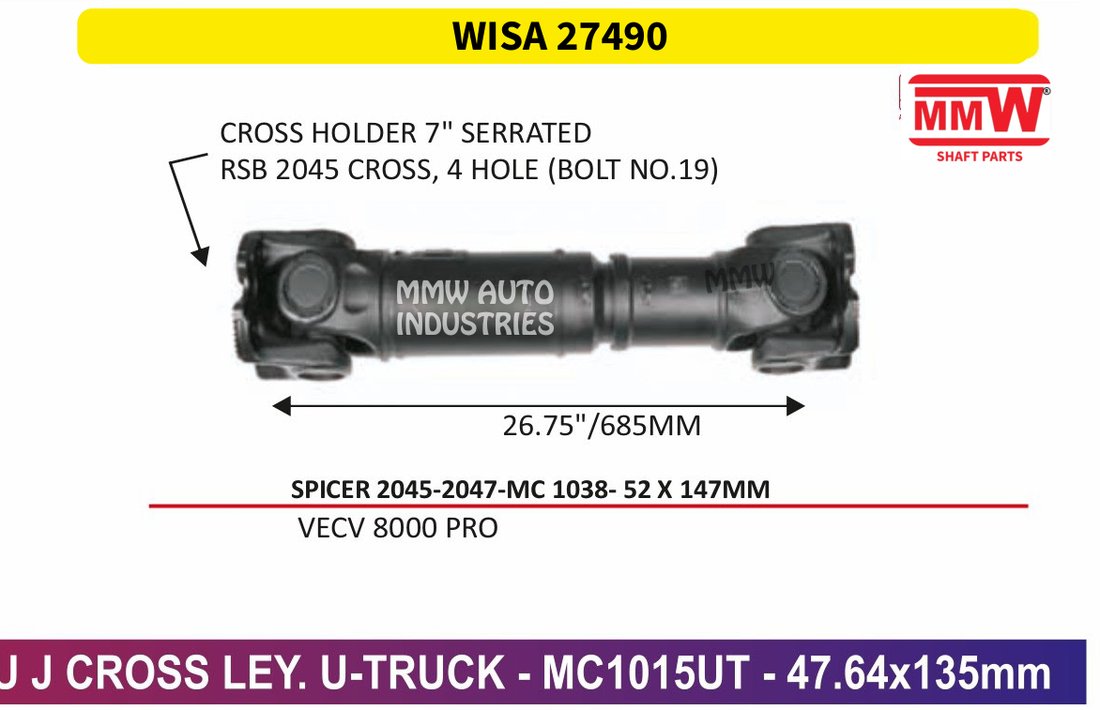

WISA 27490		26.75"/685MM		SERRATED	VECV 8000 PRO	109

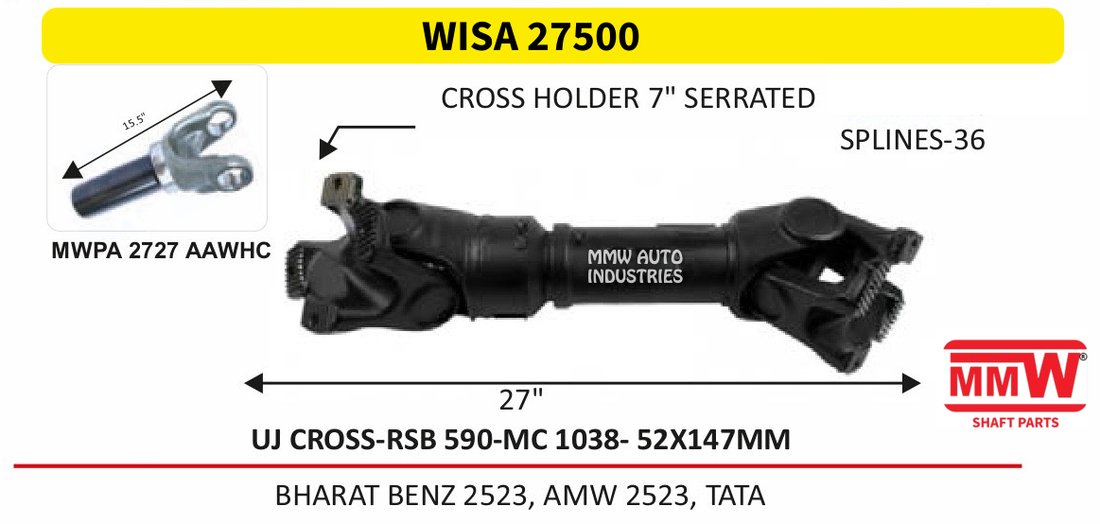

WISA 27500	36			SERRATED	BHARAT BENZ 2523, AMW 2523, TATA	107

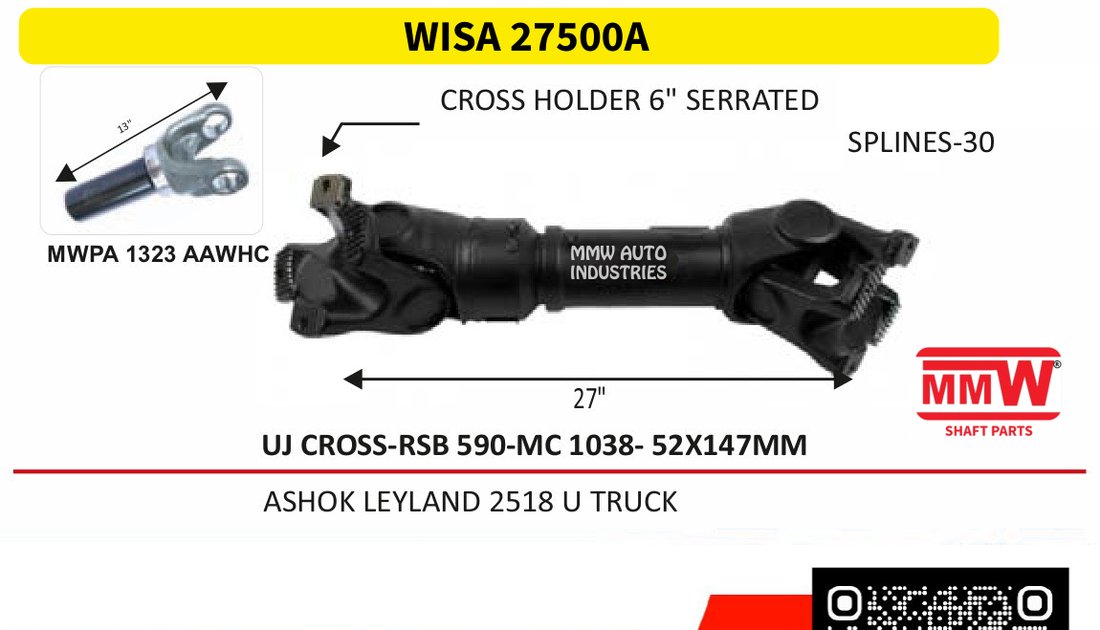

WISA 27500A	30			SERRATED	ASHOK LEYLAND 2518 U TRUCK	107

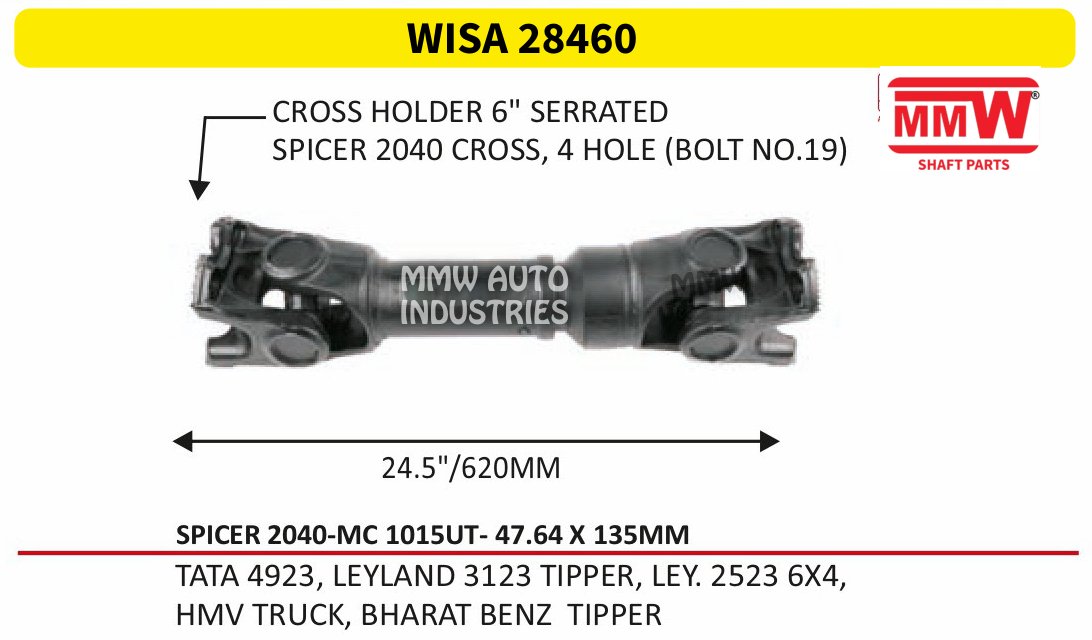

WISA 28460		24.5"/620MM		SERRATED	TATA 4923, LEYLAND 3123 TIPPER, LEY.25236X4, HMVTRUCK, BHARAT BENZ TIPPER	109

Same Cross Size

Questions About the RSB 590 / Spicer 2045 Shaft

Which UJ cross fits the RSB 590 / Spicer 2045 propeller shaft?

The RSB 590 / Spicer 2045 shaft takes the MC 1038, 52X147 MM UJ cross: MMW part WC 10380, WC 10380/ WC 10380GL.

Which parts of the RSB 590 / Spicer 2045 shaft does MMW make?

2 uj crosses, 5 cross holders / flange yokes, 3 half yokes / tube yokes, 9 long forks, 10 rear housings / sleeve bottles, 15 long fork & sleeve bottle sets, 4 weld plug assemblies, 2 front teeth, 2 centre coupling flanges, 9 interaxle shafts. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
