RSB 403 Propeller Shaft Parts

UJ Crosses 1

Part	Vehicles	Page
W 10260/ 10260GL	TATA 2516 LPK, 2518 LPK, 1613 TURBO, LPO 1621 WITH VOITH RETARDER, ASHOK LEYLAND - CT ...	6

Cross Holders / Flange Yokes 8

Part	Length	Holes	Bolt No.	Marked	Vehicles	Page

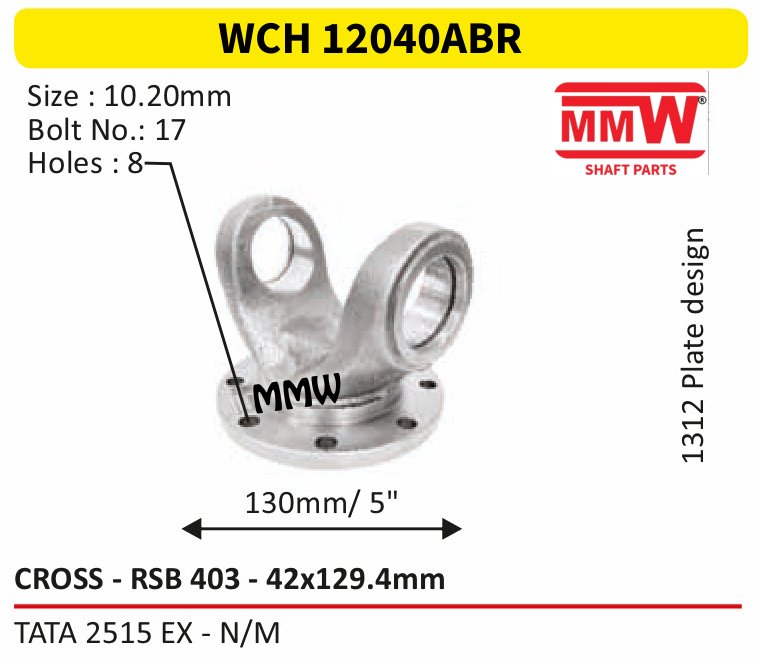

WCH 12040ABR		8	17		TATA 2515 EX - N/M	9

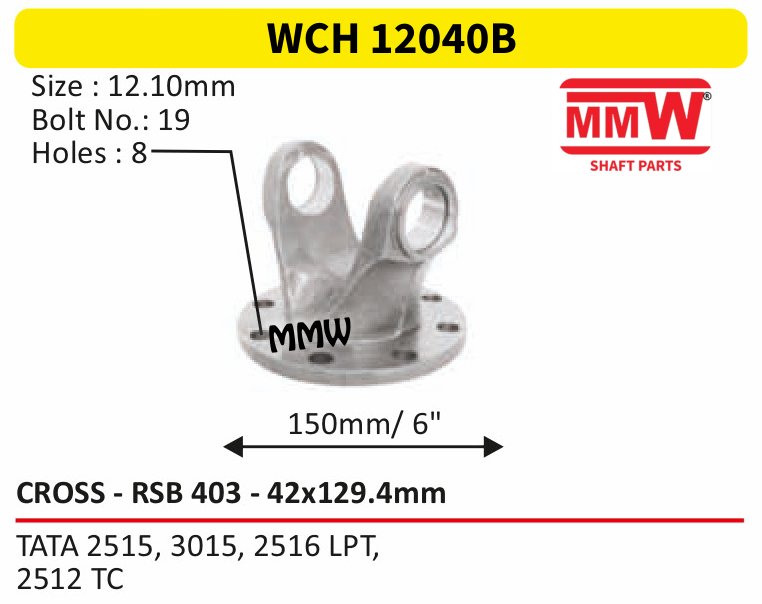

WCH 12040B		8	19		TATA 2515, 3015, 2516 LPT, 2512 TC	9

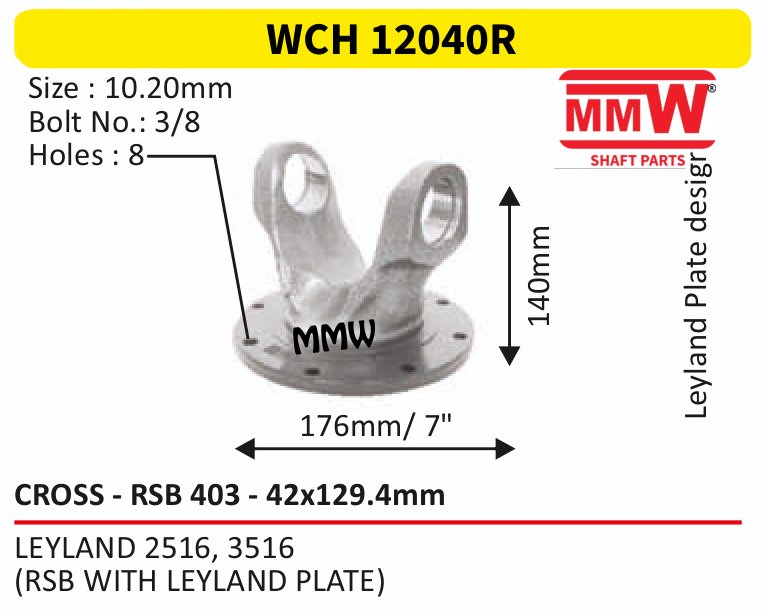

WCH 12040R	140mm	8	3		LEYLAND 2516, 3516, (RSB WITH LEYLAND PLATE)	9

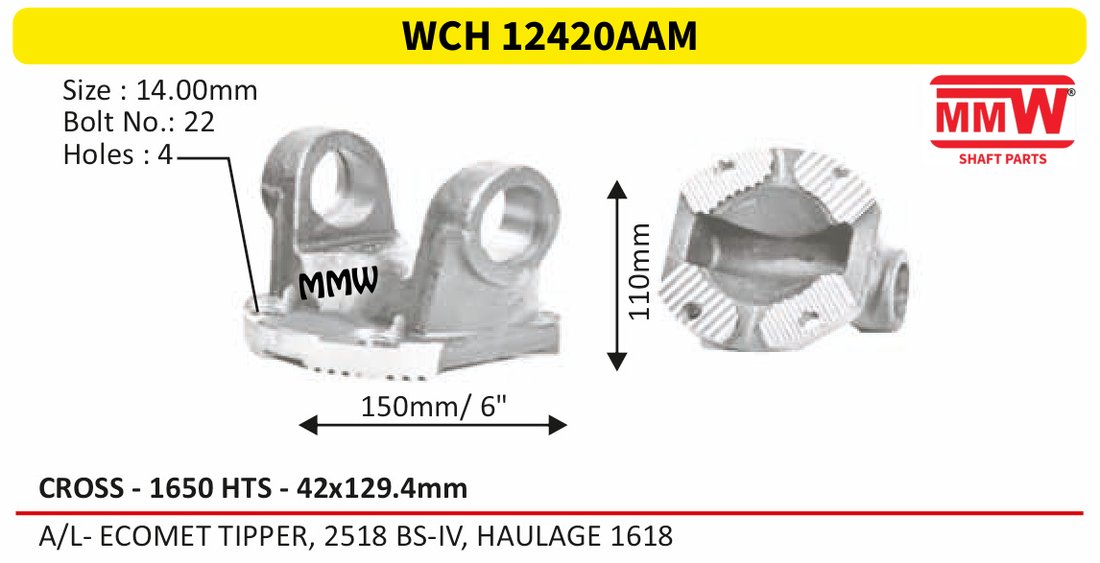

WCH 12420AAM	110mm	4	22		A/L - ECOMET TIPPER, 2518 BS - IV, HAULAGE 1618	17

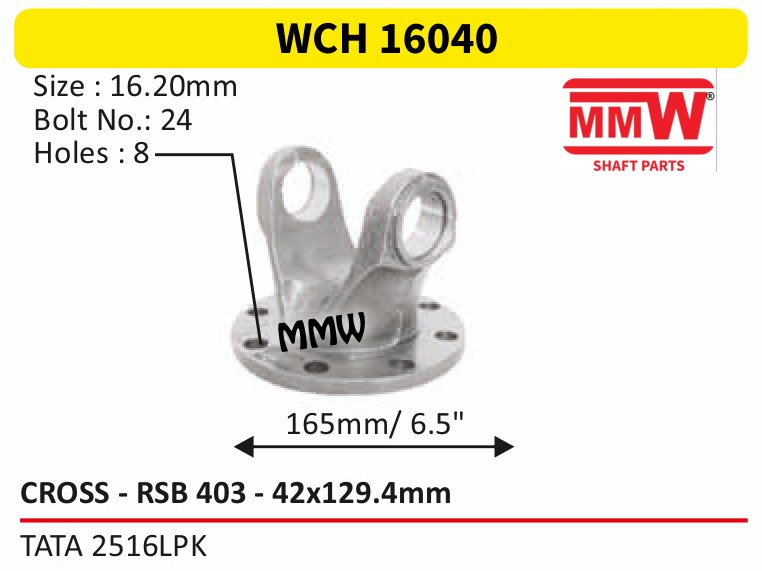

WCH 16040		8	24		TATA 2516 LPK	9

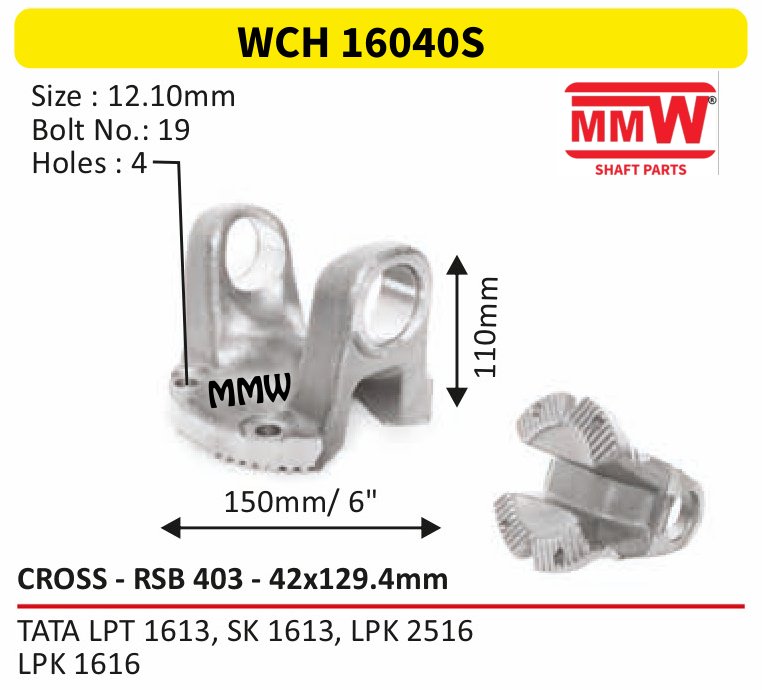

WCH 16040S	110mm	4	19		TATA LPT 1613, SK 1613, LPK 2516, LPK 1616	9

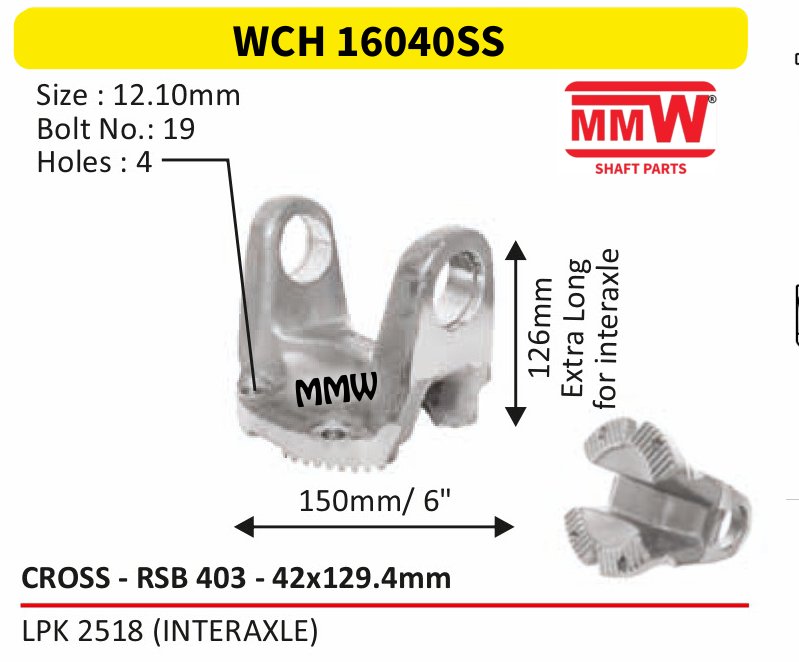

WCH 16040SS	126mm	4	19	EXTRA LONG	LPK 2518 (INTERAXLE)	9

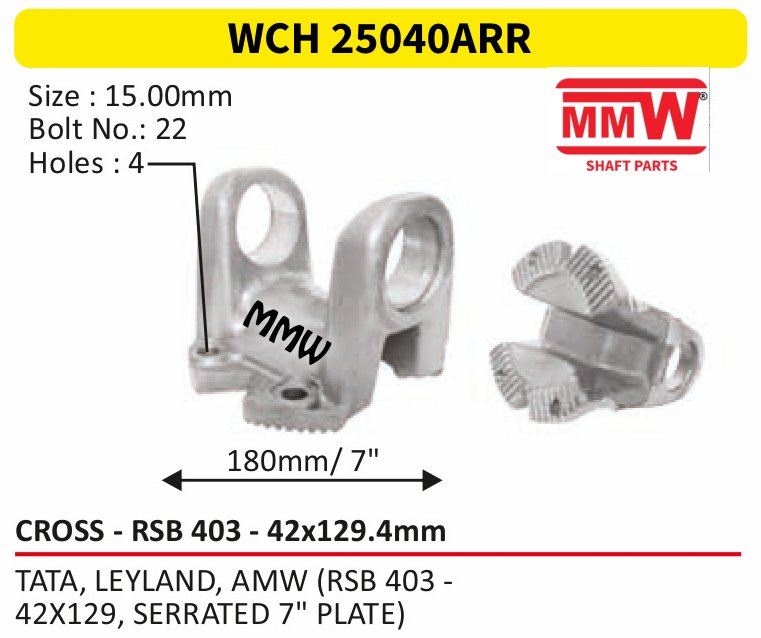

WCH 25040ARR		4	22	SERRATED	TATA, LEYLAND, AMW(RSB 403 -, 42X 129, SERRATED 7" PLATE)	9

Half Yokes / Tube Yokes 3

Part	Length	Pipe	Marked	Vehicles	Page

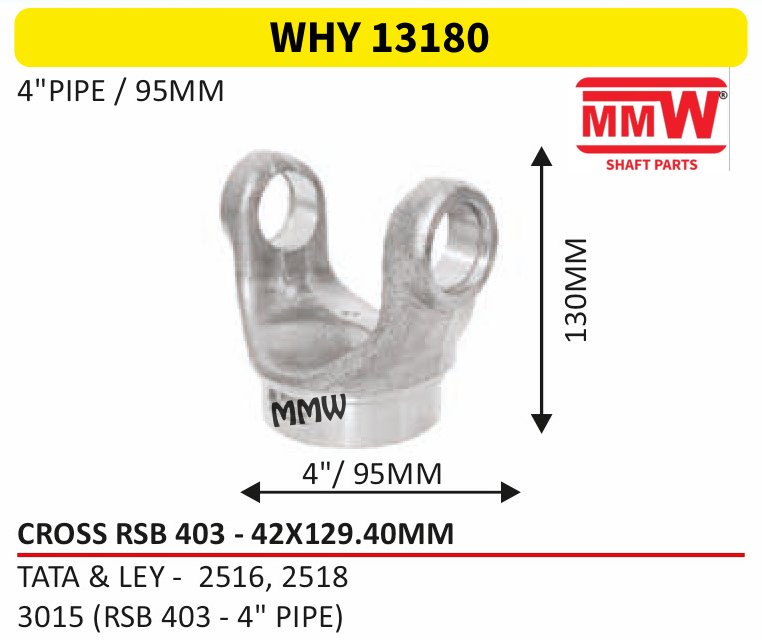

WHY 13180	130 MM	4"		TATA & LEY - 2516, 2518, 3015 (RSB 403 - 4" PIPE)	20

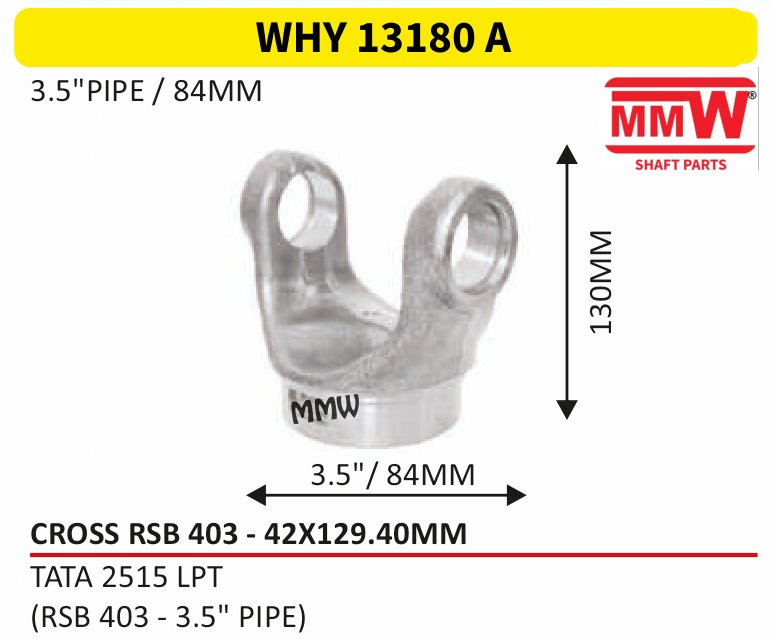

WHY 13180 A	130 MM	3.5"		TATA 2515 LPT, (RSB 403 - 3.5" PIPE)	20

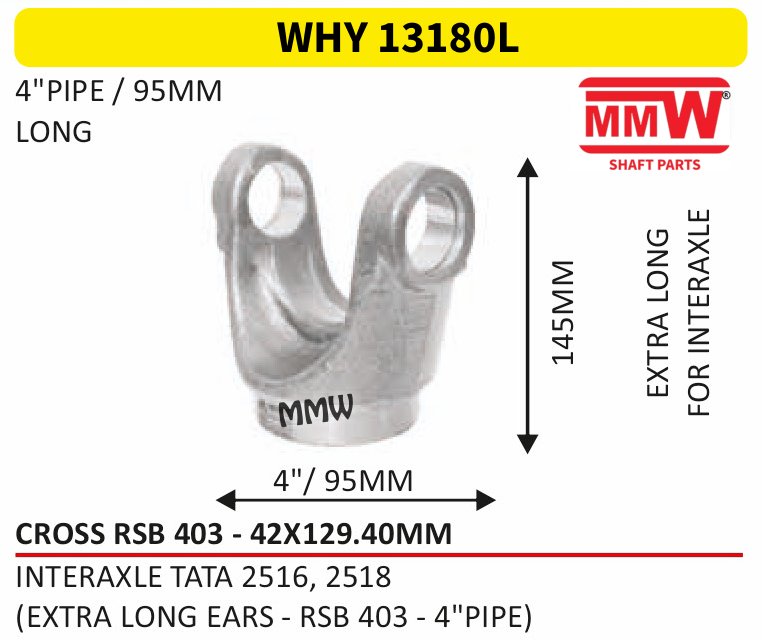

WHY 13180L	145 MM	4"	EXTRA LONG	INTERAXLE TATA 2516, 2518, (EXTRA LONG EARS - RSB 403 - 4" PIPE)	20

Long Forks 6

Part	Cross Size	Splines	Length	Pipe	Marked	Vehicles	Page
WRY 13170 ABTP	42X129.40 MM	20	16"/400mm	4"	EXTRA LONG, WITH D. COVER	LEY. 2518, 2516 BSIII, (INTERAXLE - E.LONG, PIPE DIA 4")	44
WRY 13170 AT	42X129.40 MM	20	15"/370mm	4"		TATA & LEY. 2516, 2518, (INTERAXLE - LONG, PIPE DIA 4")	44
WRY 13170 ATP	42X129.40 MM	20	15"/370mm	4"	WITH D. COVER	TATA & LEY.2516, 2518, (INTERAXLE - LONG, PIPE DIA 4")	44
WRY 13170 T	42.05X129.40 MM	20	13.25"/330mm			TATA 1613, TURBO BSIII, 1616 BSIII	43
WRY 13170 TBP	42X129.40 MM	20	14"/355mm		EXTRA LONG, WITH D. COVER	TATA 2518 LPK, LEY.2518, 2516 BSIII, (INTERAXLE)	44
WRY 13170 TP	42.05X129.40 MM	20	13.25"/330mm		WITH D. COVER	TATA 1613, TURBO BSIII, 1616 BSIII	43

Rear Housings / Sleeve Bottles 4

Part	Splines	Length	Pipe	Marked	Vehicles	Page
WST 13260 A (PLAIN)	20	9"/230mm	4"	PLAIN	TATA & LEY. 2516, 2518, (INTERAXLE - LONG, PIPE DIA 4")	44
WST 13260 ABC (COATED)	20	10.25"/260mm	4"	EXTRA LONG	LEY.2518, 2516 BSIII, (INTERAXLE - E.LONG, PIPE DIA 4")	44
WST 13260 AC (COATED)	20	9"/230mm	4"		TATA & LEY.2516, 2518, (INTERAXLE - LONG, PIPE DIA 4")	44
WST 13260 AWC	20	8"/200mm	4"	EXTRA LONG	TATA 2518 LPK, LEY. 2518, 2516 BSIII, (INTERAXLE)	44

Long Fork & Sleeve Bottle Sets 12

Part	Cross Size	Splines	Length	Pipe	Marked	Vehicles	Page
MRYST 13170AA (PLAIN)/ 13170AAC (COATED)	42.05X129.40 MM	20	13.25"/330MM	3.5"	PLAIN	TATA 1613, TURBO BSIII, 1616 BSIII, (PIPE DIA 3.5")	43
MRYST 1317AAP (PLAIN)/ 1317AAPC (COATED)	42.05X129.40 MM	20	13.25"/330MM	3.5"	PLAIN	TATA 1613, TURBO BSII, 1616 BSII, (PIPE DIA 3.5")	43
WRYST 13170 (PLAIN)/ 13170C (COATED)	42X129.40 MM	20	13.25"/330MM	4"	PLAIN	TATA 2516, 2518, 1616 BSII, (PIPE DIA 4")	43
WRYST 13170 ABP (PLAIN)/ C (COATED)	42X129.40 MM	20	16"/400MM	4"	PLAIN, EXTRA LONG	LEY.2518, 2516 BSIII(INTERAXLE-, E.LONG, PIPE DIA 4")	44
WRYST 13170 ADPC	42X129 MM	16	280MM/11"			ASHOK LEYLAND U TRUCK, 2518, 2523	40
WRYST 13170 ADTP	42X129 MM	16	280MM/11"			ASHOK LEYLAND U TRUCK, 2518, 2523	40
WRYST 13170 BAWC	42X129.40 MM	20	8"/200mm	4"	EXTRA LONG	TATA 2518 LPK, LEY. 2518, 2516 BSII, (INTERAXLE)	44
WRYST 13170 DPC	42X129 MM	16	330MM/13"			ASHOK LEYLAND U TRUCK, 2518, 2523	40
WRYST 13170 DTP	42X129 MM	16	330MM/13"			ASHOK LEYLAND U TRUCK, 2518, 2523	40
WRYST 13170AP (PLAIN)/ C (COATED)	42X129.40 MM	20	15"/370MM	4"	PLAIN, COATED	TATA&LEY.2516, 2518, (INTERAXLE-LONG, PIPE DIA 4")	44
WRYST 13170P (PLAIN)/ 13170PC (COATED)	42X129.40 MM	20	13.25"/330MM	4"	PLAIN	TATA 2516, 2518, 1616 BSII(PIPE DIA 4")	43
WRYST 1317OA (PLAIN)/ AC (COATED)	42X129.40 MM	20	15"/370MM	4"	PLAIN	TATA&LEY.2516, 2518, (INTERAXLE-LONG, PIPE DIA 4")	44

Weld Plug Assemblies 4

Part	Splines	Vehicles	Page

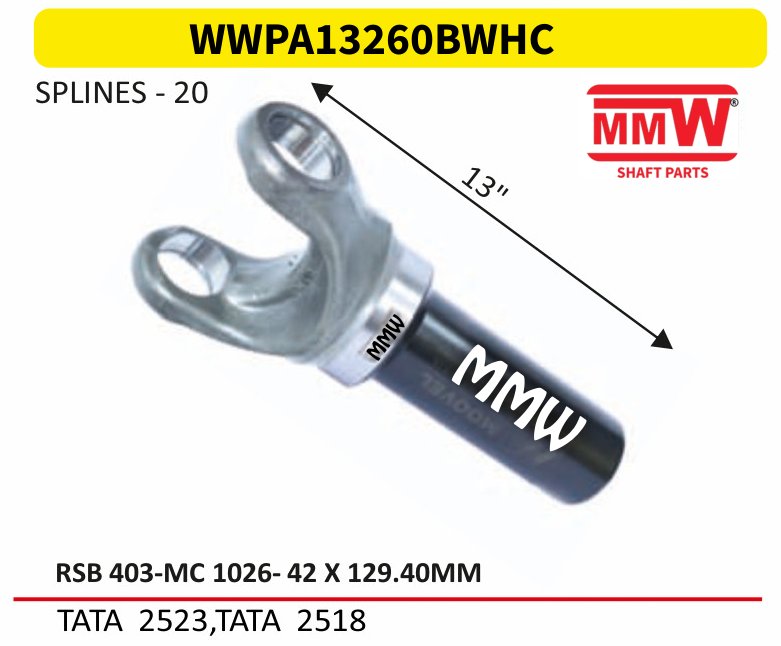

WWPA13260BWHC	20	TATA 2523, TATA 2518	115

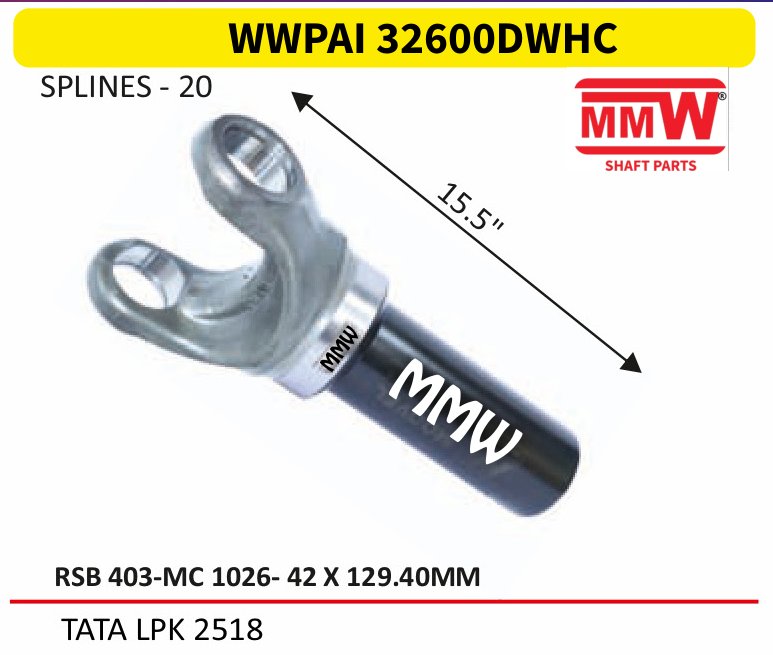

WWPAI 32600DWHC	20	TATA LPK 2518	115

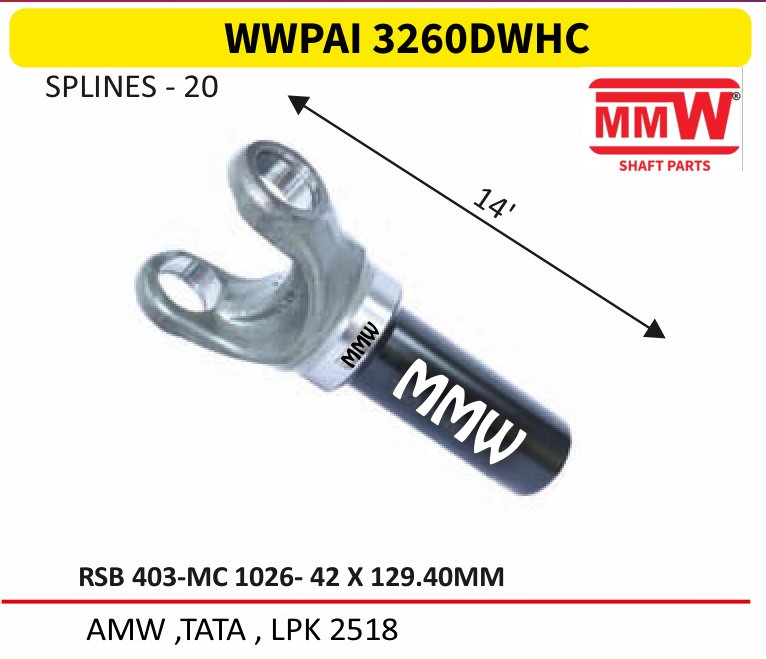

WWPAI 3260DWHC	20	AMW, TATA, LPK 2518	115

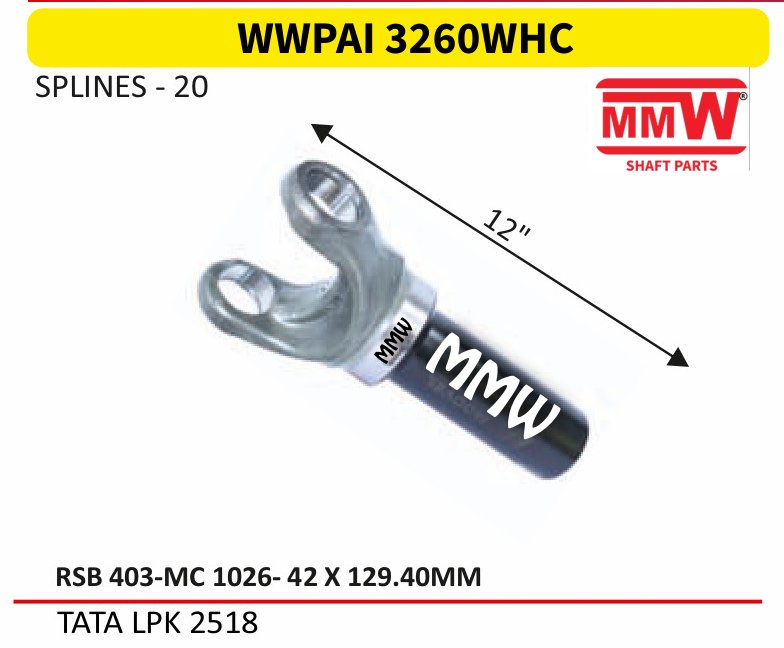

WWPAI 3260WHC	20	TATA LPK 2518	115

Front Teeth 1

Part	Splines	Length	Bearing	Marked	Vehicles	Page

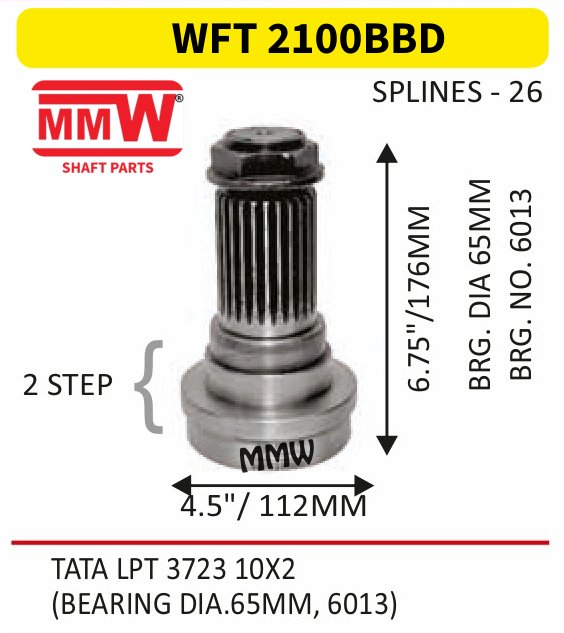

WFT 2100BBD	26	6.75"/176 MM	65MM	SERRATED	TATA LPT 3723 10X2	77

Centre Coupling Flanges 1

Part	Splines	Length	Pipe	Holes	Bolt No.	Outer Dia	Marked	Vehicles	Page

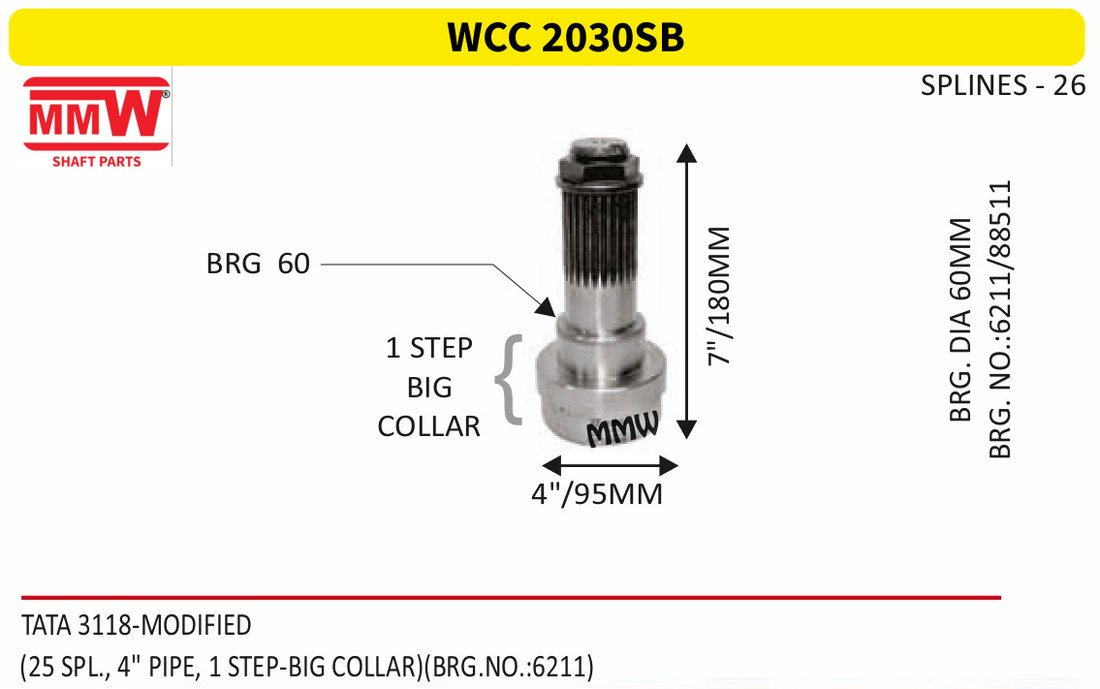

WCC 2030SB	26	88mm	4"	4	19	72MM	SERRATED	TATA 3118-MODIFIED	77

Interaxle Shafts 4

Part	Length	Bolt No.	Marked	Vehicles	Page

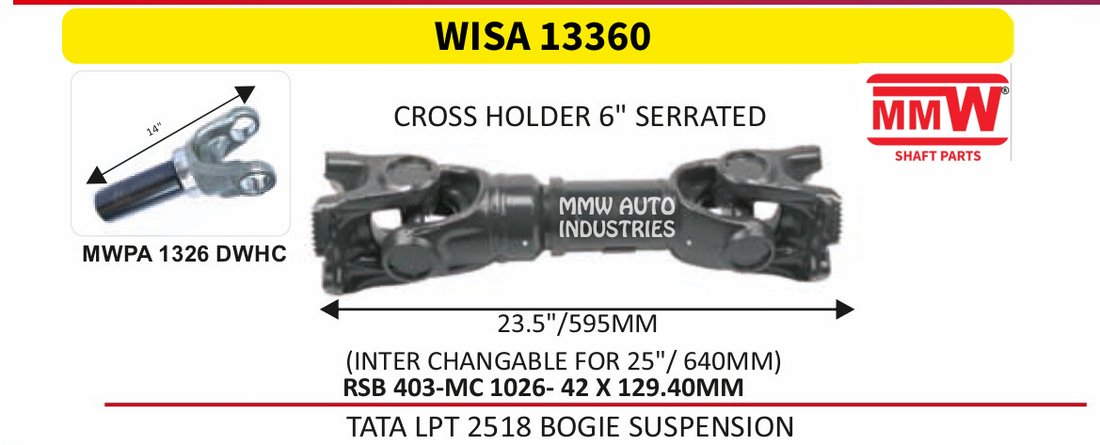

WISA 13360	23.5"/595 MM		SERRATED	TATA LPT 2518 BOGIE SUSPENSION	108

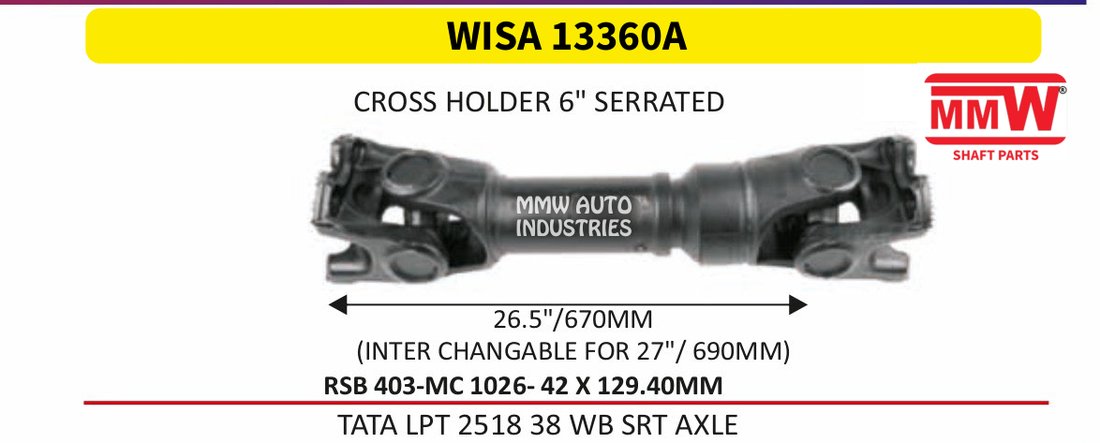

WISA 13360A	26.5/670 MM		SERRATED	TATA LPT 251838 WB SRT AXLE	108

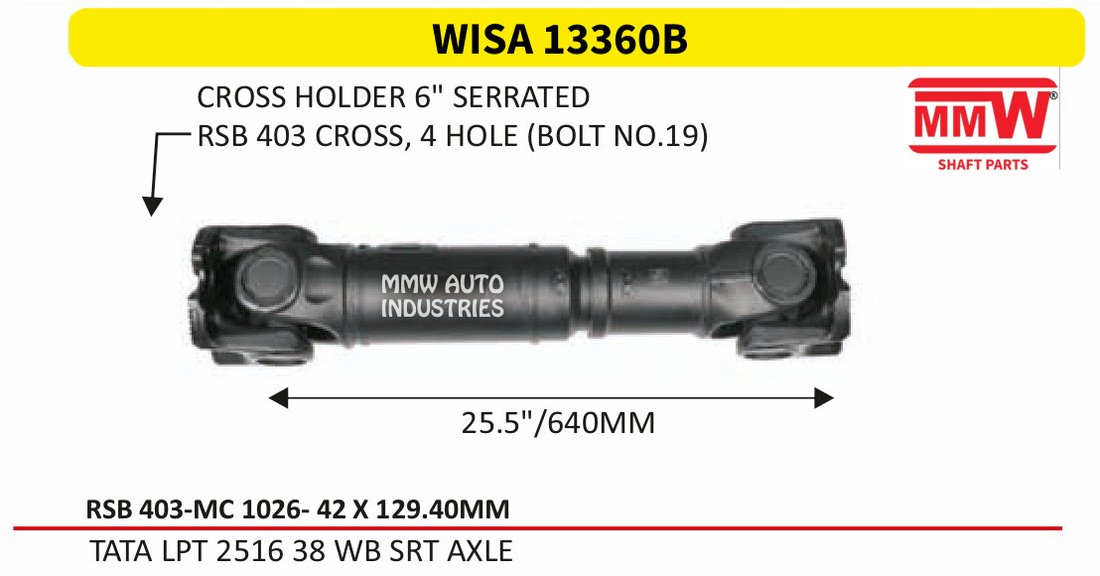

WISA 13360B	25.5"/640 MM	19	SERRATED	TATA LPT 251638 WB SRT AXLE	108

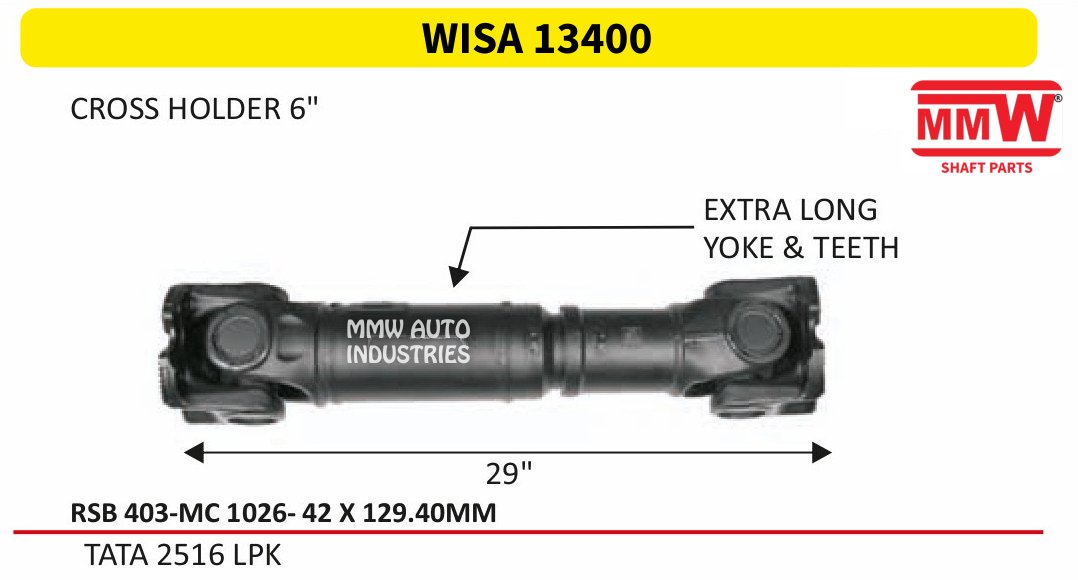

WISA 13400			EXTRA LONG	TATA 2516 LPK	108

Same Cross Size

Questions About the RSB 403 Shaft

Which UJ cross fits the RSB 403 propeller shaft?

The RSB 403 shaft takes the MC 1026, 42X129.40 MM UJ cross: MMW part W 10260/ 10260GL.

Which parts of the RSB 403 shaft does MMW make?

1 uj cross, 8 cross holders / flange yokes, 3 half yokes / tube yokes, 6 long forks, 4 rear housings / sleeve bottles, 12 long fork & sleeve bottle sets, 4 weld plug assemblies, 1 front teeth, 1 centre coupling flange, 4 interaxle shafts. Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
