Jeep Diesel Propeller Shaft Parts

UJ Crosses 3

Part	Cross Size	Marked	Vehicles	Page

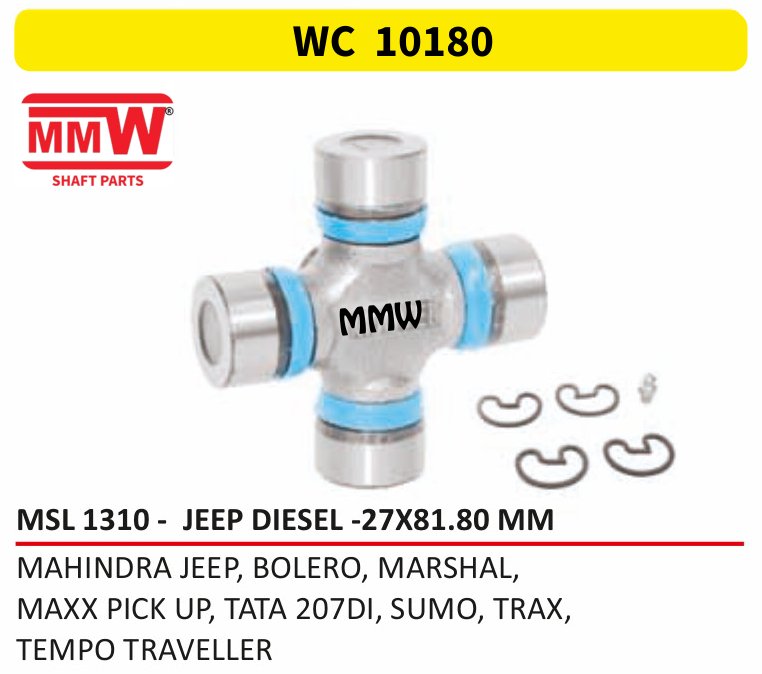

WC 10180	27X81.80 MM		MAHINDRA JEEP, BOLERO, MARSHAL, MAXX PICKUP, TATA 207 DI, SUMO, TRAX, TEMPO TRAVELLER	7

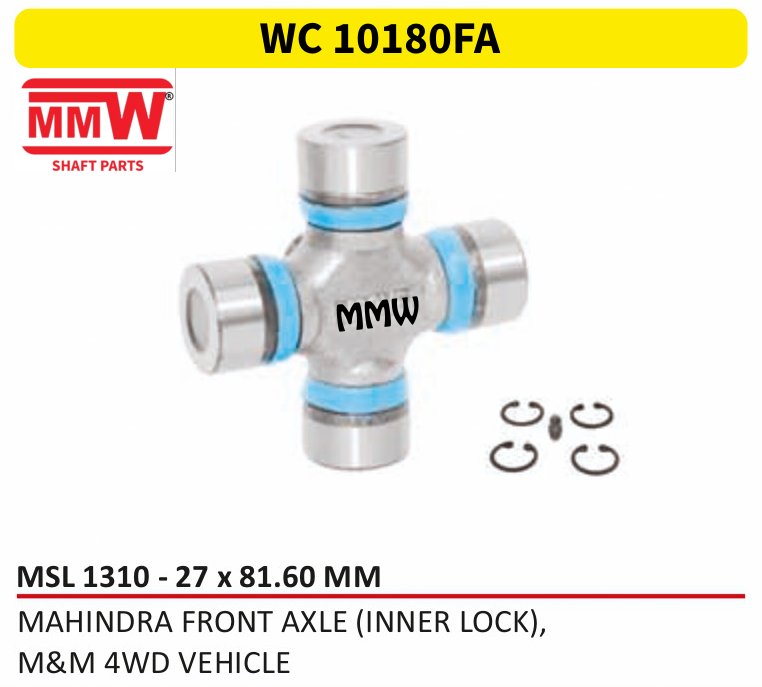

WC 10180FA	27X81.60 MM	INNER LOCK	MAHINDRA FRONT AXLE (INNER LOCK), M & M 4 WDVEHICLE	7

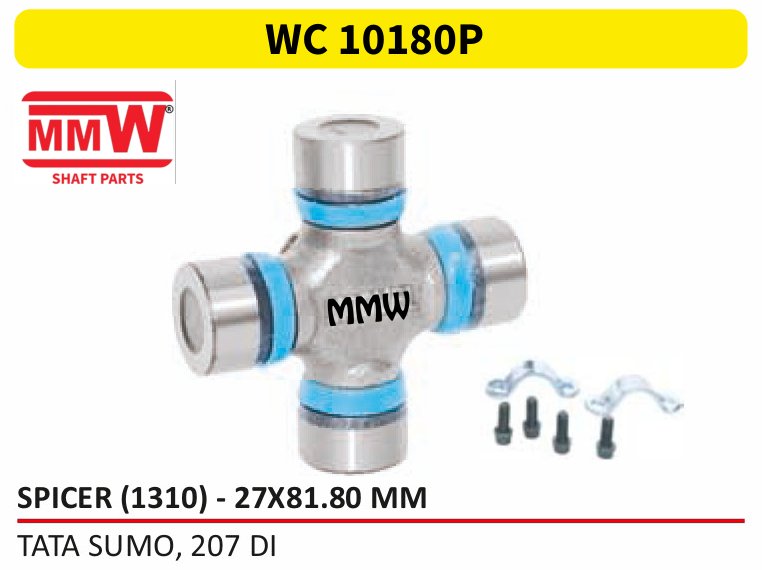

WC 10180P	27X81.80 MM		TATA SUMO, 207 DI	6

Cross Holders / Flange Yokes 5

Part	Length	Holes	Bolt No.	Marked	Vehicles	Page

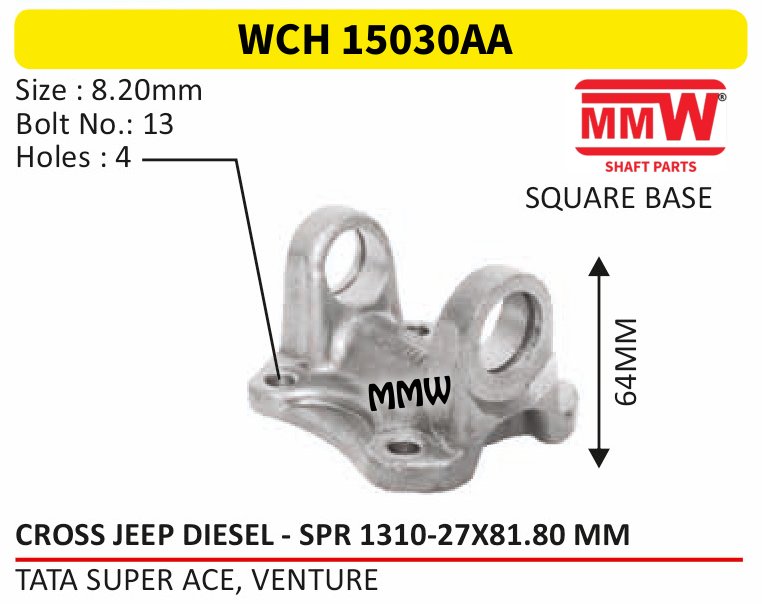

WCH 15030AA	64 MM	4	13	SQUARE BASE	TATA SUPER ACE, VENTURE	17

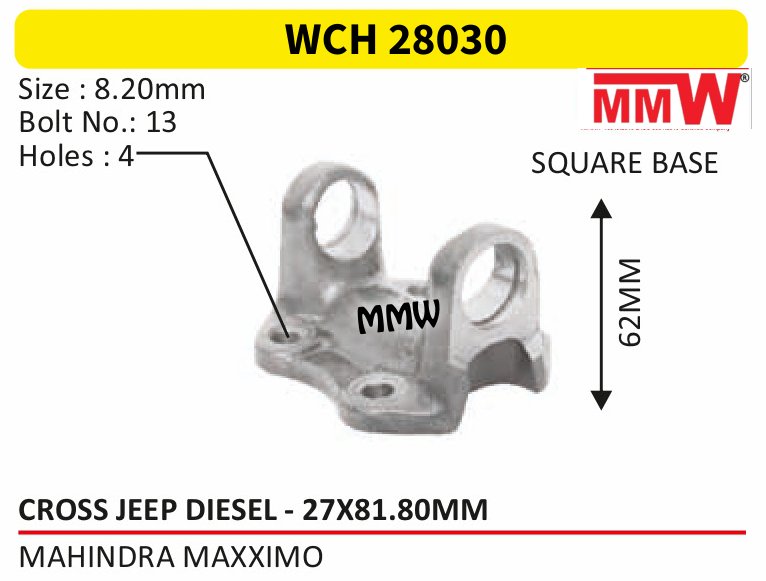

WCH 28030	62 MM	4	13	SQUARE BASE	MAHINDRA MAXXIMO	15
WCH 29030	63 MM	4	13	SQUARE BASE	LEYLAND DOST, CROSS FITMENT - EICHER CANTER	15

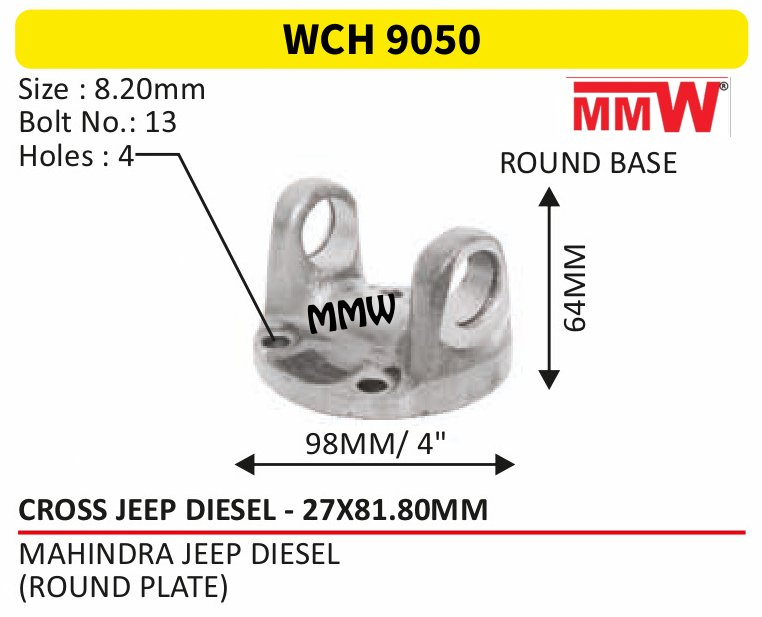

WCH 9050	64 MM	4	13		MAHINDRA JEEP DIESEL, (ROUND PLATE)	15

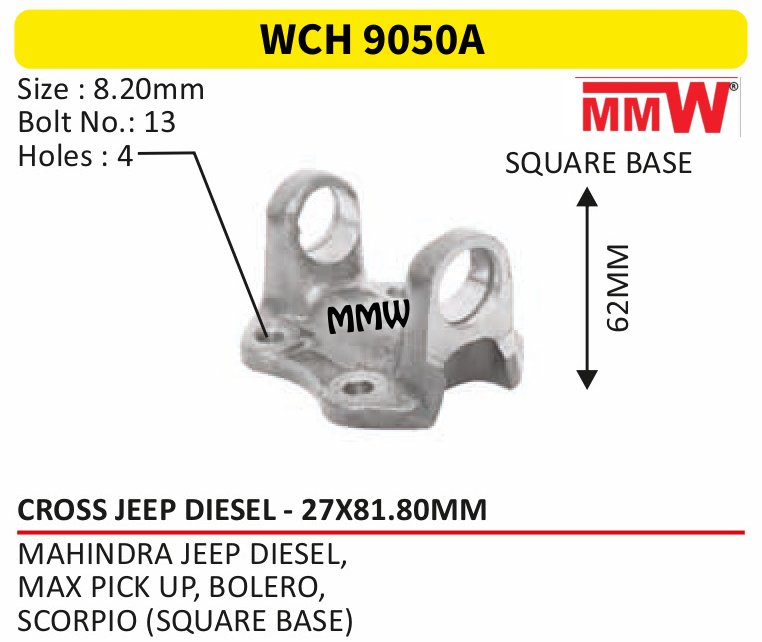

WCH 9050A	62 MM	4	13	SQUARE BASE	MAHINDRA JEEP DIESEL, MAX PICKUP, BOLERO, SCORPIO (SQUARE BASE)	15

Cross Holder Assemblies 1

Part	Holes	Vehicles	Page

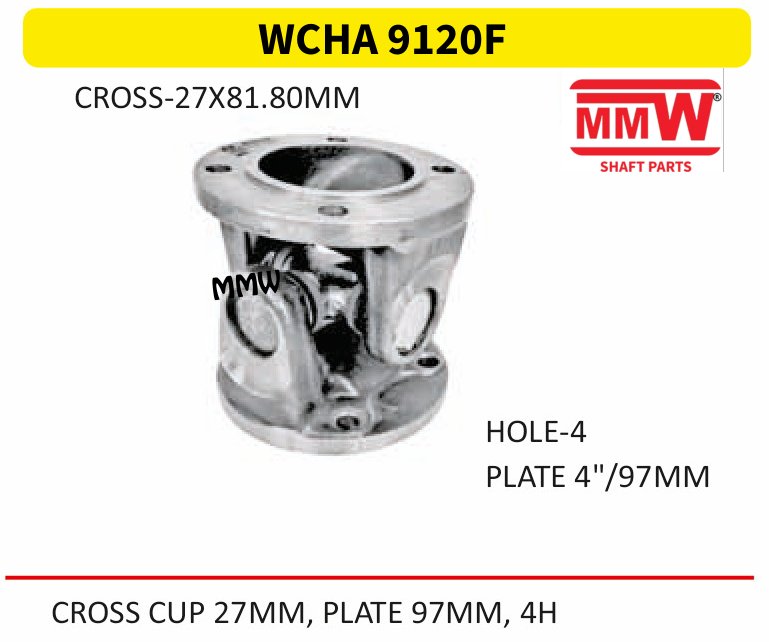

WCHA 9120F	4	CROSS CUP 27MM, PLATE 97MM, 4H	100

Half Yokes / Tube Yokes 6

Part	Length	Pipe	Marked	Vehicles	Page

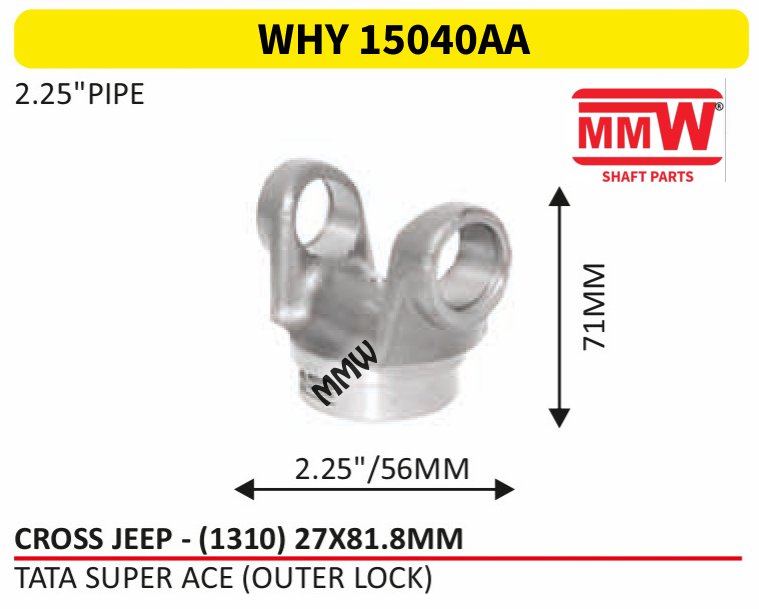

WHY 15040AA	71 MM	2.25"	OUTER LOCK	TATA SUPER ACE(OUTER LOCK)	21

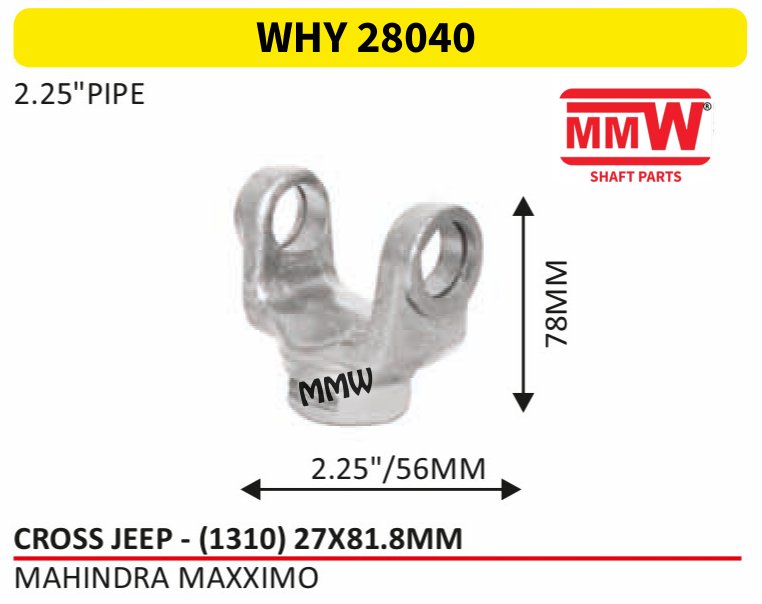

WHY 28040	78 MM	2.25"		MAHINDRA MAXXIMO	21

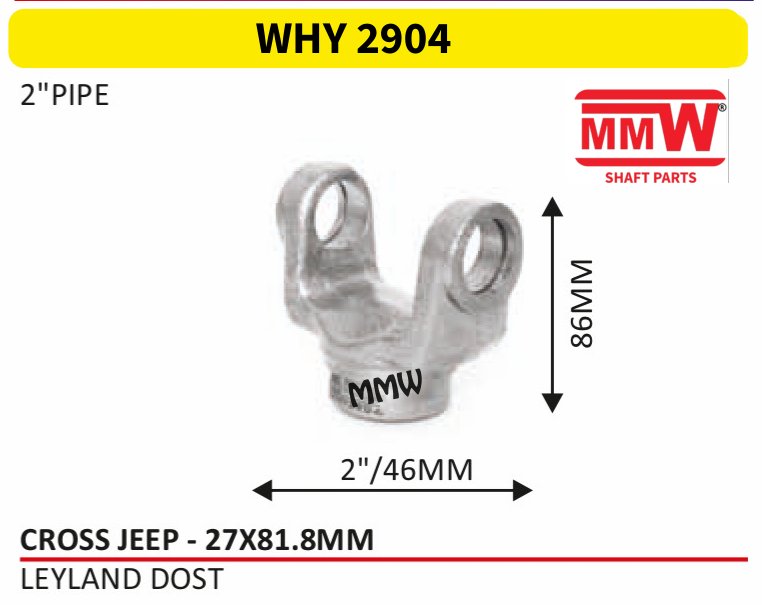

WHY 2904	86 MM	2"		LEYLAND DOST	21

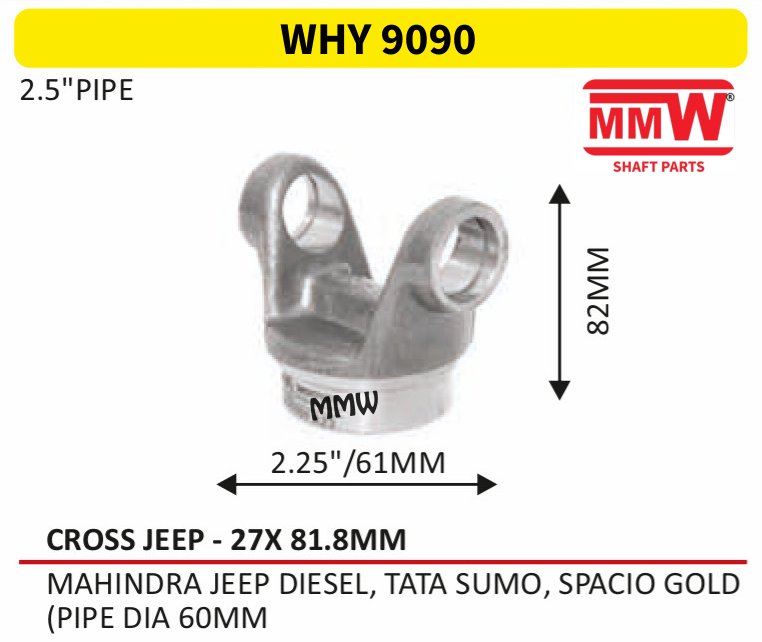

WHY 9090	82 MM			MAHINDRA JEEP DIESEL, TATA SUMO, SPACIO GOLD, (PIPE DIA 60 MM	22

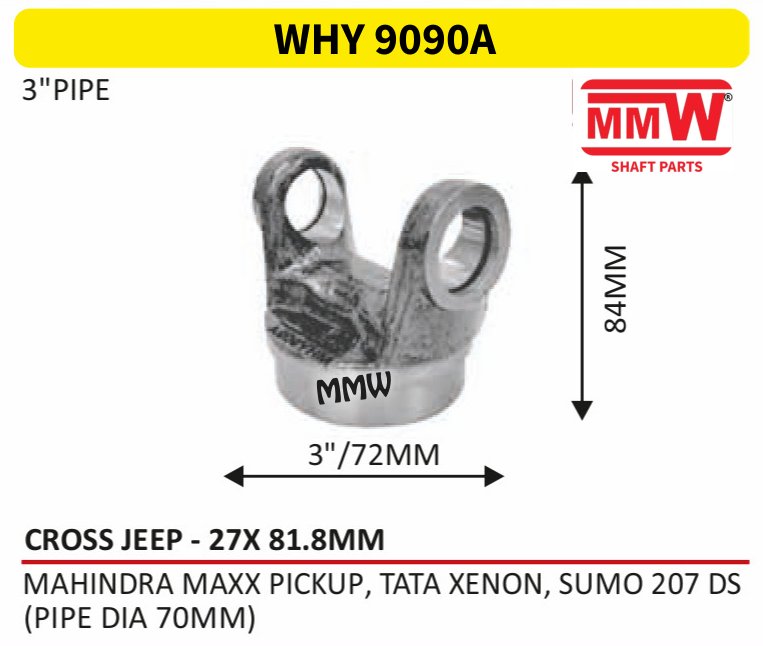

WHY 9090A	84 MM			MAHINDRA MAXX PICKUP, TATA XENON, SUMO 207 DS, (PIPE DIA 70 MM)	22

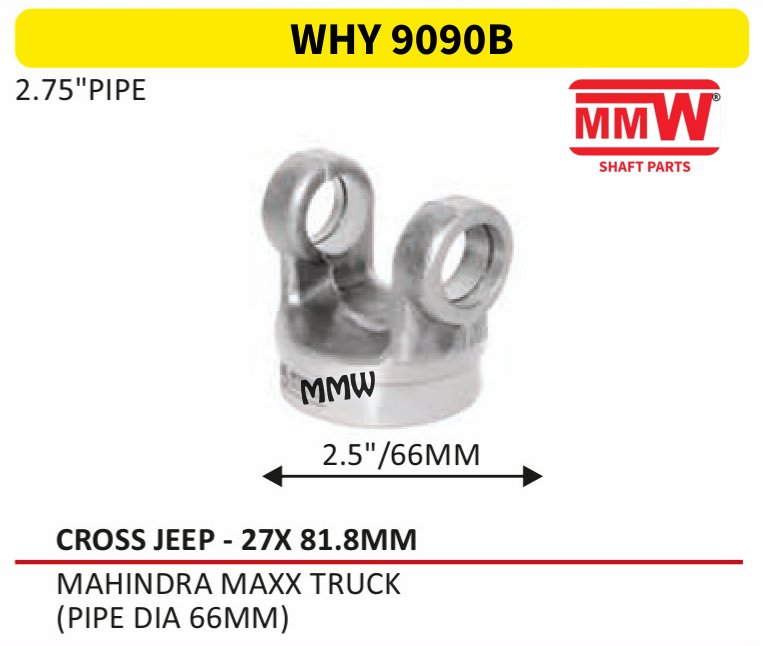

WHY 9090B	2.5"/66 MM			MAHINDRA MAXX TRUCK, (PIPE DIA 66 MM)	22

Sleeve Yokes 8

Part	Splines	Length	Pipe	Vehicles	Page
WFY 15060AA	22	6.25"/158mm		TATA SUPER ACE	61
WFY 28060	19	7.25"/182MM		MAHINDRA MAXXIMO	61
WFY 29060	25	7"/180mm		LEYLAND DOST	61
WFY 4050 YT	16	8.25"/209mm	2.25"	TATA XENON YODHA 4X 2 MSL DESIGN	66
WFY 4050T	16	6.5"/168 MM		TATA SUMO, 207 DI, SAFARI, TEMPO TRAX - CRUISER &, TOOFAN, JUDO, TRAVELLER	62
WFY 9070	16	6.75"/170 MM		MAHINDRA BOLERO DI SLX FB (JEEP 6")	63
WFY 9160	16	6"/156mm		MAHINDRA MAX II TRUCK	65
WFY 9190	16	6"/156mm		MAHINDRA UTILITY, FC, NC, VOYAGER	65

Rear Teeth 12

Part	Splines	Length	Pipe	Teeth OD	Bearing	Marked	Vehicles	Page
WRT 4060ATC (GLIDE COAT)	16	8"/200mm			35MM	GLIDE COAT	MAHINDRA XYLO, BOLERO N/M	65
WRT 4060T(LAIN)	16	8"/200MM	2.5"				TATA SUMO, 207DI, SAFARI, TEMPO TRAX-CRUISER&, TOOFAN, JUDO, TRAVELLER	62
WRT 4060TC (GLIDE COAT)	16	8"/200 MM	2.5"		35MM	GLIDE COAT	TATA SUMO, 207DI, SAFARI, TEMPO TRAX-CRUISER&	62
WRT 9080 (PLAIN)	16	6"/150MM	2.5"			PLAIN	MAHINDRA BOLERO DI SLX FB(JEEP 6")	63
WRT 9080A (PLAIN)	16	7"/165MM	2.5"			PLAIN	MAHINDRA BOLERO DI SLX FB(JEEP 6")	63
WRT 9080AC (GLIDE COAT)	16	7"/165MM	2.5"			GLIDE COAT	MAHINDRA BOLERO DI SLX FB(JEEP 6")	63
WRT 9080C (GLIDE COAT)	16	6"/150MM	2.5"			GLIDE COAT	MAHINDRA BOLERO DI SLX FB(JEEP 6")	63
WRT 9140 (PLAIN)	16	6.25"/160MM	3"	31.40 MM		PLAIN	MAHINDRA MAX PICKUP(3" PIPE)	64
WRT 9140C (GLIDE COAT)	16	6.25"/160MM	3"	31.40 MM			MAHINDRA MAX PICKUP(3" PIPE)	64
WRT 9170C (GLIDE COAT)	16	5.85"/148 MM					MAHINDRA MAX II TRUCK	65
WRT 9200C (GLIDE COAT)	16	5.5"/140mm					MAHINDRA UTILITY, FC, NC, VOYAGER	65
WRT 9210 C	16	141MM/5.5"	1.55"					66

Sleeve Yoke & Rear Teeth Sets 20

Part	Splines	Length	Pipe	Bearing	Marked	Vehicles	Page
MYT 904A (PLAIN)	16	6.75"/170MM	2.5"		PLAIN	MAHINDRA UTILITY, FC, NC, (JEEP 7"-2.5" PIPE)	63
WYT 4040 YTC	16	9"/228mm	2.25"			TATA XENON YODHA 4X 2 MSL DESIGN	66
WYT 4040TC (GLIDE COAT)	16	8"/200 MM		35MM	PLAIN	TATA SUMO, 207 DI, SAFARI, TEMPO, TRAX - CRUISER & TOOFAN, JUDO, TRAVELLER, WYTMNWT ...	62
WYT 404T (PLAIN)	16	8"/200MM			PLAIN	TATA SUMO, 207DI, SAFARI, TEMPO, TRAX-CRUISER&TOOFAN, JUDO, TRAVELLER	62
WYT 9040 (PLAIN)	16	6.75"/170MM	2.5"		PLAIN	MAHINDRA BOLERO DI SLX FB(JEEP 6")	63
WYT 9040A (PLAIN)	16	6.75"/170MM	2.5"		PLAIN	MAHINDRA UTILITY, FC, NC, (JEEP 7"-2.5" PIPE)	64
WYT 9040AC (GLIDE COAT)	16	6.75"/170MM	2.5"			MAHINDRAUTILITYFC, NC, (JEEP 7"-2.5" PIPE)	63
WYT 9040C (GLIDE COAT)	16	6.75"/170MM	2.5"		GLIDE COAT	MAHINDRA BOLERO DI SLX FB(JEEP 6")	63
WYT 9120 (PLAIN)	16	6.75"/170MM	3"		PLAIN	MAHINDRA MAX PICKUP(3" PIPE)	64
WYT 9120AAC (GLIDE COAT)	16	7"/176mm				MAHINDRA 4X 4	65
WYT 9120AC (GLIDE COAT)	16	6"/156mm				MAHINDRA XYLO, BOLERO N/M	65
WYT 9120C (GLIDE COAT)	16	6.75"/170MM	3"			MAHINDRA MAX PICKUP(3" PIPE)	64
WYT 9130C	16	5.75"/150mm				MAX, SCORPIO, SPACIO GOLD 207 RX	67
WYT 9130C (GLIDE COAT)	16	5.75"/147mm	3"			TATA SPACIO GOLD, MAH.SCORPIO O/M	62
WYT 9150C	16	6"/156mm				MAHINDRA MAX II TRUCK	67
WYT 9150C (GLIDE COAT)	16	6"/156mm				MAHINDRA MAX II TRUCK	65
WYT 9180C (GLIDE COAT)	16	6"/156MM			GLIDE COAT	MAHINDRA UTILITY, FC, NC, VOYAGER	65
WYT 9220AAC	16	6.75"/170mm					66
WYT 9220AC	16	5.75"/144mm					66
WYT 9220C	16	6"/156mm	1.55"				66

Long Forks 3

Part	Splines	Length	Vehicles	Page
WRY 40410	16	9.5"/241mm	FORK TEETH YOKE - 4X 4 AXLE	67
WRY 40420	19	18.5"/470mm	FORK TEETH YOKE - 4X 4 AXLE	67
WRY 40430	19	31"/787mm		67

JCB / Earthmoving Shafts 3

Part	Length	Holes	Marked	Vehicles	Page

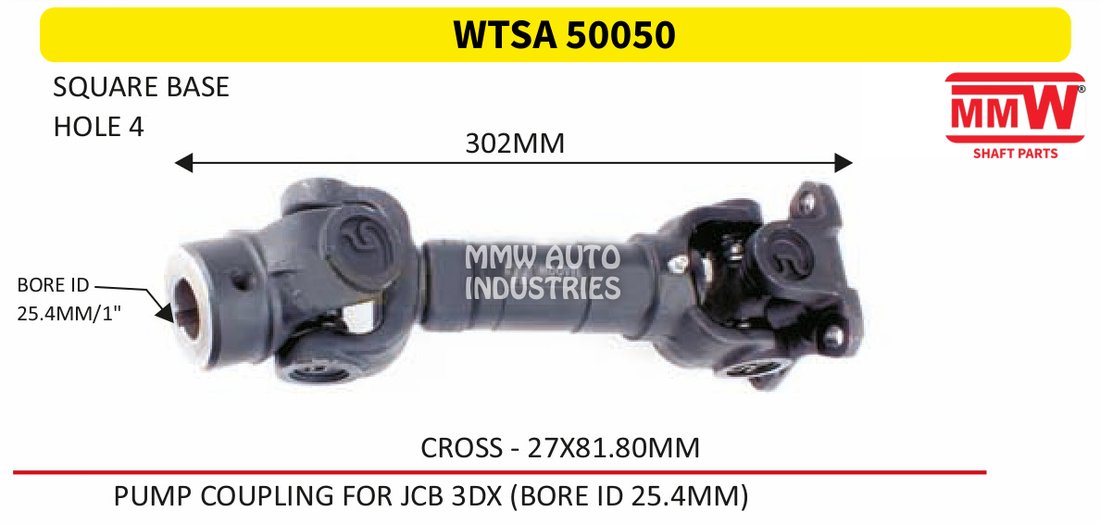

WTSA 50050	302 MM	4	SQUARE BASE	PUMP COUPLING FOR JCB 3 DX(BORE ID 25.4 MM)	110

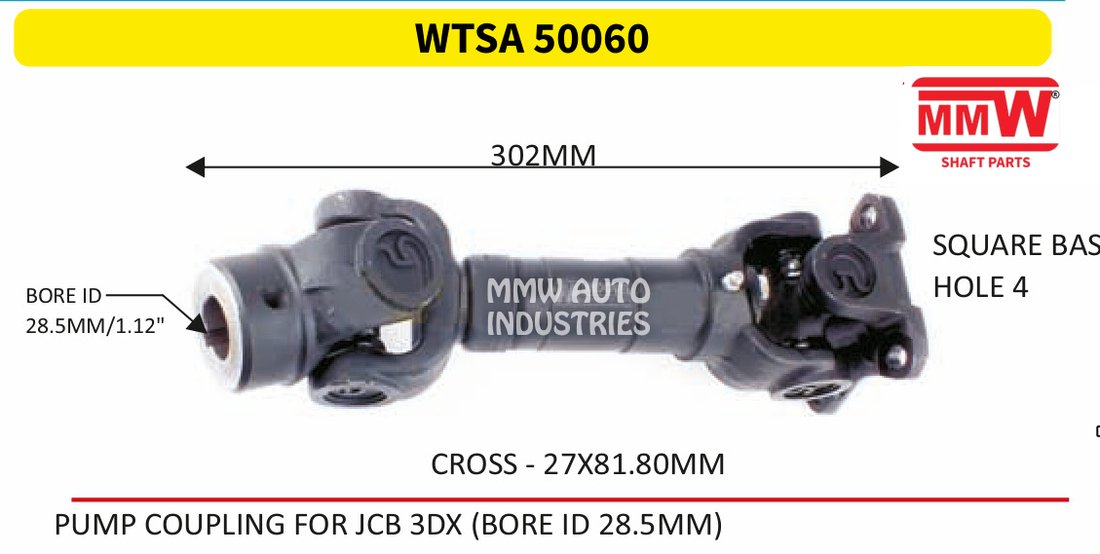

WTSA 50060	302 MM	4		PUMP COUPLING FOR JCB 3 DX(BORE ID 28.5 MM)	110

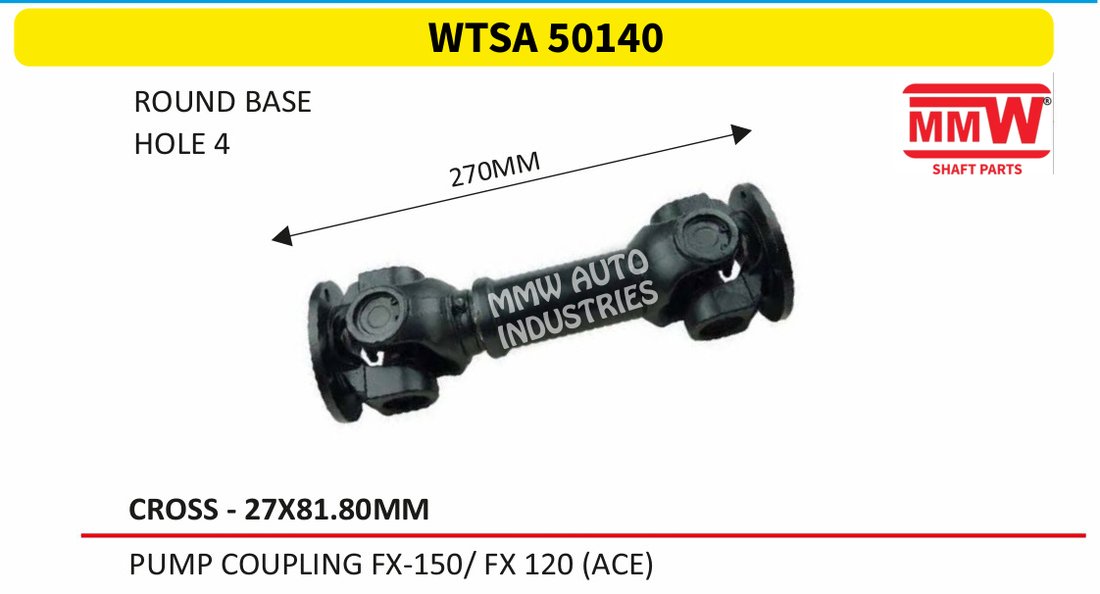

WTSA 50140	270 MM	4		PUMP COUPLING FX - 150/FX 120 (ACE)	111

Propeller Shafts (LCV) 2

Part	Vehicles	Page

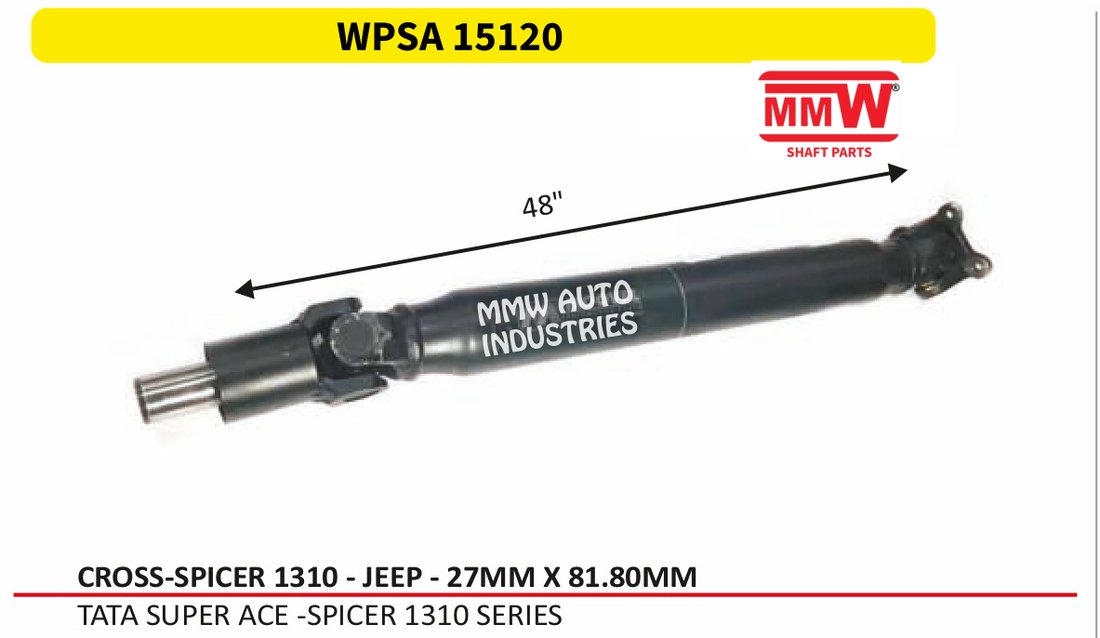

WPSA 15120	TATA SUPER ACE - SPICER 1310 SERIES	113

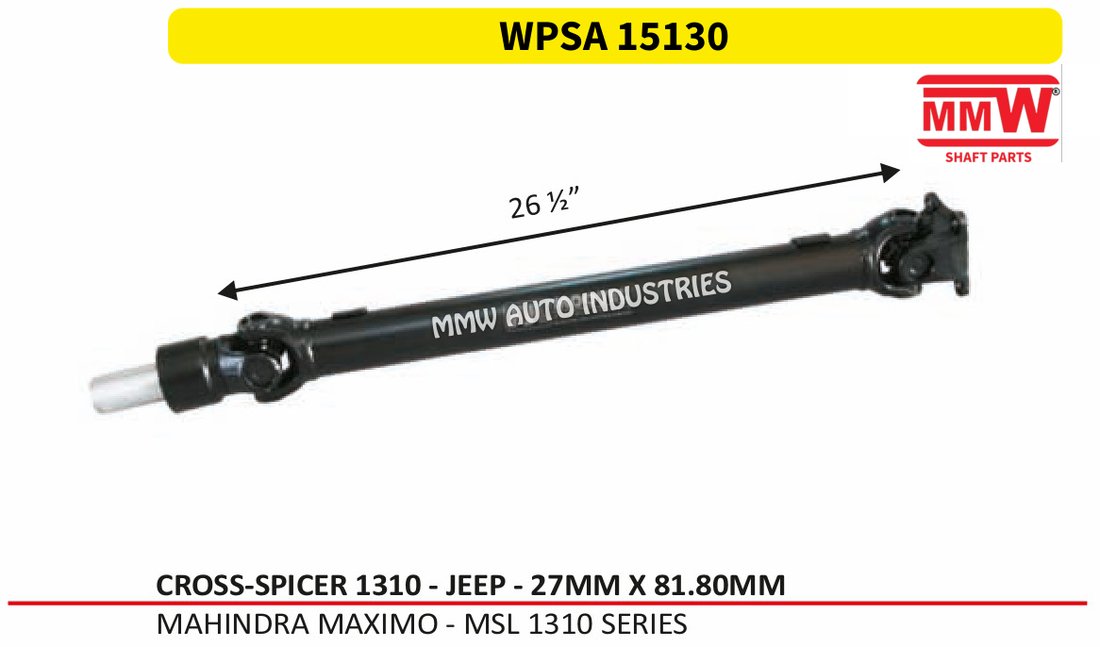

WPSA 15130	MAHINDRAMAXIMO - MSL 1310 SERIES	113

Same Cross Size

Questions About the Jeep Diesel Shaft

Which UJ cross fits the Jeep Diesel propeller shaft?

The Jeep Diesel shaft takes the MC 1018, 27X81.80 MM UJ cross: MMW part WC 10180P, WC 10180, WC 10180FA.

Which parts of the Jeep Diesel shaft does MMW make?

3 uj crosses, 5 cross holders / flange yokes, 1 cross holder assembly, 6 half yokes / tube yokes, 8 sleeve yokes, 12 rear teeth, 20 sleeve yoke & rear teeth sets, 3 long forks, 3 jcb / earthmoving shafts, 2 propeller shafts (lcv). Every part is on this page with its photo and sizes.

How do I pick the right variant?

Compare the sizes in the table with your old part: splines, length, pipe and holes. If you are not sure, send a photo of the old part and the vehicle model on WhatsApp +91 95607 49756.
