Sleeve Yokes

Also called: Slip Yoke · Slip Yoke Assembly

A sleeve yoke (slip yoke) is a yoke with splines inside. It holds the UJ cross on one side, and the rear teeth slide inside it, so the propeller shaft can get longer and shorter when the axle moves. To match a sleeve yoke, check the UJ cross size, the spline count, the spline ID and the length. 60 sleeve yokes part numbers are in our catalogue. UJ cross sizes printed most often: 34.94X126 MM (11), 41.27X126 MM (10), 27X81.80 MM (8), 34.94X106 MM (6). Makes: Tata (39), Eicher (13), Ashok Leyland (11), Mahindra (6), Canter (5).

Part	Cross Size	Splines	Length	Pipe	Spline ID	Marked	Vehicles	Page
MFV 7060B	34.94X126 MM	16	200MM/8"				TATA 1109 BSIV, TATA 412, 407 TIPPER, 709, 909 BSIIL, MARCOPOLO	56
MFY 7060	34.94X126 MM	16	8.10"/205mm		44.50MM		LEYLAND TUSKER (BUS), EICHER 11.14 PRO	58
WFM 1060A	38.05X56.70 MM	22	8"/205 MM				TATA 1109 BSIII, 909, MARCOPOLO BUS	51

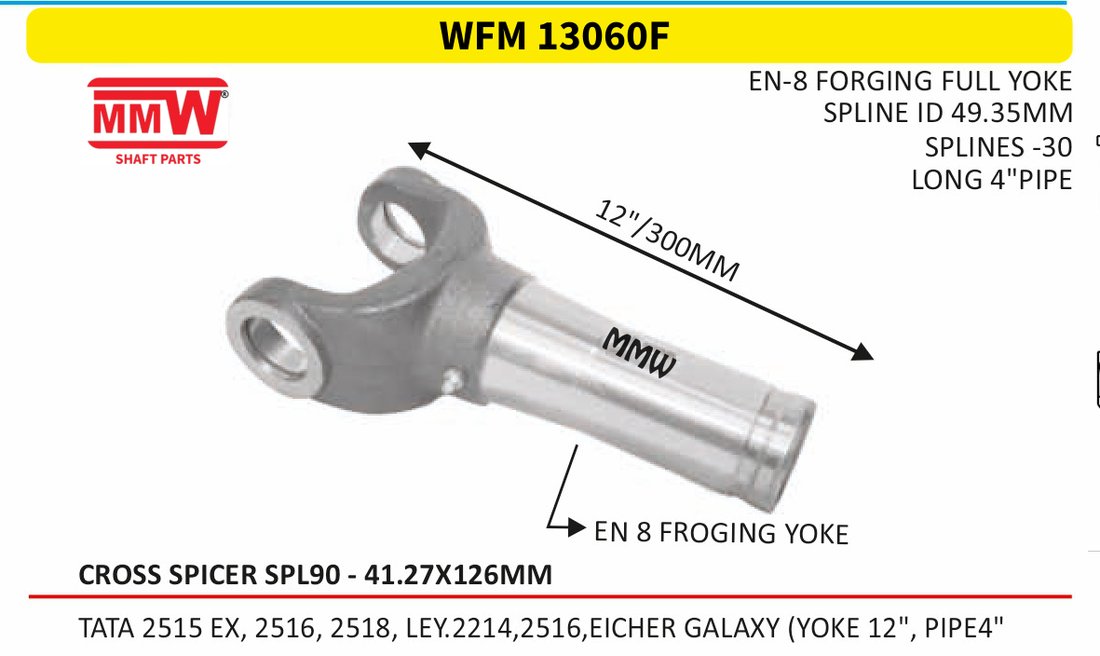

WFM 13060F	41.27X126 MM	30	12"/300 MM	4"	49.35MM		TATA 2515 EX, 2516, 2518, LEY.2214, 2516, EICHER GALAXY(YOKE 12", PIPE 4"	27
WFM 14060B	34.94X106 MM	16	8"/202mm				TATA 407 PICK - UP BSIII(MSL TYPE)	54
WFM 15060A	22.03X55 MM	22	5.75"/144mm			OUTER LOCK	TATA MAGIC, HT, DICOR N/M (OUTER LOCK)	61
WFM 7060A	34.94X126 MM	16	10"/245mm				EICHER JUMBO 20.16, ECOMET, LEY. 1613 TIPPER, CARGO(SPICER 1550)	57
WFM 7060AA	34.94X126 MM	16	11.25"/282mm				EICHER VIKING, CHEETAH, STAG, LYNX, CT 1613, CARGO 912 HINOBUS(SPICER 1550)	57
WFY 1060 [1210]	38.05X56.70 MM	10	8"/205 MM		44.70MM		TATA 1210, 1109	23
WFY 1060A	38.05X56.70 MM	22	8"/207 MM		47.10MM		TATA 1109 BSIII - 909 - MARCOPOLO BUS	23
WFY 12060	41.27X126 MM	30	10"/260 MM	3.5"	49.35MM		TATA 1616, 1613 SE, SK, (YOKE 10", PIPE DIA 3.5", THIN SPL)	29
WFY 12060A	41.27X126 MM	16	10"/260 MM	4"			LEY. 3516, 3015 (SMALL - THICK SPL.)	30
WFY 12070	46.05X68.70 MM	16	12.5/315MM		50.80MM	EXTRA LONG	TATA 1312, 1612(EXTRA LONG FOR INTERAXLE - 2516	25
WFY 12360	34.94X126 MM	16	13.75"/345 MM			EXTRA LONG	LEY.2516, 2214(INTERAXLE TUSKER CROSS)	34
WFY 12410	41.27X126 MM	16	13.75"/350 MM			EXTRA LONG	TATA, LEYLAND 3116, 2516, AMW, EICHER 30.25, EICHER 31.25 (INTERAXLE)	32
WFY 12410A	41.27X126 MM	16	12"/306 MM				INTERAXLE - TATA 4623, 2523, 2518, AMW, 2518A/LU - TRUCK 2518 IL, BHARAT BENZ, TIPPER ...	32
WFY 12410AA	41.27X126 MM	16	14"/360 MM			EXTRA LONG	LEY.3116, 2516 (MSL DESIGN)	33
WFY 12410B	41.27X126 MM	16	13"/330 MM				INTERAXLE - LEYLAND U - TRUCK 2518, TATA, 1618, 2518, 2521, 1623	33
WFY 13060	41.27X126 MM		12"/300MM	3.5"	49.35 MM		TATA 2515EX(YOKE 12", PIPE 3.5")	28
WFY 13060A	41.27X126 MM	16	12"/300 MM	4"			TATA & LEY. 2214, 2515 EX, 2516, 3516 (YOKE 12", PIPE 4" - THICK SPL.)	26
WFY 13060AF	41.27X126 MM	16	12"/300 MM	4"			TATA & LEY. 2214, 2515 EX 2516, 3516 (YOKE 12", PIPE 4".THICK SPL., F/S)	26
WFY 14060	30.18X106 MM	16	7.75"/190mm		38.10MM		TATA 909 EX, 709 TURBO, 407 EX, LPT, 407, 410, SEC 407	53
WFY 14060B	34.94X106 MM	16	8"/200mm				TATA 909 EX, 1109 BSIV	55
WFY 14060L	30.18X106 MM	16	235mm				EICHER N/MLONG, SWARAJ MAZDA, (CANTER LONG)	54
WFY 15060	23.84X35.20 MM	22	6.5"/162mm			INNER LOCK	TATA ACE O/M (INNER LOCK TYPE)	61
WFY 15060AA	27X81.80 MM	22	6.25"/158mm				TATA SUPER ACE	61
WFY 15060B	22X65 MM	22	155MM/6"				TATA ACE MEGA, MANTRA, DICOR E, MINT, INTRA BSIV, VU, ACE EDGE VENTURE	61
WFY 16060	49.2X157.90 MM	16	11.5"/295 MM				TATA 4018(SHORT 4" - PATTI TYPE)	33
WFY 16060A	49.2X157.90 MM	16	315MM/12.25"				TATA 4018, BHARAT BENZ	33
WFY 17050 B	34.94X126 MM	26	10"/245MM				11.10 XPHWB, T40 LPBuSBSVI	124
WFY 18060	23.83X61.40 MM	16	5.25"/132MM				AMBASSADOR, HYDRA, CRANES	61
WFY 19060	49.2X154.90 MM	16	13"/335 MM				LPO 3118, LPT 2518 BSII, LPO BUS 1625, 1618, 1623, LEY.2516, 4923, 3 II 16, AMW 2518, MAN ...	34
WFY 19060A	49.2X154.90 MM	16				EXTRA LONG	LPO 3118, LPT 2518 BSIII, 2521, LPO BUS, 1625, 1623, LEYLAND 2516 TIPPER, 4921, TRACTOR ...	34
WFY 2070	46.05X68.70 MM	16	10.5/265 MM		50.80MM		TATA 1312, 1512, 1516, 1612, 1613	24
WFY 2070A	46.05X68.70 MM	24	10.5"/265 MM		50.80MM		TATA 1613 TURBO (24 SPLINE)	24
WFY 23060	34.94X126 MM	27	9.75"/248mm				TATA 1109 EX EUROLL BSIII, TATA 909 EURO III(SPICER 1550 - 27 SPL.)	56
WFY 23060 B	34.94X126 MM		9.75"/247MM				TATA 1109 EXEUROLLBSIII	124
WFY 28060	27X81.80 MM	19	7.25"/182MM				MAHINDRA MAXXIMO	61
WFY 29060	27X81.80 MM	25	7"/180mm				LEYLAND DOST	61
WFY 4050	30.18X81.80 MM	16	6.75"/170 MM				TATA 407 TURBO(MONOTRON)	51
WFY 4050 YT	27X81.80 MM	16	8.25"/209mm	2.25"			TATA XENON YODHA 4X 2 MSL DESIGN	66
WFY 4050A	30.18X92.1 MM	16	7"/175mm				TATA 407 TURBO, 410 EX, 412(MSL TYPE)	51
WFY 4050T	27X81.80 MM	16	6.5"/168 MM				TATA SUMO, 207 DI, SAFARI, TEMPO TRAX - CRUISER &, TOOFAN, JUDO, TRAVELLER	62
WFY 606	39.67X115.40 MM	16	8.10"/205MM		44.50 MM		LEYLAND BEDFORD/370(TRUCK)/J-4/J-6	60
WFY 6060	39.67X115.40 MM	16	8.10"/205mm		44.50MM		LEYLAND BEDFORD/370(TRUCK)/J - 4/J - 6	59
WFY 7060	34.94X126 MM	16	8.10"/205mm		44.50MM		LEYLAND TUSKER (TRUCK), EICHER 11.10 XP	59
WFY 7060 AAJ	34.94X106 MM	16	9.75"/245mm	3.5"			TATA 407 N/M, (16 SPL., 3.5" PIPE)	123
WFY 7060 AJ	34.94X106 MM	16	9"/228mm	3.5"			TATA 407 N/M, (16 SPL., 3.5" PIPE)	123
WFY 7060 B	34.94X126 MM		8"/200mm				TATA 1109 BSIV, TATA 412, 407 TIPPER	123
WFY 7060AD	34.94X106 MM	16	9.5"/240mm	3.5"			TATA 909 LATEST (PIPE 3.5")	55
WFY 8050	47.64X135 MM	16	9.5"/240mm		50.80MM		LEYLAND TAURUS T - 11 O/M	60
WFY 8160	47.64X135 MM	16	12"/304mm		50.80MM		LEYLAND TAURUS T - 11 O/M (LONG YOKE)	60
WFY 9070	27X81.80 MM	16	6.75"/170 MM				MAHINDRA BOLERO DI SLX FB (JEEP 6")	63
WFY 9160	27X81.80 MM	16	6"/156mm				MAHINDRA MAX II TRUCK	65
WFY 9190	27X81.80 MM	16	6"/156mm				MAHINDRA UTILITY, FC, NC, VOYAGER	65
WFY1213	34.94X126 MM	28	11.75"/296mm				EICHER TERRA 16 TIPPER/2016 JUMBO, (SPICER 1550 - 28 SPL.)	58
WFY14006	30.18X106 MM	16	7.75"/190 MM		30.80MM		TATA 407 PICKUP, 410	53
WFY14006AA	30.18X106 MM	16	7.75"/195mm		38.10MM		TATA 909 EX, 709 TURBO, 407 EX, LPT 407, 410, SEC 407	53
WFY14006AE	30.18X106 MM	16	190MM/7.75"				TATA 407 PICKUP, 410 EX	53
WFY7060D	34.94X106 MM	24	9"/228mm	3.5"			LEY.2516, 1616, VIKING 222, EICHER 33.25, (22 SPL., 3.5" PIPE)	55
