Centre Coupling Flanges

Also called: Centre Flange · Center Coupling Flange · Center Flange

The centre coupling flange joins the two halves of a two-piece propeller shaft near the centre bearing. To match a flange, check the spline count and the sizes, bolt holes and plate printed on its card. 52 centre coupling flanges part numbers are in our catalogue. UJ cross sizes printed most often: 57X172 MM (2). Makes: Tata (30), Ashok Leyland (19), Eicher (11), Bharat Benz (3), AMW (2).

VehicleTata 30 Leyland 19 Eicher 11 Ashok Leyland 6 Bharat Benz 3 AMW 2 MAN 2 Canter 1 Sumo 1 Swaraj Mazda 1

Showing all 52 parts

Part	Splines	Length	Pipe	Holes	Bolt No.	Outer Dia	Marked	Vehicles	Page
MCC 5020	16							TATA SUMO O/M	85
WCC 1020	14	64mm		6	17	52MM		TATA 1210 PLATE DESIGN, TATA 1210	75

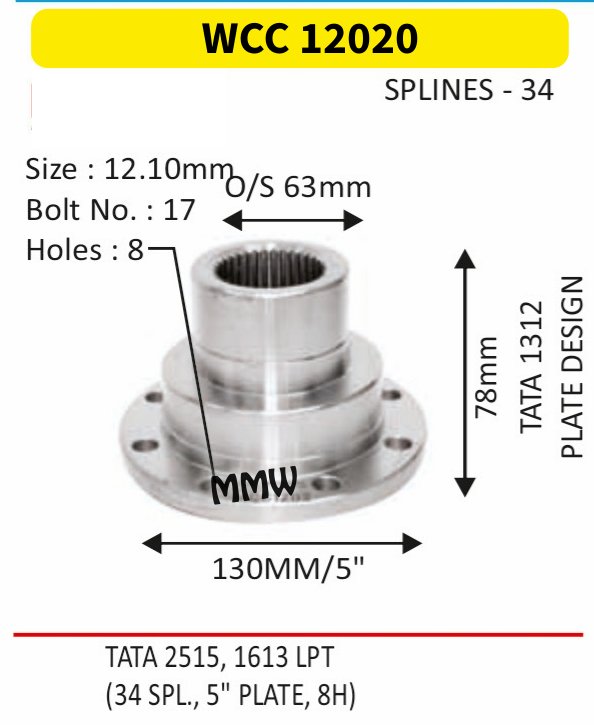

WCC 12020	34	78mm		8	17	63MM		TATA 1312, TATA 2515, 1613 LPT	80

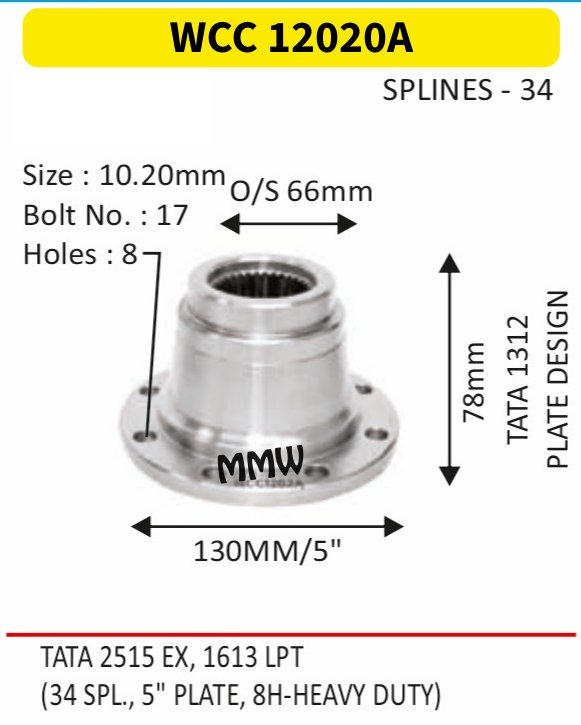

WCC 12020A	34	78mm		8	17			TATA 1312, TATA 2515 EX, 1613 LPT	80

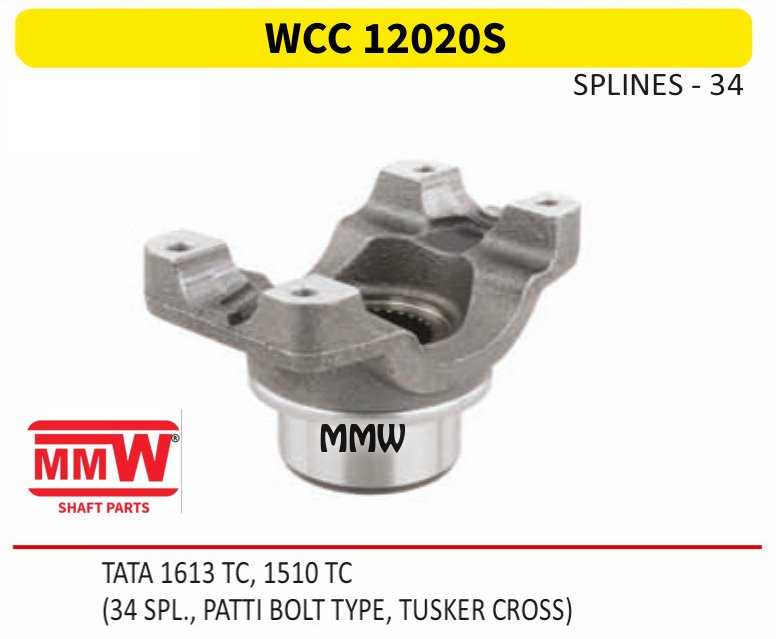

WCC 12020S	34							TATA 1613 TC, 1510 TC	80

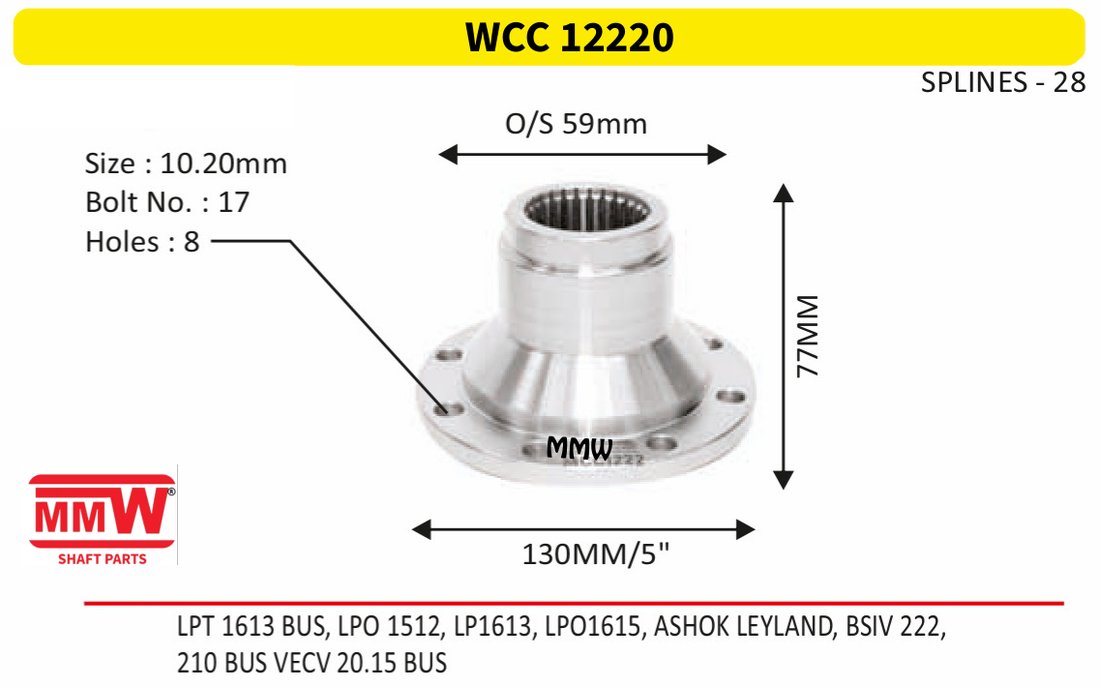

WCC 12220	28	77 MM		8	17	59MM		LPT 1613 BUS, LPO 1512, LP1613, LPO 1615, ASHOK LEYLAND, BSIV 222	76

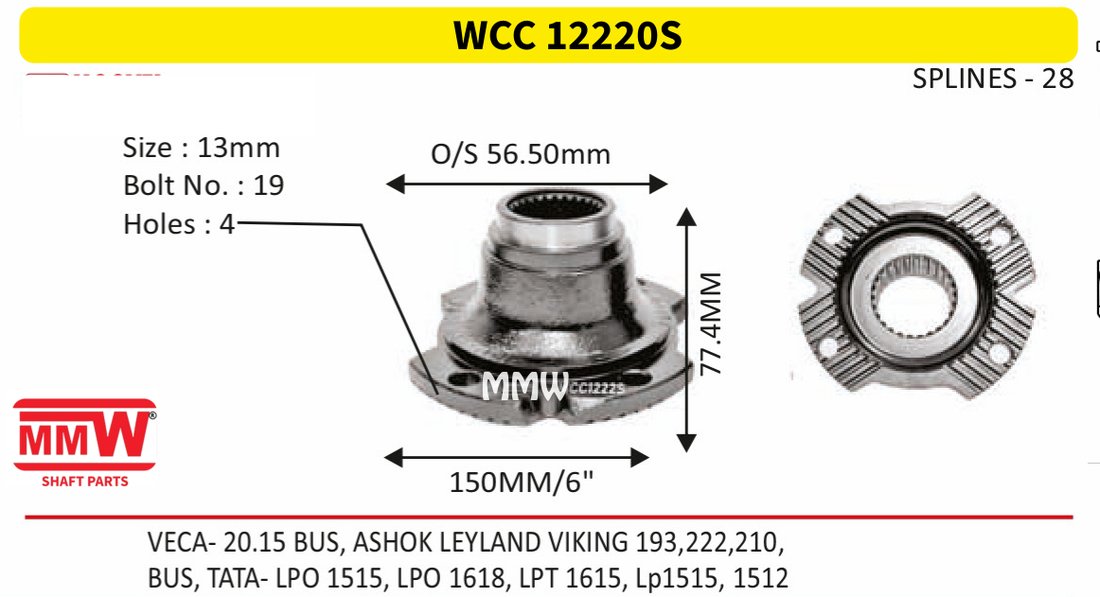

WCC 12220S	28	77.4 MM		4	19	56.50MM		VECA-20.15 BUS, ASHOK LEYLAND VIKING 193, 222, 210, BUS, TATA-LPO 1515, LPO 1618, LPT ...	76

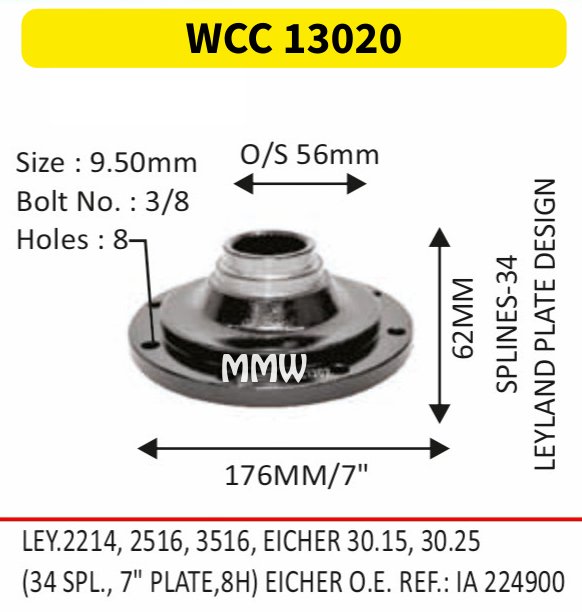

WCC 13020	34	62 MM		8	3			LEYLAND PLATE DESIGN, LEY.2214, 2516, 3516, EICHER 30.15, 30.25, (34 SPL., 7" PLATE, 8H) ...	80

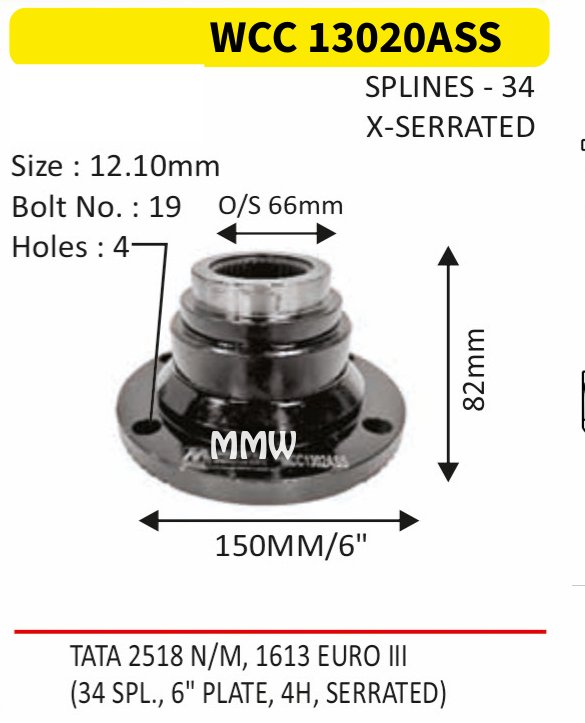

WCC 13020ASS	34	82mm		4	19	66MM	SERRATED	TATA 2518 N/M, 1613 EURO III	80

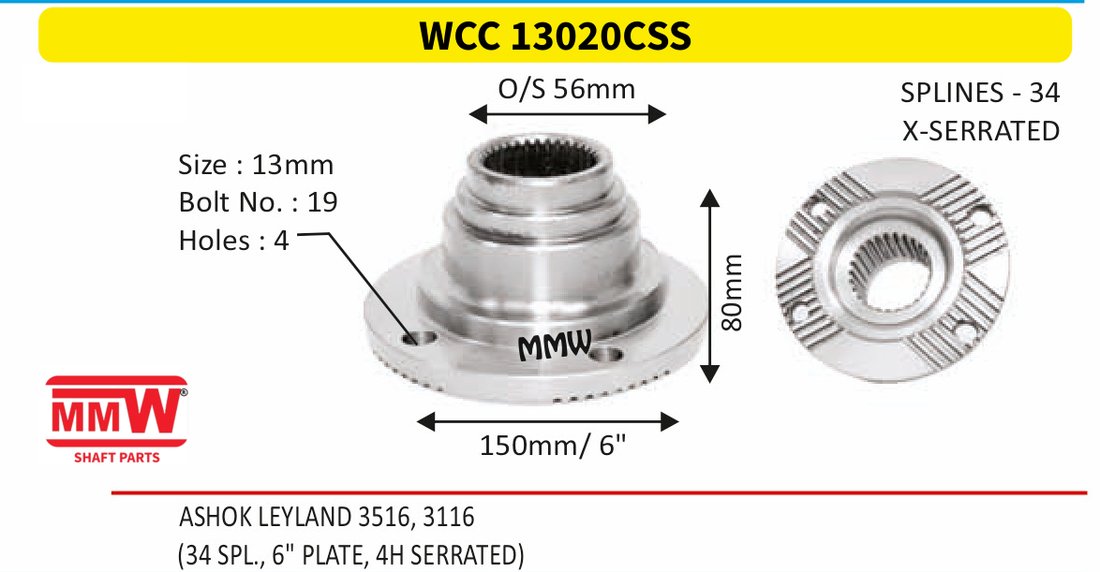

WCC 13020CSS	34	80mm		4	19	56MM	SERRATED	ASHOK LEYLAND 3516, 3116	81

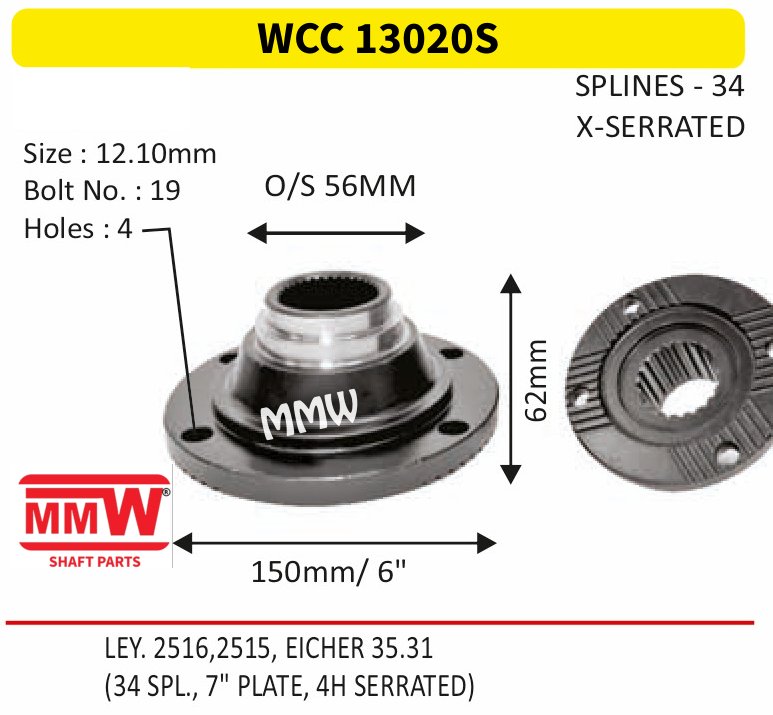

WCC 13020S	34	62mm		4	19	56MM	SERRATED	LEY. 2516, 2515, EICHER 35.31	81

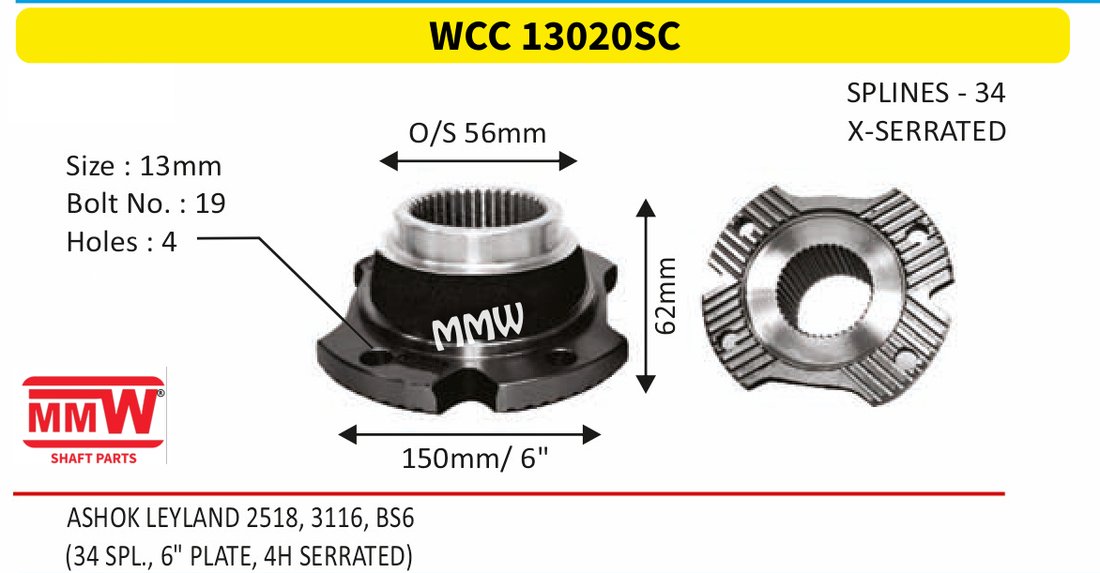

WCC 13020SC	34	62mm		4	19	56MM	SERRATED	ASHOK LEYLAND 2518, 3116, BS6	81

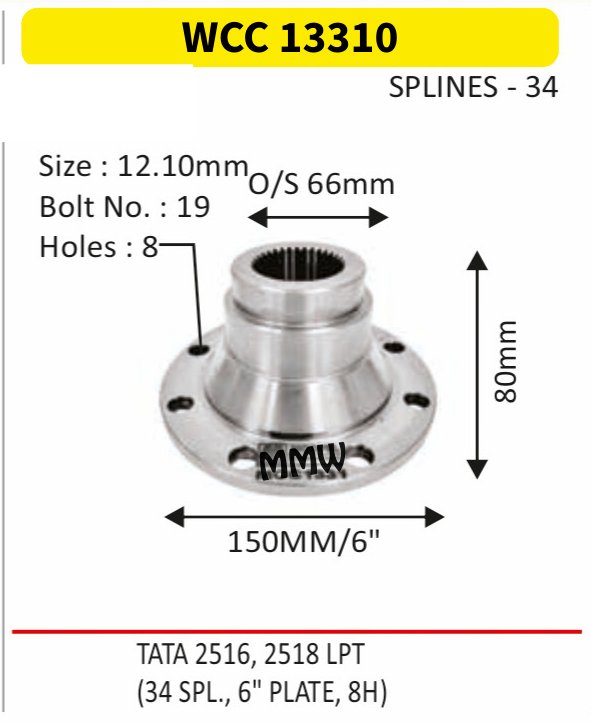

WCC 13310	34	80mm		8	19	66MM		TATA 2516, 2518 LPT	80

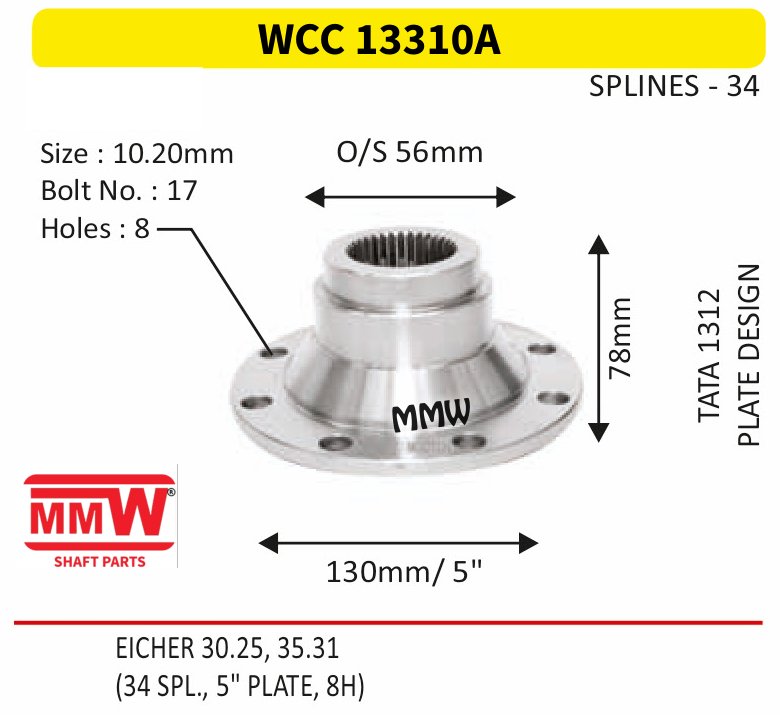

WCC 13310A	34	78mm		8	17	56MM		TATA 1312, EICHER 30.25, 35.31	81

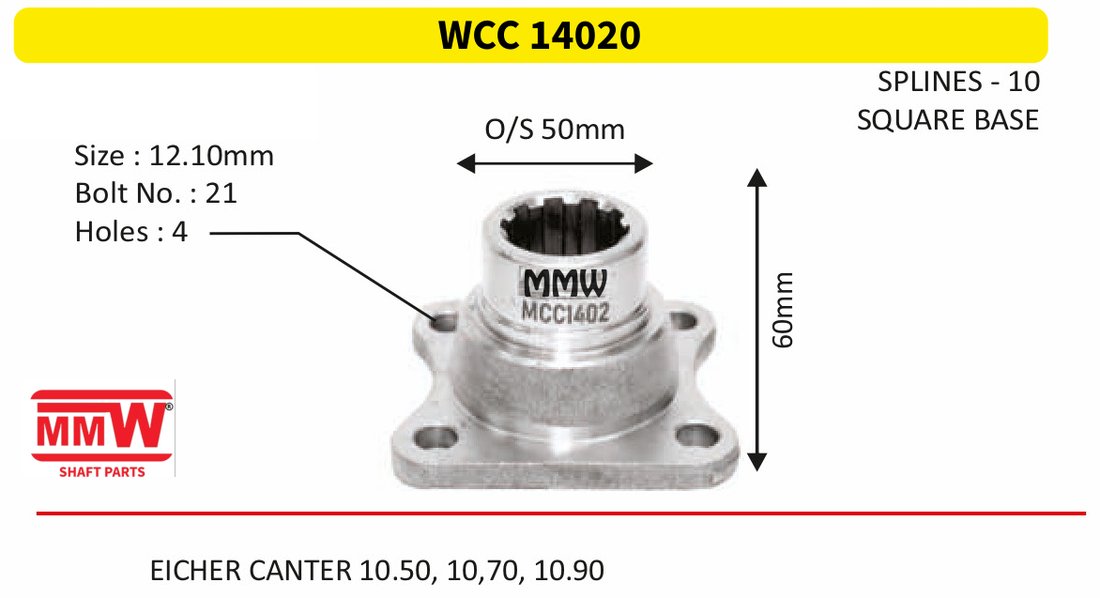

WCC 14020	10	60mm		4	21	50MM	SQUARE BASE	EICHER CANTER 10.50, 10, 70, 10.90	84

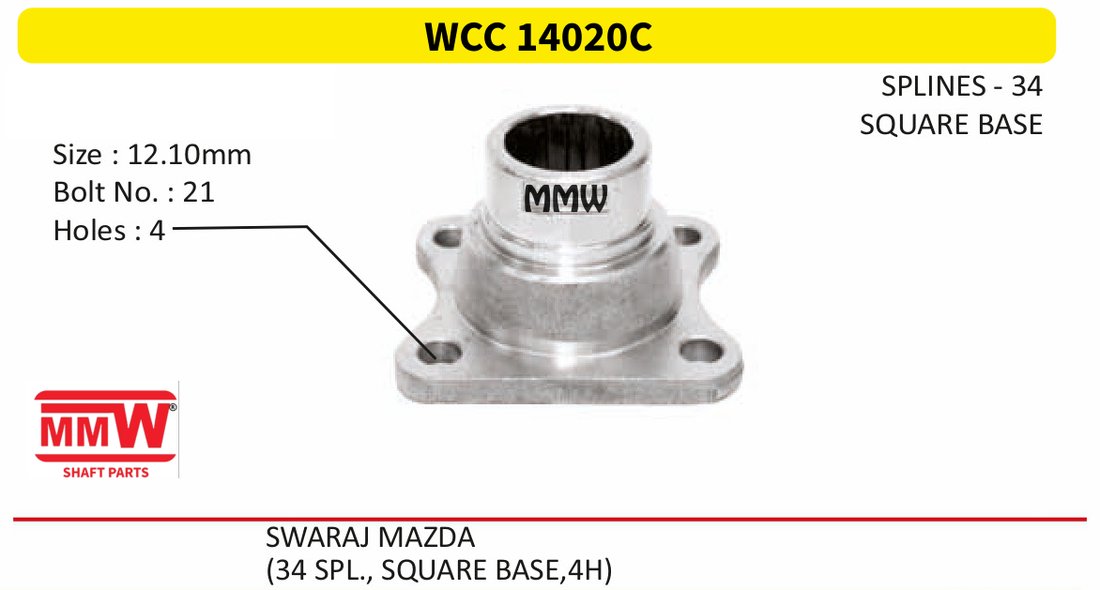

WCC 14020C	34			4	21		SQUARE BASE	SWARAJ MAZDA, (34 SPL., SQUARE BASE, 4H)	84

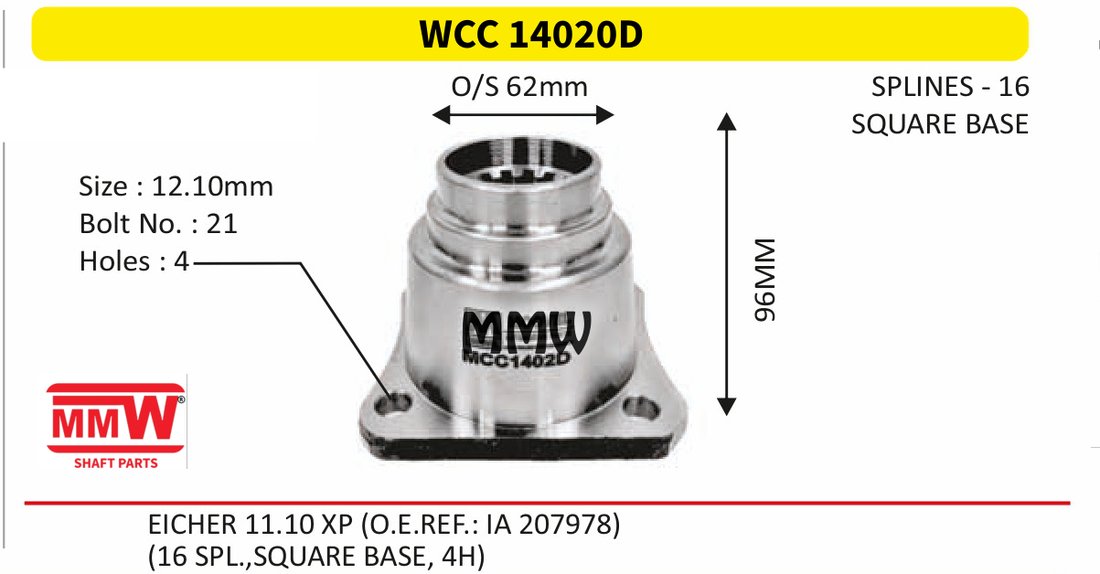

WCC 14020D	16	96 MM		4	21	62MM	SQUARE BASE	EICHER 11.10 XP(O.E.REF.: IA 207978)	84
WCC 17030	10	64 MM		4	21	58MM		TATA 1613TC, 1510TC, LEY. 1613 TIPPER, ECOMET	80

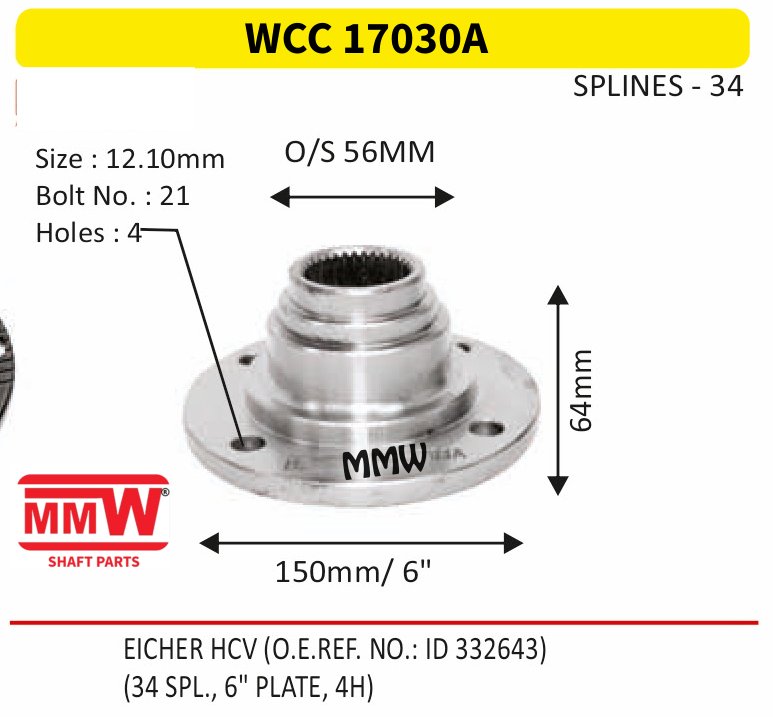

WCC 17030A	34	64mm		4	21	56MM		EICHER HCV(O.E.REF.NO.: ID 332643)	81

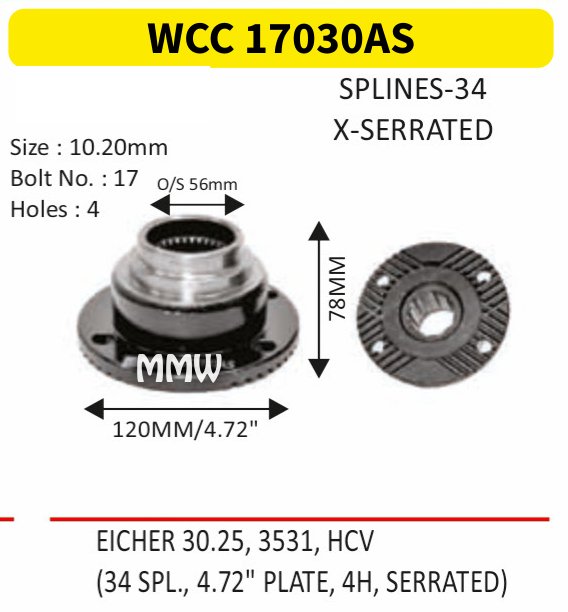

WCC 17030AS	34	78 MM		4	17	56MM	SERRATED	EICHER 30.25, 3531, HCV	80
WCC 17030S	10	60 MM		4	17	56MM	SERRATED	VIKING BUS, STAG BUS, LYNXBUS, (10 SPL., 4.72" PLATE, 4H, SERRATED)	80

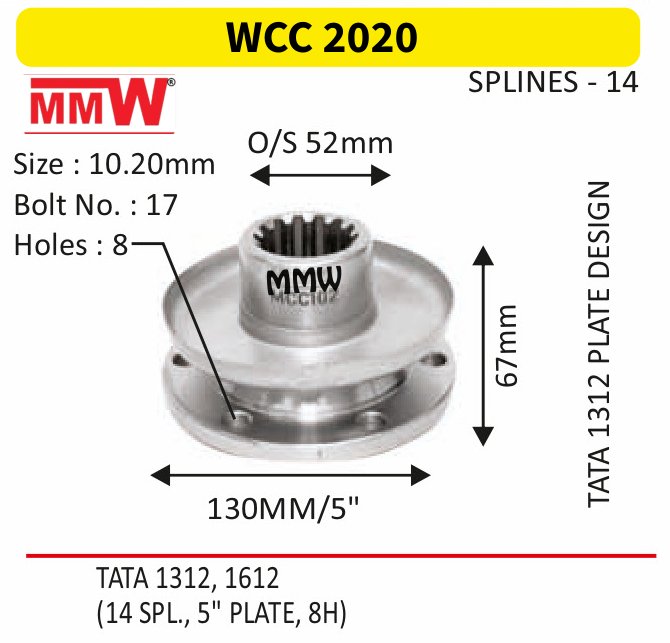

WCC 2020	14	67mm		8	17	52MM		TATA 1312 PLATE DESIGN, TATA 1312, 1612	75

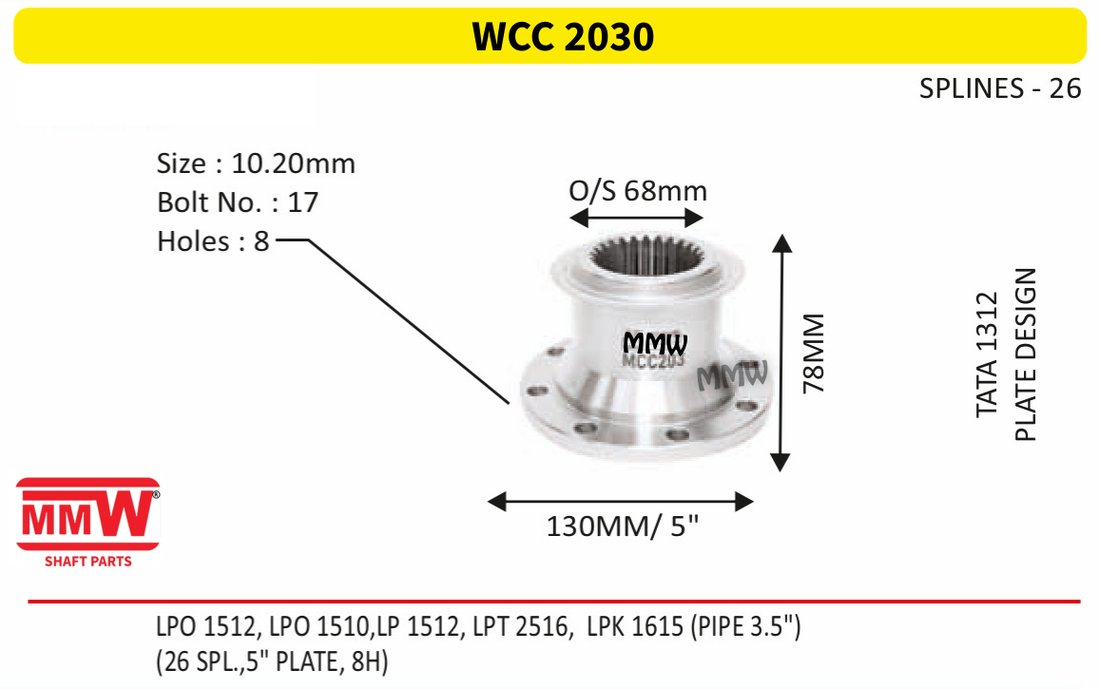

WCC 2030	26	78 MM	3.5"	8	17	68MM		TATA 1312	76

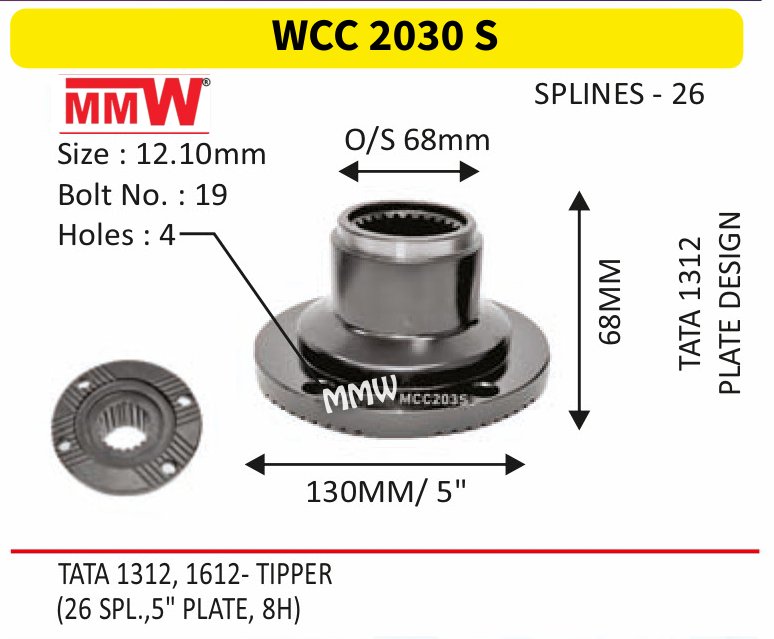

WCC 2030 S	26	68 MM		4	19	68MM		TATA 1312, TATA 1312, 1612- TIPPER	75

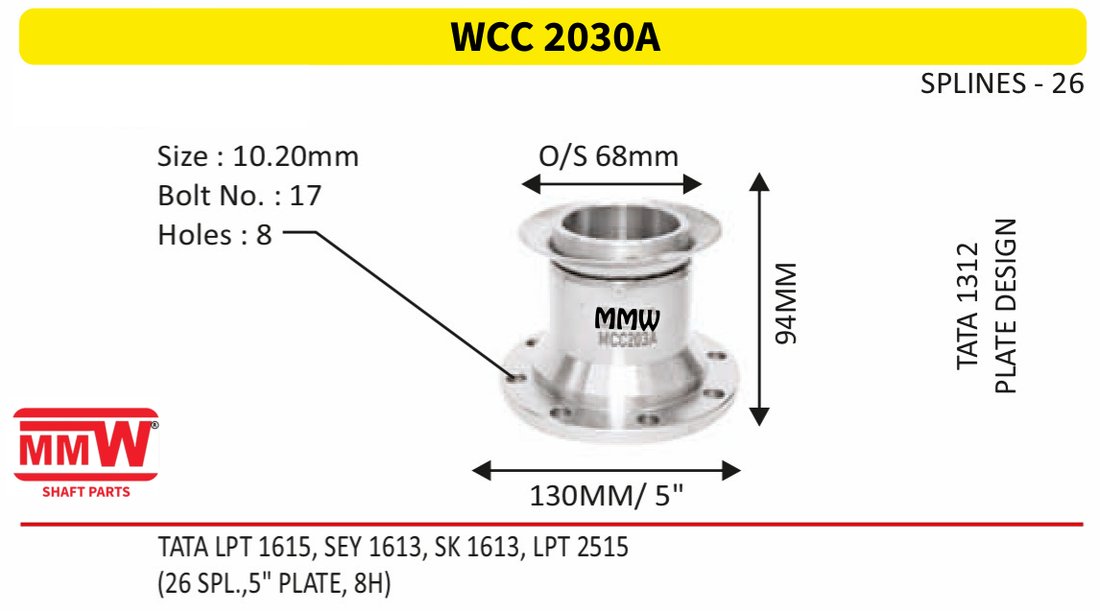

WCC 2030A	26	94 MM		8	17	68MM		TATA 1312, TATA LPT 1615, SEY 1613, SK1613, LPT 2515	76

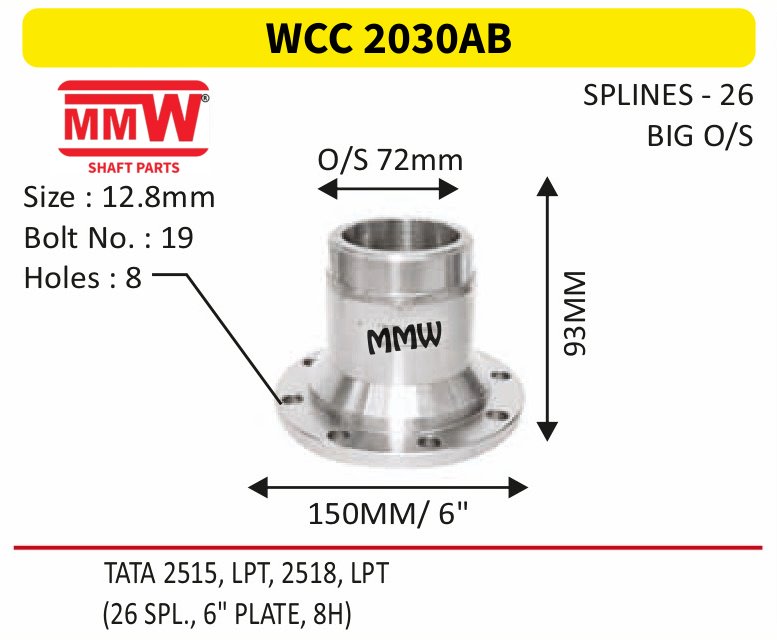

WCC 2030AB	26	93 MM		8	19	72MM	BIG O/S	TATA 2515, LPT, 2518, LPT	77

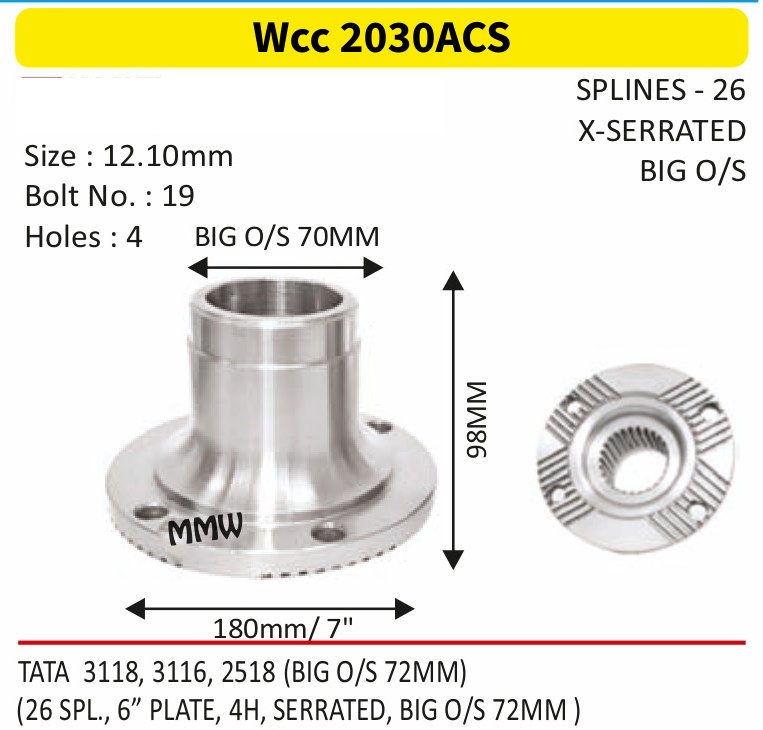

WCC 2030ACS	26			4	19	70MM	SERRATED, BIG O/S	TATA 3118, 3116, 2518(BIG 0/S72MM), (26 SPL., 6" PLATE, 4H, SERRATED, BIGO/S72MM)	77
WCC 2030AS	26	95 MM		4	19	68.6MM	SERRATED	TATA 3718, LPT 2518, LPT 3118, SIGNA 4323, PRIMA 3525	78
WCC 2030SB	26	88mm	4"	4	19	72MM	SERRATED	TATA 3118-MODIFIED	77

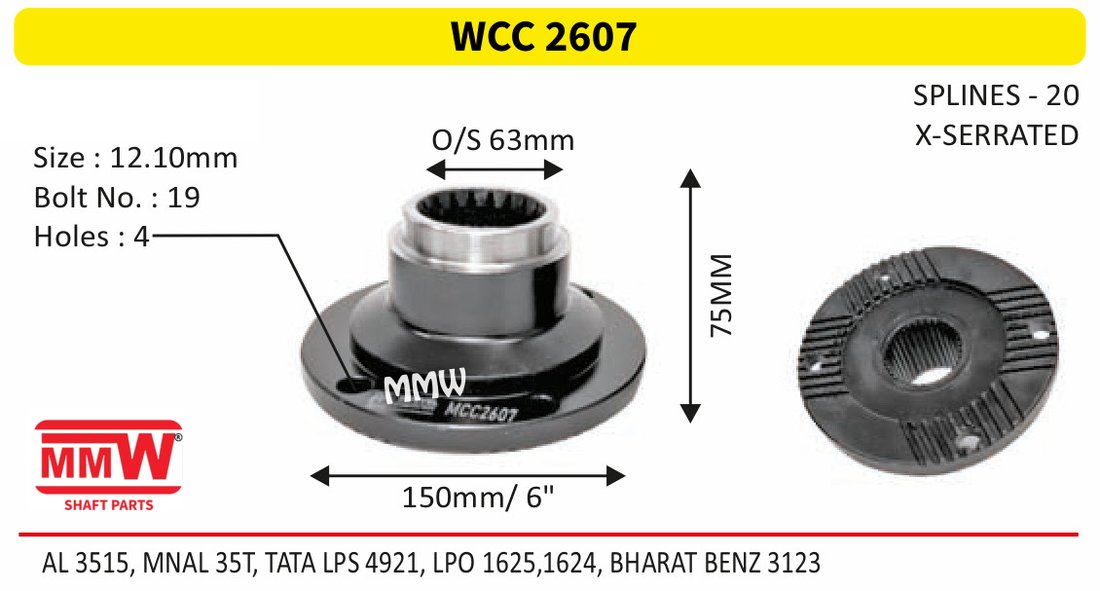

WCC 2607	20	75 MM		4	19	63MM	SERRATED	AL3515, MNAL 35T, TATA LPS 4921, LPO 1625, 1624, BHARAT BENZ 3123	82

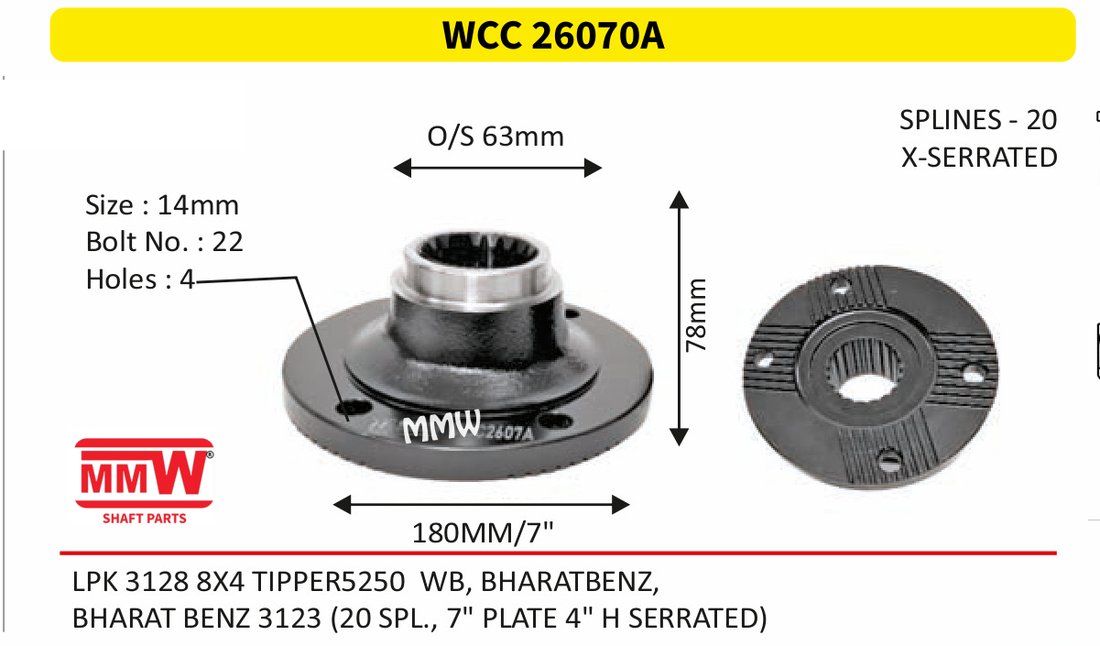

WCC 26070A	20	78mm		4	22	63MM	SERRATED	BHARAT BENZ 3123 (20 SPL., 7" PLATE 4" H SERRATED)	82

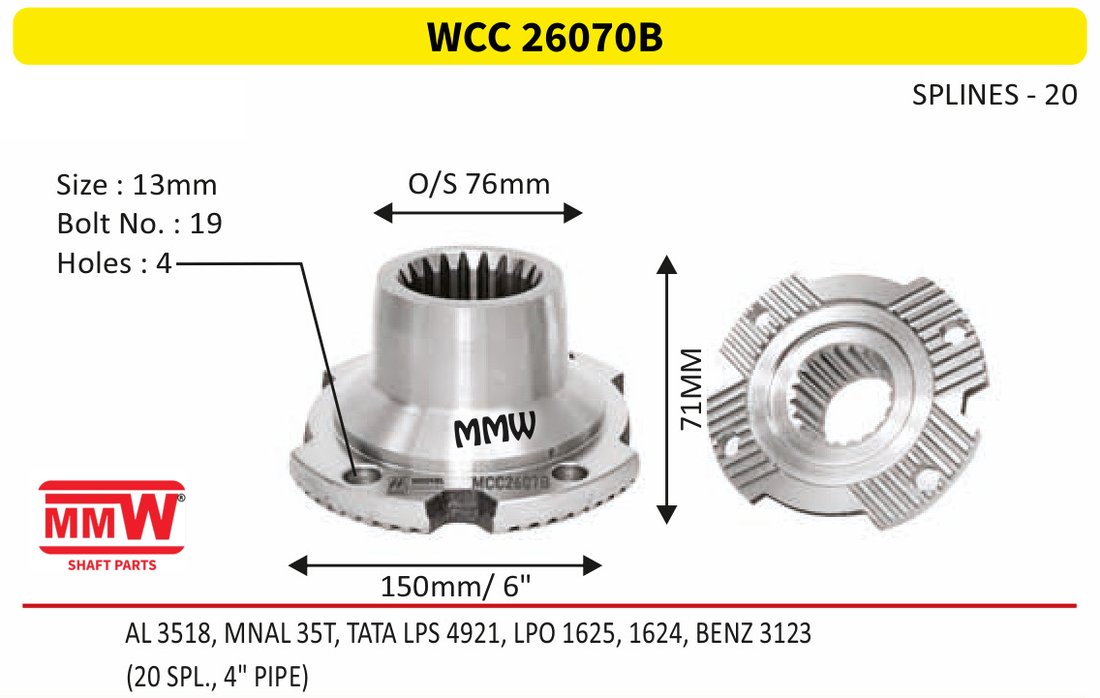

WCC 26070B	20	71 MM	4"	4	19	76MM		AL3518, MNAL 35T, TATA LPS 4921, LPO 1625, 1624, BENZ 3123	82

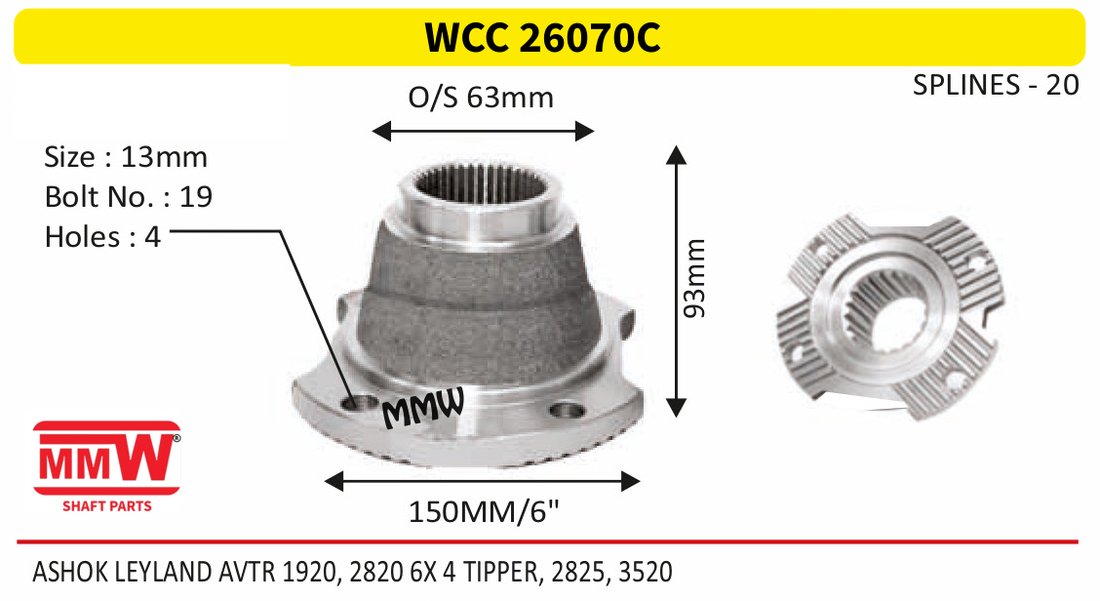

WCC 26070C	20	93mm		4	19	63MM		ASHOK LEYLAND AVTR 1920, 2820 6X4 TIPPER, 2825, 3520	82

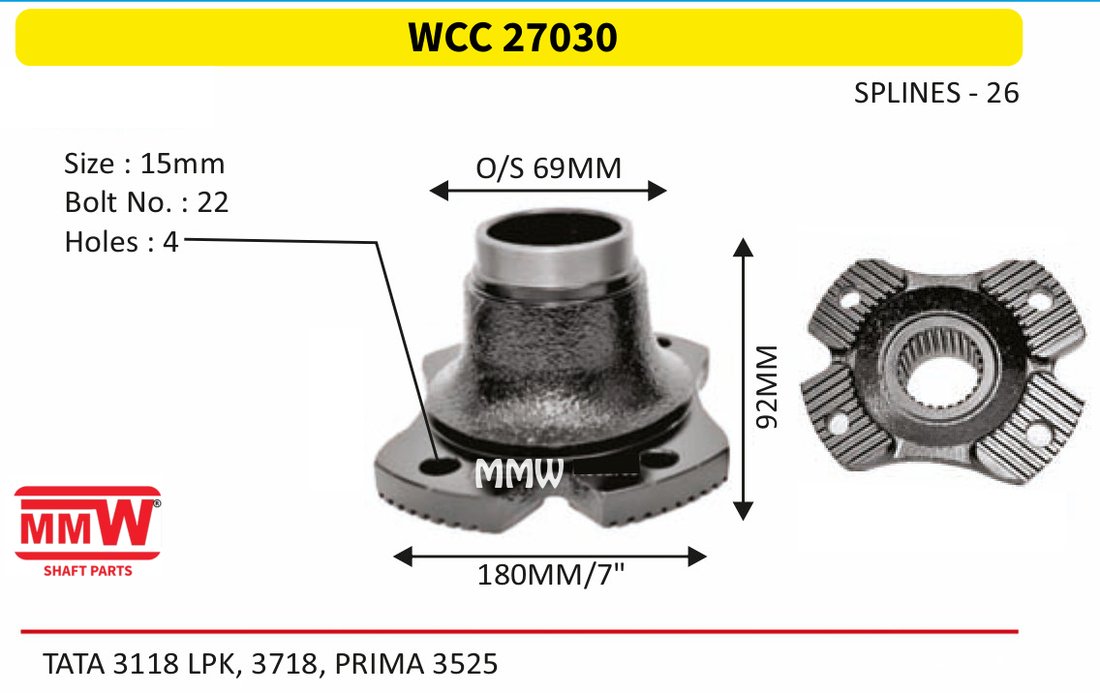

WCC 27030	26	92 MM		4	22	69MM		TATA 3118 LPK, 3718, PRIMA 3525	78
WCC 27030 A	26	94 MM		4	22	69MM		TATA 3118 LPK, 3718, PRIMA 3525	78

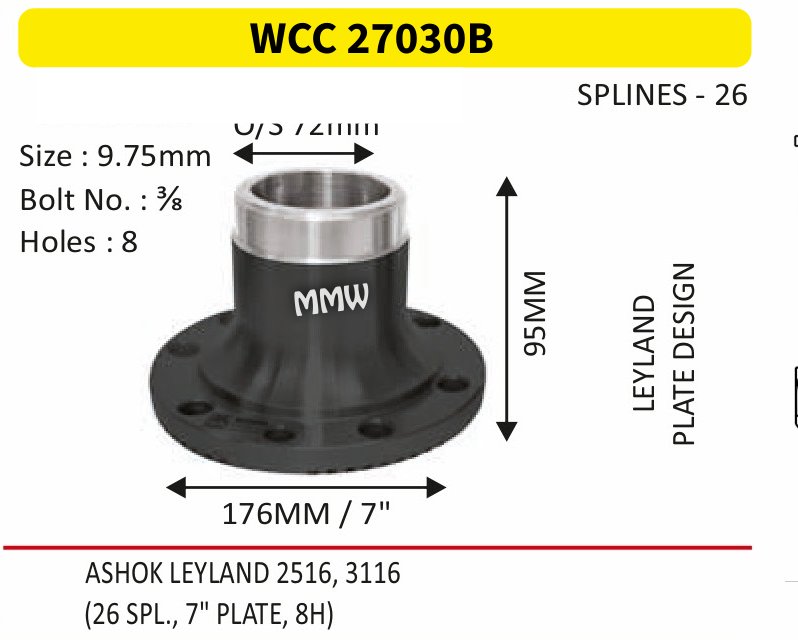

WCC 27030B	26	95 MM		8	3			LEYLAND, ASHOK LEYLAND 2516, 3116	77

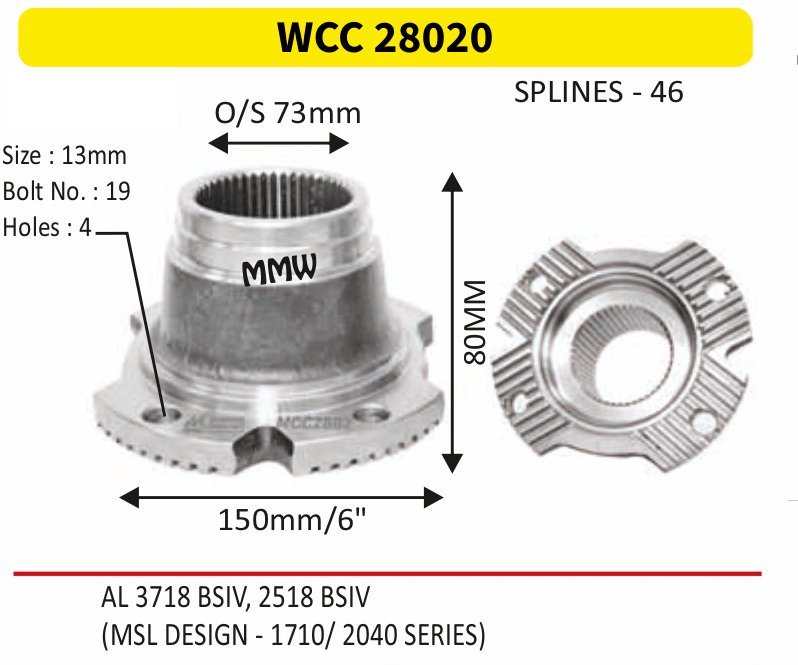

WCC 28020	46	80 MM		4	19	73MM		AL3718 BSIV, 2518 BSIV, (MSL DESIGN-1710/2040 SERIES)	83
WCC 33020	30	118 MM		4	22	75MM	SERRATED	TATA 1318 LPK, 3718, 3723, 2523 LPK	79

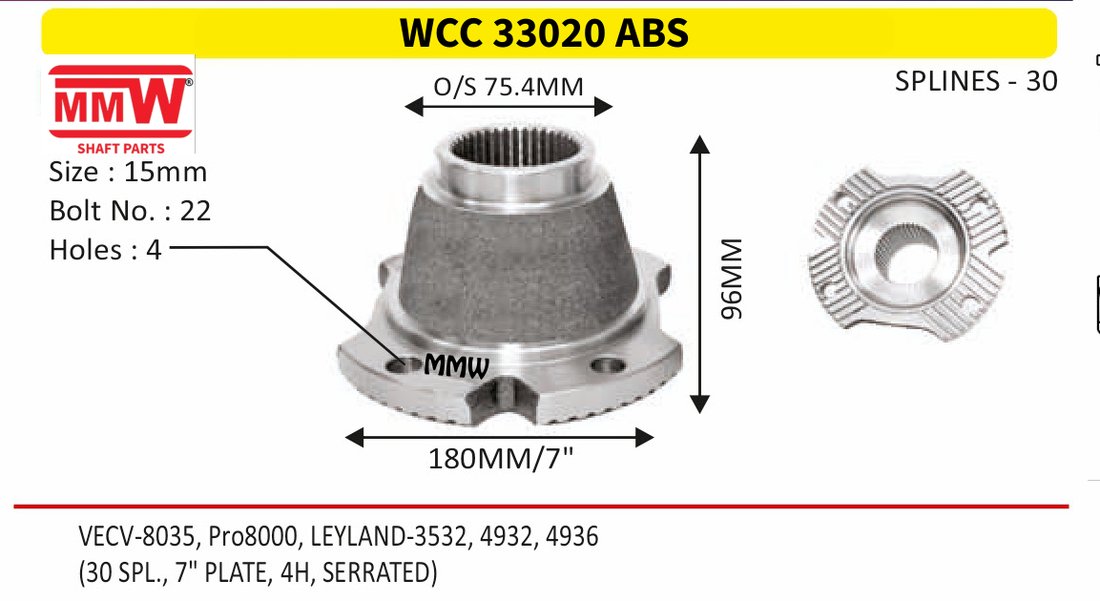

WCC 33020 ABS	30	96 MM		4	22	75.4MM	SERRATED	VECV-8035, Pr08000, LEYLAND-3532, 4932, 4936	79

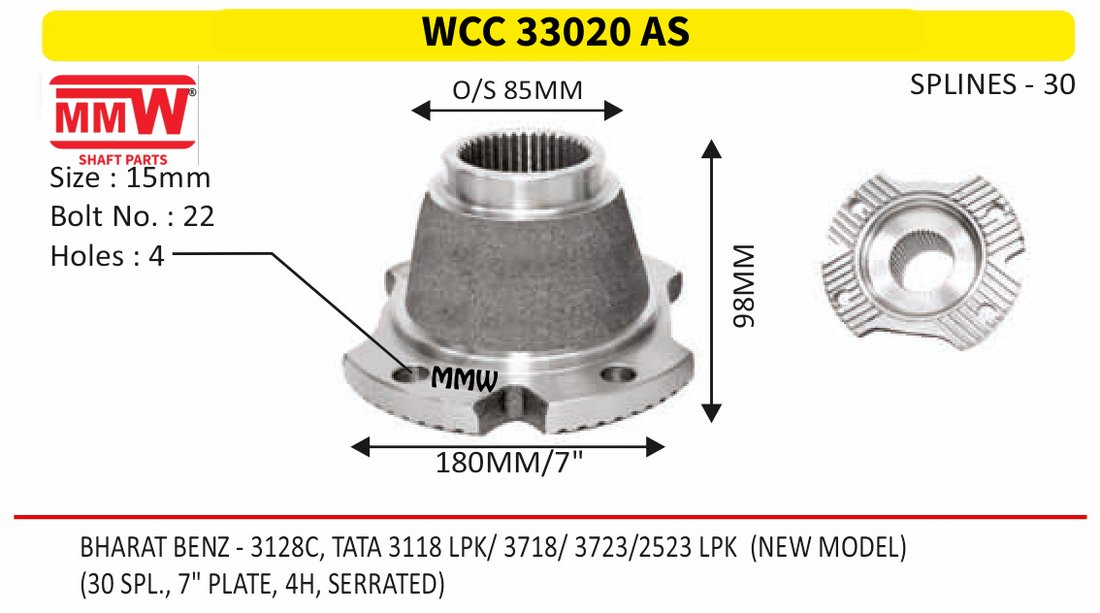

WCC 33020 AS	30	98 MM		4	22	85MM	SERRATED	BHARAT BENZ - 3128C, TATA 3118 LPK/ 3718/ 3723/2523 LPK (NEW MODEL)	79
WCC 33020 S		75 MM		4	22			TATA-SIGNA 4323.T, LPT 3718, LPT 4123, LPT 4325	119
WCC 33030 BS		93 MM		4	22			TATA-SIGNA 4323.T, LPT 3718, LPT 4123, LPT 4325	119

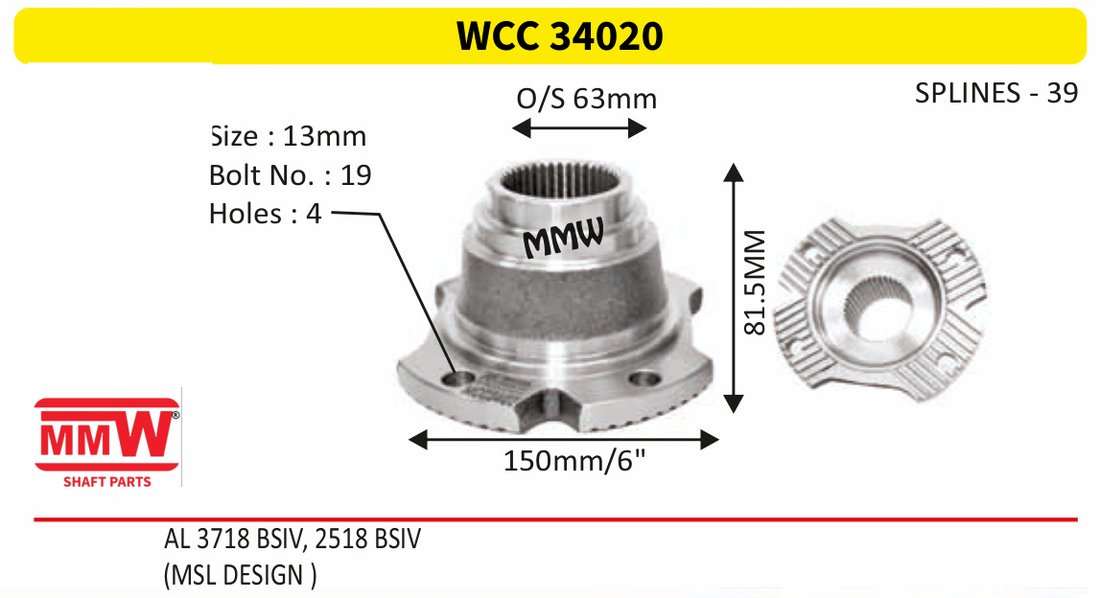

WCC 34020	39	81.5 MM		4	19	63MM		AL3718 BSIV, 2518 BSIV, (MSL DESIGN)	83

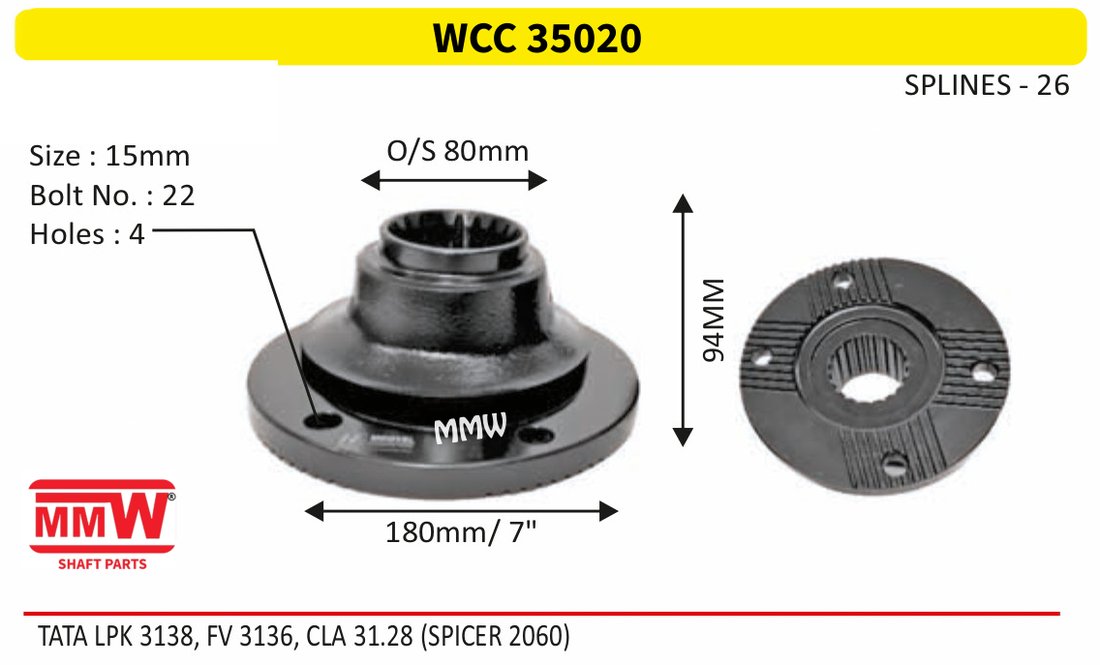

WCC 35020	26	94 MM		4	22	80MM		TATA LPK 3138, FV3136, CLA 31.28(SPICER 2060)	83
WCC 602	10	75 MM		4	21	70MM	SQUARE BASE	LEYLAND TUSKER, 37O, BEDFORDJ 4, VIKING	85
WCC 6020	10	75 MM		4	21	70MM	SQUARE BASE	LEYLAND TUSKER, 370, BEDFORD J4, VIKING	85

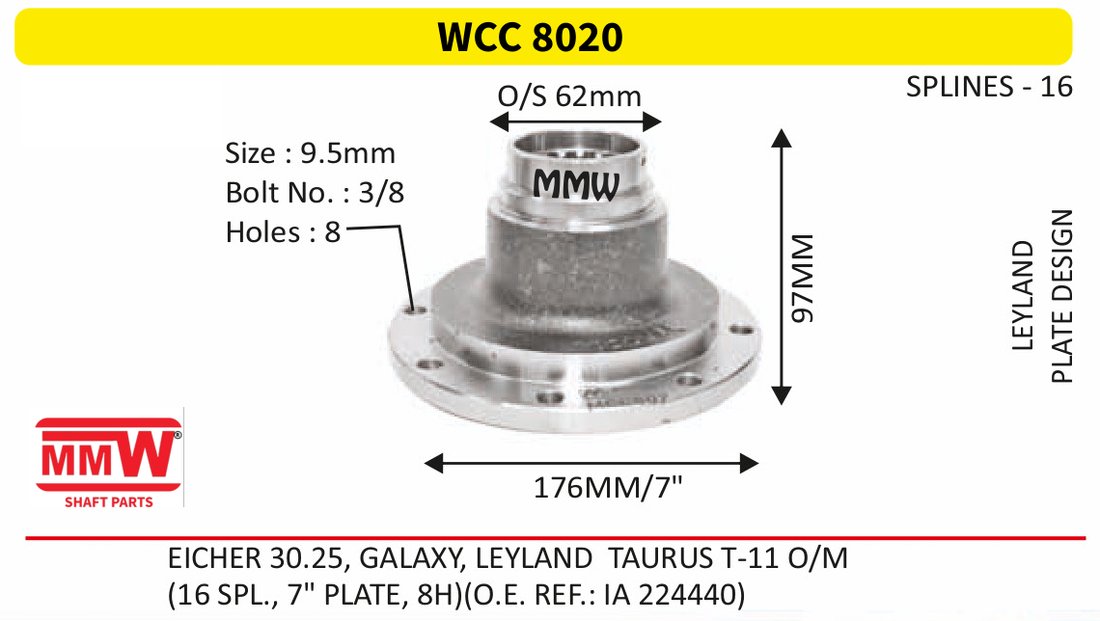

WCC 8020	16	97 MM		8	3	62MM		LEYLAND, EICHER 30.25, GALAXY, LEYLAND TAURUST-11O/M	84

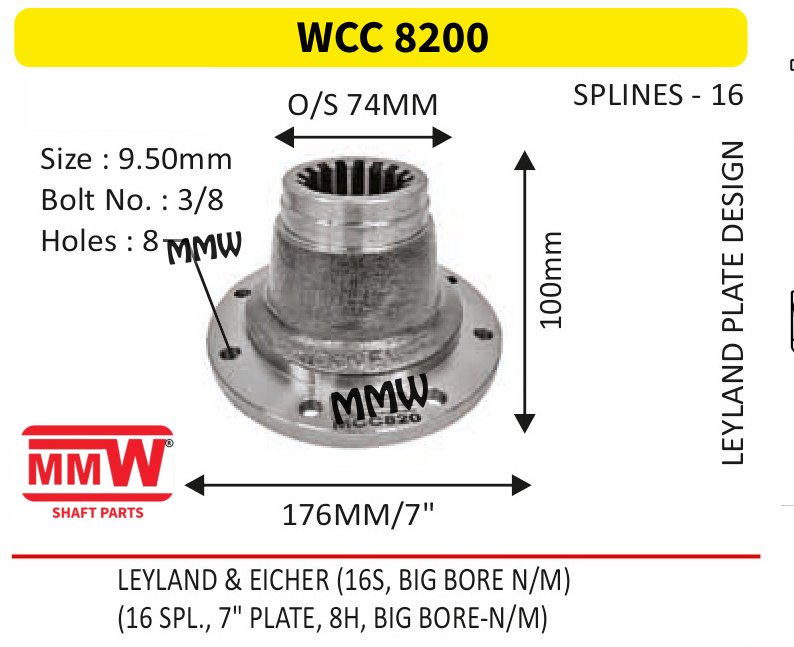

WCC 8200	16	100mm		8	3	74MM		LEYLAND PLATE DESIGN, LEYLAND & EICHER (16S, BIG BORE N/M)	81

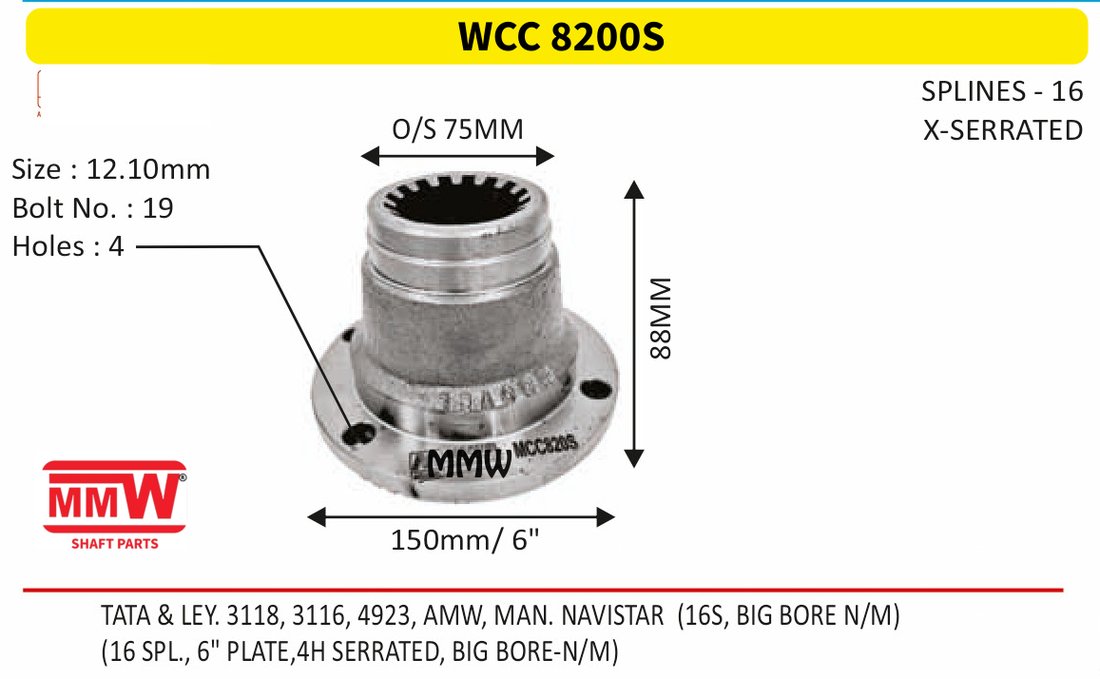

WCC 8200S	16	88 MM		4	19	75MM	SERRATED	TATA & LEY. 3118, 3116, 4923, AMW, MAN. NAVISTAR (16S, BIG BORE N/M)	81

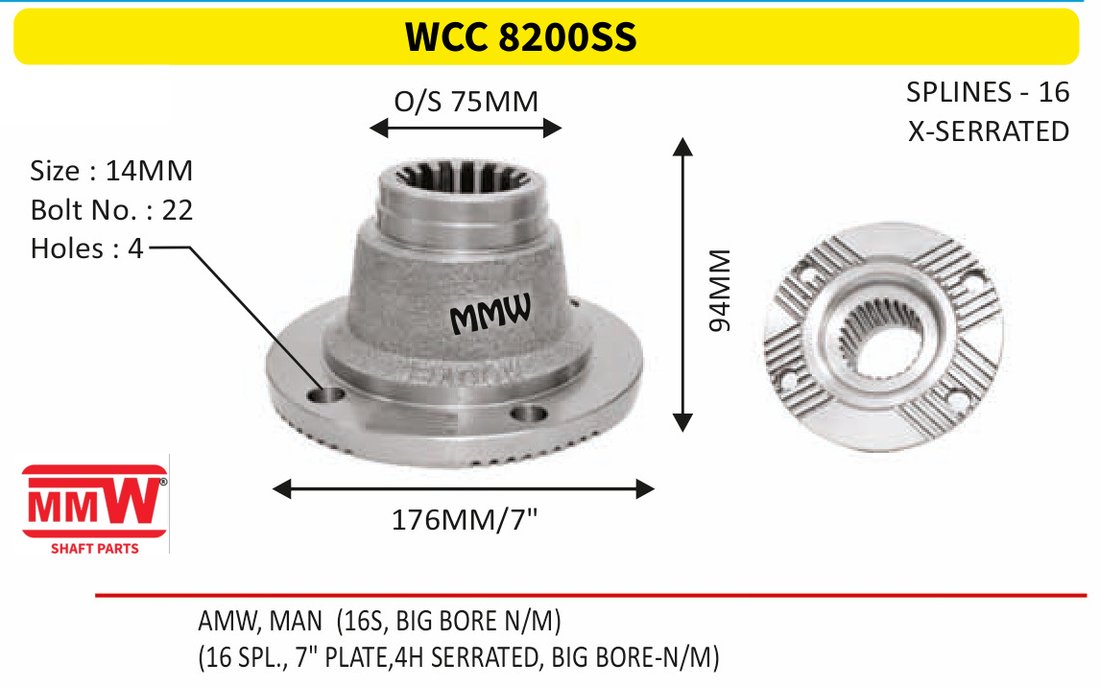

WCC 8200SS	16	94 MM		4	22	75MM	SERRATED	AMW, MAN (16S, BIG BORE N/M)	81

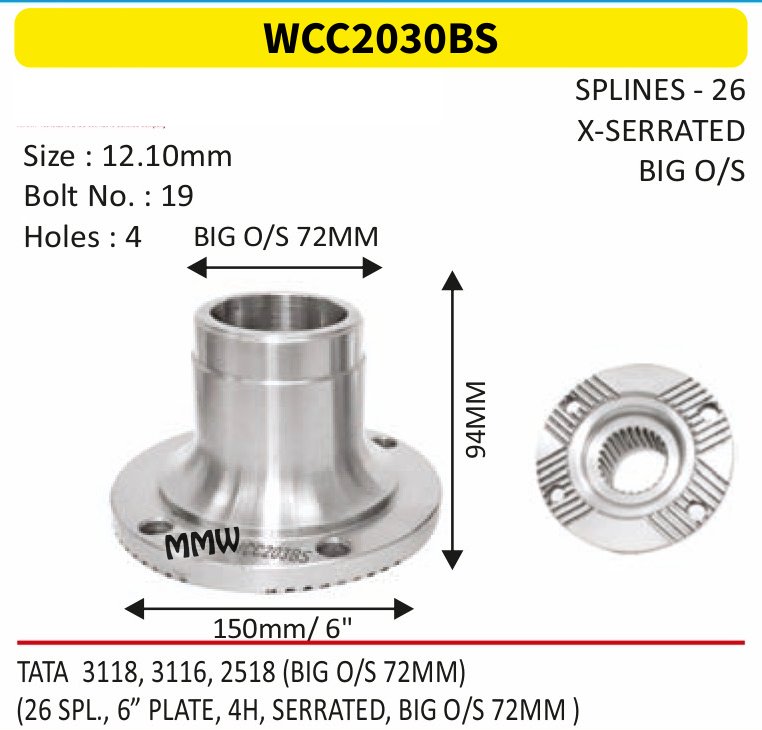

WCC2030BS	26	94 MM		4	19	72MM	SERRATED	TATA 3118, 3116, 2518 (BIG O/S 72MM)	77
WCC8130	10	84 MM		8	3	68MM		LEYLAND	85
